WHIRLPOOL AKG 660/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKG 660/IX |
| Kód 12NC/I.C. kód: | 853566029000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

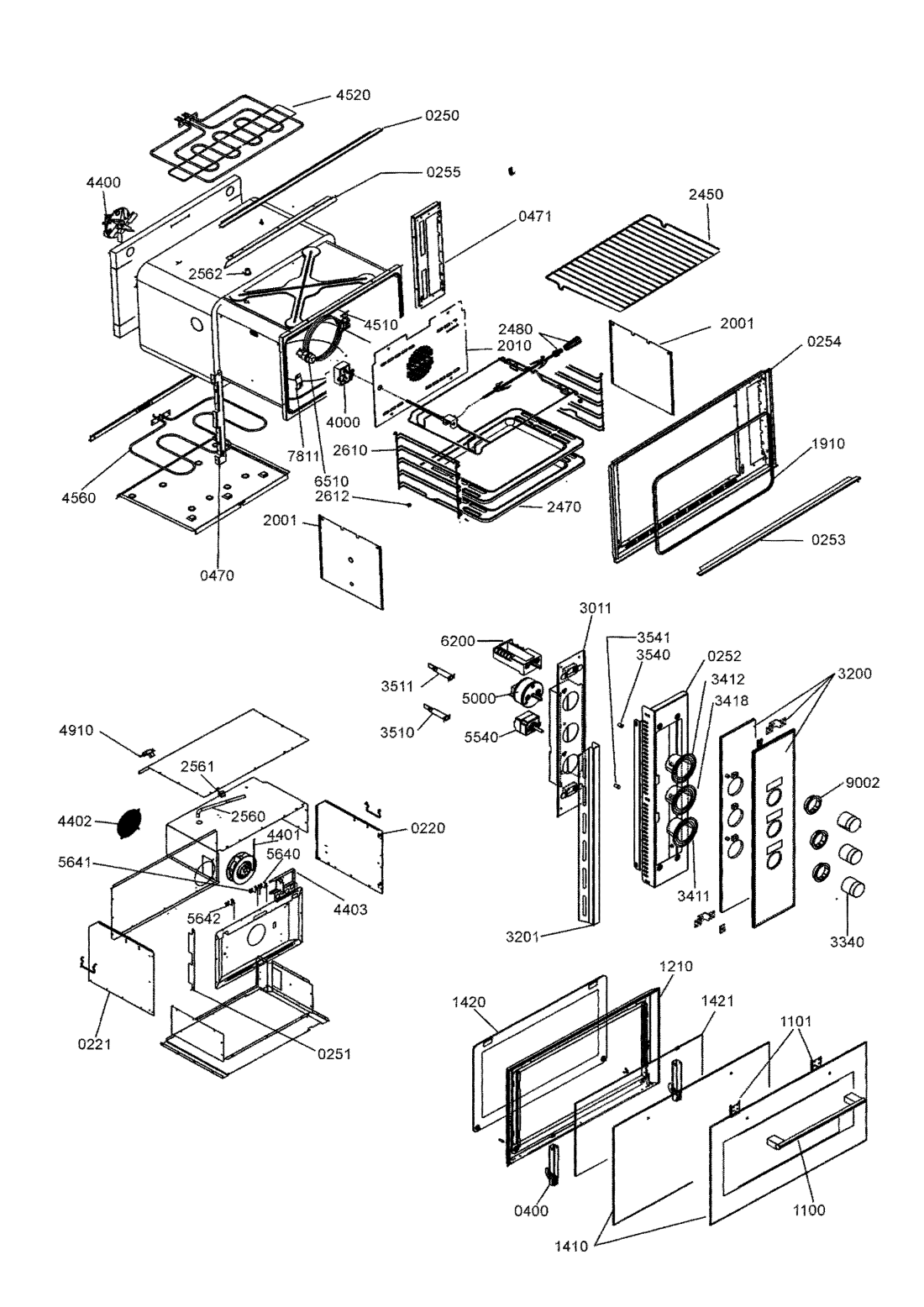

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR22748 |
C00403206
481244011683 |
Side panel ,oven right | Na dotaz | Zadat poptávku | |
| 022 1 WHR22748 |
C00403207
481244011684 |
Side panel ,oven left | Na dotaz | Zadat poptávku | |
| 025 0 WHR22748 |
C00330442
481246098115 |
Trim upper | Na dotaz | Zadat poptávku | |
| 025 1 WHR22748 |
C00404695
481246079225 |
Frame ,left | Na dotaz | Zadat poptávku | |
| 025 2 WHR22748 |
C00404146
481245350349 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 025 3 WHR22748 |
C00404696
481246079226 |
Frame ,lower oven | Na dotaz | Zadat poptávku | |
| 025 4 WHR22748 |
C00404697
481246079227 |
Frame ,front cavity | Na dotaz | Zadat poptávku | |
| 025 5 WHR22748 |
C00404721
481246098116 |
Trim ,covering | Na dotaz | Zadat poptávku | |
| 040 0 WHR22748 |
C00314475
481241719475 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 047 0 WHR22748 |
C00402785
481241758402 |
Hinge support left | Na dotaz | Zadat poptávku | |
| 047 1 WHR22748 |
C00329795
481241758403 |
Hinge support right | Na dotaz | Zadat poptávku | |
| 110 0 WHR22748 |
C00404899
481246269006 |
Handle ,st steel WP giove | Na dotaz | Zadat poptávku | |
| 110 1 WHR22748 |
C00329130
481240449831 |
Support handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR22748 |
C00404975
481246418251 |
Frame ,inner door 948 06 black | Na dotaz | Zadat poptávku | |
| 141 0 WHR22748 |
C00401213
481231039191 |
Door ,complete | Na dotaz | Zadat poptávku | |
| 142 0 WHR22748 |
C00403886
481245168067 |
Door glass ,inner | Na dotaz | Zadat poptávku | |
| 142 1 WHR22748 |
C00331255
481245168068 |
Glass door medium | Na dotaz | Zadat poptávku | |
| 191 0 WHR22748 |
C00319993
481246688997 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 200 1 WHR22748 |
C00403942
481245240142 |
Side panel ,self cleaning 948-960 | Na dotaz | Zadat poptávku | |
| 201 0 WHR22748 |
C00403716
481244528081 |
Cover ,oven fan self cleaning | Na dotaz | Zadat poptávku | |
| 245 0 WHR22748 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 247 0 WHR22748 |
C00327786
481241838077 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 248 0 WHR22748 |
C00320255
481253578062 |
gril otocny | Na dotaz | Zadat poptávku | |
| 256 0 WHR22748 |
C00403713
481244528074 |
Chimney ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 256 1 WHR22748 |
C00402064
481240449832 |
Support ,tube exchausting smokes | Na dotaz | Zadat poptávku | |
| 256 2 WHR22748 |
C00403714
481244528075 |
Chimney | Na dotaz | Zadat poptávku | |
| 261 0 WHR22748 |
C00330645
481246238122 |
Guide shelf | Na dotaz | Zadat poptávku | |
| 261 2 WHR22748 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 301 1 WHR22748 |
C00402182
481240478911 |
Support ,control panel | Na dotaz | Zadat poptávku | |
| 320 0 WHR22748 |
C00404062
481245310408 |
Control panel ,complete | Na dotaz | Zadat poptávku | |
| 320 1 WHR22748 |
C00404809
481246228931 |
Cover ,control panel | Na dotaz | Zadat poptávku | |
| 334 0 WHR22748 |
C00329364
481241128948 |
Knoflík | Na dotaz | Zadat poptávku | |
| 341 1 WHR22748 |
C00329518
481241378665 |
Collar thermostat | Na dotaz | Zadat poptávku | |
| 341 2 WHR22748 |
C00329516
481241378663 |
Collar oven selector | Na dotaz | Zadat poptávku | |
| 341 8 WHR22748 |
C00329517
481241378664 |
Collar end cooking | Na dotaz | Zadat poptávku | |
| 351 0 WHR22748 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 351 1 WHR22748 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 354 0 WHR22748 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 354 1 WHR22748 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 400 0 WHR22748 |
C00328827
481236158359 |
Motor spit | Na dotaz | Zadat poptávku | |
| 440 0 WHR22748 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 440 1 WHR22748 |
C00328816
481236118623 |
Fan wheel fan | Na dotaz | Zadat poptávku | |
| 440 2 WHR22748 |
C00328831
481236158396 |
Cover fan motor | Na dotaz | Zadat poptávku | |
| 440 3 WHR22748 |
C00401886
481240418602 |
Support ,fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR22748 |
C00327155
481225928839 |
Heating element circular 2500W | Na dotaz | Zadat poptávku | |
| 452 0 WHR22748 |
C00316996
481225928948 |
topeni trouby universální 1050W/2250W 365x540 | Na dotaz | Zadat poptávku | |
| 456 0 WHR22748 |
C00327156
481225928841 |
Heating element lower 1550W | Na dotaz | Zadat poptávku | |
| 491 0 WHR22748 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 500 0 WHR22748 |
C00327534
481228219708 |
Časovač | Na dotaz | Zadat poptávku | |
| 554 0 WHR22748 |
C00327558
481228238248 |
Thermostat | Na dotaz | Zadat poptávku | |
| 564 0 WHR22748 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 564 1 WHR22748 |
C00319446
481228248286 |
termostat | Na dotaz | Zadat poptávku | |
| 564 2 WHR22748 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 620 0 WHR22748 |
C00327278
481227618383 |
Switch selector | Na dotaz | Zadat poptávku | |
| 651 0 WHR22748 |
C00327133
481225518311 |
Lamp oven 25 W | Na dotaz | Zadat poptávku | |
| 781 1 WHR22748 |
C00331102
481244528076 |
Deflector | Na dotaz | Zadat poptávku | |
| 900 2 WHR22748 |
C00329365
481241128949 |
Flange for knob | Na dotaz | Zadat poptávku | |
