| Komerční kód: | AKL 530 WH I |
| Kód 12NC/I.C. kód: | 854153001220 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 854153001221 |
Potřebujete servis? Jsme tady pro Vás

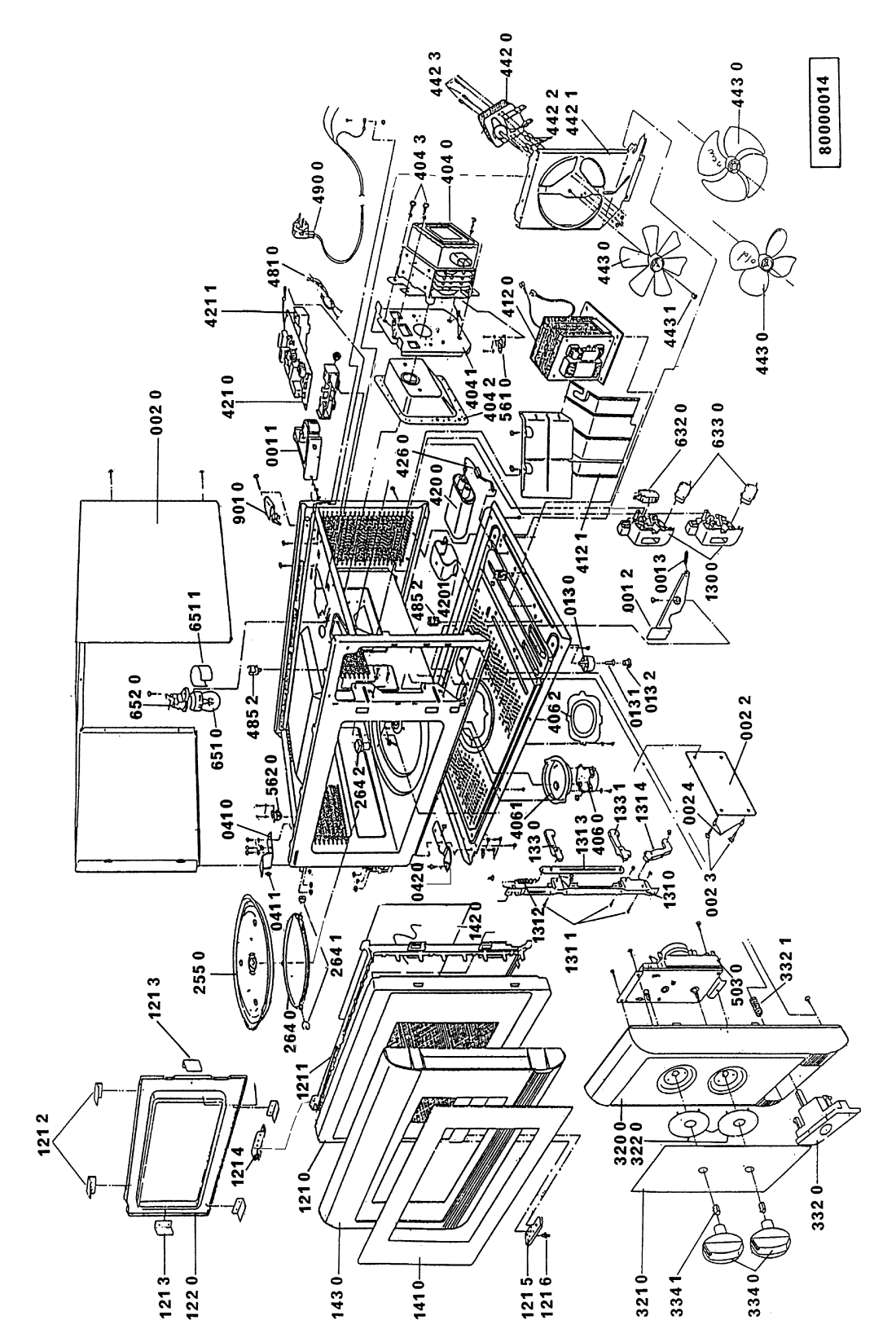

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR96204 |
C00586383
481990200031 |
Bracket | Na dotaz | Zadat poptávku | |
| 001 2 WHR96204 |
C00586379
481990200016 |
Lever. | Na dotaz | Zadat poptávku | |
| 001 3 WHR96204 |
C00586381
481990200025 |
Spring,tension. | Na dotaz | Zadat poptávku | |
| 002 0 WHR96204 |
C00743667
481990200001 |
Lid | Na dotaz | Zadat poptávku | |
| 002 2 WHR96204 |
C00556378
481990200082 |
NAHRADENE 481990200568 N | Na dotaz | Zadat poptávku | |
| 002 3 WHR96204 |
C00586386
481990200049 |
kolik | Na dotaz | Zadat poptávku | |
| 002 4 WHR96204 |
C00556373
481990200051 |
NIT N | Na dotaz | Zadat poptávku | |
| 013 0 WHR96204 |
C00743668
481990200054 |
Foot | Na dotaz | Zadat poptávku | |
| 013 1 WHR96204 |
C00586388
481990200055 |
kolik nohy | Na dotaz | Zadat poptávku | |
| 013 2 WHR96204 |
C00586389
481990200056 |
KRYTKA NOZKY PLAST N | Na dotaz | Zadat poptávku | |
| 041 0 WHR96204 |
C00586376
481990200007 |
Z?VES DVER? HORNŚ N | Na dotaz | Zadat poptávku | |
| 041 1 WHR96204 |
C00749964
481990200009 |
Pin | Na dotaz | Zadat poptávku | |
| 042 0 WHR96204 |
C00586377
481990200008 |
Hinge lower. | Na dotaz | Zadat poptávku | |
| 121 0 WHR96204 |
C00749926
481990200005 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR96204 |
C00749927
481990200032 |
Trim door inner | Na dotaz | Zadat poptávku | |
| 121 2 WHR96204 |
C00749928
481990200023 |
Support | Na dotaz | Zadat poptávku | |
| 121 3 WHR96204 |
C00749929
481990200024 |
Support | Na dotaz | Zadat poptávku | |
| 121 4 WHR96204 |
C00743669
481990200002 |
Plate | Na dotaz | Zadat poptávku | |
| 121 5 WHR96204 |
C00749925
481990200027 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 121 6 WHR96204 |
C00749966
481990200026 |
Pivot | Na dotaz | Zadat poptávku | |
| 122 0 WHR96204 |
C00749933
481990200006 |
Plate | Na dotaz | Zadat poptávku | |
| 130 0 WHR96204 |
C00743823
481990200043 |
Support | Na dotaz | Zadat poptávku | |
| 131 0 WHR96204 |
C00749935
481990200012 |
Support | Na dotaz | Zadat poptávku | |
| 131 1 WHR96204 |
C00492730
481990200013 |
NIT N | Na dotaz | Zadat poptávku | |
| 131 2 WHR96204 |
C00586378
481990200014 |
pruzina | Na dotaz | Zadat poptávku | |
| 131 3 WHR96204 |
C00749936
481990200015 |
SPOJKA | Na dotaz | Zadat poptávku | |
| 131 4 WHR96204 |
C00492731
481990200037 |
NIT N | Na dotaz | Zadat poptávku | |
| 133 0 WHR96204 |
C00490842
481990200035 |
Z?MOK PLAST N | Na dotaz | Zadat poptávku | |
| 133 1 WHR96204 |
C00556371
481990200036 |
Z?MOK KOV. N | Na dotaz | Zadat poptávku | |
| 141 0 WHR96204 |
C00743670
481990200033 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 142 0 WHR96204 |
C00586384
481990200034 |
SKLO DVER? VN?TORN? AKL530 N | Na dotaz | Zadat poptávku | |
| 143 0 WHR96204 |
C00750152
481990200053 |
ram dveri vnejsi | Na dotaz | Zadat poptávku | |
| 255 0 WHR96204 |
C00743671
481990200081 |
Turntable | Na dotaz | Zadat poptávku | |
| 264 0 WHR96204 |
C00743672
481990200038 |
Ring | Na dotaz | Zadat poptávku | |
| 264 1 WHR96204 |
C00556372
481990200042 |
NAHRADENE 481990200653 N | Na dotaz | Zadat poptávku | |
| 264 2 WHR96204 |
C00743673
481990200039 |
Shaft | Na dotaz | Zadat poptávku | |
| 320 0 WHR96204 |
C00743674
481990200041 |
Cover | Na dotaz | Zadat poptávku | |
| 321 0 WHR96204 |
C00743675
481990200061 |
Panel AKL 530 | Na dotaz | Zadat poptávku | |
| 322 0 WHR96204 |
C00486906
481990200059 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 332 0 WHR96204 |
C00494899
481990200057 |
tlacitko otv.dveri | Na dotaz | Zadat poptávku | |
| 332 1 WHR96204 |
C00749942
481990200011 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR96204 |
C00587921
481990200062 |
NASTAVOVAC? GOMB?K AKL560 plast N | Na dotaz | Zadat poptávku | |
| 334 1 WHR96204 |
C00556370
481990200028 |
NAHRADENE 481990200619 N | Na dotaz | Zadat poptávku | |
| 404 0 WHR96204 |
C00556374
481990200063 |
NAHRADENE 481990200843 N | Na dotaz | Zadat poptávku | |
| 404 1 WHR96204 |
C00749945
481990200021 |
Support | Na dotaz | Zadat poptávku | |
| 404 2 WHR96204 |
C00749946
481990200004 |
Guide | Na dotaz | Zadat poptávku | |
| 404 3 WHR96204 |
C00743676
481990200084 |
Screw | Na dotaz | Zadat poptávku | |
| 406 0 WHR96204 |
C00556375
481990200067 |
NAHRADENE 481990200695 ND | Na dotaz | Zadat poptávku | |
| 406 1 WHR96204 |
C00743677
481990200022 |
Cover | Na dotaz | Zadat poptávku | |
| 406 2 WHR96204 |
C00586375
481990200003 |
Cover plate TT motor. | Na dotaz | Zadat poptávku | |
| 412 0 WHR96204 |
C00749980
481990200064 |
Transformer,HT | Na dotaz | Zadat poptávku | |
| 412 1 WHR96204 |
C00586382
481990200029 |
Air guide. | Na dotaz | Zadat poptávku | |
| 420 0 WHR96204 |
C00592448
481990200065 |
kondenzator VN 0.95 | Na dotaz | Zadat poptávku | |
| 420 1 WHR96204 |
C00743678
481990200017 |
Support | Na dotaz | Zadat poptávku | |
| 421 0 WHR96204 |
C00586391
481990200075 |
Deska filtru | Na dotaz | Zadat poptávku | |
| 421 1 WHR96204 |
C00586390
481990200058 |
DRYIAK AKL N | Na dotaz | Zadat poptávku | |
| 426 0 WHR96204 |
C00743679
481990200066 |
Diode | Na dotaz | Zadat poptávku | |
| 442 0 WHR96204 |
C00743680
481990200068 |
Motor fan | Na dotaz | Zadat poptávku | |
| 442 1 WHR96204 |
C00743681
481990200018 |
Support | Na dotaz | Zadat poptávku | |
| 442 2 WHR96204 |
C00586387
481990200052 |
PÚZDRO | Na dotaz | Zadat poptávku | |
| 442 3 WHR96204 |
C00586380
481990200019 |
Screw. | Na dotaz | Zadat poptávku | |
| 443 0 WHR96204 |
C00636287
481990200044 |
vrtule ventilator-vyřazeno | Na dotaz | Zadat poptávku | |
| 443 0 WHR96204 |
C00743682
481990200045 |
Fan wheel (old four blade) | Na dotaz | Zadat poptávku | |
| 443 0 WHR96204 |
C00743683
481990200046 |
Fan wheel (new 4 blade) | Na dotaz | Zadat poptávku | |
| 443 1 WHR96204 |
C00749949
481990200085 |
Ring | Na dotaz | Zadat poptávku | |
| 481 0 WHR96204 |
C00749987
481990200074 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 485 2 WHR96204 |
C00586385
481990200047 |
Clip. | Na dotaz | Zadat poptávku | |
| 490 0 WHR96204 |
C00743684
481990200076 |
Cable mains | Na dotaz | Zadat poptávku | |
| 503 0 WHR96204 |
C00556377
481990200073 |
NAHRADENE 481990200602 N | Na dotaz | Zadat poptávku | |
| 561 0 WHR96204 |
C00556376
481990200071 |
NAHRADENE 481990200164 N | Na dotaz | Zadat poptávku | |
| 562 0 WHR96204 |
C00743685
481990200069 |
TERMOSTAT AKL530 | Na dotaz | Zadat poptávku | |
| 632 0 WHR96204 |
C00749918
481990200077 |
Switch | Na dotaz | Zadat poptávku | |
| 633 0 WHR96204 |
C00749919
481990200078 |
Switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR96204 |
C00749954
481990200072 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 1 WHR96204 |
C00743686
481990200083 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR96204 |
C00586392
481990200079 |
DRYIAK LAMPY N | Na dotaz | Zadat poptávku | |
| 901 0 WHR96204 |
C00743687
481990200048 |
Cable clamp | Na dotaz | Zadat poptávku | |
