IGNIS AKL 540
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKL 540 |
| Kód 12NC: | 854154018220 |
| Značka: | IGNIS |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 854154018221 |
Potřebujete servis? Jsme tady pro Vás

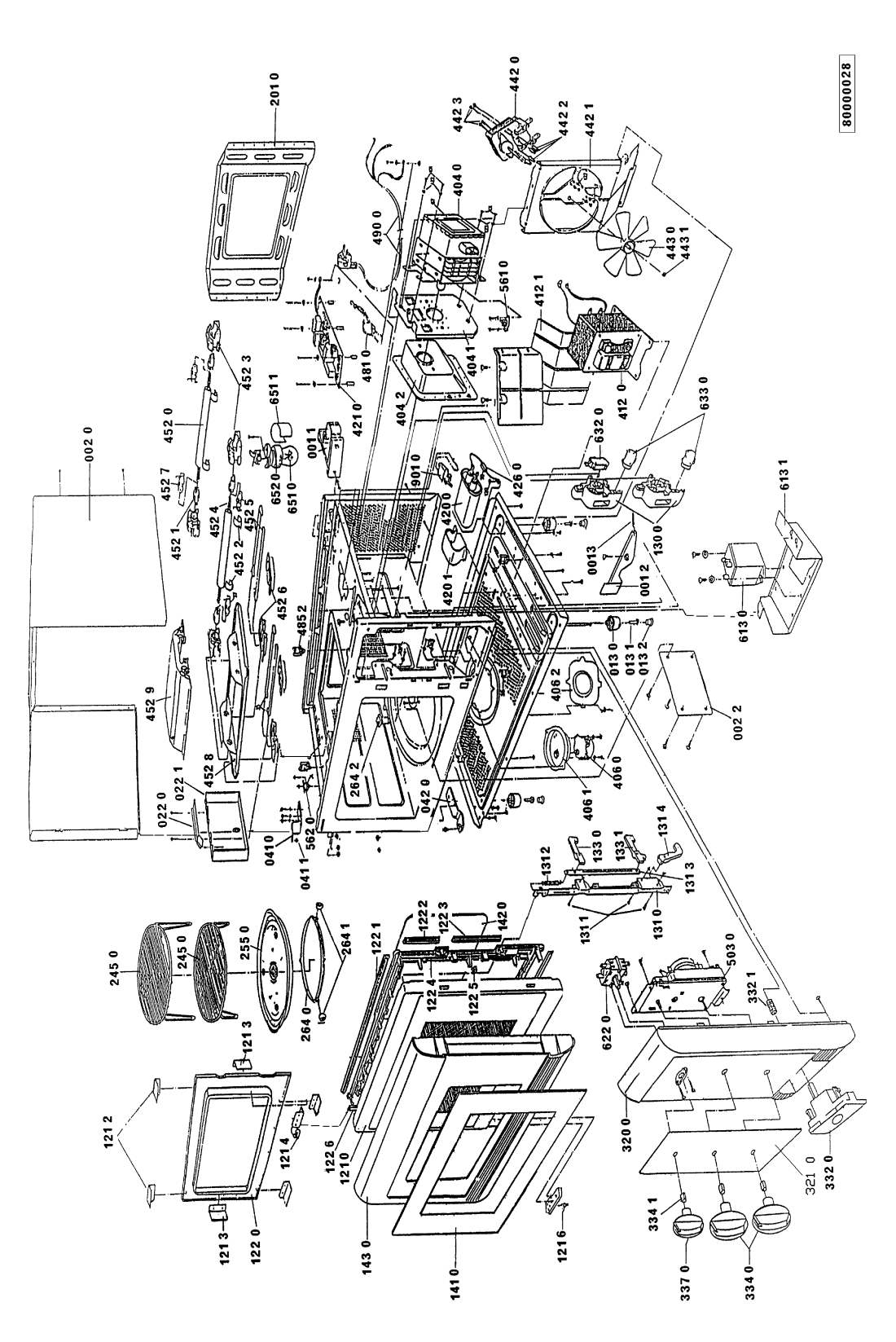

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR115892 |
C00586383
481990200031 |
Bracket | Na dotaz | Zadat poptávku | |
| 001 2 WHR115892 |
C00586379
481990200016 |
Lever. | Na dotaz | Zadat poptávku | |
| 001 3 WHR115892 |
C00586381
481990200025 |
Spring,tension. | Na dotaz | Zadat poptávku | |
| 002 0 WHR115892 |
C00743667
481990200001 |
Lid | Na dotaz | Zadat poptávku | |
| 002 2 WHR115892 |
C00556378
481990200082 |
NAHRADENE 481990200568 N | Na dotaz | Zadat poptávku | |
| 013 0 WHR115892 |
C00621604
481990200115 |
noha | 134 Kč
€ 5.90 |
||
| 013 1 WHR115892 |
C00586388
481990200055 |
kolik nohy | 67 Kč
€ 2.90 |
||
| 022 0 WHR115892 |
C00749962
481990200105 |
Plate | Na dotaz | Zadat poptávku | |
| 022 1 WHR115892 |
C00749963
481990200104 |
Cover | Na dotaz | Zadat poptávku | |
| 031 2 WHR115892 |
C00586389
481990200056 |
KRYTKA NOZKY PLAST N | Na dotaz | Zadat poptávku | |
| 041 0 WHR115892 |
C00749923
481990200091 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 041 1 WHR115892 |
C00749964
481990200009 |
Pin | Na dotaz | Zadat poptávku | |
| 042 0 WHR115892 |
C00749925
481990200027 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 121 0 WHR115892 |
C00743715
481990200089 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 2 WHR115892 |
C00749928
481990200023 |
Support | Na dotaz | Zadat poptávku | |
| 121 3 WHR115892 |
C00749929
481990200024 |
Support | Na dotaz | Zadat poptávku | |
| 121 4 WHR115892 |
C00743669
481990200002 |
Plate | Na dotaz | Zadat poptávku | |
| 121 6 WHR115892 |
C00743716
481990200092 |
Pivot | Na dotaz | Zadat poptávku | |
| 122 0 WHR115892 |
C00749933
481990200006 |
Plate | Na dotaz | Zadat poptávku | |
| 122 1 WHR115892 |
C00749967
481990200108 |
Gasket | Na dotaz | Zadat poptávku | |
| 122 2 WHR115892 |
C00749968
481990200112 |
Gasket | Na dotaz | Zadat poptávku | |
| 122 3 WHR115892 |
C00749969
481990200111 |
Gasket | Na dotaz | Zadat poptávku | |
| 122 4 WHR115892 |
C00749970
481990200106 |
Trim door | Na dotaz | Zadat poptávku | |
| 122 5 WHR115892 |
C00749971
481990200107 |
Support | Na dotaz | Zadat poptávku | |
| 122 6 WHR115892 |
C00743717
481990200109 |
Gasket ferrite | Na dotaz | Zadat poptávku | |
| 130 0 WHR115892 |
C00743823
481990200043 |
Support | Na dotaz | Zadat poptávku | |
| 131 0 WHR115892 |
C00749935
481990200012 |
Support | Na dotaz | Zadat poptávku | |
| 131 1 WHR115892 |
C00492730
481990200013 |
NIT N | Na dotaz | Zadat poptávku | |
| 131 2 WHR115892 |
C00586378
481990200014 |
pruzina | 25 Kč
€ 1.10 |
||
| 131 3 WHR115892 |
C00749936
481990200015 |
SPOJKA | 44 Kč
€ 1.90 |
||
| 131 4 WHR115892 |
C00492731
481990200037 |
NIT N | Na dotaz | Zadat poptávku | |
| 133 0 WHR115892 |
C00490842
481990200035 |
Z?MOK PLAST N | Na dotaz | Zadat poptávku | |
| 133 1 WHR115892 |
C00556371
481990200036 |
Z?MOK KOV. N | Na dotaz | Zadat poptávku | |
| 141 0 WHR115892 |
C00749974
481990200134 |
sklo dveri vnejsi | 1 621 Kč
€ 71.30 |
||
| 142 0 WHR115892 |
C00556385
481990200128 |
NAHRADENE 481990200664 N | Na dotaz | Zadat poptávku | |
| 143 0 WHR115892 |
C00592450
481990200121 |
ram dveri vnejsi | 792 Kč
€ 34.80 |
||
| 201 0 WHR115892 |
C00749975
481990200086 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 245 0 WHR115892 |
C00586395
481990200103 |
HORNY ROST plast N | Na dotaz | Zadat poptávku | |
| 245 0 WHR115892 |
C00749976
481990200102 |
Grid lower | Na dotaz | Zadat poptávku | |
| 255 0 WHR115892 |
C00743718
481990200135 |
Turntable | Na dotaz | Zadat poptávku | |
| 264 0 WHR115892 |
C00743719
481990200113 |
Ring | Na dotaz | Zadat poptávku | |
| 264 1 WHR115892 |
C00556372
481990200042 |
NAHRADENE 481990200653 N | Na dotaz | Zadat poptávku | |
| 264 2 WHR115892 |
C00556380
481990200114 |
kolik unaseci 4hran. | 178 Kč
€ 7.80 |
||
| 320 0 WHR115892 |
C00592449
481990200116 |
OVLÁDACÍ PANEL | 573 Kč
€ 25.20 |
||
| 321 0 WHR115892 |
C00636289
481990200286 |
Insert MCI 2819. | Na dotaz | Zadat poptávku | |
| 332 0 WHR115892 |
C00556381
481990200117 |
tlacitko otv.dveri | 372 Kč
€ 16.40 |
||
| 332 1 WHR115892 |
C00749942
481990200011 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR115892 |
C00556382
481990200119 |
NAHRADENE 481990200062 N | Na dotaz | Zadat poptávku | |
| 334 1 WHR115892 |
C00556379
481990200095 |
nahradene 481990200619 N | Na dotaz | Zadat poptávku | |
| 337 0 WHR115892 |
C00636607
481990200118 |
NAHRADENE 481990200158 N | Na dotaz | Zadat poptávku | |
| 404 0 WHR115892 |
C00556374
481990200063 |
NAHRADENE 481990200843 N | Na dotaz | Zadat poptávku | |
| 404 1 WHR115892 |
C00749945
481990200021 |
Support | Na dotaz | Zadat poptávku | |
| 404 2 WHR115892 |
C00749978
481990200088 |
Guide | Na dotaz | Zadat poptávku | |
| 406 0 WHR115892 |
C00749979
481990200123 |
Motor | Na dotaz | Zadat poptávku | |
| 406 1 WHR115892 |
C00743677
481990200022 |
Cover | Na dotaz | Zadat poptávku | |
| 406 2 WHR115892 |
C00743720
481990200087 |
Cover | Na dotaz | Zadat poptávku | |
| 412 0 WHR115892 |
C00749980
481990200064 |
Transformer,HT | Na dotaz | Zadat poptávku | |
| 412 1 WHR115892 |
C00586382
481990200029 |
Air guide. | Na dotaz | Zadat poptávku | |
| 420 0 WHR115892 |
C00592448
481990200065 |
kondenzator VN 0.95 | Na dotaz | Zadat poptávku | |
| 420 1 WHR115892 |
C00743678
481990200017 |
Support | Na dotaz | Zadat poptávku | |
| 421 0 WHR115892 |
C00556384
481990200126 |
NAHRADENE 481990200075 N | Na dotaz | Zadat poptávku | |
| 426 0 WHR115892 |
C00556383
481990200122 |
DIODA N | Na dotaz | Zadat poptávku | |
| 442 0 WHR115892 |
C00743721
481990200124 |
Motor fan | Na dotaz | Zadat poptávku | |
| 442 1 WHR115892 |
C00743722
481990200093 |
Support | Na dotaz | Zadat poptávku | |
| 442 2 WHR115892 |
C00586387
481990200052 |
PÚZDRO | 189 Kč
€ 8.30 |
||
| 442 3 WHR115892 |
C00586380
481990200019 |
Screw. | Na dotaz | Zadat poptávku | |
| 443 0 WHR115892 |
C00636287
481990200044 |
vrtule ventilator-vyřazeno | Na dotaz | Zadat poptávku | |
| 443 1 WHR115892 |
C00749949
481990200085 |
Ring | Na dotaz | Zadat poptávku | |
| 452 0 WHR115892 |
C00556388
481990200132 |
NAHRADENE 481990200267 N | Na dotaz | Zadat poptávku | |
| 452 1 WHR115892 |
C00556386
481990200129 |
DRYIAK AKL540 N | Na dotaz | Zadat poptávku | |
| 452 2 WHR115892 |
C00749982
481990200136 |
Insulator | Na dotaz | Zadat poptávku | |
| 452 3 WHR115892 |
C00556387
481990200131 |
drzak grilu | Na dotaz | Zadat poptávku | |
| 452 4 WHR115892 |
C00586396
481990200133 |
grilovaci teleso | Na dotaz | Zadat poptávku | |
| 452 5 WHR115892 |
C00743723
481990200096 |
Rod | Na dotaz | Zadat poptávku | |
| 452 6 WHR115892 |
C00749984
481990200097 |
Support | Na dotaz | Zadat poptávku | |
| 452 7 WHR115892 |
C00586394
481990200098 |
SPOJOVACÍ KUS | 67 Kč
€ 2.90 |
||
| 481 0 WHR115892 |
C00749987
481990200074 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 485 2 WHR115892 |
C00586385
481990200047 |
Clip. | Na dotaz | Zadat poptávku | |
| 490 0 WHR115892 |
C00743684
481990200076 |
Cable mains | Na dotaz | Zadat poptávku | |
| 503 0 WHR115892 |
C00556377
481990200073 |
NAHRADENE 481990200602 N | Na dotaz | Zadat poptávku | |
| 561 0 WHR115892 |
C00556376
481990200071 |
NAHRADENE 481990200164 N | Na dotaz | Zadat poptávku | |
| 562 0 WHR115892 |
C00743726
481990200163 |
TERMOSTAT | 752 Kč
€ 33.10 |
||
| 613 0 WHR115892 |
C00749988
481990200125 |
rele kombinovane | 1 928 Kč
€ 84.70 |
||
| 613 1 WHR115892 |
C00586393
481990200094 |
Support. | Na dotaz | Zadat poptávku | |
| 622 0 WHR115892 |
C00482165
481990200127 |
spinac sedmipolohovy | 538 Kč
€ 23.60 |
||
| 632 0 WHR115892 |
C00749918
481990200077 |
Switch | Na dotaz | Zadat poptávku | |
| 633 0 WHR115892 |
C00749919
481990200078 |
Switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR115892 |
C00749954
481990200072 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 1 WHR115892 |
C00743686
481990200083 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR115892 |
C00586392
481990200079 |
DRYIAK LAMPY N | Na dotaz | Zadat poptávku | |
| 901 0 WHR115892 |
C00743687
481990200048 |
Cable clamp | Na dotaz | Zadat poptávku | |
