IGNIS AKL 560 WH I MICROWAVE OVENS COUNT IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKL 560 WH I MICROWAVE OVENS COUNT IG |
| Kód 12NC/I.C. kód: | 854156001220 |
| Značka: | IGNIS |
| Typ produktu: | Mikrovlnné trouby |
| Další podobné modely: | 854156018221, 854156001221, 854156010221, 854156018220, 854156010220 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

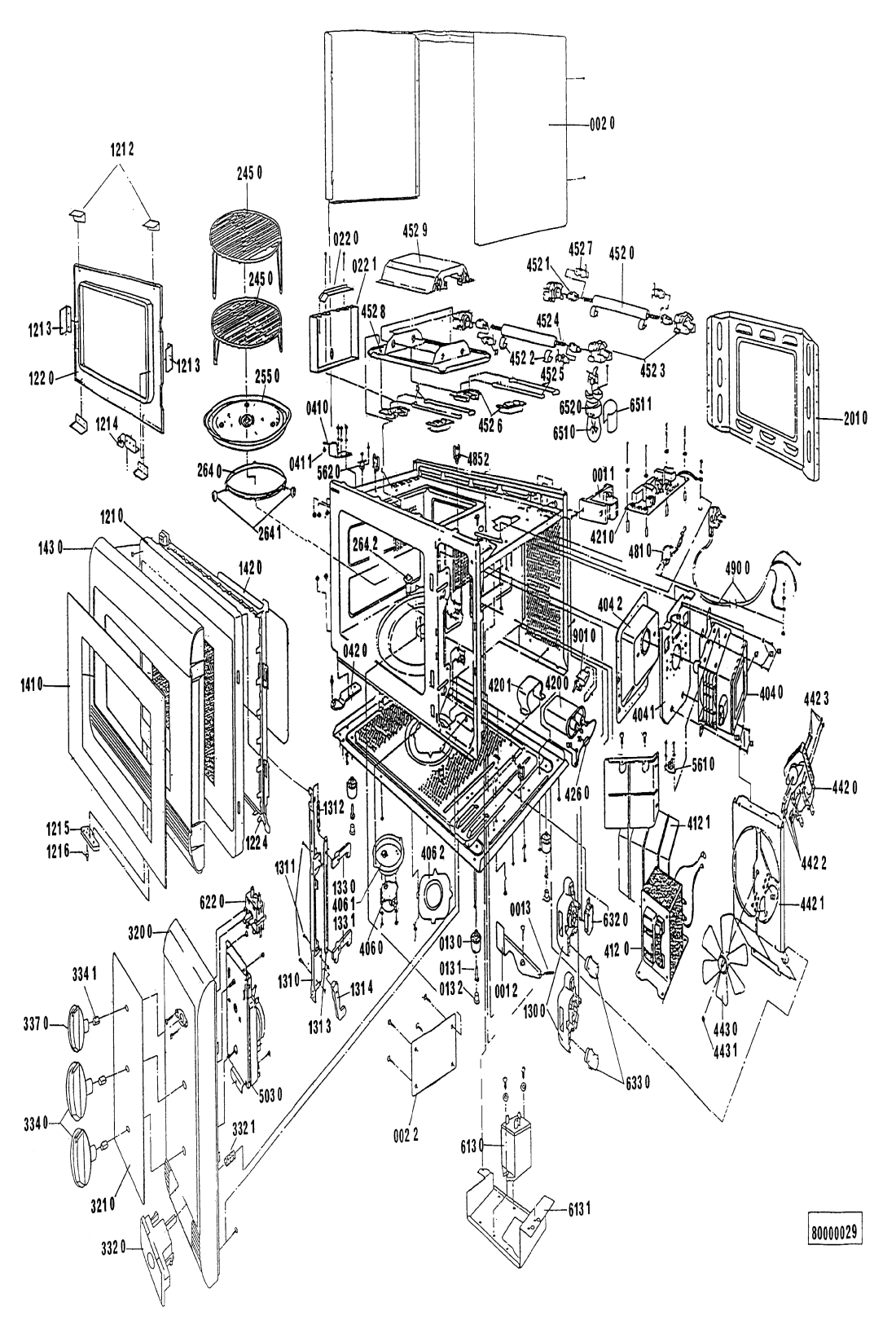

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 1 WHR93731 |
C00586383
481990200031 |
Bracket | Na dotaz | Zadat poptávku | |
| 001 2 WHR93731 |
C00586379
481990200016 |
Lever. | Na dotaz | Zadat poptávku | |
| 001 3 WHR93731 |
C00586381
481990200025 |
Spring,tension. | Na dotaz | Zadat poptávku | |
| 002 0 WHR93731 |
C00743734
481990200137 |
Lid | Na dotaz | Zadat poptávku | |
| 002 2 WHR93731 |
C00556378
481990200082 |
NAHRADENE 481990200568 N | Na dotaz | Zadat poptávku | |
| 013 0 WHR93731 |
C00621604
481990200115 |
noha | Na dotaz | Zadat poptávku | |
| 013 1 WHR93731 |
C00586388
481990200055 |
kolik nohy | Na dotaz | Zadat poptávku | |
| 022 0 WHR93731 |
C00749962
481990200105 |
Plate | Na dotaz | Zadat poptávku | |
| 022 1 WHR93731 |
C00749963
481990200104 |
Cover | Na dotaz | Zadat poptávku | |
| 031 2 WHR93731 |
C00586389
481990200056 |
KRYTKA NOZKY PLAST N | Na dotaz | Zadat poptávku | |
| 041 0 WHR93731 |
C00586376
481990200007 |
Z?VES DVER? HORNŚ N | Na dotaz | Zadat poptávku | |
| 041 1 WHR93731 |
C00749964
481990200009 |
Pin | Na dotaz | Zadat poptávku | |
| 042 0 WHR93731 |
C00586377
481990200008 |
Hinge lower. | Na dotaz | Zadat poptávku | |
| 121 0 WHR93731 |
C00743735
481990200141 |
Door inner | Na dotaz | Zadat poptávku | |
| 121 2 WHR93731 |
C00749928
481990200023 |
Support | Na dotaz | Zadat poptávku | |
| 121 3 WHR93731 |
C00749929
481990200024 |
Support | Na dotaz | Zadat poptávku | |
| 121 4 WHR93731 |
C00743736
481990200148 |
Plate | Na dotaz | Zadat poptávku | |
| 121 5 WHR93731 |
C00749925
481990200027 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 121 6 WHR93731 |
C00743716
481990200092 |
Pivot | Na dotaz | Zadat poptávku | |
| 122 0 WHR93731 |
C00743737
481990200142 |
Plate | Na dotaz | Zadat poptávku | |
| 122 4 WHR93731 |
C00743738
481990200154 |
Trim door | Na dotaz | Zadat poptávku | |
| 130 0 WHR93731 |
C00743823
481990200043 |
Support | Na dotaz | Zadat poptávku | |
| 131 0 WHR93731 |
C00743739
481990200143 |
Support | Na dotaz | Zadat poptávku | |
| 131 1 WHR93731 |
C00492730
481990200013 |
NIT N | Na dotaz | Zadat poptávku | |
| 131 2 WHR93731 |
C00743740
481990200144 |
pruzina dveri | Na dotaz | Zadat poptávku | |
| 131 3 WHR93731 |
C00587922
481990200145 |
Hook connector. | Na dotaz | Zadat poptávku | |
| 131 4 WHR93731 |
C00492731
481990200037 |
NIT N | Na dotaz | Zadat poptávku | |
| 133 0 WHR93731 |
C00490842
481990200035 |
Z?MOK PLAST N | Na dotaz | Zadat poptávku | |
| 133 1 WHR93731 |
C00556371
481990200036 |
Z?MOK KOV. N | Na dotaz | Zadat poptávku | |
| 141 0 WHR93731 |
C00587930
481990200169 |
sklo dveri vnejsi | Na dotaz | Zadat poptávku | |
| 142 0 WHR93731 |
C00743741
481990200165 |
Oven glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR93731 |
C00587929
481990200159 |
ram dveri vnejsi | Na dotaz | Zadat poptávku | |
| 201 0 WHR93731 |
C00743742
481990200138 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 245 0 WHR93731 |
C00587925
481990200152 |
POLICA HORNA N | Na dotaz | Zadat poptávku | |
| 245 0 WHR93731 |
C00587924
481990200151 |
POLICA SPODNA N | Na dotaz | Zadat poptávku | |
| 255 0 WHR93731 |
C00587931
481990200171 |
OTOCNY TANIER AKL560 sklo N | Na dotaz | Zadat poptávku | |
| 264 0 WHR93731 |
C00743672
481990200038 |
Ring | Na dotaz | Zadat poptávku | |
| 264 1 WHR93731 |
C00556372
481990200042 |
NAHRADENE 481990200653 N | Na dotaz | Zadat poptávku | |
| 264 2 WHR93731 |
C00743673
481990200039 |
Shaft | Na dotaz | Zadat poptávku | |
| 320 0 WHR93731 |
C00587927
481990200156 |
Panel,control. | Na dotaz | Zadat poptávku | |
| 321 0 WHR93731 |
C00743743
481990200155 |
Panel | Na dotaz | Zadat poptávku | |
| 332 0 WHR93731 |
C00587928
481990200157 |
TLAAIDLO OT. DVER? N | Na dotaz | Zadat poptávku | |
| 332 1 WHR93731 |
C00749942
481990200011 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR93731 |
C00587921
481990200062 |
NASTAVOVAC? GOMB?K AKL560 plast N | Na dotaz | Zadat poptávku | |
| 334 1 WHR93731 |
C00556370
481990200028 |
NAHRADENE 481990200619 N | Na dotaz | Zadat poptávku | |
| 337 0 WHR93731 |
C00488332
481990200158 |
knoflik ovladaci | Na dotaz | Zadat poptávku | |
| 404 0 WHR93731 |
C00556374
481990200063 |
NAHRADENE 481990200843 N | Na dotaz | Zadat poptávku | |
| 404 1 WHR93731 |
C00749945
481990200021 |
Support | Na dotaz | Zadat poptávku | |
| 404 2 WHR93731 |
C00749946
481990200004 |
Guide | Na dotaz | Zadat poptávku | |
| 406 0 WHR93731 |
C00743744
481990200162 |
Motor | Na dotaz | Zadat poptávku | |
| 406 1 WHR93731 |
C00743677
481990200022 |
Cover | Na dotaz | Zadat poptávku | |
| 406 2 WHR93731 |
C00743745
481990200139 |
Cover | Na dotaz | Zadat poptávku | |
| 412 0 WHR93731 |
C00743746
481990200161 |
TRANSFORMÁTOR HT AKL | Na dotaz | Zadat poptávku | |
| 412 1 WHR93731 |
C00587926
481990200153 |
Air guide. | Na dotaz | Zadat poptávku | |
| 420 0 WHR93731 |
C00592448
481990200065 |
kondenzator VN 0.95 | Na dotaz | Zadat poptávku | |
| 420 1 WHR93731 |
C00743678
481990200017 |
Support | Na dotaz | Zadat poptávku | |
| 421 0 WHR93731 |
C00556384
481990200126 |
NAHRADENE 481990200075 N | Na dotaz | Zadat poptávku | |
| 426 0 WHR93731 |
C00556383
481990200122 |
DIODA N | Na dotaz | Zadat poptávku | |
| 442 0 WHR93731 |
C00743721
481990200124 |
Motor fan | Na dotaz | Zadat poptávku | |
| 442 1 WHR93731 |
C00484491
481990200146 |
VENTIL | Na dotaz | Zadat poptávku | |
| 442 2 WHR93731 |
C00586387
481990200052 |
PÚZDRO | Na dotaz | Zadat poptávku | |
| 442 3 WHR93731 |
C00586380
481990200019 |
Screw. | Na dotaz | Zadat poptávku | |
| 443 0 WHR93731 |
C00636287
481990200044 |
vrtule ventilator-vyřazeno | Na dotaz | Zadat poptávku | |
| 443 1 WHR93731 |
C00749949
481990200085 |
Ring | Na dotaz | Zadat poptávku | |
| 452 0 WHR93731 |
C00556388
481990200132 |
NAHRADENE 481990200267 N | Na dotaz | Zadat poptávku | |
| 452 1 WHR93731 |
C00743747
481990200167 |
Holder | Na dotaz | Zadat poptávku | |
| 452 2 WHR93731 |
C00749982
481990200136 |
Insulator | Na dotaz | Zadat poptávku | |
| 452 3 WHR93731 |
C00743748
481990200168 |
Holder | Na dotaz | Zadat poptávku | |
| 452 4 WHR93731 |
C00586396
481990200133 |
grilovaci teleso | Na dotaz | Zadat poptávku | |
| 452 5 WHR93731 |
C00743723
481990200096 |
Rod | Na dotaz | Zadat poptávku | |
| 452 6 WHR93731 |
C00749984
481990200097 |
Support | Na dotaz | Zadat poptávku | |
| 452 7 WHR93731 |
C00586394
481990200098 |
SPOJOVACÍ KUS | Na dotaz | Zadat poptávku | |
| 452 8 WHR93731 |
C00743749
481990200149 |
Plate | Na dotaz | Zadat poptávku | |
| 452 9 WHR93731 |
C00743725
481990200101 |
Cover | Na dotaz | Zadat poptávku | |
| 481 0 WHR93731 |
C00749987
481990200074 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 485 2 WHR93731 |
C00586385
481990200047 |
Clip. | Na dotaz | Zadat poptávku | |
| 490 0 WHR93731 |
C00743684
481990200076 |
Cable mains | Na dotaz | Zadat poptávku | |
| 503 0 WHR93731 |
C00556377
481990200073 |
NAHRADENE 481990200602 N | Na dotaz | Zadat poptávku | |
| 561 0 WHR93731 |
C00743750
481990200164 |
TERMOSTAT AKL530 | Na dotaz | Zadat poptávku | |
| 562 0 WHR93731 |
C00743726
481990200163 |
TERMOSTAT | Na dotaz | Zadat poptávku | |
| 613 0 WHR93731 |
C00749988
481990200125 |
rele kombinovane | Na dotaz | Zadat poptávku | |
| 613 1 WHR93731 |
C00587923
481990200147 |
Support. | Na dotaz | Zadat poptávku | |
| 622 0 WHR93731 |
C00482165
481990200127 |
spinac sedmipolohovy | Na dotaz | Zadat poptávku | |
| 632 0 WHR93731 |
C00749918
481990200077 |
Switch | Na dotaz | Zadat poptávku | |
| 633 0 WHR93731 |
C00749919
481990200078 |
Switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR93731 |
C00749954
481990200072 |
Lamp | Na dotaz | Zadat poptávku | |
| 651 1 WHR93731 |
C00743686
481990200083 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR93731 |
C00743751
481990200166 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 901 0 WHR93731 |
C00743687
481990200048 |
Cable clamp | Na dotaz | Zadat poptávku | |
