IGNIS AKL901/IX/01
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKL901/IX/01 |
| Kód 12NC: | 854190115510 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0910170000, 854190115511, Q0910170001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

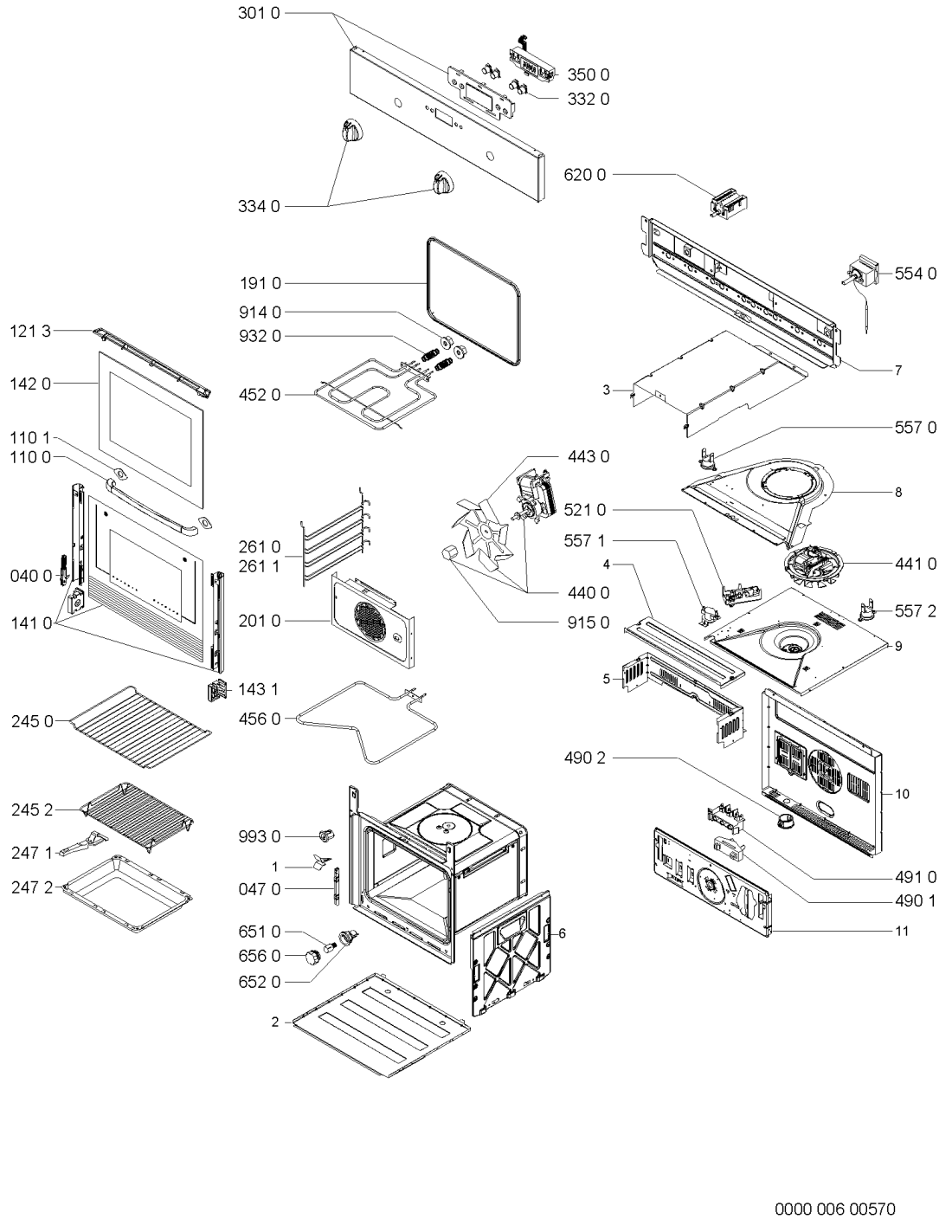

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 040 0 WHR01554 |
C00312986
481241719339 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR01554 |
C00315492
481241719137 |
MECHANISMUS ZAVESU | 978 Kč
€ 43.00 |
||
| 110 0 WHR01554 |
C00317050
481249868216 |
Madlo dveří trouby Whirlpool, Ignis | 2 253 Kč
€ 99.00 |
||
| 110 1 WHR01554 |
C00315752
481946248443 |
podlozka | 449 Kč
€ 19.70 |
||
| 121 3 WHR01554 |
C00311017
481246058418 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 141 0 WHR01554 |
C00317646
481245059491 |
Oven glass | Na dotaz | Zadat poptávku | |
| 141 0 WHR01554 |
C00317734
481245059967 |
sklo dveri vnejsi IX | 5 076 Kč
€ 223.10 |
||
| 142 0 WHR01554 |
C00313100
481245059582 |
Oven door inner glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR01554 |
C00319015
481240418455 |
Support | Na dotaz | Zadat poptávku | |
| 191 0 WHR01554 |
C00311110
481246688874 |
Gasket door | Na dotaz | Zadat poptávku | |
| 201 0 WHR01554 |
C00312074
481244269486 |
stena trouby zadni | 2 047 Kč
€ 90.00 |
||
| 245 0 WHR01554 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 245 2 WHR01554 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 1 WHR01554 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR01554 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 102.90 |
||
| 261 0 WHR01554 |
C00315829
481245819304 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 261 1 WHR01554 |
C00315827
481245819303 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 301 0 WHR01554 |
C00331341 | Panel control + supports | Na dotaz | Zadat poptávku | |
| 332 0 WHR01554 |
C00329353
481241078186 |
knoflik mw | 176 Kč
€ 7.70 |
||
| 334 0 WHR01554 |
C00329440
481241278877 |
knoflik ovladaci | 696 Kč
€ 30.60 |
||
| 350 0 WHR01554 |
C00315717
481213038793 |
Displej AMPERE | 1 997 Kč
€ 87.80 |
||
| 440 0 WHR01554 |
C00311259
481236118604 |
Motor fan | Na dotaz | Zadat poptávku | |
| 441 0 WHR01554 |
C00313086
481236118527 |
Air cooling fan | Na dotaz | Zadat poptávku | |
| 443 0 WHR01554 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR01554 |
C00314314
481225998528 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR01554 |
C00313278
481225998521 |
Heating element lower 1000W | Na dotaz | Zadat poptávku | |
| 490 1 WHR01554 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR01554 |
C00328481
481231618036 |
CABLE PROTECTION | Na dotaz | Zadat poptávku | |
| 491 0 WHR01554 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 521 0 WHR01554 |
C00311441
481221458345 |
Power unit Ampere | Na dotaz | Zadat poptávku | |
| 554 0 WHR01554 |
C00312746
481228208669 |
TERMOSTAT TROUBY | Na dotaz | Zadat poptávku | |
| 557 0 WHR01554 |
C00313116
481228228209 |
Pojistka tepelná 105C | 1 306 Kč
€ 57.40 |
||
| 557 1 WHR01554 |
C00313075
481228228329 |
Termostat 3cestný | 1 230 Kč
€ 54.10 |
||
| 557 2 WHR01554 |
C00311589
481228228282 |
Termostat 50±5/40±5 °C | 1 109 Kč
€ 48.70 |
||
| 620 0 WHR01554 |
C00327267
481227318106 |
Přepínač funkcí trouby Whirlpool, Ignis | 849 Kč
€ 37.30 |
||
| 651 0 WHR01554 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR01554 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR01554 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR01554 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR01554 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 932 0 WHR01554 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR01554 |
C00314347
481231039061 |
Podložka plastová | 378 Kč
€ 16.60 |
||
| 999 WHR01554 |
C00355951 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01554 |
C00355952 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01554 |
C00355953 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01554 |
C00355954 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01554 |
C00355955 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
