| Komerční kód: | AKL 909/IX |
| Kód 12NC: | 854190915000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 854190915001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

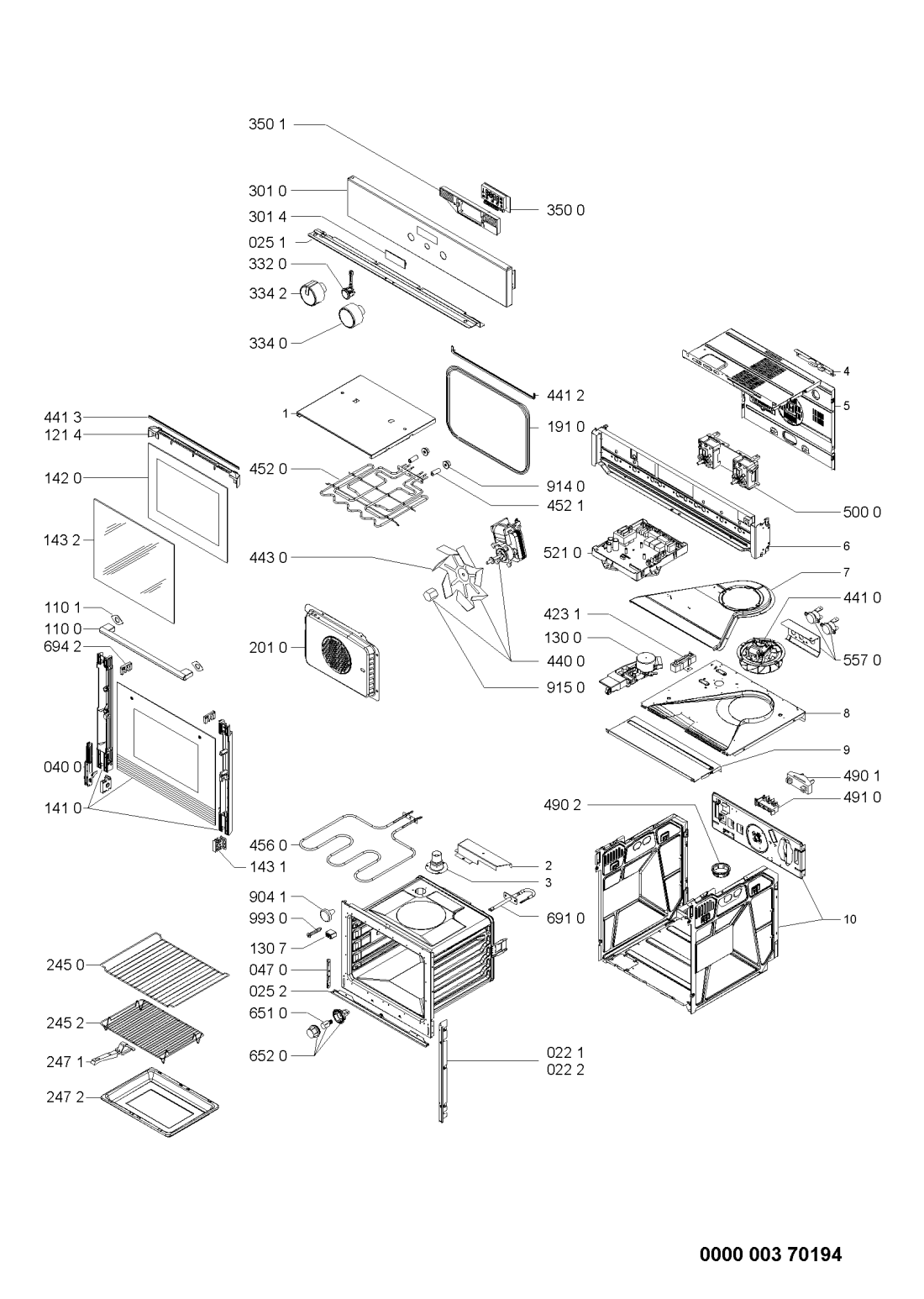

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR23876 |
C00330327
481246049778 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR23876 |
C00330326
481246049777 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR23876 |
C00330392
481246068624 |
panel | 393 Kč
€ 17.30 |
||
| 025 2 WHR23876 |
C00321792
480121100018 |
Profile | Na dotaz | Zadat poptávku | |
| 040 0 WHR23876 |
C00321787
480121100003 |
Hinge Pyro 3V | Na dotaz | Zadat poptávku | |
| 047 0 WHR23876 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR23876 |
C00314845
481249868266 |
Door handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR23876 |
C00315752
481946248443 |
podlozka | 449 Kč
€ 19.70 |
||
| 121 4 WHR23876 |
C00331099
481244528037 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR23876 |
C00311536
481241758411 |
zamek dveri PYRO | 2 345 Kč
€ 103.10 |
||
| 130 7 WHR23876 |
C00330935
481246668813 |
Rubber | 204 Kč
€ 9.00 |
||
| 141 0 WHR23876 |
C00389548
480121100004 |
Oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR23876 |
C00331157
481245059838 |
Vnitřní sklo dveří trouby Whirlpool, Bauknecht | 2 385 Kč
€ 104.80 |
||
| 143 1 WHR23876 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR23876 |
C00312271
481245059599 |
sklo dveri | 2 947 Kč
€ 129.50 |
||
| 191 0 WHR23876 |
C00312929
481246689042 |
Těsnění dveří trouby | 1 235 Kč
€ 54.30 |
||
| 201 0 WHR23876 |
C00328266
481244058324 |
stěna zadní | 2 207 Kč
€ 97.00 |
||
| 245 0 WHR23876 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 399 Kč
€ 17.50 |
||
| 245 2 WHR23876 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 1 WHR23876 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR23876 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 102.90 |
||
| 301 0 WHR23876 |
C00389549
480121100005 |
Panel control assembly | Na dotaz | Zadat poptávku | |
| 301 4 WHR23876 |
C00333045
481945359373 |
Glass panel timer | Na dotaz | Zadat poptávku | |
| 332 0 WHR23876 |
C00312566
481241029472 |
Tlačítko trouby | Na dotaz | Zadat poptávku | |
| 334 0 WHR23876 |
C00389547
480121100002 |
Knob | Na dotaz | Zadat poptávku | |
| 334 2 WHR23876 |
C00315431
481241279471 |
KNOB VBL IX | Na dotaz | Zadat poptávku | |
| 350 0 WHR23876 |
C00315134
481213008764 |
displej | 2 264 Kč
€ 99.50 |
||
| 350 1 WHR23876 |
C00315393
481240478333 |
drzak displeje | 224 Kč
€ 9.80 |
||
| 423 1 WHR23876 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR23876 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR23876 |
C00312506
481236118511 |
ventilator | 2 888 Kč
€ 126.90 |
||
| 441 2 WHR23876 |
C00315028
481246688784 |
Těsnění dveří trouby | 958 Kč
€ 42.10 |
||
| 441 3 WHR23876 |
C00331562
481246699047 |
tesneni dveri trouby | 466 Kč
€ 20.50 |
||
| 443 0 WHR23876 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR23876 |
C00314913
481225928873 |
Topení horní | 3 864 Kč
€ 169.80 |
||
| 452 1 WHR23876 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR23876 |
C00311461
481225998418 |
Topné těleso trouby - spodní 1450 W | 2 349 Kč
€ 103.30 |
||
| 490 1 WHR23876 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR23876 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR23876 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 500 0 WHR23876 |
C00316454
481221458476 |
Control unit G2+ | Na dotaz | Zadat poptávku | |
| 521 0 WHR23876 |
C00326937
481221458442 |
Power unit | Na dotaz | Zadat poptávku | |
| 557 0 WHR23876 |
C00313245
481228228336 |
termostat PYRO | 1 521 Kč
€ 66.90 |
||
| 651 0 WHR23876 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR23876 |
C00311901
481225518213 |
Osvětlení trouby Whirlpool, Bauknecht , Ignis - komplet | 1 554 Kč
€ 68.30 |
||
| 691 0 WHR23876 |
C00314814
481221058051 |
sonda | 1 593 Kč
€ 70.00 |
||
| 694 2 WHR23876 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 904 1 WHR23876 |
C00498500
481246818349 |
Spacer | Na dotaz | Zadat poptávku | |
| 914 0 WHR23876 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR23876 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR23876 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
