| Komerční kód: | AKM 176/IX GAS HOBS WP |
| Kód 12NC: | 857117644000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

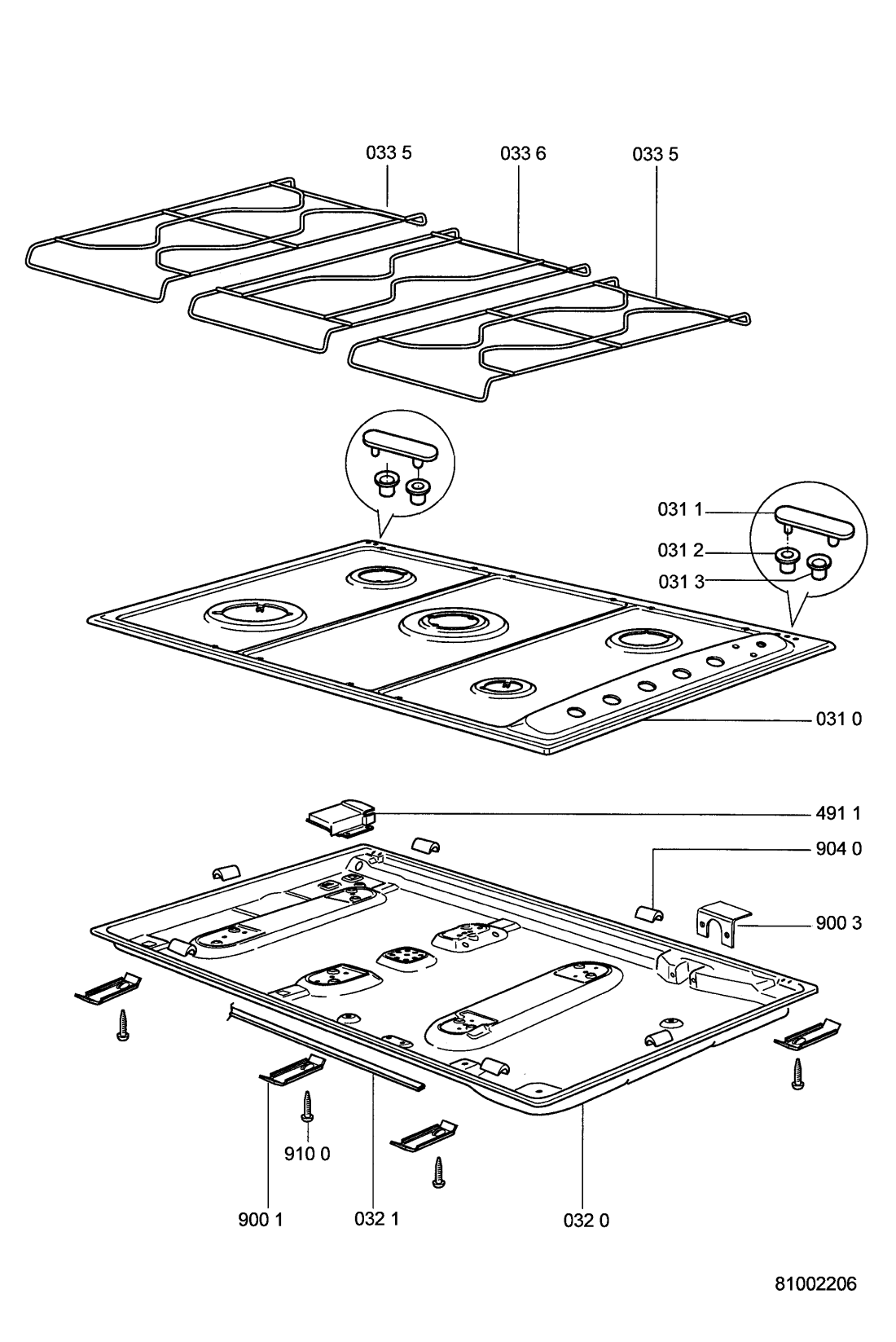

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR60865 |
C00594992
481944239006 |
Hob. | Na dotaz | Zadat poptávku | |
| 031 1 WHR60865 |
C00582687
481244019607 |
krytka | 78 Kč
€ 3.40 |
||
| 031 2 WHR60865 |
C00594928
481246688532 |
GASKET. | Na dotaz | Zadat poptávku | |
| 031 3 WHR60865 |
C00594927
481246688531 |
GASKET. | Na dotaz | Zadat poptávku | |
| 032 0 WHR60865 |
C00582849
481936078425 |
Hob casing. | Na dotaz | Zadat poptávku | |
| 032 1 WHR60865 |
C00582981
481946818297 |
TESNENIE DOSKY | Na dotaz | Zadat poptávku | |
| 033 5 WHR60865 |
C00594999
481945868131 |
MRIEZKA | Na dotaz | Zadat poptávku | |
| 033 6 WHR60865 |
C00595002
481945868134 |
MRIEZKA | Na dotaz | Zadat poptávku | |
| 334 0 WHR60865 |
C00594986
481941129353 |
Knoflík | 192 Kč
€ 8.40 |
||
| 470 3 WHR60865 |
C00582844
481936069771 |
Spreader,burner double Ring. | Na dotaz | Zadat poptávku | |
| 471 0 WHR60865 |
C00595189
481236068486 |
Burner - Aux. | Na dotaz | Zadat poptávku | |
| 471 1 WHR60865 |
C00595190
481236068487 |
Burner - SR. | Na dotaz | Zadat poptávku | |
| 471 2 WHR60865 |
C00482771
481236068488 |
Burner - R | Na dotaz | Zadat poptávku | |
| 471 3 WHR60865 |
C00482772
481236068489 |
Burner - double ring | Na dotaz | Zadat poptávku | |
| 472 0 WHR60865 |
C00582842
481936069765 |
Spreader,burner A. | Na dotaz | Zadat poptávku | |
| 472 1 WHR60865 |
C00484330
481936069766 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR60865 |
C00484331
481936069767 |
Spreader,burner R | Na dotaz | Zadat poptávku | |
| 472 3 WHR60865 |
C00582846
481936069773 |
SPREADER,BURNER DR. | Na dotaz | Zadat poptávku | |
| 473 0 WHR60865 |
C00484328
481936069753 |
viko horaku - male | 756 Kč
€ 33.20 |
||
| 473 1 WHR60865 |
C00484329
481936069754 |
KRYT HORAKA SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR60865 |
C00381039
481936069755 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 473 3 WHR60865 |
C00582845
481936069772 |
Burner cap DR - outer. | Na dotaz | Zadat poptávku | |
| 473 6 WHR60865 |
C00582847
481936069774 |
Burner cap DR - inner. | Na dotaz | Zadat poptávku | |
| 474 0 WHR60865 |
C00595173
481231038659 |
Sada trysek G30 - propan butan (LPG) | 752 Kč
€ 33.10 |
||
| 490 0 WHR60865 |
C00557408
481932118311 |
CABLE,MAINS.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR60865 |
C00621545
481929068353 |
Terminal block. | Na dotaz | Zadat poptávku | |
| 491 1 WHR60865 |
C00582974
481946689224 |
Plate protect. terminal block. | Na dotaz | Zadat poptávku | |
| 571 0 WHR60865 |
C00582560
481936058708 |
Tap R | Na dotaz | Zadat poptávku | |
| 571 1 WHR60865 |
C00582822
481936058707 |
Tap SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR60865 |
C00379031
481936058706 |
Tap A | Na dotaz | Zadat poptávku | |
| 571 3 WHR60865 |
C00582823
481936058711 |
Tap DR | Na dotaz | Zadat poptávku | |
| 571 9 WHR60865 |
C00582862
481940479367 |
Holder. | Na dotaz | Zadat poptávku | |
| 590 9 WHR60865 |
C00486434
481925268152 |
Spark plug 400mm | Na dotaz | Zadat poptávku | |
| 591 0 WHR60865 |
C00582789
481925268153 |
Spark plug 550mm. | Na dotaz | Zadat poptávku | |
| 591 1 WHR60865 |
C00582989
481949268807 |
SPRING. | Na dotaz | Zadat poptávku | |
| 591 2 WHR60865 |
C00582791
481925268155 |
Spark plug double ring 350mm. | Na dotaz | Zadat poptávku | |
| 591 9 WHR60865 |
C00582990
481949268809 |
Spring for thermocouple. | Na dotaz | Zadat poptávku | |
| 592 0 WHR60865 |
C00621527
481913838117 |
TERMO POISTKA L=200mm | Na dotaz | Zadat poptávku | |
| 592 1 WHR60865 |
C00373417
481913838118 |
Thermo couple l=750mm | Na dotaz | Zadat poptávku | |
| 592 3 WHR60865 |
C00492195
481913838121 |
Thermo couple for double ring L=500 mm | Na dotaz | Zadat poptávku | |
| 595 0 WHR60865 |
C00820481
481214038002 |
LEAFLET-179216 | Na dotaz | Zadat poptávku | |
| 621 0 WHR60865 |
C00481294
481927138264 |
Microswitch | Na dotaz | Zadat poptávku | |
| 622 1 WHR60865 |
C00595015
481953058081 |
O-Ring. | Na dotaz | Zadat poptávku | |
| 622 2 WHR60865 |
C00494779
481953288047 |
Washer,spring | Na dotaz | Zadat poptávku | |
| 694 2 WHR60865 |
C00595016
481953058089 |
GASKET. | Na dotaz | Zadat poptávku | |
| 703 0 WHR60865 |
C00494743
481953048704 |
PIPE, BURNER | Na dotaz | Zadat poptávku | |
| 703 1 WHR60865 |
C00621602
481953048699 |
Pipe, burner. | Na dotaz | Zadat poptávku | |
| 703 2 WHR60865 |
C00583004
481953048705 |
PIPE, BURNER. | Na dotaz | Zadat poptávku | |
| 703 3 WHR60865 |
C00583003
481953048698 |
Pipe, burner. | Na dotaz | Zadat poptávku | |
| 703 6 WHR60865 |
C00583006
481953048707 |
PIPE, BURNER. | Na dotaz | Zadat poptávku | |
| 703 8 WHR60865 |
C00595427
481253048487 |
Pipe gas inlet. | Na dotaz | Zadat poptávku | |
| 703 9 WHR60865 |
C00583019
481985013334 |
Gas connection elbow. | Na dotaz | Zadat poptávku | |
| 794 1 WHR60865 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 900 1 WHR60865 |
C00582857
481940478845 |
DRZIAK | Na dotaz | Zadat poptávku | |
| 900 3 WHR60865 |
C00582855
481940443481 |
Clamp. | Na dotaz | Zadat poptávku | |
| 904 0 WHR60865 |
C00582979
481946699119 |
Spacer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR60865 |
C00582997
481950218442 |
SKRUTKA | Na dotaz | Zadat poptávku | |
| 910 1 WHR60865 |
C00582998
481950218479 |
Screw. | Na dotaz | Zadat poptávku | |
| 914 0 WHR60865 |
C00583001
481950518361 |
NUT. | Na dotaz | Zadat poptávku | |
