WHIRLPOOL AKM489 / IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM489 / IX |
| Kód 12NC: | 857148938000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0918530000 |
Potřebujete servis? Jsme tady pro Vás

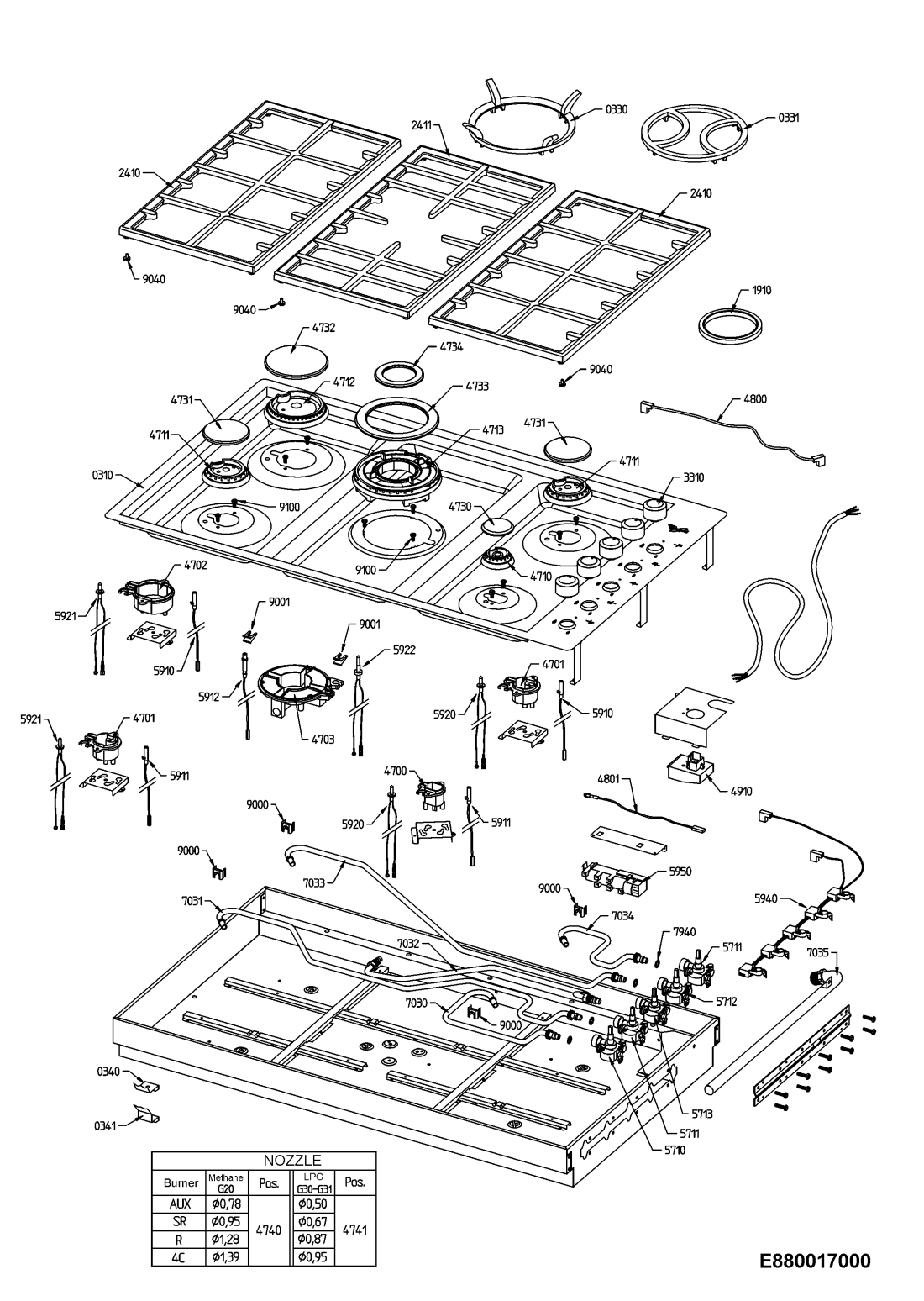

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0310 WHR01827 |
C00328253
481244039977 |
Hob ,top IX | Na dotaz | Zadat poptávku | |
| 0330 WHR01827 |
C00330129
481245828041 |
Support wok | Na dotaz | Zadat poptávku | |
| 0331 WHR01827 |
C00330130
481245828042 |
Grid small pot | Na dotaz | Zadat poptávku | |
| 0340 WHR01827 |
C00329146
481240449874 |
Bracket frame | Na dotaz | Zadat poptávku | |
| 0341 WHR01827 |
C00329147
481240449875 |
Holder frame | Na dotaz | Zadat poptávku | |
| 1910 WHR01827 |
C00331572
481246699085 |
Gasket soft | Na dotaz | Zadat poptávku | |
| 2410 WHR01827 |
C00330199
481245858545 |
Grid right | Na dotaz | Zadat poptávku | |
| 2411 WHR01827 |
C00330200
481245858546 |
Grid left | Na dotaz | Zadat poptávku | |
| 3310 WHR01827 |
C00321846
480121100316 |
Knob right | Na dotaz | Zadat poptávku | |
| 4700 WHR01827 |
C00328737
481236068977 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR01827 |
C00328738
481236068978 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR01827 |
C00328739
481236068979 |
Burner R | Na dotaz | Zadat poptávku | |
| 4703 WHR01827 |
C00328749
481236068997 |
Burner cup TRC | Na dotaz | Zadat poptávku | |
| 4710 WHR01827 |
C00328740
481236068982 |
Spreader,burner AUX | Na dotaz | Zadat poptávku | |
| 4711 WHR01827 |
C00328741
481236068983 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 4712 WHR01827 |
C00328742
481236068984 |
Burner spreader R | Na dotaz | Zadat poptávku | |
| 4713 WHR01827 |
C00328750
481236068998 |
Spreader,burner TRC | Na dotaz | Zadat poptávku | |
| 4730 WHR01827 |
C00328743
481236068985 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 4731 WHR01827 |
C00328744
481236068986 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4732 WHR01827 |
C00328745
481236068987 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 4733 WHR01827 |
C00328751
481236068999 |
Burner cap | Na dotaz | Zadat poptávku | |
| 4734 WHR01827 |
C00328752
481236069001 |
Burner cap inner 4 corona | Na dotaz | Zadat poptávku | |
| 4740 WHR01827 |
C00328455
481231039247 |
Nozzle ,kit GAS G20 | Na dotaz | Zadat poptávku | |
| 4741 WHR01827 |
C00328456
481231039248 |
Nozzle ,kit GAS G30-G31 | Na dotaz | Zadat poptávku | |
| 4800 WHR01827 |
C00327307
481229068367 |
Cable terminal board-generator | Na dotaz | Zadat poptávku | |
| 4801 WHR01827 |
C00328526
481232138044 |
Cable earth ignition generator | Na dotaz | Zadat poptávku | |
| 4910 WHR01827 |
C00327308
481229068368 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 5710 WHR01827 |
C00328629
481236058607 |
Gas cock AUX | Na dotaz | Zadat poptávku | |
| 5711 WHR01827 |
C00328630
481236058608 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR01827 |
C00328631
481236058609 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5713 WHR01827 |
C00328632
481236058611 |
Gas cock TRC | Na dotaz | Zadat poptávku | |
| 5910 WHR01827 |
C00327115
481225268091 |
Spark plug l=300 mm | Na dotaz | Zadat poptávku | |
| 5911 WHR01827 |
C00327116
481225268092 |
Spark plug l=675 mm | Na dotaz | Zadat poptávku | |
| 5912 WHR01827 |
C00327104
481225228066 |
Spark plug | Na dotaz | Zadat poptávku | |
| 5920 WHR01827 |
C00313590
481213838056 |
Thermo couple l=410 mm | Na dotaz | Zadat poptávku | |
| 5921 WHR01827 |
C00326867
481213838057 |
Thermo couple l=800 mm | Na dotaz | Zadat poptávku | |
| 5922 WHR01827 |
C00321864
480121100372 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 5940 WHR01827 |
C00327274
481227328293 |
Microswitch | Na dotaz | Zadat poptávku | |
| 5950 WHR01827 |
C00326875
481214528044 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 7030 WHR01827 |
C00332608
481253049361 |
Tube burner right AUX | Na dotaz | Zadat poptávku | |
| 7031 WHR01827 |
C00332609
481253049362 |
Pipe SR front SX | Na dotaz | Zadat poptávku | |
| 7032 WHR01827 |
C00332610
481253049363 |
Pipe TRC central | Na dotaz | Zadat poptávku | |
| 7033 WHR01827 |
C00328753
481236069002 |
Pipe ,rear left R | Na dotaz | Zadat poptávku | |
| 7034 WHR01827 |
C00332607
481253049359 |
Pipe SR rear DX | Na dotaz | Zadat poptávku | |
| 7035 WHR01827 |
C00328746
481236068989 |
Hose gas distributor | Na dotaz | Zadat poptávku | |
| 7940 WHR01827 |
C00331573
481246699086 |
Gasket pipe | Na dotaz | Zadat poptávku | |
| 9000 WHR01827 |
C00329006
481240418632 |
Fixation | Na dotaz | Zadat poptávku | |
| 9001 WHR01827 |
C00345757
481249268206 |
pružina | 661 Kč
€ 29.10 |
||
| 9040 WHR01827 |
C00330799
481246378026 |
Support grid | Na dotaz | Zadat poptávku | |
| 9100 WHR01827 |
C00332142
481250218813 |
Screw burner | Na dotaz | Zadat poptávku | |
| 999 WHR01827 |
C00362446 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01827 |
C00362447 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01827 |
C00362449 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
