WHIRLPOOL AKM 525/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM 525/IX |
| Kód 12NC: | 857152512500 |
| I.C. kód: | 857152512503 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857152512500, 857152512501 |
Potřebujete servis? Jsme tady pro Vás

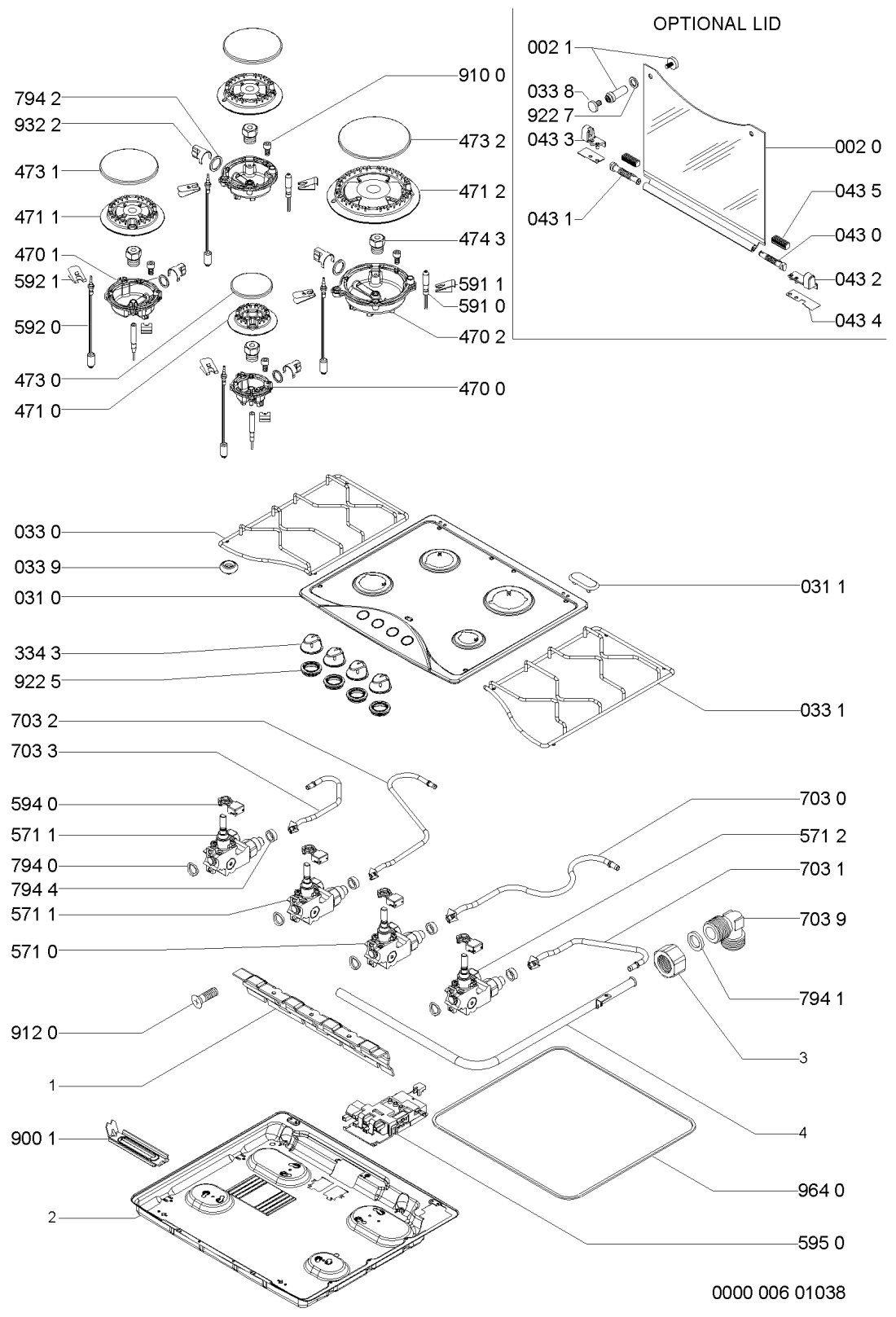

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| ??? ? WHR43745 |
C00332960
481940479416 |
Support BRILL hinge left | Na dotaz | Zadat poptávku | |
| ??? ? WHR43745 |
C00573029
481240478661 |
Support | Na dotaz | Zadat poptávku | |
| 002 0 WHR43745 |
C00573021
481206578005 |
AMH221 KRYT VARNEJ ZONY | Na dotaz | Zadat poptávku | |
| 002 1 WHR43745 |
C00573035
481246258062 |
Stopper | Na dotaz | Zadat poptávku | |
| 031 0 WHR43745 |
C00328196
481244039344 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR43745 |
C00330511
481246228553 |
zaslepka | Na dotaz | Zadat poptávku | |
| 033 0 WHR43745 |
C00330163
481245858276 |
Mřížka hořáku plynové varné desky - levá | Na dotaz | Zadat poptávku | |
| 033 1 WHR43745 |
C00330164
481245858277 |
mrizka horaku prava | Na dotaz | Zadat poptávku | |
| 033 8 WHR43745 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 61 Kč
€ 2.50 |
||
| 033 9 WHR43745 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 043 0 WHR43745 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR43745 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR43745 |
C00573031
481240478662 |
Support DX.CERN.COP.WH | Na dotaz | Zadat poptávku | |
| 043 3 WHR43745 |
C00573032
481240478663 |
Support | Na dotaz | Zadat poptávku | |
| 043 4 WHR43745 |
C00573027
481240478557 |
Support for lid | Na dotaz | Zadat poptávku | |
| 043 5 WHR43745 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 043 6 WHR43745 |
C00573026
481240418408 |
Holder | Na dotaz | Zadat poptávku | |
| 043 7 WHR43745 |
C00573028
481240478659 |
Support | Na dotaz | Zadat poptávku | |
| 043 8 WHR43745 |
C00332959
481940479415 |
Support BRILL hinge right | Na dotaz | Zadat poptávku | |
| 043 9 WHR43745 |
C00573022
481240418409 |
Support | Na dotaz | Zadat poptávku | |
| 334 3 WHR43745 |
C00315653
481241278835 |
knoflik ovladaci IX | Na dotaz | Zadat poptávku | |
| 470 0 WHR43745 |
C00328723
481236068952 |
Injector holder A | Na dotaz | Zadat poptávku | |
| 470 1 WHR43745 |
C00328724
481236068953 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR43745 |
C00328725
481236068954 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 471 0 WHR43745 |
C00314563
481236078156 |
Těleso hořáku - levé přední | 368 Kč
€ 15.10 |
||
| 471 1 WHR43745 |
C00312494
481236078157 |
teleso horaku | 464 Kč
€ 19.00 |
||
| 471 2 WHR43745 |
C00311440
481236078158 |
teleso horaku | 594 Kč
€ 24.40 |
||
| 473 0 WHR43745 |
C00313795
481236068851 |
viko horaku - male | 609 Kč
€ 25.00 |
||
| 473 1 WHR43745 |
C00314511
481236068852 |
viko horaku - stredni | 815 Kč
€ 33.40 |
||
| 473 2 WHR43745 |
C00318554
481236068853 |
viko horaku | 590 Kč
€ 24.20 |
||
| 571 0 WHR43745 |
C00328635
481236058621 |
Ventil velký | 1 435 Kč
€ 58.90 |
||
| 571 1 WHR43745 |
C00328633
481236058617 |
ventil | 1 477 Kč
€ 60.60 |
||
| 571 2 WHR43745 |
C00328634
481236058619 |
Kohout malý | 1 476 Kč
€ 60.50 |
||
| 591 0 WHR43745 |
C00312261
481225268094 |
Svíčka zapalování | Na dotaz | Zadat poptávku | |
| 591 1 WHR43745 |
C00313307
481249228219 |
spona | Na dotaz | Zadat poptávku | |
| 592 0 WHR43745 |
C00311384
481213838039 |
THERMOCOUPLE 410mm | Na dotaz | Zadat poptávku | |
| 592 1 WHR43745 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 594 0 WHR43745 |
C00316689
481227648153 |
mikrospinac zapal. | 992 Kč
€ 40.70 |
||
| 595 0 WHR43745 |
C00311369
481214208005 |
transformator | Na dotaz | Zadat poptávku | |
| 703 0 WHR43745 |
C00332605
481253049356 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR43745 |
C00332603
481253049354 |
Plynová trubka varné desky Whirlpool, Ignis | Na dotaz | Zadat poptávku | |
| 703 2 WHR43745 |
C00332606
481253049357 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 703 3 WHR43745 |
C00332604
481253049355 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 9 WHR43745 |
C00317975
481931039599 |
Koleno | 184 Kč
€ 7.50 |
||
| 794 0 WHR43745 |
C00332644
481253058191 |
Gasket gas cock | Na dotaz | Zadat poptávku | |
| 794 2 WHR43745 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR43745 |
C00513663
481953058098 |
Těsnění kohoutu | Na dotaz | Zadat poptávku | |
| 900 1 WHR43745 |
C00317971
481931018528 |
drzak desky+srouby | Na dotaz | Zadat poptávku | |
| 910 0 WHR43745 |
C00332120
481250218746 |
Śroub | 41 Kč
€ 1.70 |
||
| 912 0 WHR43745 |
C00332162
481250238382 |
Screw M4X21 | Na dotaz | Zadat poptávku | |
| 922 5 WHR43745 |
C00312206
481246668814 |
Podložka knoflíku | Na dotaz | Zadat poptávku | |
| 922 7 WHR43745 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 932 2 WHR43745 |
C00333191
481949268831 |
Pružina | Na dotaz | Zadat poptávku | |
| 964 0 WHR43745 |
C00331502
481246688772 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR43745 |
C00619111 | Gastable WHP | Na dotaz | Zadat poptávku | |
