WHIRLPOOL AKM 533/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM 533/IX |
| Kód 12NC: | 857153338500 |
| I.C. kód: | 857153338502 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857153315520, Q0918550000, 857153315522, Q0918550002, 857153315523, Q0918550003, 857153338500, Q0918560000, Q0918560002, 857153338503, Q0918560003, 857153338504, Q0918560004 |
Potřebujete servis? Jsme tady pro Vás

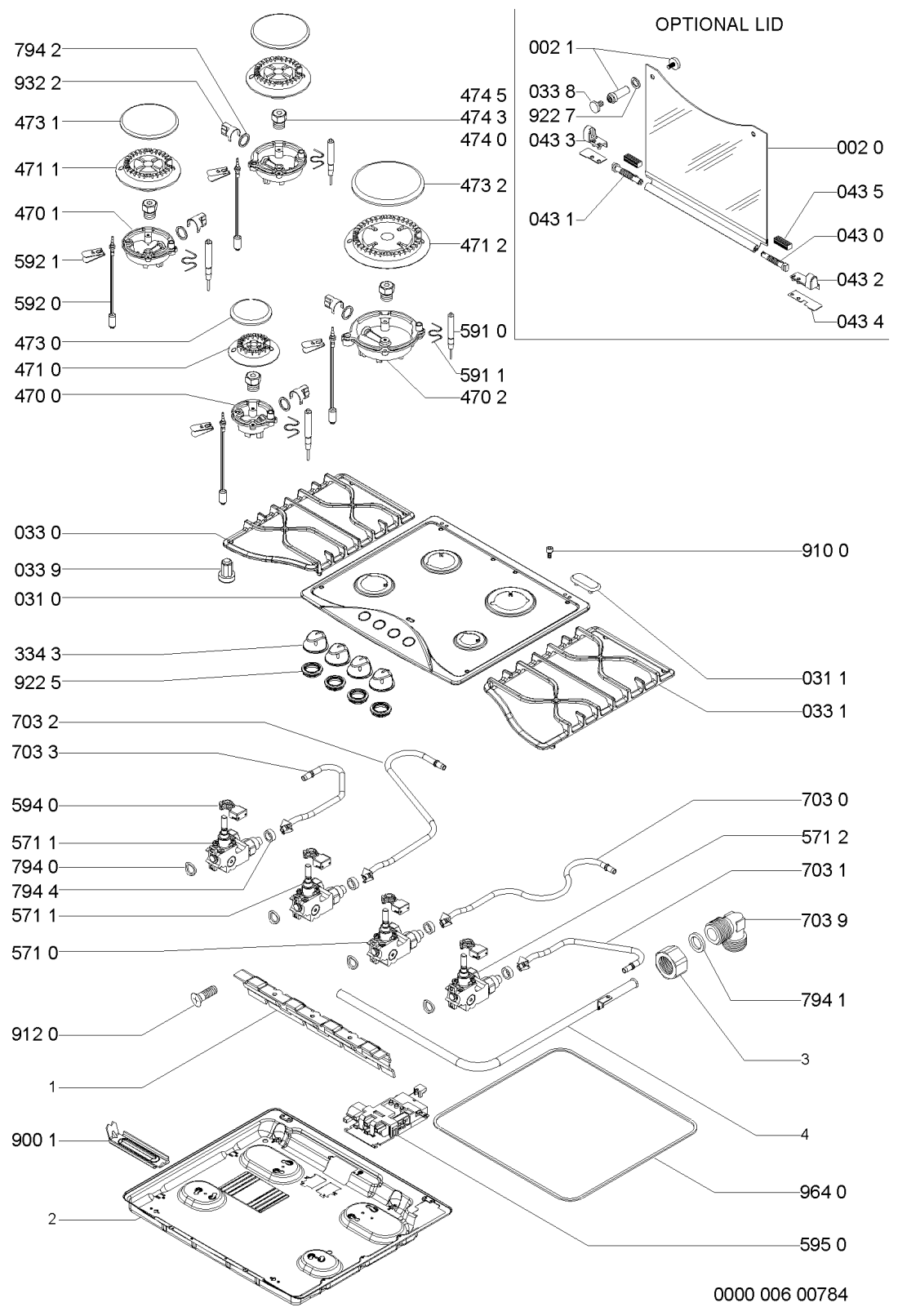

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR01837 |
C00326727
482000091734 |
Glass lid AMH221/MR | Na dotaz | Zadat poptávku | |
| 002 1 WHR01837 |
C00330688
482000091735 |
Stopper | Na dotaz | Zadat poptávku | |
| 031 0 WHR01837 |
C00328196
481244039344 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR01837 |
C00330511
481246228553 |
zaslepka | Na dotaz | Zadat poptávku | |
| 033 0 WHR01837 |
C00330155
482000091738 |
Mřížka hořáku plynové varné desky - levá | Na dotaz | Zadat poptávku | |
| 033 1 WHR01837 |
C00330156
482000091739 |
Mřžka hořáku pravá | Na dotaz | Zadat poptávku | |
| 033 8 WHR01837 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 61 Kč
€ 2.50 |
||
| 033 9 WHR01837 |
C00315214
481246818081 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 043 0 WHR01837 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 043 1 WHR01837 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 043 2 WHR01837 |
C00328965
482000091744 |
Support NB hinge right | Na dotaz | Zadat poptávku | |
| 043 3 WHR01837 |
C00328966
482000091748 |
Support NB hinge left | Na dotaz | Zadat poptávku | |
| 043 4 WHR01837 |
C00329184
482000091752 |
Support for lid | Na dotaz | Zadat poptávku | |
| 043 5 WHR01837 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 334 3 WHR01837 |
C00315653
481241278835 |
knoflik ovladaci IX | Na dotaz | Zadat poptávku | |
| 470 0 WHR01837 |
C00332885
481936069687 |
dno horaku male | Na dotaz | Zadat poptávku | |
| 470 1 WHR01837 |
C00332884
481936069686 |
dno horaku stredni | Na dotaz | Zadat poptávku | |
| 470 2 WHR01837 |
C00332886
481936069688 |
dno horaku velke | Na dotaz | Zadat poptávku | |
| 471 0 WHR01837 |
C00315577
481936078396 |
teleso horaku male | 375 Kč
€ 15.40 |
||
| 471 1 WHR01837 |
C00313867
481936078395 |
teleso horaku stred. | 545 Kč
€ 22.40 |
||
| 471 2 WHR01837 |
C00314711
481936078394 |
Těleso hořáku velké | 744 Kč
€ 30.50 |
||
| 473 0 WHR01837 |
C00328680
481236068726 |
vicko horaku | Na dotaz | Zadat poptávku | |
| 473 1 WHR01837 |
C00313775
481236068134 |
Víko hořáku -střední | 779 Kč
€ 32.00 |
||
| 473 2 WHR01837 |
C00315279
481236068135 |
Víko hořáku velké | 1 130 Kč
€ 46.30 |
||
| 474 0 WHR01837 |
C00315268
481931039346 |
Sada trysek G20 – zemní plyn | 745 Kč
€ 30.60 |
||
| 474 3 WHR01837 |
C00316769
481931039347 |
Sada trysek G30-G29 - propan butan (LPG) | 1 060 Kč
€ 43.50 |
||
| 474 5 WHR01837 |
C00332872
481931039485 |
Set of nozzles G110 GAS | Na dotaz | Zadat poptávku | |
| 571 0 WHR01837 |
C00328635
481236058621 |
Ventil velký | 1 435 Kč
€ 58.90 |
||
| 571 1 WHR01837 |
C00328633
481236058617 |
ventil | 1 477 Kč
€ 60.60 |
||
| 571 2 WHR01837 |
C00328634
481236058619 |
Kohout malý | 1 476 Kč
€ 60.50 |
||
| 591 0 WHR01837 |
C00311700
481925268167 |
Svíčka zapalovací | 397 Kč
€ 16.30 |
||
| 591 1 WHR01837 |
C00313852
481949268788 |
pruzina | 12 Kč
€ 0.50 |
||
| 592 0 WHR01837 |
C00311632
481213838004 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR01837 |
C00314265
481949268789 |
pruzina termopojist. | Na dotaz | Zadat poptávku | |
| 594 0 WHR01837 |
C00327434
481227648149 |
Electron.ignit. | Na dotaz | Zadat poptávku | |
| 595 0 WHR01837 |
C00311369
481214208005 |
transformator | Na dotaz | Zadat poptávku | |
| 703 0 WHR01837 |
C00332605
481253049356 |
Gas pipe RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR01837 |
C00332603
481253049354 |
Plynová trubka varné desky Whirlpool, Ignis | Na dotaz | Zadat poptávku | |
| 703 2 WHR01837 |
C00332606
481253049357 |
Gas pipe RL | Na dotaz | Zadat poptávku | |
| 703 3 WHR01837 |
C00332604
481253049355 |
Gas pipe FL | Na dotaz | Zadat poptávku | |
| 703 9 WHR01837 |
C00317975
481931039599 |
Koleno | 184 Kč
€ 7.50 |
||
| 794 0 WHR01837 |
C00332644
481253058191 |
Gasket gas cock | Na dotaz | Zadat poptávku | |
| 794 1 WHR01837 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 794 2 WHR01837 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 794 4 WHR01837 |
C00313483
480111101551 |
tesneni | Na dotaz | Zadat poptávku | |
| 900 1 WHR01837 |
C00317971
481931018528 |
drzak desky+srouby | Na dotaz | Zadat poptávku | |
| 910 0 WHR01837 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 912 0 WHR01837 |
C00332162
481250238382 |
Screw M4X21 | Na dotaz | Zadat poptávku | |
| 922 5 WHR01837 |
C00312206
481246668814 |
Podložka knoflíku | Na dotaz | Zadat poptávku | |
| 922 7 WHR01837 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 932 2 WHR01837 |
C00333191
481949268831 |
Pružina | Na dotaz | Zadat poptávku | |
| 964 0 WHR01837 |
C00331502
481246688772 |
Gasket | Na dotaz | Zadat poptávku | |
| 999 WHR01837 |
C00362482 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01837 |
C00362483 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01837 |
C00362484 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
