WHIRLPOOL AKP 161/01/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 161/01/IX |
| Kód 12NC: | 857716115400 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

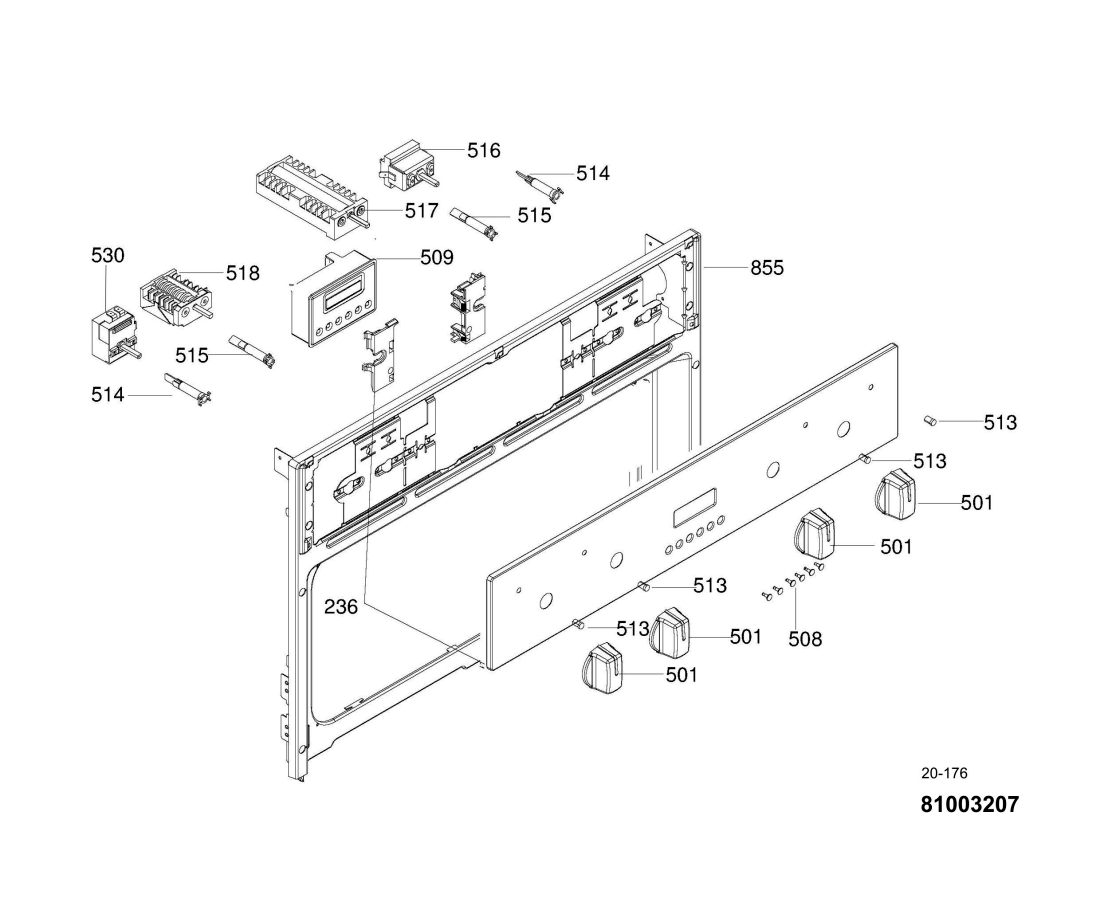

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 WHR31060 |
C00318472
482000006669 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 017 WHR31060 |
C00333678
482000006670 |
Hinge support | Na dotaz | Zadat poptávku | |
| 0557 WHR31060 |
C00327133
481225518311 |
Lamp oven 25 W | Na dotaz | Zadat poptávku | |
| 100 WHR31060 |
C00319132
482000006671 |
Heating element top + Grill | Na dotaz | Zadat poptávku | |
| 102 WHR31060 |
C00317472
482000006672 |
Heating element 230V 1800W | Na dotaz | Zadat poptávku | |
| 103 WHR31060 |
C00333679
482000006673 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 107 WHR31060 |
C00333680
482000006674 |
Grid | Na dotaz | Zadat poptávku | |
| 108 WHR31060 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 110 WHR31060 |
C00333681
482000006675 |
Baking tray | Na dotaz | Zadat poptávku | |
| 112 WHR31060 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 113 WHR31060 |
C00333682
482000006676 |
Support heating element | Na dotaz | Zadat poptávku | |
| 114 WHR31060 |
C00333683
482000006677 |
Inset grid right | Na dotaz | Zadat poptávku | |
| 115 WHR31060 |
C00333684
482000006678 |
Inset grid left | Na dotaz | Zadat poptávku | |
| 236 WHR31060 |
C00409929
482000006679 |
Panel control | Na dotaz | Zadat poptávku | |
| 355 WHR31060 |
C00333685
482000006680 |
Hinge | Na dotaz | Zadat poptávku | |
| 356 WHR31060 |
C00333686
482000006681 |
Support Handle | Na dotaz | Zadat poptávku | |
| 383 WHR31060 |
C00379472
482000006682 |
Door glass 3/4, assembl. | Na dotaz | Zadat poptávku | |
| 501 WHR31060 |
C00379186
482000006683 |
Knob | Na dotaz | Zadat poptávku | |
| 508 WHR31060 |
C00333687
482000006684 |
Push button | Na dotaz | Zadat poptávku | |
| 509 WHR31060 |
C00317655
482000006685 |
Selector switch | Na dotaz | Zadat poptávku | |
| 513 WHR31060 |
C00330616
481246228993 |
Cover light transparent | Na dotaz | Zadat poptávku | |
| 514 WHR31060 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 515 WHR31060 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 516 WHR31060 |
C00333688
482000006686 |
Thermostat | Na dotaz | Zadat poptávku | |
| 517 WHR31060 |
C00333689
482000006687 |
Selector switch | Na dotaz | Zadat poptávku | |
| 518 WHR31060 |
C00318223
481227618399 |
Switch oven selector | Na dotaz | Zadat poptávku | |
| 530 WHR31060 |
C00316563
482000006688 |
Thermostat | Na dotaz | Zadat poptávku | |
| 552 WHR31060 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 553 WHR31060 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 579 WHR31060 |
C00333690
482000006689 |
Support lower | Na dotaz | Zadat poptávku | |
| 587 WHR31060 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 597 WHR31060 |
C00333691
482000006690 |
Hinge 3/4 door | Na dotaz | Zadat poptávku | |
| 600 WHR31060 |
C00317442
482000001521 |
Handle 412 mm | Na dotaz | Zadat poptávku | |
| 610 WHR31060 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 661 WHR31060 |
C00317474
482000006691 |
Hinge 1/2 door | Na dotaz | Zadat poptávku | |
| 665 WHR31060 |
C00333692
482000006692 |
Gasket 1/2 | Na dotaz | Zadat poptávku | |
| 734 WHR31060 |
C00327595
481229068305 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 763 WHR31060 |
C00333693
482000006695 |
Rubber hinge | Na dotaz | Zadat poptávku | |
| 768 WHR31060 |
C00333694
482000006697 |
Support terminal block | Na dotaz | Zadat poptávku | |
| 832 WHR31060 |
C00333695
482000006698 |
Thermostat T110 | Na dotaz | Zadat poptávku | |
| 845 WHR31060 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 855 WHR31060 |
C00333696
482000006701 |
Door frame 1/2 | Na dotaz | Zadat poptávku | |
| 856 WHR31060 |
C00333697
482000006702 |
Door frame | Na dotaz | Zadat poptávku | |
| 858 WHR31060 |
C00333698
482000006703 |
Inset grid right 1/2 | Na dotaz | Zadat poptávku | |
| 859 WHR31060 |
C00333699
482000006704 |
Inset grid left 1/2 | Na dotaz | Zadat poptávku | |
| 860 WHR31060 |
C00409930
482000006705 |
Door glass 1/2, assembl. | Na dotaz | Zadat poptávku | |
| 868 WHR31060 |
C00319446
481228248286 |
termostat | 697 Kč
€ 30.60 |
||
| 873 WHR31060 |
C00333700
482000006706 |
Door inner main | Na dotaz | Zadat poptávku | |
| 874 WHR31060 |
C00333701
482000006707 |
Door inner top | Na dotaz | Zadat poptávku | |
| 880 WHR31060 |
C00333702
482000006708 |
Chimney | Na dotaz | Zadat poptávku | |
| 991 WHR31060 |
C00333703
482000006709 |
Thermostat T 80 | Na dotaz | Zadat poptávku | |
