WHIRLPOOL AKP 293/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 293/IX |
| Kód 12NC/I.C. kód: | 857729329000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0924750000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

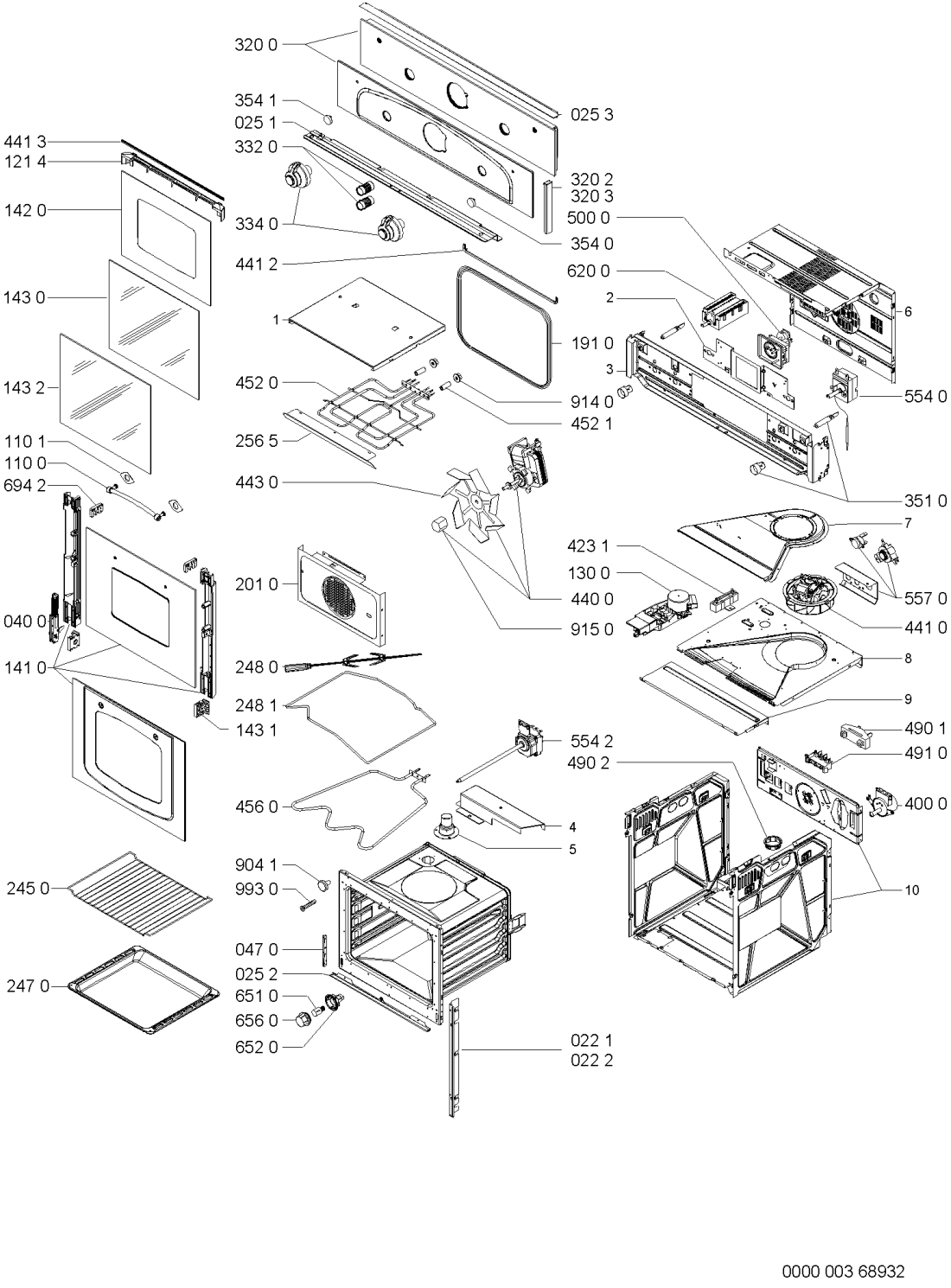

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR05640 |
C00330327
481246049778 |
Trim side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR05640 |
C00330326
481246049777 |
Trim side right | Na dotaz | Zadat poptávku | |
| 025 1 WHR05640 |
C00330392
481246068624 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR05640 |
C00330381
481246068592 |
Profile | Na dotaz | Zadat poptávku | |
| 025 3 WHR05640 |
C00330285
481246049509 |
Trim upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR05640 |
C00312801
481241719467 |
Závěs dveří | 1 040 Kč
€ 42.70 |
||
| 047 0 WHR05640 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR05640 |
C00339040
481249868272 |
Rukojeť dveří | Na dotaz | Zadat poptávku | |
| 110 1 WHR05640 |
C00313127
481246668858 |
Podložka madla dveří vestavné trouby Whirlpool | 50 Kč
€ 2.10 |
||
| 121 4 WHR05640 |
C00331099
481244528037 |
Deflector | Na dotaz | Zadat poptávku | |
| 130 0 WHR05640 |
C00316486
481241738028 |
Door lock Pyro | Na dotaz | Zadat poptávku | |
| 141 0 WHR05640 |
C00337871
481245059844 |
Oven glass + support | Na dotaz | Zadat poptávku | |
| 142 0 WHR05640 |
C00338921
481245059843 |
Inner glass | Na dotaz | Zadat poptávku | |
| 143 0 WHR05640 |
C00331115
481245058907 |
Glass | Na dotaz | Zadat poptávku | |
| 143 1 WHR05640 |
C00317299
481245058908 |
Spacer door glass | Na dotaz | Zadat poptávku | |
| 143 2 WHR05640 |
C00312271
481245059599 |
sklo dveří | 2 275 Kč
€ 93.30 |
||
| 191 0 WHR05640 |
C00331530
481246688952 |
Gasket door pyro 32 clips | Na dotaz | Zadat poptávku | |
| 201 0 WHR05640 |
C00341539
481244269515 |
Panel rear pyro | Na dotaz | Zadat poptávku | |
| 245 0 WHR05640 |
C00312479
481245819334 |
Rošt pro vestavné trouby Whirlpool, Whirlpool Ikea - GRD 001 | 396 Kč
€ 16.20 |
||
| 247 0 WHR05640 |
C00318822
481241838138 |
Fat pan | Na dotaz | Zadat poptávku | |
| 248 0 WHR05640 |
C00332318
481252518026 |
Rotary spit assembly | Na dotaz | Zadat poptávku | |
| 248 1 WHR05640 |
C00330050
481245819146 |
drzak rozne | 484 Kč
€ 19.90 |
||
| 256 5 WHR05640 |
C00316686
481240488073 |
Plate protection grill | Na dotaz | Zadat poptávku | |
| 320 0 WHR05640 |
C00340367
481245240054 |
Glass panel | Na dotaz | Zadat poptávku | |
| 320 2 WHR05640 |
C00329219
481240478767 |
End block left | Na dotaz | Zadat poptávku | |
| 320 3 WHR05640 |
C00329220
481240478768 |
End block right | Na dotaz | Zadat poptávku | |
| 332 0 WHR05640 |
C00337003
481241029467 |
knoflik trouby | 607 Kč
€ 24.90 |
||
| 334 0 WHR05640 |
C00338590
481241279296 |
knoflik rustikalni | 385 Kč
€ 15.80 |
||
| 351 0 WHR05640 |
C00327370
481231028093 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR05640 |
C00314833
481946279749 |
LENS RED | Na dotaz | Zadat poptávku | |
| 354 1 WHR05640 |
C00341772
481946279748 |
kryt signalky zluty | 149 Kč
€ 6.10 |
||
| 400 0 WHR05640 |
C00328833
481236158404 |
Motor rotary spit | Na dotaz | Zadat poptávku | |
| 423 1 WHR05640 |
C00326735
481211518038 |
Resistor 470 ohm | Na dotaz | Zadat poptávku | |
| 440 0 WHR05640 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR05640 |
C00312506
481236118511 |
ventilator | 2 202 Kč
€ 90.30 |
||
| 441 2 WHR05640 |
C00315028
481246688784 |
Těsnění dveří trouby | 613 Kč
€ 25.10 |
||
| 441 3 WHR05640 |
C00331562
481246699047 |
tesneni dveri trouby | 269 Kč
€ 11.00 |
||
| 443 0 WHR05640 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR05640 |
C00317185
481225998456 |
Topné těleso trouby – horní + gril 2500W | 2 580 Kč
€ 105.80 |
||
| 452 1 WHR05640 |
C00328909
481240118665 |
Spacer heating element | Na dotaz | Zadat poptávku | |
| 456 0 WHR05640 |
C00316553
481225998421 |
Topné těleso trouby Whirlpool - spodní, 1150 W | 355 Kč
€ 14.60 |
||
| 490 1 WHR05640 |
C00327588
481229068255 |
CABLE CLAMP | Na dotaz | Zadat poptávku | |
| 490 2 WHR05640 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR05640 |
C00313503
481229068329 |
svorkovnice | 99 Kč
€ 4.10 |
||
| 500 0 WHR05640 |
C00344547
481228210317 |
Autotimer analogue | Na dotaz | Zadat poptávku | |
| 554 0 WHR05640 |
C00335485
481228238155 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 554 2 WHR05640 |
C00314927
481228228289 |
termostat | Na dotaz | Zadat poptávku | |
| 557 0 WHR05640 |
C00316903
481228228305 |
Pojistka tepelná | Na dotaz | Zadat poptávku | |
| 620 0 WHR05640 |
C00342074
481227318064 |
Oven selector switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR05640 |
C00326815
481213418028 |
zarovka 25W 500C | 1 590 Kč
€ 65.20 |
||
| 652 0 WHR05640 |
C00327138
481225528021 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 656 0 WHR05640 |
C00331110
481245028009 |
Kryt žárovky | 1 129 Kč
€ 46.30 |
||
| 694 2 WHR05640 |
C00315933
481246368024 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 904 1 WHR05640 |
C00331589 | Spacer | Na dotaz | Zadat poptávku | |
| 914 0 WHR05640 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR05640 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 993 0 WHR05640 |
C00327633
481231038844 |
Mounting kit | Na dotaz | Zadat poptávku | |
| 999 WHR05640 |
C00371816 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05640 |
C00371819 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05640 |
C00371820 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
