WHIRLPOOL AKP 308/IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 308/IX |
| Kód 12NC: | 857730853010 |
| I.C. kód: | 857730853011 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 857730853010 |
Potřebujete servis? Jsme tady pro Vás

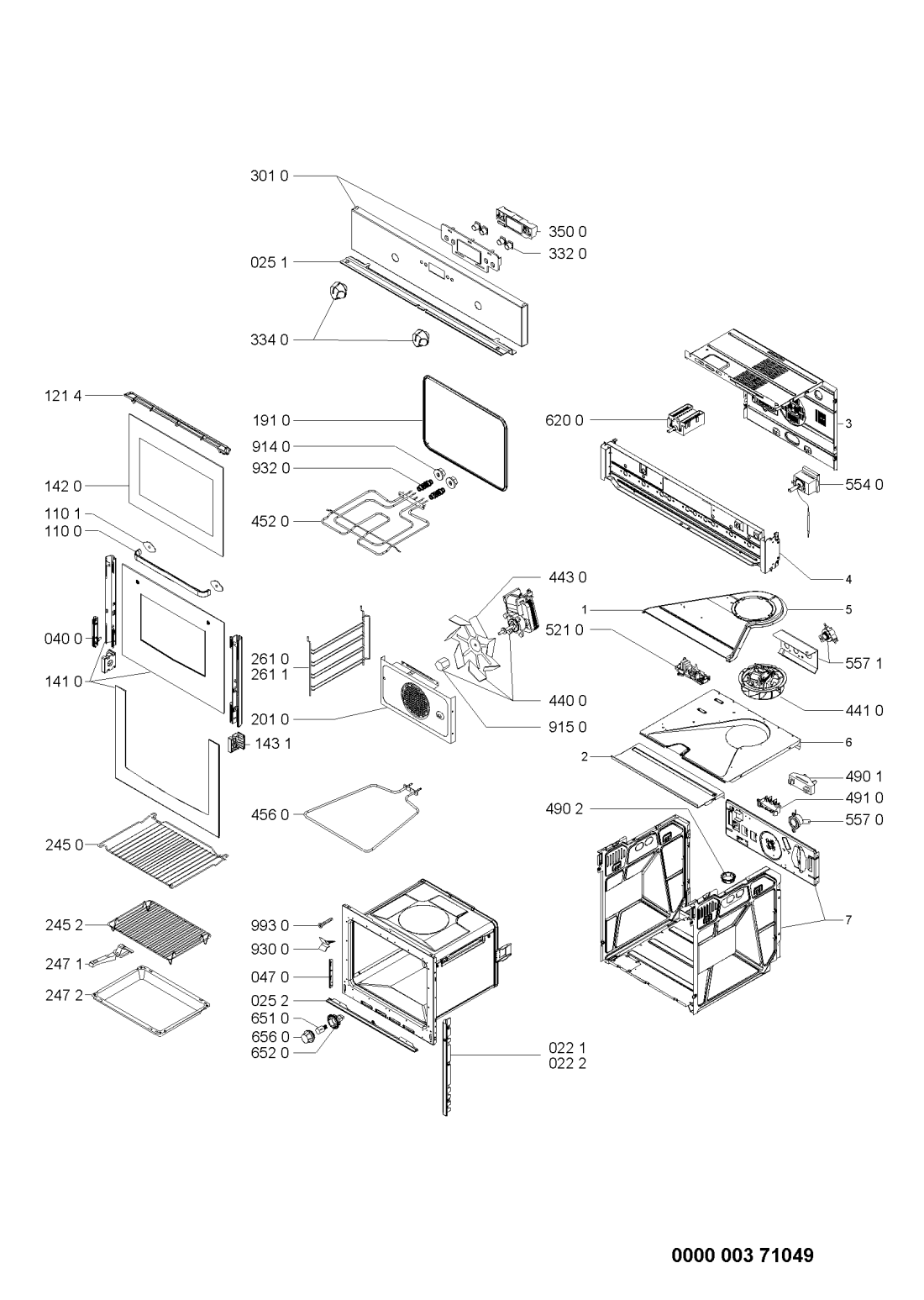

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 1 WHR31382 |
C00404631
481246068591 |
Trim side | Na dotaz | Zadat poptávku | |
| 022 2 WHR31382 |
C00404630
481246068589 |
lista ochrana prava | 471 Kč
€ 20.70 |
||
| 025 1 WHR31382 |
C00330416
481246079229 |
panel | Na dotaz | Zadat poptávku | |
| 025 2 WHR31382 |
C00315865
481246068638 |
lista | 1 174 Kč
€ 51.60 |
||
| 040 0 WHR31382 |
C00329764
481241719471 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR31382 |
C00329812
481241778152 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 110 0 WHR31382 |
C00313401
481249868259 |
Madlo dveří trouby Whirlpool | 986 Kč
€ 43.30 |
||
| 110 1 WHR31382 |
C00312913
481246668928 |
Podložka gumová | 91 Kč
€ 4.00 |
||
| 121 4 WHR31382 |
C00311017
481246058418 |
Exhaust fume | Na dotaz | Zadat poptávku | |
| 141 0 WHR31382 |
C00389619
480121100334 |
Oven glass + supports | Na dotaz | Zadat poptávku | |
| 142 0 WHR31382 |
C00312228
481245059576 |
Sklo dveří vnitřní | 2 937 Kč
€ 129.10 |
||
| 143 1 WHR31382 |
C00314180
481240438808 |
Podpěra | 422 Kč
€ 18.50 |
||
| 191 0 WHR31382 |
C00311697
481246688912 |
Těsnění dveří trouby náhrada C00311697 | Na dotaz | Zadat poptávku | |
| 201 0 WHR31382 |
C00312074
481244269486 |
stena trouby zadni | 2 047 Kč
€ 90.00 |
||
| 245 0 WHR31382 |
C00333059
481945868752 |
Rošt trouby | 1 486 Kč
€ 65.30 |
||
| 245 2 WHR31382 |
C00315603
481945819538 |
Grid | Na dotaz | Zadat poptávku | |
| 247 1 WHR31382 |
C00317859
481939548003 |
Handle grid | 541 Kč
€ 23.80 |
||
| 247 2 WHR31382 |
C00317041
481241838149 |
Fat pan | 2 342 Kč
€ 102.90 |
||
| 261 0 WHR31382 |
C00333057
481945868282 |
mrizka prava | 570 Kč
€ 25.10 |
||
| 261 1 WHR31382 |
C00333058
481945868283 |
mrizka leva | 570 Kč
€ 25.10 |
||
| 301 0 WHR31382 |
C00430298
480121100335 |
Panel control | Na dotaz | Zadat poptávku | |
| 332 0 WHR31382 |
C00312301
480121100151 |
Tlačítka-sestava | Na dotaz | Zadat poptávku | |
| 334 0 WHR31382 |
C00314264
481241278886 |
knoflik ovladaci IX | 644 Kč
€ 28.30 |
||
| 350 0 WHR31382 |
C00310969
481213018696 |
Display Ampere | Na dotaz | Zadat poptávku | |
| 440 0 WHR31382 |
C00310972
481236118492 |
OVEN CAVITY FAN | Na dotaz | Zadat poptávku | |
| 441 0 WHR31382 |
C00313480
481236118498 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 0 WHR31382 |
C00312020
481951548065 |
IMPELLER FAN | Na dotaz | Zadat poptávku | |
| 452 0 WHR31382 |
C00327185
481225998497 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR31382 |
C00313096
481225998432 |
Heating element lower 1000W | Na dotaz | Zadat poptávku | |
| 490 1 WHR31382 |
C00327588
481229068255 |
Clamp cable | Na dotaz | Zadat poptávku | |
| 490 2 WHR31382 |
C00328528
481232148026 |
kryt nahrada 480121100013 | Na dotaz | Zadat poptávku | |
| 491 0 WHR31382 |
C00313503
481229068329 |
svorkovnice | 196 Kč
€ 8.60 |
||
| 521 0 WHR31382 |
C00311720
481221458615 |
Power unit | Na dotaz | Zadat poptávku | |
| 554 0 WHR31382 |
C00312087
481228208627 |
termostat kapilarni | 2 302 Kč
€ 101.20 |
||
| 557 0 WHR31382 |
C00311539
481228228315 |
Termostat 130 °C | 1 278 Kč
€ 56.20 |
||
| 557 1 WHR31382 |
C00335557
481228228322 |
Thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR31382 |
C00400907
481227318096 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 651 0 WHR31382 |
C00311519
481913488153 |
Oven lamp 25W 230V | Na dotaz | Zadat poptávku | |
| 652 0 WHR31382 |
C00311285
481925518237 |
Objímka žárovky | Na dotaz | Zadat poptávku | |
| 656 0 WHR31382 |
C00311267
481245028007 |
Kryt žárovky do trouby Whirlpool | 145 Kč
€ 6.40 |
||
| 914 0 WHR31382 |
C00332178
481250518421 |
NUT M4 | Na dotaz | Zadat poptávku | |
| 915 0 WHR31382 |
C00314899
481950518145 |
NUT PROPELLER CAVITY FAN | Na dotaz | Zadat poptávku | |
| 930 0 WHR31382 |
C00312854
481240418649 |
Držák NTC | 376 Kč
€ 16.50 |
||
| 932 0 WHR31382 |
C00333184
481949268714 |
SPRING UPPER HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| 993 0 WHR31382 |
C00316311
481231039078 |
Mounting kit | Na dotaz | Zadat poptávku | |
