AKP 950/01 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—18:00
Pá 8:00—15:00
| Model: | 857795015100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | unknown |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

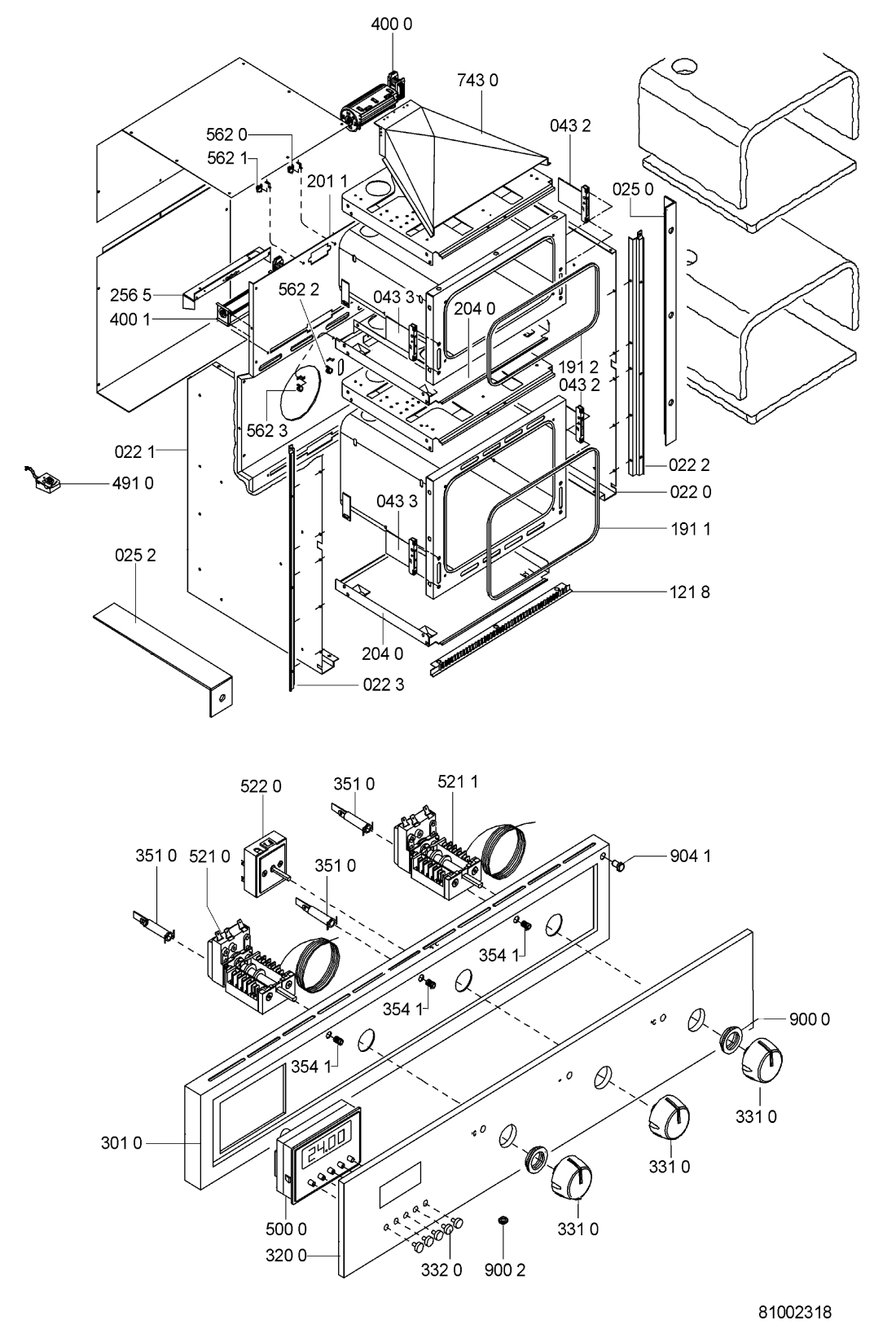

| Číslo | Model | Název | Cena CZK | Cena EUR | ||
|---|---|---|---|---|---|---|
| 022 0 | 481246418032 | Cabinet right side | Na dotaz | Na dotaz | Zadat poptávku | |
| 022 1 | 481246418033 | Cabinet left side | Na dotaz | Na dotaz | Zadat poptávku | |
| 022 2 | 481246418035 | Frame right | Na dotaz | Na dotaz | Zadat poptávku | |
| 022 3 | 481246418034 | Frame left | Na dotaz | Na dotaz | Zadat poptávku | |
| 025 0 | 481281518708 | Trim side | Na dotaz | Na dotaz | Zadat poptávku | |
| 025 1 | 481246098007 | Panel upper | Na dotaz | Na dotaz | Zadat poptávku | |
| 025 2 | 481281518709 | Plate support | Na dotaz | Na dotaz | Zadat poptávku | |
| 040 0 | 481241718866 | Hinge inner door (lower) | Na dotaz | Na dotaz | Zadat poptávku | |
| 040 1 | 481241718864 | Hinge inner door (upper) | Na dotaz | Na dotaz | Zadat poptávku | |
| 043 2 | 481241718862 | Hinge right | Na dotaz | Na dotaz | Zadat poptávku | |
| 043 3 | 481241718863 | Hinge left | Na dotaz | Na dotaz | Zadat poptávku | |
| 100 0 | 481249878576 | Oven door complete (lower) | Na dotaz | Na dotaz | Zadat poptávku | |
| 100 1 | 481249878577 | Oven door complete (upper) | Na dotaz | Na dotaz | Zadat poptávku | |
| 110 0 | 481246268921 | Handle door WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 110 1 | 481240448682 | Holder door | Na dotaz | Na dotaz | Zadat poptávku | |
| 121 0 | 481246418037 | Door frame inner | Na dotaz | Na dotaz | Zadat poptávku | |
| 121 1 | 481246418039 | Frame inner door | Na dotaz | Na dotaz | Zadat poptávku | |
| 121 8 | 481246418036 | Frame lower | Na dotaz | Na dotaz | Zadat poptávku | |
| 141 2 | 481245058263 | Glass medium | Na dotaz | Na dotaz | Zadat poptávku | |
| 141 3 | 481245058264 | Glass medium | Na dotaz | Na dotaz | Zadat poptávku | |
| 142 0 | 481245058855 | Oven glass outer (lower) | Na dotaz | Na dotaz | Zadat poptávku | |
| 142 1 | 481245058856 | Oven glass outer (upper) | Na dotaz | Na dotaz | Zadat poptávku | |
| 143 0 | 481245058262 | Glass | Na dotaz | Na dotaz | Zadat poptávku | |
| 143 1 | 481240418122 | Frame | Na dotaz | Na dotaz | Zadat poptávku | |
| 143 2 | 481240418123 | Glass thermo | Na dotaz | Na dotaz | Zadat poptávku | |
| 143 3 | 481240418119 | Frame | Na dotaz | Na dotaz | Zadat poptávku | |
| 191 0 | 481204658004 | Gasket | Na dotaz | Na dotaz | Zadat poptávku | |
| 191 1 | 481204658005 | Gasket | Na dotaz | Na dotaz | Zadat poptávku | |
| 191 2 | 481204658002 | Gasket | Na dotaz | Na dotaz | Zadat poptávku | |
| 192 0 | 481204658003 | Gasket | Na dotaz | Na dotaz | Zadat poptávku | |
| 192 1 | 481204658001 | Gasket | Na dotaz | Na dotaz | Zadat poptávku | |
| 201 0 | 481242378002 | Air diffuser | Na dotaz | Na dotaz | Zadat poptávku | |
| 201 1 | 481236118286 | Air diffuser | Na dotaz | Na dotaz | Zadat poptávku | |
| 204 0 | 481246418041 | Cabinet bulkhead | Na dotaz | Na dotaz | Zadat poptávku | |
| 245 0 | 481245819025 | Grill grid | Na dotaz | Na dotaz | Zadat poptávku | |
| 245 1 | 481242378003 | Grating | Na dotaz | Na dotaz | Zadat poptávku | |
| 246 0 | 481242378005 | Pan Drip Tray | Na dotaz | Na dotaz | Zadat poptávku | |
| 247 0 | 481241838114 | Baking tray | Na dotaz | Na dotaz | Zadat poptávku | |
| 247 2 | 481242378006 | Handle Pan set | Na dotaz | Na dotaz | Zadat poptávku | |
| 256 5 | 481240418121 | Holder heating element | Na dotaz | Na dotaz | Zadat poptávku | |
| 261 0 | 481245818976 | Bracket racks side | Na dotaz | Na dotaz | Zadat poptávku | |
| 261 1 | 481240418117 | Bracket racks side | Na dotaz | Na dotaz | Zadat poptávku | |
| 261 2 | 481240418118 | Bracket | Na dotaz | Na dotaz | Zadat poptávku | |
| 301 0 | 481240448679 | Control panel | Na dotaz | Na dotaz | Zadat poptávku | |
| 320 0 | 481245359853 | Control panel WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 331 0 | 481241128939 | Knob WH | Na dotaz | Na dotaz | Zadat poptávku | |
| 332 0 | 481227338089 | Switch | Na dotaz | Na dotaz | Zadat poptávku | |
| 351 0 | 481213428063 | Pilot lamp yellow | Na dotaz | Na dotaz | Zadat poptávku | |
| 354 1 | 481221778107 | Lens lens (yellow) | Na dotaz | Na dotaz | Zadat poptávku | |
| 400 0 | 481202858333 | Motor fan tang. | Na dotaz | Na dotaz | Zadat poptávku | |
| 400 1 | 481202858332 | Motor | Na dotaz | Na dotaz | Zadat poptávku | |
| 440 0 | 481202858331 | Motor fan fan | Na dotaz | Na dotaz | Zadat poptávku | |
| 451 0 | 481242378001 | Heating element circuit | Na dotaz | Na dotaz | Zadat poptávku | |
| 452 0 | 481225948111 | HEATING ELEMENT | Na dotaz | Na dotaz | Zadat poptávku | |
| 456 0 | 481225948112 | Heating element bottom | Na dotaz | Na dotaz | Zadat poptávku | |
| 491 0 | 481232128393 | Terminal block with mains cable | Na dotaz | Na dotaz | Zadat poptávku | |
| 500 0 | 481221478361 | Control unit | Na dotaz | Na dotaz | Zadat poptávku | |
| 521 0 | 481227328158 | Selector,switch and thermostat | Na dotaz | Na dotaz | Zadat poptávku | |
| 521 1 | 481227328157 | Selector,switch and thermostat | Na dotaz | Na dotaz | Zadat poptávku | |
| 522 0 | 481227328159 | REGULATOR | Na dotaz | Na dotaz | Zadat poptávku | |
| 554 1 | 481228268022 | Holder Thermostat | Na dotaz | Na dotaz | Zadat poptávku | |
| 562 0 | 481221538001 | Thermostat safety T115 | Na dotaz | Na dotaz | Zadat poptávku | |
| 562 1 | 481221838089 | Thermostat safety T60 | Na dotaz | Na dotaz | Zadat poptávku | |
| 562 2 | 481228248262 | Thermostat safety T80 | Na dotaz | Na dotaz | Zadat poptávku | |
| 562 3 | 481228238066 | Thermostat safety T125 | Na dotaz | Na dotaz | Zadat poptávku | |
| 651 0 | 481213428064 | Oven Lamp | Na dotaz | Na dotaz | Zadat poptávku | |
| 743 0 | 481244038875 | Conveyor | Na dotaz | Na dotaz | Zadat poptávku | |
| 900 0 | 481240448677 | WASHER | Na dotaz | Na dotaz | Zadat poptávku | |
| 900 1 | 481240448678 | WASHER | Na dotaz | Na dotaz | Zadat poptávku | |
| 900 2 | 481240448681 | Washer and support | Na dotaz | Na dotaz | Zadat poptávku | |
| 904 0 | 481245058686 | Glass holder | Na dotaz | Na dotaz | Zadat poptávku | |
| 904 1 | 481246368009 | Shock absorber | Na dotaz | Na dotaz | Zadat poptávku | |
| 910 0 | 481250218474 | Screw door stop | Na dotaz | Na dotaz | Zadat poptávku | |
