WHIRLPOOL AKP 950 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 950 WH |
| Kód 12NC/I.C. kód: | 857795015000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0924890000 |
Potřebujete servis? Jsme tady pro Vás

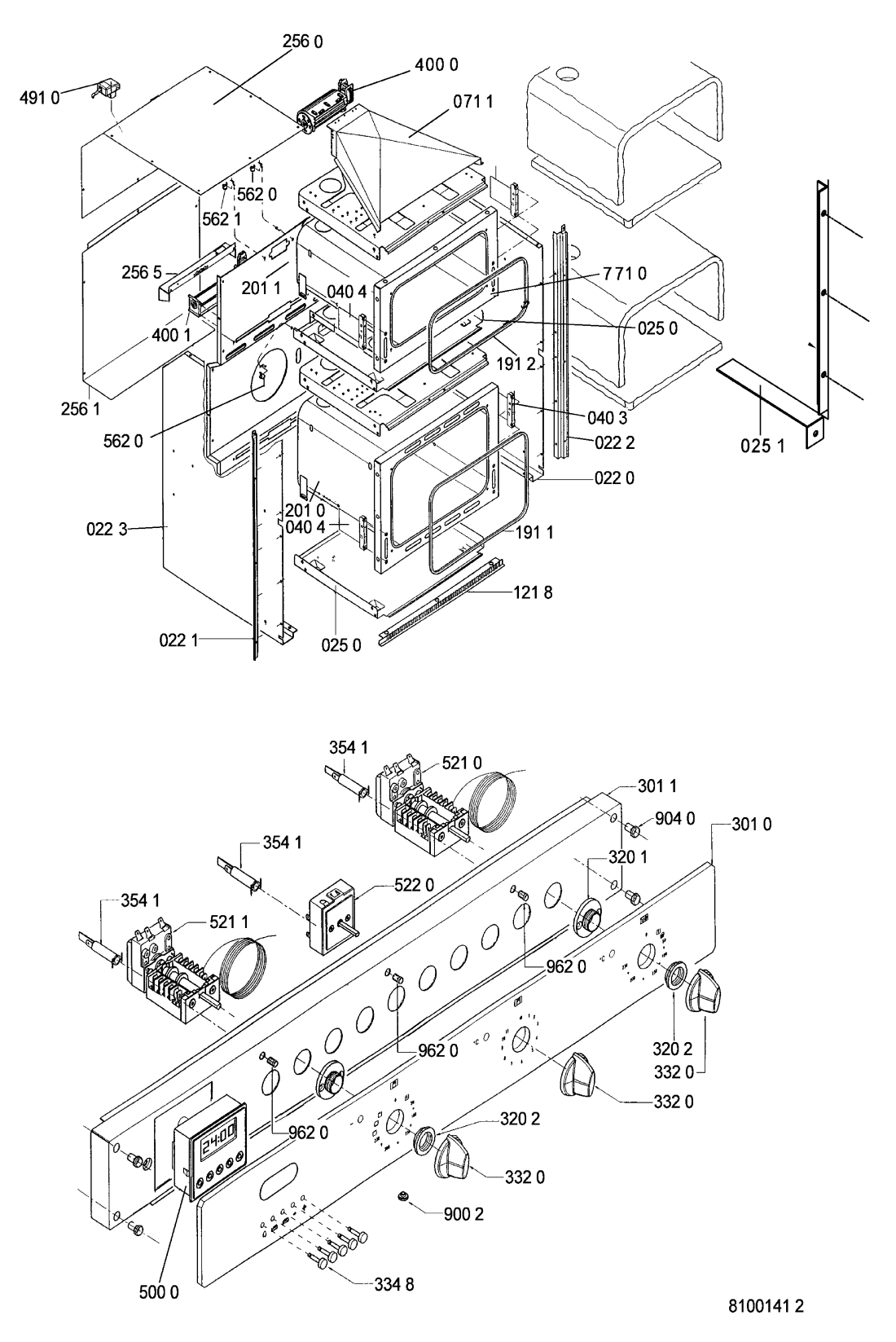

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR05748 |
C00343901 | Cabinet right side | Na dotaz | Zadat poptávku | |
| 022 1 WHR05748 |
C00340737
481246418034 |
Frame left | Na dotaz | Zadat poptávku | |
| 022 2 WHR05748 |
C00340726
481246418035 |
Frame right | Na dotaz | Zadat poptávku | |
| 022 3 WHR05748 |
C00343908
481246418033 |
Cabinet left side | Na dotaz | Zadat poptávku | |
| 025 0 WHR05748 |
C00343916 | Cabinet bulkhead | Na dotaz | Zadat poptávku | |
| 025 5 WHR05748 |
C00341527
481246098007 |
Panel upper | Na dotaz | Zadat poptávku | |
| 040 0 WHR05748 |
C00339822 | Hinge inner door (lower) | Na dotaz | Zadat poptávku | |
| 040 1 WHR05748 |
C00339821
481241718864 |
Hinge inner door (upper) | Na dotaz | Zadat poptávku | |
| 040 3 WHR05748 |
C00316858 | Hinge right | Na dotaz | Zadat poptávku | |
| 040 4 WHR05748 |
C00316860
481241718863 |
Hinge left | Na dotaz | Zadat poptávku | |
| 071 1 WHR05748 |
C00343132
481244038875 |
CONVEYOR | Na dotaz | Zadat poptávku | |
| 110 0 WHR05748 |
C00340142 | HANDLE | Na dotaz | Zadat poptávku | |
| 110 3 WHR05748 |
C00329035 | Holder door | Na dotaz | Zadat poptávku | |
| 121 0 WHR05748 |
C00339296 | Door frame inner | Na dotaz | Zadat poptávku | |
| 121 1 WHR05748 |
C00340740
481246418039 |
FRAME INNER DOOR | Na dotaz | Zadat poptávku | |
| 121 8 WHR05748 |
C00340732
481246418036 |
Frame lower | Na dotaz | Zadat poptávku | |
| 141 0 WHR05748 |
C00340381 | GLASS | Na dotaz | Zadat poptávku | |
| 141 1 WHR05748 |
C00340382 | GLASS | Na dotaz | Zadat poptávku | |
| 141 2 WHR05748 |
C00340328 | Glass thermo | Na dotaz | Zadat poptávku | |
| 142 0 WHR05748 |
C00340374
481245058263 |
Glass medium | Na dotaz | Zadat poptávku | |
| 142 1 WHR05748 |
C00340375 | Glass medium | Na dotaz | Zadat poptávku | |
| 143 0 WHR05748 |
C00317596 | GLASS | Na dotaz | Zadat poptávku | |
| 143 1 WHR05748 |
C00340761 | FRAME | Na dotaz | Zadat poptávku | |
| 143 2 WHR05748 |
C00340762 | FRAME | Na dotaz | Zadat poptávku | |
| 191 0 WHR05748 |
C00340553 | GASKET | Na dotaz | Zadat poptávku | |
| 191 1 WHR05748 |
C00313531
481204658005 |
GASKET | Na dotaz | Zadat poptávku | |
| 191 2 WHR05748 |
C00313521
481204658002 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 0 WHR05748 |
C00312973
481204658003 |
GASKET | Na dotaz | Zadat poptávku | |
| 192 1 WHR05748 |
C00316815 | GASKET | Na dotaz | Zadat poptávku | |
| 201 0 WHR05748 |
C00337954 | OVEN CUBE; cube | Na dotaz | Zadat poptávku | |
| 201 1 WHR05748 |
C00344617 | AIR DIFFUSER | Na dotaz | Zadat poptávku | |
| 201 2 WHR05748 |
C00344616 | AIR DIFFUSER | Na dotaz | Zadat poptávku | |
| 245 0 WHR05748 |
C00337956
481245818975 |
OVEN | Na dotaz | Zadat poptávku | |
| 245 1 WHR05748 |
C00340311
481242378003 |
GRATING | Na dotaz | Zadat poptávku | |
| 247 0 WHR05748 |
C00335366 | TRAY | Na dotaz | Zadat poptávku | |
| 247 1 WHR05748 |
C00342055 | PAN DRIP TRAY | Na dotaz | Zadat poptávku | |
| 256 0 WHR05748 |
C00343951 | CABINET | Na dotaz | Zadat poptávku | |
| 256 1 WHR05748 |
C00343902 | CABINET REAR; rear | Na dotaz | Zadat poptávku | |
| 256 5 WHR05748 |
C00339598 | Holder heating element | Na dotaz | Zadat poptávku | |
| 261 8 WHR05748 |
C00344163
481240418117 |
BRACKET RACKS SIDE | Na dotaz | Zadat poptávku | |
| 261 9 WHR05748 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 262 0 WHR05748 |
C00344162
481245818976 |
Bracket racks side | Na dotaz | Zadat poptávku | |
| 264 1 WHR05748 |
C00339995 | HANDLE PAN SET | Na dotaz | Zadat poptávku | |
| 301 0 WHR05748 |
C00342050 | PANEL | Na dotaz | Zadat poptávku | |
| 301 1 WHR05748 |
C00342637 | CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 320 1 WHR05748 |
C00337259
481240448677 |
WASHER | Na dotaz | Zadat poptávku | |
| 320 2 WHR05748 |
C00337260
481240448678 |
WASHER | Na dotaz | Zadat poptávku | |
| 332 0 WHR05748 |
C00341859 | Knob white | Na dotaz | Zadat poptávku | |
| 334 8 WHR05748 |
C00335777
481227338089 |
SWITCH | Na dotaz | Zadat poptávku | |
| 354 1 WHR05748 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 400 0 WHR05748 |
C00315607
481202858333 |
motor fan tang. | Na dotaz | Zadat poptávku | |
| 400 1 WHR05748 |
C00314813
481202858332 |
MOTOR | Na dotaz | Zadat poptávku | |
| 440 0 WHR05748 |
C00314972
481202858331 |
Motor fan fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR05748 |
C00317137
481242378001 |
Heating element circuit | Na dotaz | Zadat poptávku | |
| 452 0 WHR05748 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR05748 |
C00316448 | Heating element bottom | Na dotaz | Zadat poptávku | |
| 491 0 WHR05748 |
C00335578
481232128393 |
Terminal block with mains cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR05748 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 521 0 WHR05748 |
C00315961
481227328157 |
Selector,switch and thermostat | Na dotaz | Zadat poptávku | |
| 521 1 WHR05748 |
C00314539
481227328158 |
Selector,switch and thermostat | Na dotaz | Zadat poptávku | |
| 522 0 WHR05748 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 1 WHR05748 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR05748 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 562 1 WHR05748 |
C00314997 | Thermostat safety T60 | Na dotaz | Zadat poptávku | |
| 650 0 WHR05748 |
C00342075 | Oven Lamp | Na dotaz | Zadat poptávku | |
| 651 0 WHR05748 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 1 WHR05748 |
C00341814
481245068259 |
LAMP SCREEN | Na dotaz | Zadat poptávku | |
| 771 0 WHR05748 |
C00337955 | OVEN CUBE SMOOTH; cube smooth | Na dotaz | Zadat poptávku | |
| 900 2 WHR05748 |
C00337232 | Washer and support | Na dotaz | Zadat poptávku | |
| 904 0 WHR05748 |
C00336359 | SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 910 0 WHR05748 |
C00342212 | Damper Oven door | Na dotaz | Zadat poptávku | |
| 962 0 WHR05748 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 999 WHR05748 |
C00371995 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
