| Komerční kód: | AKP 952 IX |
| Kód 12NC/I.C. kód: | 857795215000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0910820000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

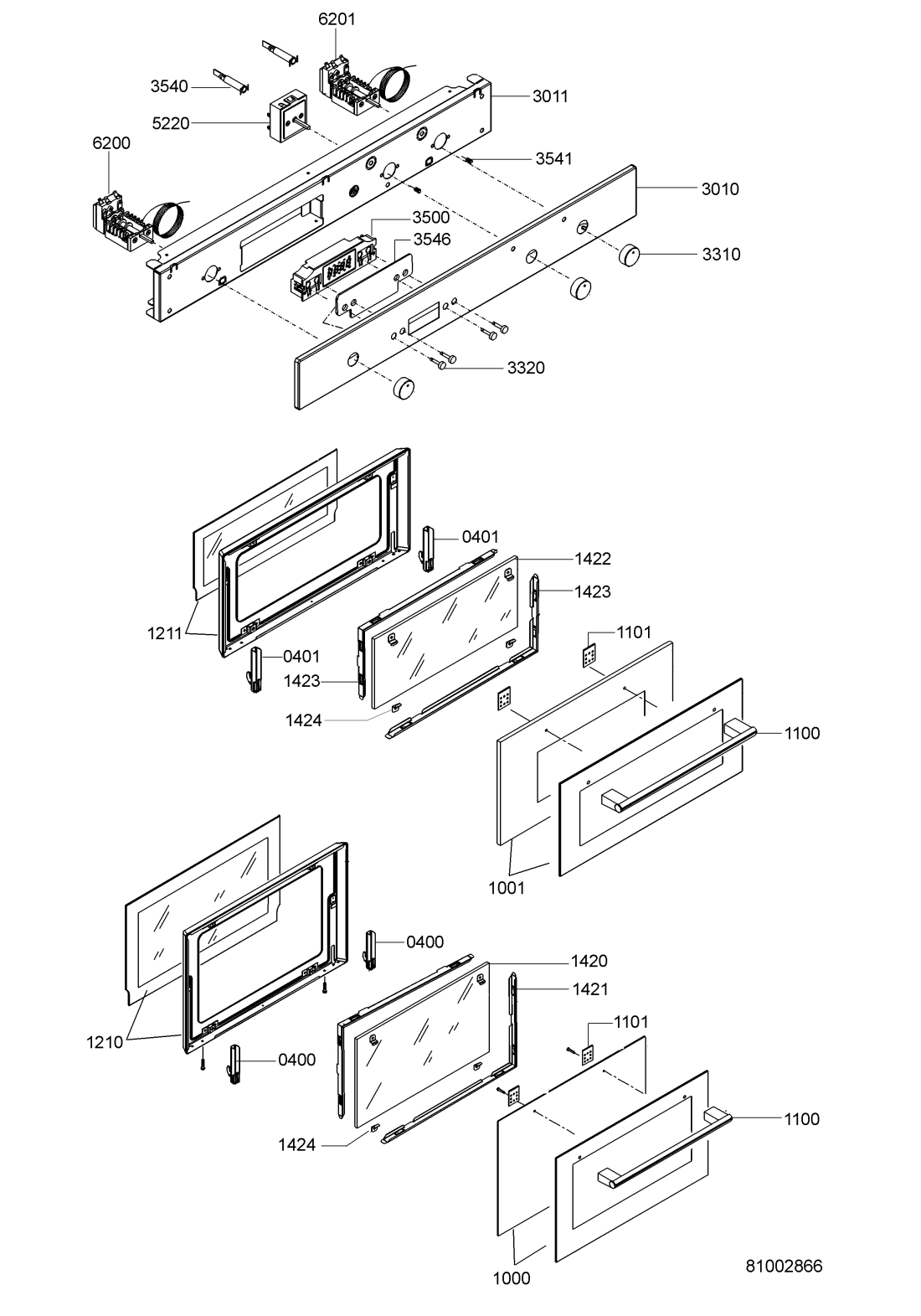

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR05756 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
| 022 1 WHR05756 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 2 WHR05756 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
| 022 3 WHR05756 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
| 025 0 WHR05756 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
| 025 2 WHR05756 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
| 040 0 WHR05756 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
| 040 1 WHR05756 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
| 043 2 WHR05756 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
| 100 0 WHR05756 |
C00342082
480121100107 |
Oven glass lower cpl. | Na dotaz | Zadat poptávku | |
| 100 1 WHR05756 |
C00313582
480121100108 |
Oven glass upper cpl. | Na dotaz | Zadat poptávku | |
| 110 0 WHR05756 |
C00320389
481246268989 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR05756 |
C00314956
480121100189 |
Support handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR05756 |
C00312509
481246418156 |
Oven door inner glass frame lower | Na dotaz | Zadat poptávku | |
| 121 1 WHR05756 |
C00316452 | Oven door inner glass frame upper | Na dotaz | Zadat poptávku | |
| 142 0 WHR05756 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 142 1 WHR05756 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 142 2 WHR05756 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 142 3 WHR05756 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 142 4 WHR05756 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR05756 |
C00311672
481204658009 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 1 WHR05756 |
C00311502
481204658011 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR05756 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
| 245 0 WHR05756 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 245 1 WHR05756 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR05756 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 1 WHR05756 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
| 256 5 WHR05756 |
C00328915
481240118697 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 0 WHR05756 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
| 261 2 WHR05756 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 8 WHR05756 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
| 301 0 WHR05756 |
C00343232
480121100183 |
Control panel inox | Na dotaz | Zadat poptávku | |
| 301 1 WHR05756 |
C00335850
480121100184 |
Support control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR05756 |
C00321819
480121100181 |
Knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR05756 |
C00337016
480121100182 |
Push button black | Na dotaz | Zadat poptávku | |
| 350 0 WHR05756 |
C00315205
480121100188 |
Display board | Na dotaz | Zadat poptávku | |
| 354 0 WHR05756 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 354 1 WHR05756 |
C00330616
481246228993 |
Cover light transparent | Na dotaz | Zadat poptávku | |
| 354 6 WHR05756 |
C00335921
480121100185 |
Support | Na dotaz | Zadat poptávku | |
| 440 0 WHR05756 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 441 0 WHR05756 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 441 1 WHR05756 |
C00326715
481202858349 |
Cover protect. cooling fan | Na dotaz | Zadat poptávku | |
| 451 0 WHR05756 |
C00313041
481225998583 |
Heating element circular 2000 W | Na dotaz | Zadat poptávku | |
| 452 0 WHR05756 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 452 1 WHR05756 |
C00329523
481241378786 |
Cover grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR05756 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 491 0 WHR05756 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
| 491 1 WHR05756 |
C00327596
481229068306 |
Bracket terminal block | Na dotaz | Zadat poptávku | |
| 500 0 WHR05756 |
C00315199
480121100187 |
User board | Na dotaz | Zadat poptávku | |
| 522 0 WHR05756 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 1 WHR05756 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR05756 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 562 1 WHR05756 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 562 2 WHR05756 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 562 3 WHR05756 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 620 0 WHR05756 |
C00316305 | Switch oven + thermostat lower | Na dotaz | Zadat poptávku | |
| 620 1 WHR05756 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
| 652 0 WHR05756 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 743 0 WHR05756 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
| 743 1 WHR05756 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
| 900 0 WHR05756 |
C00330680
481246248433 |
Chimney part condenser | Na dotaz | Zadat poptávku | |
| 963 0 WHR05756 |
C00327597
481229068307 |
Bracket | Na dotaz | Zadat poptávku | |
| 999 WHR05756 |
C00371999 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05756 |
C00372001 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
