WHIRLPOOL AKP 955 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKP 955 IX |
| Kód 12NC/I.C. kód: | 857795515000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

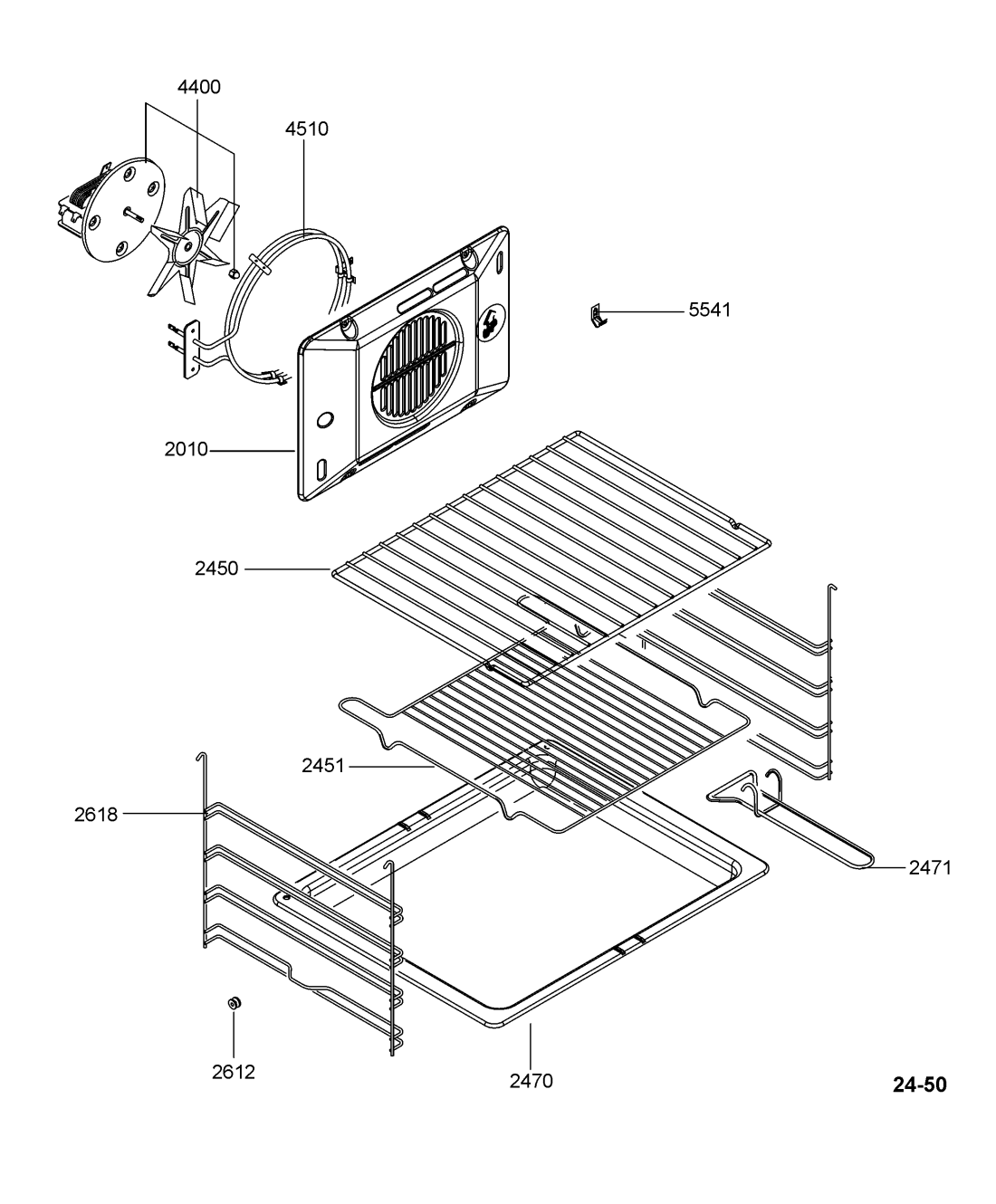

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0220 WHR05649 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
| 0221 WHR05649 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
| 0222 WHR05649 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
| 0223 WHR05649 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
| 0250 WHR05649 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
| 0252 WHR05649 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
| 0400 WHR05649 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
| 0401 WHR05649 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
| 0432 WHR05649 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
| 1000 WHR05649 |
C00389756
480121100805 |
Oven door complete | Na dotaz | Zadat poptávku | |
| 1001 WHR05649 |
C00389757
480121100806 |
Oven door complete | Na dotaz | Zadat poptávku | |
| 1100 WHR05649 |
C00330737
481246269015 |
rukojet | Na dotaz | Zadat poptávku | |
| 1101 WHR05649 |
C00314956
480121100189 |
Support handle | Na dotaz | Zadat poptávku | |
| 1210 WHR05649 |
C00312509
481246418156 |
Oven door inner glass frame lower | Na dotaz | Zadat poptávku | |
| 1211 WHR05649 |
C00498435
481246418155 |
Oven door inner glass frame upper | Na dotaz | Zadat poptávku | |
| 1420 WHR05649 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 1424 WHR05649 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
| 1431 WHR05649 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 1432 WHR05649 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 1433 WHR05649 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 1910 WHR05649 |
C00311502
481204658011 |
Gasket | Na dotaz | Zadat poptávku | |
| 1911 WHR05649 |
C00311672
481204658009 |
Gasket | Na dotaz | Zadat poptávku | |
| 2010 WHR05649 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
| 2450 WHR05649 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 2451 WHR05649 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 2470 WHR05649 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
| 2471 WHR05649 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
| 2565 WHR05649 |
C00328915
481240118697 |
Bracket | Na dotaz | Zadat poptávku | |
| 2610 WHR05649 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
| 2612 WHR05649 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 2618 WHR05649 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
| 3010 WHR05649 |
C00389755
480121100804 |
Control panel | Na dotaz | Zadat poptávku | |
| 3011 WHR05649 |
C00335850
480121100184 |
Support control panel | Na dotaz | Zadat poptávku | |
| 3310 WHR05649 |
C00389752
480121100801 |
Knob oven switch | Na dotaz | Zadat poptávku | |
| 3311 WHR05649 |
C00389753
480121100802 |
Knob regulator | Na dotaz | Zadat poptávku | |
| 3312 WHR05649 |
C00389754
480121100803 |
Knob oven switch | Na dotaz | Zadat poptávku | |
| 3320 WHR05649 |
C00337016
480121100182 |
Push button black | Na dotaz | Zadat poptávku | |
| 3500 WHR05649 |
C00315205
480121100188 |
Display board | Na dotaz | Zadat poptávku | |
| 3540 WHR05649 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 3541 WHR05649 |
C00330616
481246228993 |
Cover light transparent | Na dotaz | Zadat poptávku | |
| 4400 WHR05649 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 4410 WHR05649 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 4411 WHR05649 |
C00326715
481202858349 |
Cover protect. cooling fan | Na dotaz | Zadat poptávku | |
| 4510 WHR05649 |
C00313041
481225998583 |
Heating element circular 2000 W | Na dotaz | Zadat poptávku | |
| 4520 WHR05649 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 4521 WHR05649 |
C00329523
481241378786 |
Cover grill | Na dotaz | Zadat poptávku | |
| 4560 WHR05649 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 4910 WHR05649 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
| 4911 WHR05649 |
C00327596
481229068306 |
Bracket terminal block | Na dotaz | Zadat poptávku | |
| 5000 WHR05649 |
C00315199
480121100187 |
User board | Na dotaz | Zadat poptávku | |
| 5220 WHR05649 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 5541 WHR05649 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 5620 WHR05649 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 5621 WHR05649 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 5622 WHR05649 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 5623 WHR05649 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 6200 WHR05649 |
C00497370
481228248285 |
Switch,oven + thermostat lower | Na dotaz | Zadat poptávku | |
| 6201 WHR05649 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
| 6520 WHR05649 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 7430 WHR05649 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
| 7431 WHR05649 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
| 9000 WHR05649 |
C00330680
481246248433 |
Chimney part condenser | Na dotaz | Zadat poptávku | |
| 9630 WHR05649 |
C00327597
481229068307 |
Bracket | Na dotaz | Zadat poptávku | |
