WHIRLPOOL AKR 047/WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKR 047/WH |
| Kód 12NC/I.C. kód: | 857804778000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

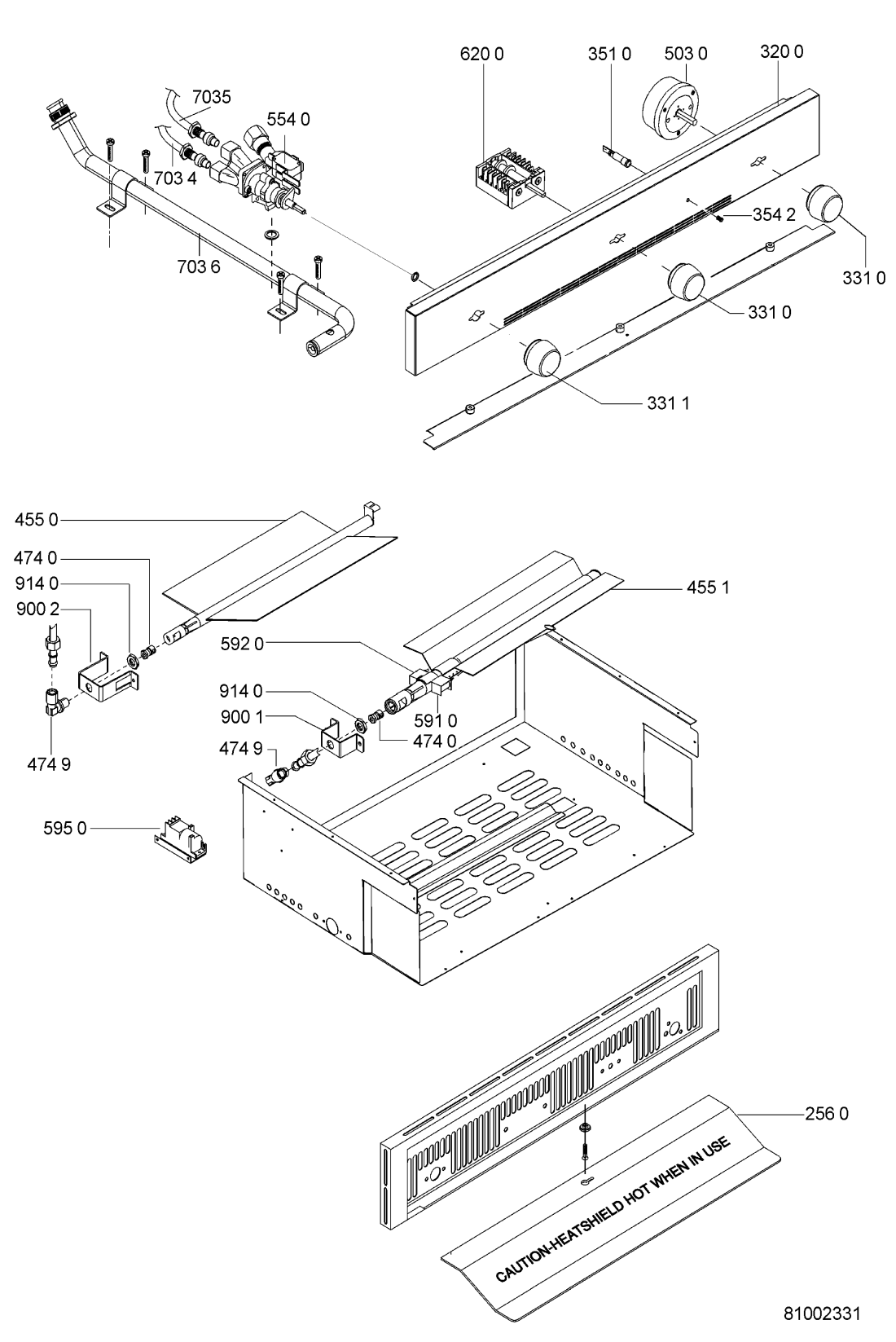

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR65423 |
C00621942
481246079119 |
Oven side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR65423 |
C00621945
481246079121 |
Oven side left | Na dotaz | Zadat poptávku | |
| 025 0 WHR65423 |
C00621946
481246079125 |
Frame lower | Na dotaz | Zadat poptávku | |
| 025 1 WHR65423 |
C00082217
481246079123 |
RIGHT FRAME POST 960 GAS | Na dotaz | Zadat poptávku | |
| 025 2 WHR65423 |
C00082216
481246079122 |
LEFT FRAME POST 960 | Na dotaz | Zadat poptávku | |
| 025 3 WHR65423 |
C00082252
481246079124 |
FRAME COVER WHITE 960 | Na dotaz | Zadat poptávku | |
| 040 0 WHR65423 |
C00313542
481241719046 |
Hinge oven door | Na dotaz | Zadat poptávku | |
| 044 0 WHR65423 |
C00488963
481241719118 |
Hinge roller+support | Na dotaz | Zadat poptávku | |
| 044 1 WHR65423 |
C00314503
481241758385 |
Hinge support | Na dotaz | Zadat poptávku | |
| 100 0 WHR65423 |
C00603794
481231038805 |
Door complete. | Na dotaz | Zadat poptávku | |
| 110 0 WHR65423 |
C00487743
481246268925 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR65423 |
C00497586
481240448682 |
Holder | Na dotaz | Zadat poptávku | |
| 121 0 WHR65423 |
C00330800
481246418073 |
Door inner skin | Na dotaz | Zadat poptávku | |
| 141 0 WHR65423 |
C00487599
481245058878 |
Door glass outer | Na dotaz | Zadat poptávku | |
| 142 2 WHR65423 |
C00621931
481245058686 |
Glass holder | Na dotaz | Zadat poptávku | |
| 143 0 WHR65423 |
C00331068
481244269257 |
Door glass inner | Na dotaz | Zadat poptávku | |
| 191 0 WHR65423 |
C00621954
481246688749 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 192 0 WHR65423 |
C00331578
481246818113 |
Gasket door upper | Na dotaz | Zadat poptávku | |
| 192 1 WHR65423 |
C00331579
481246818236 |
Seal inner oven door | Na dotaz | Zadat poptávku | |
| 245 0 WHR65423 |
C00330039
481245819083 |
Grid oven | Na dotaz | Zadat poptávku | |
| 247 0 WHR65423 |
C00327786
481241838077 |
plech na peceni | Na dotaz | Zadat poptávku | |
| 248 0 WHR65423 |
C00621715
481253588008 |
Turn spit | Na dotaz | Zadat poptávku | |
| 248 1 WHR65423 |
C00621896
481240478674 |
Support spit | Na dotaz | Zadat poptávku | |
| 256 0 WHR65423 |
C00490161
481246688751 |
Grill deflector | Na dotaz | Zadat poptávku | |
| 261 0 WHR65423 |
C00485823
481245858384 |
Rail oven side | Na dotaz | Zadat poptávku | |
| 261 2 WHR65423 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 320 0 WHR65423 |
C00603976
481245359874 |
Control panel WH. | Na dotaz | Zadat poptávku | |
| 331 0 WHR65423 |
C00487136
481241128951 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR65423 |
C00329366
481241128952 |
Knob | Na dotaz | Zadat poptávku | |
| 351 0 WHR65423 |
C00326832
481213448284 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 354 2 WHR65423 |
C00328847
481238118279 |
Lens green | Na dotaz | Zadat poptávku | |
| 401 0 WHR65423 |
C00317700
481236178016 |
Motor spit | Na dotaz | Zadat poptávku | |
| 441 0 WHR65423 |
C00603819
481236118428 |
Motor cooling fan tangential. | Na dotaz | Zadat poptávku | |
| 455 0 WHR65423 |
C00482779
481236068628 |
Burner grill | Na dotaz | Zadat poptávku | |
| 455 1 WHR65423 |
C00621890
481236068629 |
Burner oven | Na dotaz | Zadat poptávku | |
| 474 0 WHR65423 |
C00482636
481231038803 |
Nozzle oven grill 0,95 NG | Na dotaz | Zadat poptávku | |
| 474 0 WHR65423 |
C00621702
481231038804 |
Nozzle oven grill 1,45 NG | Na dotaz | Zadat poptávku | |
| 474 9 WHR65423 |
C00484111
481253048514 |
Nozzle holder | Na dotaz | Zadat poptávku | |
| 491 0 WHR65423 |
C00327591
481229068283 |
Terminal block | Na dotaz | Zadat poptávku | |
| 503 0 WHR65423 |
C00377455
481221478907 |
Timer | Na dotaz | Zadat poptávku | |
| 554 0 WHR65423 |
C00491183
481228208634 |
Thermostat two-way valve | Na dotaz | Zadat poptávku | |
| 554 1 WHR65423 |
C00621881
481228208635 |
Thermostat probe holder | Na dotaz | Zadat poptávku | |
| 591 0 WHR65423 |
C00621800
481225268065 |
Spark plug. | Na dotaz | Zadat poptávku | |
| 592 0 WHR65423 |
C00621697
481213838027 |
Thermo couple L=500 | Na dotaz | Zadat poptávku | |
| 592 0 WHR65423 |
C00621794
481213838026 |
Thermo couple L=800 | Na dotaz | Zadat poptávku | |
| 595 0 WHR65423 |
C00621799
481214528016 |
Generator ignition. | Na dotaz | Zadat poptávku | |
| 620 0 WHR65423 |
C00621880
481227618463 |
Selector,switch | Na dotaz | Zadat poptávku | |
| 632 0 WHR65423 |
C00621876
481226718003 |
Switch door | Na dotaz | Zadat poptávku | |
| 652 0 WHR65423 |
C00327121
481225518243 |
Lamp oven 50HZ 25W | Na dotaz | Zadat poptávku | |
| 703 4 WHR65423 |
C00493788
481253048696 |
Pipe oven burner | Na dotaz | Zadat poptávku | |
| 703 5 WHR65423 |
C00493789
481253048697 |
Pipe grill burner | Na dotaz | Zadat poptávku | |
| 703 6 WHR65423 |
C00493787
481253048695 |
Pipe main gas | Na dotaz | Zadat poptávku | |
| 743 0 WHR65423 |
C00343127
481213638006 |
Conveyor air | Na dotaz | Zadat poptávku | |
| 900 1 WHR65423 |
C00082199
481250218646 |
SUPPORT INJECTOR | Na dotaz | Zadat poptávku | |
| 900 2 WHR65423 |
C00604085
481250218647 |
Support nozzle | Na dotaz | Zadat poptávku | |
| 910 0 WHR65423 |
C00332086
481250218588 |
Screw oven door | Na dotaz | Zadat poptávku | |
| 914 0 WHR65423 |
C00082196
481250218645 |
NUT-JET HOLDER OVEN | Na dotaz | Zadat poptávku | |
