IGNIS AKS 952 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKS 952 IX |
| Kód 12NC/I.C. kód: | 857995215010 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0911230000, 857995215011, Q0911230001 |
Potřebujete servis? Jsme tady pro Vás

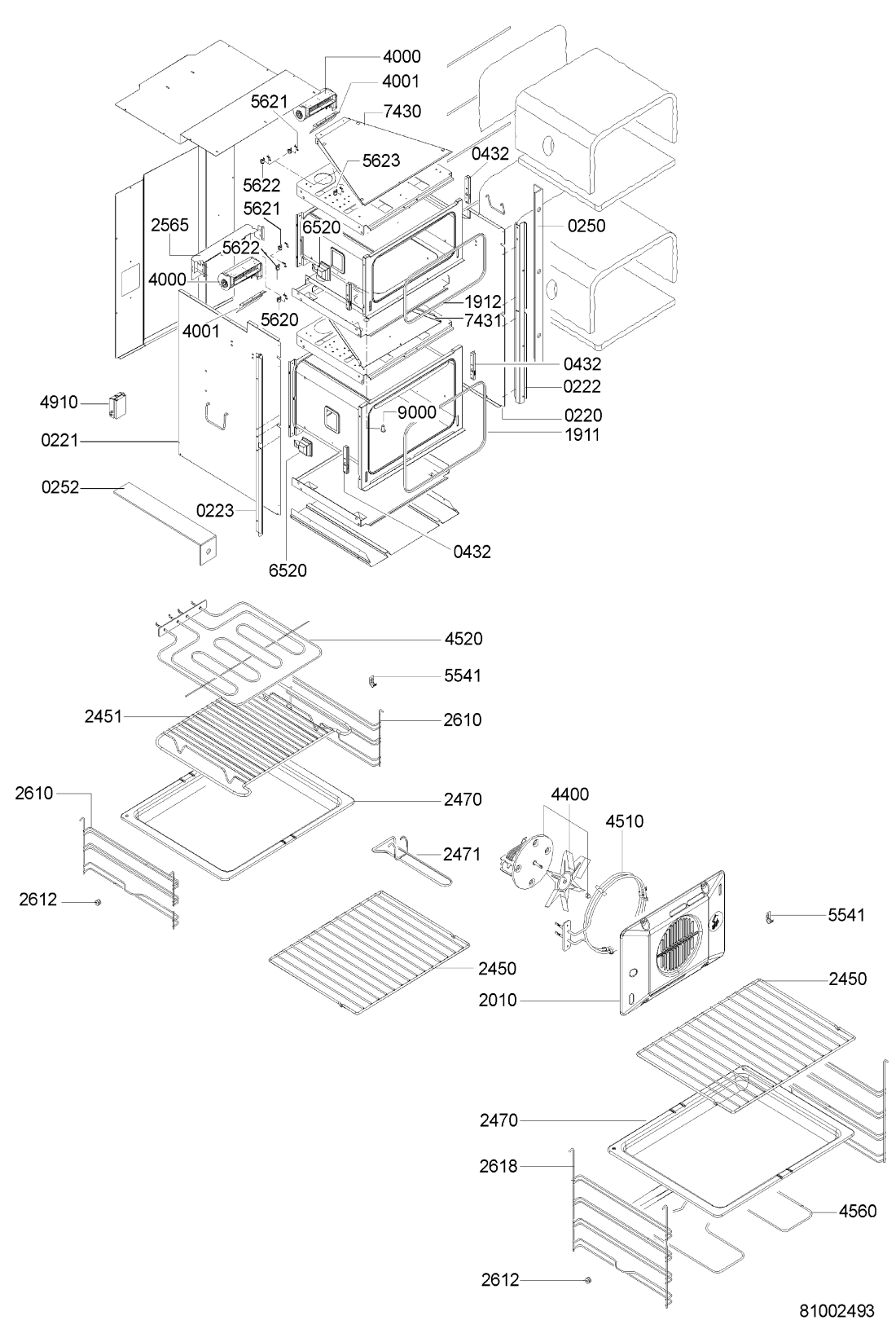

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 022 0 WHR02389 |
C00330807
481246418151 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR02389 |
C00330808
481246418152 |
Panel side left | Na dotaz | Zadat poptávku | |
| 022 2 WHR02389 |
C00330810
481246418154 |
Frame post right | Na dotaz | Zadat poptávku | |
| 022 3 WHR02389 |
C00330809
481246418153 |
Frame post left | Na dotaz | Zadat poptávku | |
| 025 0 WHR02389 |
C00332759
481281518708 |
Trim side | Na dotaz | Zadat poptávku | |
| 025 2 WHR02389 |
C00332760
481281518709 |
Plate support | Na dotaz | Zadat poptávku | |
| 040 0 WHR02389 |
C00312539
481241719298 |
Hinge oven door lower 3/4 | Na dotaz | Zadat poptávku | |
| 040 1 WHR02389 |
C00313466
481241719299 |
Hinge oven door upper 1/2 3 V | Na dotaz | Zadat poptávku | |
| 043 2 WHR02389 |
C00329728
481241719297 |
Hinge support oven door | Na dotaz | Zadat poptávku | |
| 100 0 WHR02389 |
C00331131 | Oven door glass (lower) | Na dotaz | Zadat poptávku | |
| 100 1 WHR02389 |
C00331130
481245059502 |
Oven door glass (upper) | Na dotaz | Zadat poptávku | |
| 110 0 WHR02389 |
C00345834
481249858217 |
Handle | Na dotaz | Zadat poptávku | |
| 110 1 WHR02389 |
C00314970
481249878634 |
Support support | Na dotaz | Zadat poptávku | |
| 121 0 WHR02389 |
C00312509
481246418156 |
Oven door inner glass frame lower | Na dotaz | Zadat poptávku | |
| 121 1 WHR02389 |
C00316452 | Oven door inner glass frame upper | Na dotaz | Zadat poptávku | |
| 142 0 WHR02389 |
C00317620
481245058984 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 142 1 WHR02389 |
C00319055
481240418464 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 142 2 WHR02389 |
C00317301
481245058985 |
Oven glass medium | Na dotaz | Zadat poptávku | |
| 142 3 WHR02389 |
C00315379
481240418463 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 142 4 WHR02389 |
C00316632
481240418465 |
Bracket inner door glass | Na dotaz | Zadat poptávku | |
| 191 1 WHR02389 |
C00311502
481204658011 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 2 WHR02389 |
C00311672
481204658009 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 0 WHR02389 |
C00327928
481242378009 |
Fan oven diffuser | Na dotaz | Zadat poptávku | |
| 245 0 WHR02389 |
C00330066
481245819268 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 245 1 WHR02389 |
C00330064
481245819266 |
Grill grid | Na dotaz | Zadat poptávku | |
| 247 0 WHR02389 |
C00327791
481241838126 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 1 WHR02389 |
C00327929
481242378011 |
Handle baking tray | Na dotaz | Zadat poptávku | |
| 256 5 WHR02389 |
C00328915
481240118697 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 0 WHR02389 |
C00330067
481245819269 |
Inset grid upper cavity | Na dotaz | Zadat poptávku | |
| 261 2 WHR02389 |
C00328960
481240418118 |
Bracket | Na dotaz | Zadat poptávku | |
| 261 8 WHR02389 |
C00330065
481245819267 |
Inset grid lower cavity | Na dotaz | Zadat poptávku | |
| 301 0 WHR02389 |
C00331468
481245350018 |
Control panel support | Na dotaz | Zadat poptávku | |
| 320 0 WHR02389 |
C00331473 | Panel control IN | Na dotaz | Zadat poptávku | |
| 331 0 WHR02389 |
C00329367
481241128954 |
Knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR02389 |
C00312958
481241259123 |
Push button BL | Na dotaz | Zadat poptávku | |
| 351 0 WHR02389 |
C00311750
481213428063 |
Pilot lamp yellow | Na dotaz | Zadat poptávku | |
| 354 1 WHR02389 |
C00311674
481221778107 |
Lens lens (yellow) | Na dotaz | Zadat poptávku | |
| 400 0 WHR02389 |
C00315048
481202858348 |
96ntilator tangential motor | Na dotaz | Zadat poptávku | |
| 400 1 WHR02389 |
C00326715
481202858349 |
Cover protect. cooling fan | Na dotaz | Zadat poptávku | |
| 440 0 WHR02389 |
C00311342
481236118457 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 451 0 WHR02389 |
C00312315
481225998465 |
Heating element circ. 2000W 230V | Na dotaz | Zadat poptávku | |
| 452 0 WHR02389 |
C00312039
481225948111 |
Topné těleso trouby – horní + grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR02389 |
C00311969
481225948189 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 491 0 WHR02389 |
C00314644
481232128427 |
Terminal block + cable | Na dotaz | Zadat poptávku | |
| 500 0 WHR02389 |
C00311891
481221478361 |
Control unit | Na dotaz | Zadat poptávku | |
| 500 1 WHR02389 |
C00327006
481221478652 |
Support programmer EL. | Na dotaz | Zadat poptávku | |
| 521 0 WHR02389 |
C00314735
481228208648 |
Switch,oven + thermostat upper | Na dotaz | Zadat poptávku | |
| 521 1 WHR02389 |
C00316305 | Switch oven + thermostat lower | Na dotaz | Zadat poptávku | |
| 522 0 WHR02389 |
C00315975
481227328159 |
REGULATOR | Na dotaz | Zadat poptávku | |
| 554 1 WHR02389 |
C00315994
481228268022 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR02389 |
C00314981
481221538001 |
Thermostat safety T115 | Na dotaz | Zadat poptávku | |
| 562 1 WHR02389 |
C00320312
481228248284 |
Thermostat safety 45°C | Na dotaz | Zadat poptávku | |
| 562 2 WHR02389 |
C00317987
481228208633 |
Thermostat safety NA T70 | Na dotaz | Zadat poptávku | |
| 562 3 WHR02389 |
C00327568
481228248287 |
Bezpečnostní termostat 60°C | Na dotaz | Zadat poptávku | |
| 652 0 WHR02389 |
C00312081
481213428087 |
Lamp,oven | Na dotaz | Zadat poptávku | |
| 743 0 WHR02389 |
C00316208
481244039495 |
Conveyor air upper | Na dotaz | Zadat poptávku | |
| 743 1 WHR02389 |
C00328203
481244039496 |
Conveyor air lower | Na dotaz | Zadat poptávku | |
| 900 0 WHR02389 |
C00330680
481246248433 |
Chimney part condenser | Na dotaz | Zadat poptávku | |
| 999 WHR02389 |
C00363027 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR02389 |
C00363028 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
