WHIRLPOOL AKT 760/NE
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKT 760/NE |
| Kód 12NC/I.C. kód: | 852420310000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

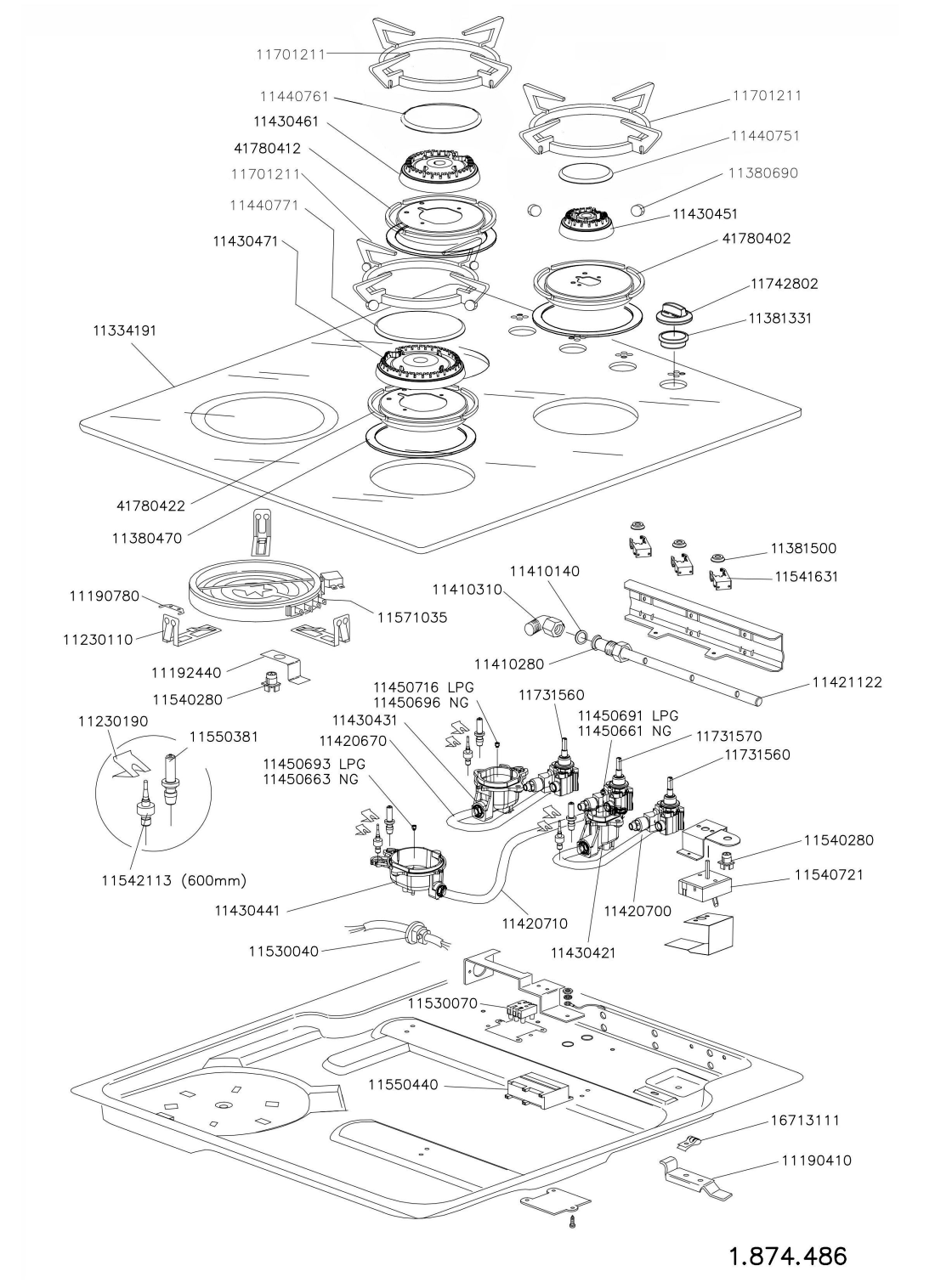

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 11190410 WHR20646 |
C00332869
481931039306 |
Holder | Na dotaz | Zadat poptávku | |
| 11190780 WHR20646 |
C00287467
481240448909 |
GAFFEL | Na dotaz | Zadat poptávku | |
| 11192440 WHR20646 |
C00113502
480121100451 |
PILOT LAMP SUPPORT | Na dotaz | Zadat poptávku | |
| 11230110 WHR20646 |
C00287468
481240448911 |
RETAINER - RADIANT RING | Na dotaz | Zadat poptávku | |
| 11230190 WHR20646 |
C00267205
481244048355 |
SPRING | Na dotaz | Zadat poptávku | |
| 11334191 WHR20646 |
C00411632
482000009470 |
Hob | Na dotaz | Zadat poptávku | |
| 11380470 WHR20646 |
C00057200
482000009471 |
GASKET CUP PLANES | Na dotaz | Zadat poptávku | |
| 11380690 WHR20646 |
C00267249
482000009472 |
RUBBER BUFFER - PAN GRID | Na dotaz | Zadat poptávku | |
| 11381331 WHR20646 |
C00057168
480121102434 |
KNOB DISC GAS BURNERS BLACK | Na dotaz | Zadat poptávku | |
| 11381500 WHR20646 |
C00277038
480121102445 |
Kroužek spínače zapalování | Na dotaz | Zadat poptávku | |
| 11410140 WHR20646 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 11410280 WHR20646 |
C00389609
480121100303 |
Nut RACCORDO | Na dotaz | Zadat poptávku | |
| 11410310 WHR20646 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 11420670 WHR20646 |
C00411633
482000009473 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11420700 WHR20646 |
C00411634
482000009474 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11420710 WHR20646 |
C00411635
482000009475 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11421122 WHR20646 |
C00411636
482000009476 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11430421 WHR20646 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 11430431 WHR20646 |
C00328766
481236078105 |
Burner medium | Na dotaz | Zadat poptávku | |
| 11430441 WHR20646 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 11430451 WHR20646 |
C00328655
481236068521 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 11430461 WHR20646 |
C00328656
481236068522 |
Spreader,burner medium | Na dotaz | Zadat poptávku | |
| 11430471 WHR20646 |
C00328657
481236068523 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 11440751 WHR20646 |
C00328661
481236068632 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 11440761 WHR20646 |
C00316099
481236068633 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 11440771 WHR20646 |
C00328662
481236068634 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 11450661 WHR20646 |
C00267215
481231038823 |
TRYSKA D= 77 GN | Na dotaz | Zadat poptávku | |
| 11450663 WHR20646 |
C00267216
481231038824 |
TRYSKA D= 129 GN | Na dotaz | Zadat poptávku | |
| 11450691 WHR20646 |
C00267219
481231038825 |
TRYSKA D=50 GPL | Na dotaz | Zadat poptávku | |
| 11450693 WHR20646 |
C00267218
481231038826 |
TRYSKA D= 87 GPL | Na dotaz | Zadat poptávku | |
| 11450696 WHR20646 |
C00274935
481231038827 |
TRYSKA GN D=1.01 | Na dotaz | Zadat poptávku | |
| 11450716 WHR20646 |
C00274946
481231038828 |
GAS JET SMALL (066) - LPG | Na dotaz | Zadat poptávku | |
| 11530040 WHR20646 |
C00327584
481229048014 |
Strain relief | Na dotaz | Zadat poptávku | |
| 11530070 WHR20646 |
C00045324
481229068289 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 11540280 WHR20646 |
C00113501
481225518268 |
PILOT LAMP | Na dotaz | Zadat poptávku | |
| 11540721 WHR20646 |
C00267368
481227308001 |
REGULÁTOR ENERGIE 230V L32 | Na dotaz | Zadat poptávku | |
| 11541631 WHR20646 |
C00411637
482000009477 |
Switch | Na dotaz | Zadat poptávku | |
| 11542113 WHR20646 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 11550381 WHR20646 |
C00385894
481225268053 |
Spark plug L=500mm | Na dotaz | Zadat poptávku | |
| 11550440 WHR20646 |
C00302818
481214528038 |
GENERATOR AT 4U | Na dotaz | Zadat poptávku | |
| 11570135 WHR20646 |
C00342092
481925998511 |
plotna varna 145mm | 1 289 Kč
€ 53.00 |
||
| 11701211 WHR20646 |
C00057151
482000009479 |
BURNER GRID (1 BURNER) - BLACK | Na dotaz | Zadat poptávku | |
| 11731560 WHR20646 |
C00322175
480121102427 |
Gas cock | Na dotaz | Zadat poptávku | |
| 11731570 WHR20646 |
C00277171
480121102426 |
Montáž plynového kohoutu 0,34 | Na dotaz | Zadat poptávku | |
| 11742802 WHR20646 |
C00407945
482000002676 |
Knob | Na dotaz | Zadat poptávku | |
| 16713111 WHR20646 |
C00045235
481231038832 |
spona | Na dotaz | Zadat poptávku | |
| 41780402 WHR20646 |
C00385215
481236078119 |
Burner Aux | Na dotaz | Zadat poptávku | |
| 41780412 WHR20646 |
C00411638
482000009480 |
Burner SR | Na dotaz | Zadat poptávku | |
| 41780422 WHR20646 |
C00380927
481236078121 |
Burner R | Na dotaz | Zadat poptávku | |
