WHIRLPOOL AKT717IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKT717IX |
| Kód 12NC: | 859471755000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 859471755001 |
Potřebujete servis? Jsme tady pro Vás

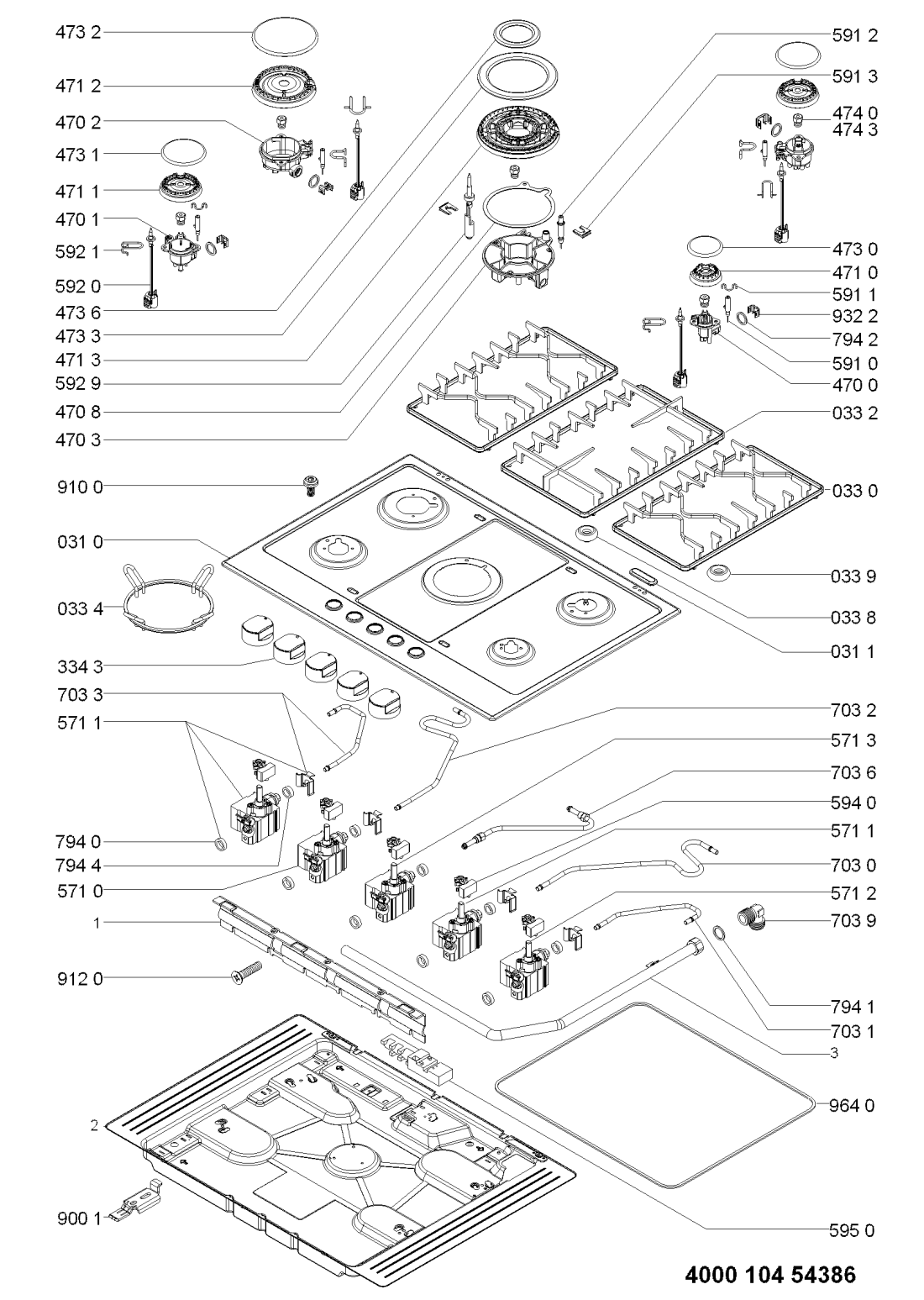

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR38330 |
C00326587
481061269921 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR38330 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR38330 |
C00397207
481010451728 |
Hob assembly IX | Na dotaz | Zadat poptávku | |
| 0311 WHR38330 |
C00319395
481246228718 |
zaslepka | 459 Kč
€ 20.20 |
||
| 0330 WHR38330 |
C00330143
481245838445 |
Grill right/left assembly | Na dotaz | Zadat poptávku | |
| 0332 WHR38330 |
C00330142
481245838444 |
Grid 4C/UR | Na dotaz | Zadat poptávku | |
| 0334 WHR38330 |
C00330141
481245838443 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0337 WHR38330 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 59 Kč
€ 2.60 |
||
| 0338 WHR38330 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0339 WHR38330 |
C00330941
481246668857 |
Rubber grid | Na dotaz | Zadat poptávku | |
| 0430 WHR38330 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR38330 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR38330 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR38330 |
C00329019
481240438754 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR38330 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR38330 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR38330 |
C00313974
480121104812 |
Knoflík stříbrný | 710 Kč
€ 31.20 |
||
| 4700 WHR38330 |
C00319136
481236068814 |
teleso hořáku | 371 Kč
€ 16.30 |
||
| 4701 WHR38330 |
C00318490
481236068815 |
Dno hořáku | 472 Kč
€ 20.70 |
||
| 4702 WHR38330 |
C00316385
481236058482 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4703 WHR38330 |
C00328683
481236068736 |
teleso horaku komplet | 1 377 Kč
€ 60.50 |
||
| 4708 WHR38330 |
C00316031
481246688837 |
tesneni | 291 Kč
€ 12.80 |
||
| 4710 WHR38330 |
C00313402
480121103803 |
teleso horaku | Na dotaz | Zadat poptávku | |
| 4711 WHR38330 |
C00312844
480121103652 |
horak | 744 Kč
€ 32.70 |
||
| 4712 WHR38330 |
C00312908
480121103653 |
Hořák | 283 Kč
€ 12.40 |
||
| 4713 WHR38330 |
C00312490
481236078138 |
horak | 1 914 Kč
€ 84.10 |
||
| 4730 WHR38330 |
C00317694
481060297581 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 4731 WHR38330 |
C00314142
481060297591 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4732 WHR38330 |
C00317692
481060297571 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 4733 WHR38330 |
C00314603
481236078166 |
viko horaku | 980 Kč
€ 43.10 |
||
| 4736 WHR38330 |
C00313926
481236078165 |
hořák | 615 Kč
€ 27.00 |
||
| 4740 WHR38330 |
C00317426
481000364761 |
Sada trysek G20 – zemní plyn | 1 013 Kč
€ 44.50 |
||
| 4743 WHR38330 |
C00313659
481231038976 |
Set of nozzles G30-29 mbar | Na dotaz | Zadat poptávku | |
| 5710 WHR38330 |
C00313892
481236058386 |
ventil plynovy velky | 2 238 Kč
€ 98.40 |
||
| 5711 WHR38330 |
C00313896
481236058491 |
kohout stredni | 2 201 Kč
€ 96.70 |
||
| 5712 WHR38330 |
C00315277
481236058492 |
ventil | 2 201 Kč
€ 96.70 |
||
| 5713 WHR38330 |
C00324021
481010375390 |
Gas cock 3C/4C-crown G20 | Na dotaz | Zadat poptávku | |
| 5910 WHR38330 |
C00314182
481225268078 |
svicka zapalovaci | 296 Kč
€ 13.00 |
||
| 5911 WHR38330 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR38330 |
C00312417
481225268079 |
svicka zapalovaci | 610 Kč
€ 26.80 |
||
| 5913 WHR38330 |
C00345757
481249268206 |
pružina | 661 Kč
€ 29.10 |
||
| 5920 WHR38330 |
C00311810
481213838041 |
Thermocouple 520mm | Na dotaz | Zadat poptávku | |
| 5921 WHR38330 |
C00318235
481249268205 |
pružina | 324 Kč
€ 14.20 |
||
| 5929 WHR38330 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 830 Kč
€ 36.50 |
||
| 5940 WHR38330 |
C00313680
481227658164 |
zapalovac | 1 279 Kč
€ 56.20 |
||
| 5950 WHR38330 |
C00381690
480121100662 |
Ignition generator + terminal block | Na dotaz | Zadat poptávku | |
| 7030 WHR38330 |
C00332552
481253049007 |
Gas pipe SR RR | Na dotaz | Zadat poptávku | |
| 7031 WHR38330 |
C00332554
481253049009 |
Gas pipe A | Na dotaz | Zadat poptávku | |
| 7032 WHR38330 |
C00332553
481253049008 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 7033 WHR38330 |
C00332551
481253049006 |
Gas pipe SR FL | Na dotaz | Zadat poptávku | |
| 7036 WHR38330 |
C00320331
481253049118 |
Gas pipe 4-crown burner | Na dotaz | Zadat poptávku | |
| 7039 WHR38330 |
C00317975
481931039599 |
Koleno | 341 Kč
€ 15.00 |
||
| 7940 WHR38330 |
C00333119
481946668874 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7941 WHR38330 |
C00314988
481953258229 |
Těsnění | 129 Kč
€ 5.70 |
||
| 7942 WHR38330 |
C00314285
481953058065 |
Gasket ring | Na dotaz | Zadat poptávku | |
| 7944 WHR38330 |
C00309464
481010395017 |
Těsnění | 422 Kč
€ 18.50 |
||
| 9001 WHR38330 |
C00314843
481240478776 |
Držáky +šrouby | 225 Kč
€ 9.90 |
||
| 9100 WHR38330 |
C00317070
481250218833 |
Screw | Na dotaz | Zadat poptávku | |
| 9120 WHR38330 |
C00332102
481250218667 |
Screw M4x15 | Na dotaz | Zadat poptávku | |
| 9227 WHR38330 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR38330 |
C00317038
481249268203 |
Pružina | 89 Kč
€ 3.90 |
||
| 9640 WHR38330 |
C00319999
481246689004 |
Těsnění varné desky | 558 Kč
€ 24.50 |
||
| 999 WHR38330 |
C00609497 | Gas table WHP | Na dotaz | Zadat poptávku | |
