| Komerční kód: | AKT725/IXL |
| Kód 12NC: | 859472553000 |
| I.C. kód: | 859472553001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 859472553000 |
Potřebujete servis? Jsme tady pro Vás

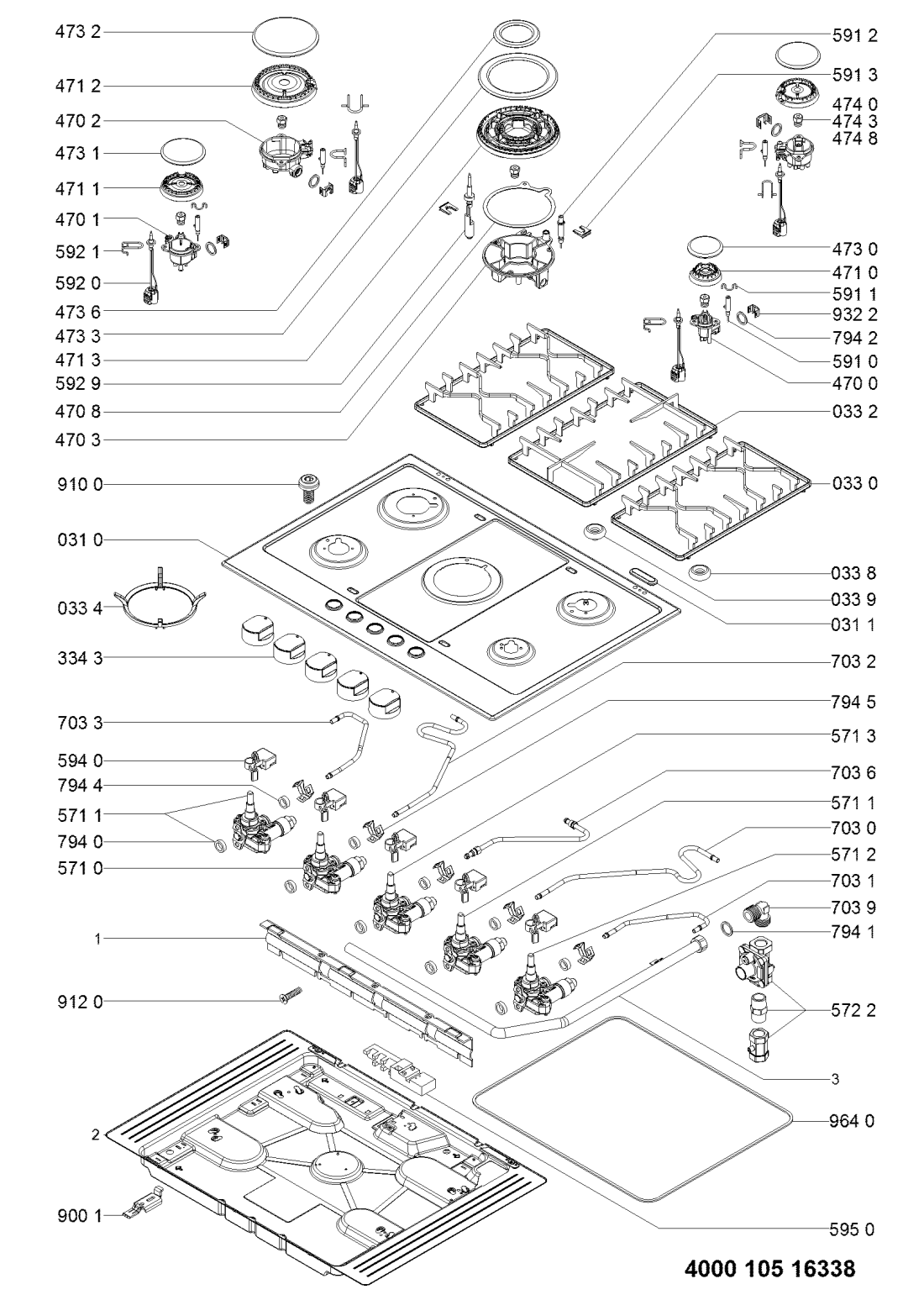

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0020 WHR38346 |
C00326587
481061269921 |
Lid | Na dotaz | Zadat poptávku | |
| 0021 WHR38346 |
C00330380
481246068574 |
Profile lid | Na dotaz | Zadat poptávku | |
| 0310 WHR38346 |
C00322265
480121103313 |
Hob assembly | Na dotaz | Zadat poptávku | |
| 0311 WHR38346 |
C00319395
481246228718 |
zaslepka | Na dotaz | Zadat poptávku | |
| 0330 WHR38346 |
C00398398
481060240731 |
Grid left/right | Na dotaz | Zadat poptávku | |
| 0332 WHR38346 |
C00398397
481060240721 |
Grid middle | Na dotaz | Zadat poptávku | |
| 0334 WHR38346 |
C00330141
481245838443 |
Grid Wok | Na dotaz | Zadat poptávku | |
| 0337 WHR38346 |
C00312063
481246368017 |
Gumová nožička mřížky hořáku | 61 Kč
€ 2.50 |
||
| 0338 WHR38346 |
C00330941
481246668857 |
Rubber grid | Na dotaz | Zadat poptávku | |
| 0339 WHR38346 |
C00311107
481946818388 |
Buffer piece grid | Na dotaz | Zadat poptávku | |
| 0430 WHR38346 |
C00332993
481941719598 |
Hinge right | Na dotaz | Zadat poptávku | |
| 0431 WHR38346 |
C00332994
481941719599 |
Hinge left | Na dotaz | Zadat poptávku | |
| 0432 WHR38346 |
C00329213
481240478745 |
Support hinge right | Na dotaz | Zadat poptávku | |
| 0433 WHR38346 |
C00329019
481240438754 |
Support hinge left | Na dotaz | Zadat poptávku | |
| 0434 WHR38346 |
C00327656
481231038994 |
Fastener lid assembly | Na dotaz | Zadat poptávku | |
| 0435 WHR38346 |
C00333141
481946698736 |
Gasket | Na dotaz | Zadat poptávku | |
| 3343 WHR38346 |
C00313974
480121104812 |
Ovládací knoflík varné desky Whirlpool | 467 Kč
€ 19.20 |
||
| 4700 WHR38346 |
C00401587
481236068862 |
Injector holder AUX | Na dotaz | Zadat poptávku | |
| 4701 WHR38346 |
C00401584
481236068847 |
Injector holder SR | Na dotaz | Zadat poptávku | |
| 4702 WHR38346 |
C00401585
481236068848 |
Injector holder R | Na dotaz | Zadat poptávku | |
| 4703 WHR38346 |
C00401586
481236068849 |
Injector holder 4C | Na dotaz | Zadat poptávku | |
| 4708 WHR38346 |
C00316031
481246688837 |
tesneni | 158 Kč
€ 6.50 |
||
| 4710 WHR38346 |
C00316269
481236078135 |
teleso horaku male | Na dotaz | Zadat poptávku | |
| 4711 WHR38346 |
C00313807
481236078136 |
Těleso hořáku plynové varné desky Whirlpool - střední | 307 Kč
€ 12.60 |
||
| 4712 WHR38346 |
C00328773
481236078143 |
Těleso hořáku | 564 Kč
€ 23.10 |
||
| 4713 WHR38346 |
C00312490
481236078138 |
horak | 1 379 Kč
€ 56.60 |
||
| 4730 WHR38346 |
C00328685
481236068742 |
viko horaku | 492 Kč
€ 20.20 |
||
| 4731 WHR38346 |
C00328684
481236068741 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 4732 WHR38346 |
C00328692
481236068783 |
Víko hořáku - velké | 1 049 Kč
€ 43.00 |
||
| 4733 WHR38346 |
C00314603
481236078166 |
viko horaku | 654 Kč
€ 26.80 |
||
| 4736 WHR38346 |
C00313926
481236078165 |
hořák | 377 Kč
€ 15.50 |
||
| 4740 WHR38346 |
C00457097
481231039109 |
Set of nozzles G20-10 mbar | Na dotaz | Zadat poptávku | |
| 4743 WHR38346 |
C00398399
481060242021 |
Set of nozzles G30-31 29-27.5 mbar | Na dotaz | Zadat poptávku | |
| 4748 WHR38346 |
C00457100
481231039119 |
Set of nozzles G31-27.5 mbar | Na dotaz | Zadat poptávku | |
| 5710 WHR38346 |
C00448412
481060114621 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 5711 WHR38346 |
C00448411
481060114611 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 5712 WHR38346 |
C00448410
481060114601 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 5713 WHR38346 |
C00448413
481060114631 |
Gas cock MW/3C/4C G20 | Na dotaz | Zadat poptávku | |
| 5722 WHR38346 |
C00387646
481222318453 |
Pressure regulator assembly | Na dotaz | Zadat poptávku | |
| 5910 WHR38346 |
C00314182
481225268078 |
svicka zapalovaci | 289 Kč
€ 11.90 |
||
| 5911 WHR38346 |
C00316649
481249268204 |
Spring spark plug | Na dotaz | Zadat poptávku | |
| 5912 WHR38346 |
C00312417
481225268079 |
svicka zapalovaci | 374 Kč
€ 15.30 |
||
| 5913 WHR38346 |
C00345757
481249268206 |
pružina | 405 Kč
€ 16.60 |
||
| 5920 WHR38346 |
C00312912
481010566193 |
Termočlánek | 305 Kč
€ 12.50 |
||
| 5921 WHR38346 |
C00318235
481249268205 |
pružina | 167 Kč
€ 6.80 |
||
| 5929 WHR38346 |
C00312078
481213838042 |
Termočlánek plynové varné desky Whirlpool, Bauknecht | 789 Kč
€ 32.40 |
||
| 5940 WHR38346 |
C00326601
481061521551 |
Elektrické zapalování | 928 Kč
€ 38.10 |
||
| 5950 WHR38346 |
C00312410
481213818015 |
Ignition generator + terminal block | Na dotaz | Zadat poptávku | |
| 7030 WHR38346 |
C00324774
481010515291 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 7031 WHR38346 |
C00324746
481010511827 |
Gas pipe AUX | Na dotaz | Zadat poptávku | |
| 7032 WHR38346 |
C00324745
481010511826 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 7033 WHR38346 |
C00324744
481010511822 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 7036 WHR38346 |
C00324743
481010511818 |
Gas pipe 4C | Na dotaz | Zadat poptávku | |
| 7039 WHR38346 |
C00317975
481931039599 |
Koleno | 184 Kč
€ 7.50 |
||
| 7940 WHR38346 |
C00313330
480121103673 |
Těsnění | 107 Kč
€ 4.40 |
||
| 7941 WHR38346 |
C00314988
481953258229 |
Těsnění | Na dotaz | Zadat poptávku | |
| 7942 WHR38346 |
C00332761
481281518763 |
O-Ring | Na dotaz | Zadat poptávku | |
| 7944 WHR38346 |
C00513663
481953058098 |
Těsnění kohoutu | Na dotaz | Zadat poptávku | |
| 7945 WHR38346 |
C00326569
481060295871 |
Spring fastener | Na dotaz | Zadat poptávku | |
| 9001 WHR38346 |
C00314843
481240478776 |
Držáky +šrouby | 239 Kč
€ 9.80 |
||
| 9100 WHR38346 |
C00332083
481250218531 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| 9120 WHR38346 |
C00321181
480112100069 |
Screw 8-18x5/16 | Na dotaz | Zadat poptávku | |
| 9227 WHR38346 |
C00333318
481953258281 |
Washer | Na dotaz | Zadat poptávku | |
| 9322 WHR38346 |
C00317038
481249268203 |
Pružina | 43 Kč
€ 1.80 |
||
| 9640 WHR38346 |
C00319999
481246689004 |
Těsnění varné desky | 594 Kč
€ 24.40 |
||
| 999 WHR38346 |
C00609514 | Gas table WHP | Na dotaz | Zadat poptávku | |
