WHIRLPOOL AMB 870
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMB 870 |
| Kód 12NC: | 852887010000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

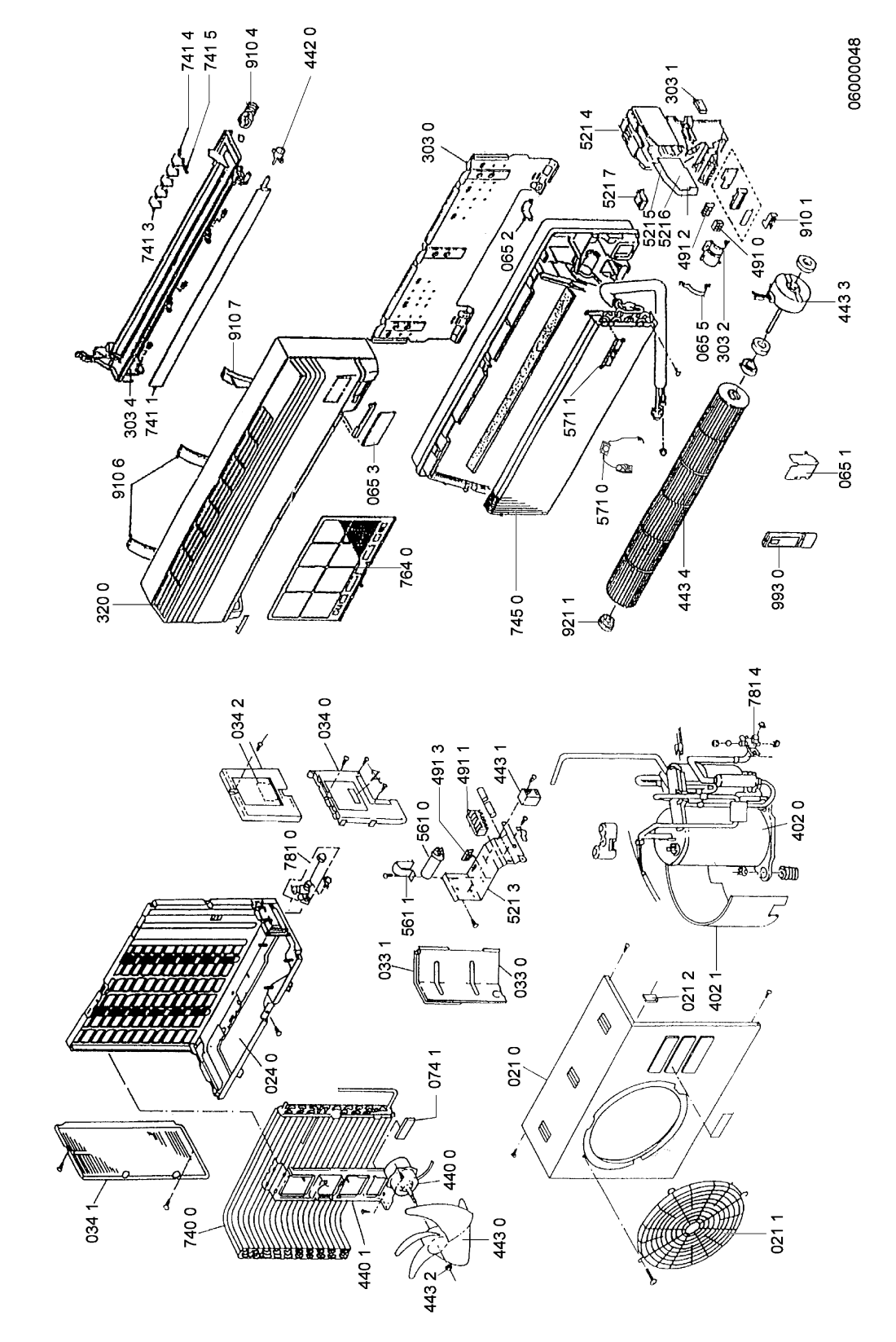

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 021 0 WHR94847 |
C00748940
481244029354 |
Cabinet | Na dotaz | Zadat poptávku | |
| 021 1 WHR94847 |
C00583737
481244098086 |
Grille. | Na dotaz | Zadat poptávku | |
| 021 2 WHR94847 |
C00583345
481244098084 |
Insulation. | Na dotaz | Zadat poptávku | |
| 024 0 WHR94847 |
C00748941
481244010407 |
Cabinet | Na dotaz | Zadat poptávku | |
| 033 0 WHR94847 |
C00583734
481244069099 |
Small plate. | Na dotaz | Zadat poptávku | |
| 033 1 WHR94847 |
C00528194
481244098085 |
Sealing plate plate | Na dotaz | Zadat poptávku | |
| 034 0 WHR94847 |
C00528195
481244098087 |
Small plate rechts rechts | Na dotaz | Zadat poptávku | |
| 034 1 WHR94847 |
C00528036
481244029353 |
Small plate left left | Na dotaz | Zadat poptávku | |
| 034 2 WHR94847 |
C00529673
481246228213 |
Cover set control set control | Na dotaz | Zadat poptávku | |
| 065 1 WHR94847 |
C00748942
481246228208 |
Cover | Na dotaz | Zadat poptávku | |
| 065 2 WHR94847 |
C00528107
481244048285 |
Bracket pipe pipe | Na dotaz | Zadat poptávku | |
| 065 3 WHR94847 |
C00529671
481246228211 |
Cover control control | Na dotaz | Zadat poptávku | |
| 065 5 WHR94847 |
C00748943
481253038037 |
Angle iron | Na dotaz | Zadat poptávku | |
| 074 1 WHR94847 |
C00748933
481253038034 |
Insulation | Na dotaz | Zadat poptávku | |
| 303 0 WHR94847 |
C00748944
481244048284 |
Bracket | Na dotaz | Zadat poptávku | |
| 303 1 WHR94847 |
C00529668
481246228204 |
Clamp cord clamp cord clamp | Na dotaz | Zadat poptávku | |
| 303 2 WHR94847 |
C00529672
481246228212 |
Cover motor panel motor panel | Na dotaz | Zadat poptávku | |
| 303 4 WHR94847 |
C00748945
481246228209 |
Drainhose panel | Na dotaz | Zadat poptávku | |
| 320 0 WHR94847 |
C00748946
481245228163 |
Control panel assembly | Na dotaz | Zadat poptávku | |
| 402 0 WHR94847 |
C00748947
481236038731 |
Compressor SHW33TC2-U Hitachi | Na dotaz | Zadat poptávku | |
| 402 1 WHR94847 |
C00529676
481246228218 |
PROTECTOR NOISE noise | Na dotaz | Zadat poptávku | |
| 440 0 WHR94847 |
C00748948
481236118325 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| 440 1 WHR94847 |
C00583745
481244218018 |
Bracket. | Na dotaz | Zadat poptávku | |
| 442 0 WHR94847 |
C00748949
481236158332 |
Motor adjust | Na dotaz | Zadat poptávku | |
| 443 0 WHR94847 |
C00583586
481228268029 |
VRTULA VENTILATORA | Na dotaz | Zadat poptávku | |
| 443 1 WHR94847 |
C00583579
481228048622 |
KONDENZATOR N | Na dotaz | Zadat poptávku | |
| 443 2 WHR94847 |
C00584261
481253029103 |
Set screw fan. | Na dotaz | Zadat poptávku | |
| 443 3 WHR94847 |
C00748950
481236138052 |
Motor indoor fan | Na dotaz | Zadat poptávku | |
| 443 4 WHR94847 |
C00748951
481251548014 |
Fan wheel indoor | Na dotaz | Zadat poptávku | |
| 491 0 WHR94847 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 491 1 WHR94847 |
C00748908
481229068242 |
Terminal Board (2U) outdoor | Na dotaz | Zadat poptávku | |
| 491 2 WHR94847 |
C00620290
481228078007 |
Terminal Board (3pu) indoor | Na dotaz | Zadat poptávku | |
| 491 3 WHR94847 |
C00748911
481245228153 |
Connectionblock (3PS) outdoor | Na dotaz | Zadat poptávku | |
| 521 3 WHR94847 |
C00748931
481229068244 |
Bracket | Na dotaz | Zadat poptávku | |
| 521 4 WHR94847 |
C00496992
481245288019 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 521 5 WHR94847 |
C00748952
481245228164 |
Platine power pcb | Na dotaz | Zadat poptávku | |
| 521 6 WHR94847 |
C00748953
481245210754 |
Platine control pcb | Na dotaz | Zadat poptávku | |
| 521 7 WHR94847 |
C00748915
481228068355 |
Transformer | Na dotaz | Zadat poptávku | |
| 561 0 WHR94847 |
C00635991
481212108012 |
kondenzator klima | 3 542 Kč
€ 155.70 |
||
| 561 1 WHR94847 |
C00583340
481244078974 |
Fixation capacitor band | Na dotaz | Zadat poptávku | |
| 571 0 WHR94847 |
C00748954
481240438589 |
Sensor set | Na dotaz | Zadat poptávku | |
| 571 1 WHR94847 |
C00583226
481240438586 |
Sensor holder. | Na dotaz | Zadat poptávku | |
| 740 0 WHR94847 |
C00748955
481236058255 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 1 WHR94847 |
C00748956
481253029106 |
Flap vertical a | Na dotaz | Zadat poptávku | |
| 741 3 WHR94847 |
C00529898
481253029104 |
Flap airoutlet airoutlet | Na dotaz | Zadat poptávku | |
| 741 4 WHR94847 |
C00527547
481240418159 |
Lever air deflector air deflector | Na dotaz | Zadat poptávku | |
| 741 5 WHR94847 |
C00529899
481253029105 |
Flap airinlet airinlet | Na dotaz | Zadat poptávku | |
| 745 0 WHR94847 |
C00748957
481251138159 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR94847 |
C00748958
481248128162 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 0 WHR94847 |
C00748919
481253038018 |
Valve 2 way valve | Na dotaz | Zadat poptávku | |
| 781 4 WHR94847 |
C00529908
481253038032 |
Valve 3 way 3 way | Na dotaz | Zadat poptávku | |
| 910 1 WHR94847 |
C00527558
481240438588 |
Clamp cord cord | Na dotaz | Zadat poptávku | |
| 910 4 WHR94847 |
C00748959
481253038036 |
Hose draining | Na dotaz | Zadat poptávku | |
| 910 6 WHR94847 |
C00530004
481253078058 |
Arm,lifting left left | Na dotaz | Zadat poptávku | |
| 910 7 WHR94847 |
C00530005
481253078059 |
Arm,lifting rechts rechts | Na dotaz | Zadat poptávku | |
| 921 1 WHR94847 |
C00748960
481246228207 |
Bearing set | Na dotaz | Zadat poptávku | |
| 993 0 WHR94847 |
C00748923
481269028022 |
Remote control | Na dotaz | Zadat poptávku | |
| 999 WHR94847 |
C00763829 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
