WHIRLPOOL AMD 004 18 000 BTU
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 004 18 000 BTU |
| Kód 12NC: | 852887710100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

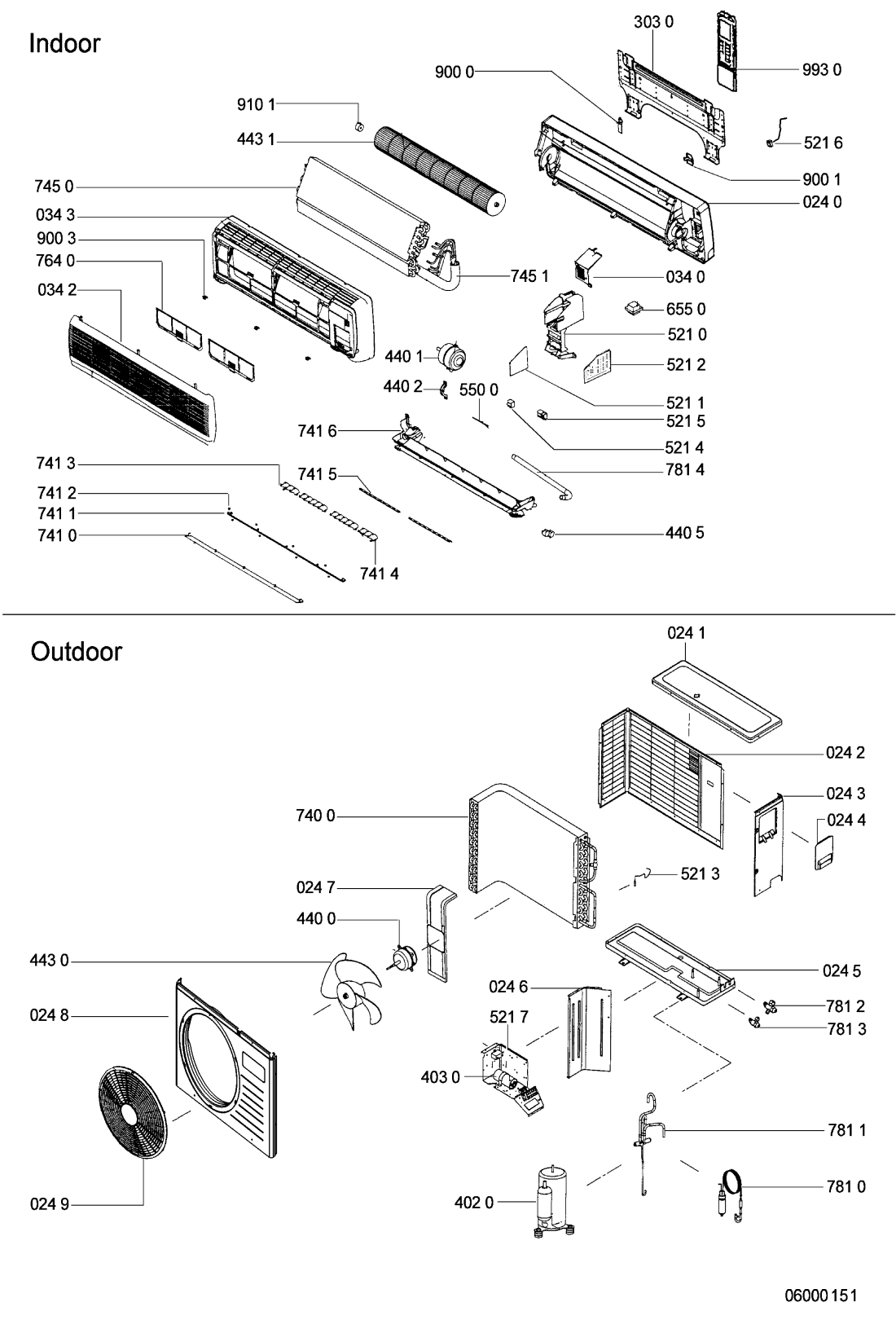

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 024 0 WHR93252 |
C00500895
481246418118 |
Chassis | Na dotaz | Zadat poptávku | |
| 024 1 WHR93252 |
C00383493
481244048304 |
Cover plate | Na dotaz | Zadat poptávku | |
| 024 2 WHR93252 |
C00583730
481244048347 |
Housing | Na dotaz | Zadat poptávku | |
| 024 3 WHR93252 |
C00496252
481244010918 |
Small plate | Na dotaz | Zadat poptávku | |
| 024 4 WHR93252 |
C00583725
481244048306 |
Cover | Na dotaz | Zadat poptávku | |
| 024 5 WHR93252 |
C00500896
481246418119 |
Chassis | Na dotaz | Zadat poptávku | |
| 024 6 WHR93252 |
C00496254
481244048342 |
Cabinet | Na dotaz | Zadat poptávku | |
| 024 7 WHR93252 |
C00811021
481240418381 |
CONTROL PANEL WHITE | Na dotaz | Zadat poptávku | |
| 024 8 WHR93252 |
C00620302
481244138003 |
Cabinet | Na dotaz | Zadat poptávku | |
| 024 9 WHR93252 |
C00584257
481252518012 |
Guide | Na dotaz | Zadat poptávku | |
| 034 0 WHR93252 |
C00635774
481244048298 |
Panel left. | Na dotaz | Zadat poptávku | |
| 034 2 WHR93252 |
C00583756
481245310057 |
Front cover. | Na dotaz | Zadat poptávku | |
| 034 3 WHR93252 |
C00583698
481244010917 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 303 0 WHR93252 |
C00583720
481244048297 |
KONZOLA VNUTORNEJ JEDNOTKY | Na dotaz | Zadat poptávku | |
| 402 0 WHR93252 |
C00378881
481236038869 |
kompresor klima. | 13 812 Kč
€ 607.10 |
||
| 403 0 WHR93252 |
C00635991
481212108012 |
kondenzator klima | 3 542 Kč
€ 155.70 |
||
| 440 0 WHR93252 |
C00633192
481236138065 |
ventilator klim. | Na dotaz | Zadat poptávku | |
| 440 1 WHR93252 |
C00583654
481236138088 |
Motor fan | Na dotaz | Zadat poptávku | |
| 440 2 WHR93252 |
C00584258
481252648125 |
Ring. | Na dotaz | Zadat poptávku | |
| 440 5 WHR93252 |
C00636319
481240488042 |
BRZDA N | Na dotaz | Zadat poptávku | |
| 443 0 WHR93252 |
C00527451
481236118354 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 1 WHR93252 |
C00621253
481236118353 |
VENTILATOR VONK.JEDNOTKY N | Na dotaz | Zadat poptávku | |
| 521 0 WHR93252 |
C00583721
481244048299 |
elektronika klima. | 824 Kč
€ 36.20 |
||
| 521 1 WHR93252 |
C00583552
481221848028 |
jednotka kontr.klima | 4 492 Kč
€ 197.50 |
||
| 521 2 WHR93252 |
C00583553
481221848029 |
jednotka napajeci | 2 057 Kč
€ 90.40 |
||
| 521 3 WHR93252 |
C00481255
481228208612 |
senzor | 1 858 Kč
€ 81.70 |
||
| 521 4 WHR93252 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 5 WHR93252 |
C00583502
481228078006 |
OVLADACIA JEDNOTKA | Na dotaz | Zadat poptávku | |
| 521 6 WHR93252 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 521 7 WHR93252 |
C00499753
481221848031 |
Unit electrical assembly | Na dotaz | Zadat poptávku | |
| 550 0 WHR93252 |
C00583754
481245288023 |
DISPLAY N | Na dotaz | Zadat poptávku | |
| 655 0 WHR93252 |
C00635789
481204868001 |
TRANSFORMATOR | 768 Kč
€ 33.80 |
||
| 740 0 WHR93252 |
C00584248
481251148352 |
Condenser. | Na dotaz | Zadat poptávku | |
| 741 0 WHR93252 |
C00500800
481240488044 |
Batten | Na dotaz | Zadat poptávku | |
| 741 1 WHR93252 |
C00500801
481240488045 |
Batten | Na dotaz | Zadat poptávku | |
| 741 2 WHR93252 |
C00620391
481240448817 |
drzak vrtule ventil. | 42 Kč
€ 1.80 |
||
| 741 3 WHR93252 |
C00584216
481246678403 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 4 WHR93252 |
C00584217
481246678404 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 5 WHR93252 |
C00583679
481240488043 |
Batten left | Na dotaz | Zadat poptávku | |
| 741 6 WHR93252 |
C00811063
481244508015 |
ACCESS COVER BANJO ASSY | Na dotaz | Zadat poptávku | |
| 745 0 WHR93252 |
C00584232
481251138247 |
Evaporator | Na dotaz | Zadat poptávku | |
| 745 1 WHR93252 |
C00500772
481236068575 |
Pipe assembly | Na dotaz | Zadat poptávku | |
| 764 0 WHR93252 |
C00620449
481248028084 |
filtr vzduchovy | 804 Kč
€ 35.30 |
||
| 781 0 WHR93252 |
C00583632
481236068577 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 781 1 WHR93252 |
C00130965
481236058379 |
FIXING BRACKET GR300-1 | Na dotaz | Zadat poptávku | |
| 781 2 WHR93252 |
C00481269
481236058377 |
ventil | 2 580 Kč
€ 113.40 |
||
| 781 3 WHR93252 |
C00481270
481236058378 |
Valve | Na dotaz | Zadat poptávku | |
| 781 4 WHR93252 |
C00583156
481236068466 |
HADICA | Na dotaz | Zadat poptávku | |
| 900 0 WHR93252 |
C00583664
481240418425 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 1 WHR93252 |
C00583658
481240418377 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 3 WHR93252 |
C00500943
481256018072 |
Cover | Na dotaz | Zadat poptávku | |
| 910 1 WHR93252 |
C00621258
481252008033 |
LOZISKO GULICKOVE | Na dotaz | Zadat poptávku | |
| 993 0 WHR93252 |
C00633194
481269028033 |
DIALKOVY OVLADAC | Na dotaz | Zadat poptávku | |
| 999 WHR93252 |
C00761253 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
