| Komerční kód: | AMB 880 |
| Kód 12NC: | 852888010000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

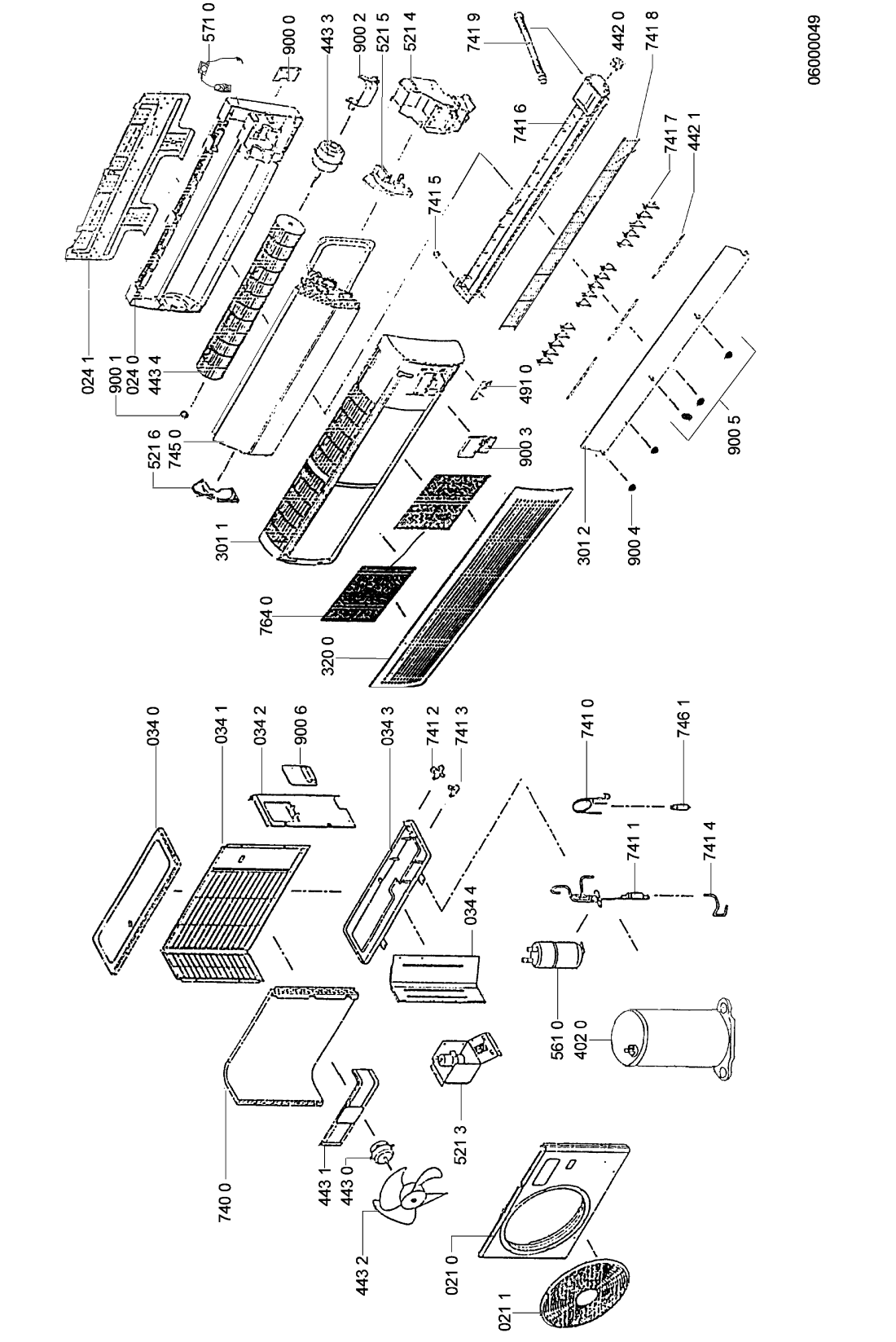

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 021 0 WHR94850 |
C00529677
481246228228 |
Cover Front Front | Na dotaz | Zadat poptávku | |
| 021 1 WHR94850 |
C00749000
481244098092 |
Grille fan | Na dotaz | Zadat poptávku | |
| 024 0 WHR94850 |
C00748970
481244029357 |
Chassis | Na dotaz | Zadat poptávku | |
| 024 1 WHR94850 |
C00748967
481244229117 |
Bracket | Na dotaz | Zadat poptávku | |
| 034 0 WHR94850 |
C00583761
481246228226 |
Cover | Na dotaz | Zadat poptávku | |
| 034 1 WHR94850 |
C00583762
481246228227 |
Cover | Na dotaz | Zadat poptávku | |
| 034 2 WHR94850 |
C00500792
481240448766 |
Bracket | Na dotaz | Zadat poptávku | |
| 034 3 WHR94850 |
C00749001
481244229116 |
Base | Na dotaz | Zadat poptávku | |
| 034 4 WHR94850 |
C00749002
481240448768 |
Bracket | Na dotaz | Zadat poptávku | |
| 301 1 WHR94850 |
C00748968
481245228187 |
Front panel | Na dotaz | Zadat poptávku | |
| 301 2 WHR94850 |
C00748986
481246228224 |
Panel vertical | Na dotaz | Zadat poptávku | |
| 320 0 WHR94850 |
C00748971
481248128165 |
Grill air inlet | Na dotaz | Zadat poptávku | |
| 402 0 WHR94850 |
C00749003
481236038734 |
Compressor ZR34K3-PFJ | Na dotaz | Zadat poptávku | |
| 442 0 WHR94850 |
C00496418
481236138054 |
Motor adjust | Na dotaz | Zadat poptávku | |
| 442 1 WHR94850 |
C00748984
481246228225 |
Link | Na dotaz | Zadat poptávku | |
| 443 0 WHR94850 |
C00749004
481236138055 |
Motor fan | Na dotaz | Zadat poptávku | |
| 443 1 WHR94850 |
C00583667
481240448767 |
Bracket | Na dotaz | Zadat poptávku | |
| 443 3 WHR94850 |
C00748974
481236138053 |
Motor indoor fan | Na dotaz | Zadat poptávku | |
| 443 4 WHR94850 |
C00748976
481251548054 |
Fan indoor | Na dotaz | Zadat poptávku | |
| 491 0 WHR94850 |
C00749005
481228078008 |
Display | Na dotaz | Zadat poptávku | |
| 521 3 WHR94850 |
C00528948
481245228188 |
Elect.parts box KIT KIT | Na dotaz | Zadat poptávku | |
| 521 4 WHR94850 |
C00749006
481245268035 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| 521 5 WHR94850 |
C00748997
481245228186 |
Plate r.installation | Na dotaz | Zadat poptávku | |
| 521 6 WHR94850 |
C00748977
481246228223 |
Plate l. installation | Na dotaz | Zadat poptávku | |
| 561 0 WHR94850 |
C00749007
481212108228 |
Capacitor | Na dotaz | Zadat poptávku | |
| 571 0 WHR94850 |
C00481255
481228208612 |
senzor | 1 858 Kč
€ 81.70 |
||
| 740 0 WHR94850 |
C00749008
481251138162 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR94850 |
C00749009
481253048342 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 741 1 WHR94850 |
C00584270
481253038046 |
Valve reversing. | Na dotaz | Zadat poptávku | |
| 741 2 WHR94850 |
C00749010
481253048343 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| 741 3 WHR94850 |
C00749011
481253048344 |
Valve 3 way 10C | Na dotaz | Zadat poptávku | |
| 741 4 WHR94850 |
C00749012
481253029111 |
Pipe | Na dotaz | Zadat poptávku | |
| 741 5 WHR94850 |
C00748989
481240448769 |
Rubber | Na dotaz | Zadat poptávku | |
| 741 6 WHR94850 |
C00749013
481240438611 |
Batten | Na dotaz | Zadat poptávku | |
| 741 7 WHR94850 |
C00748985
481244029358 |
Panel horziontal | Na dotaz | Zadat poptávku | |
| 741 8 WHR94850 |
C00748988
481240438609 |
Batten | Na dotaz | Zadat poptávku | |
| 741 9 WHR94850 |
C00748991
481253018029 |
Hose drain | Na dotaz | Zadat poptávku | |
| 745 0 WHR94850 |
C00749014
481251138161 |
Evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR94850 |
C00749015
481248128166 |
Filter | Na dotaz | Zadat poptávku | |
| 764 0 WHR94850 |
C00499850
481248128164 |
Filter | Na dotaz | Zadat poptávku | |
| 900 0 WHR94850 |
C00748994
481246228221 |
Plate Fastener | Na dotaz | Zadat poptávku | |
| 900 1 WHR94850 |
C00748998
481246228222 |
Bearing KIT | Na dotaz | Zadat poptávku | |
| 900 2 WHR94850 |
C00748996
481246228219 |
Cover motor | Na dotaz | Zadat poptávku | |
| 900 3 WHR94850 |
C00748993
481240418163 |
Clamp | Na dotaz | Zadat poptávku | |
| 900 4 WHR94850 |
C00749016
481240438608 |
Bearing | Na dotaz | Zadat poptávku | |
| 900 5 WHR94850 |
C00748999
481252008028 |
Bearing small | Na dotaz | Zadat poptávku | |
| 900 6 WHR94850 |
C00386235
481246228229 |
Cover rear | Na dotaz | Zadat poptávku | |
| 993 0 WHR94850 |
C00748923
481269028022 |
Remote control | Na dotaz | Zadat poptávku | |
| 999 WHR94850 |
C00763835 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
