| Komerční kód: | AMB 957 ECO RANGE SPLIT |
| Kód 12NC/I.C. kód: | 852895710000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

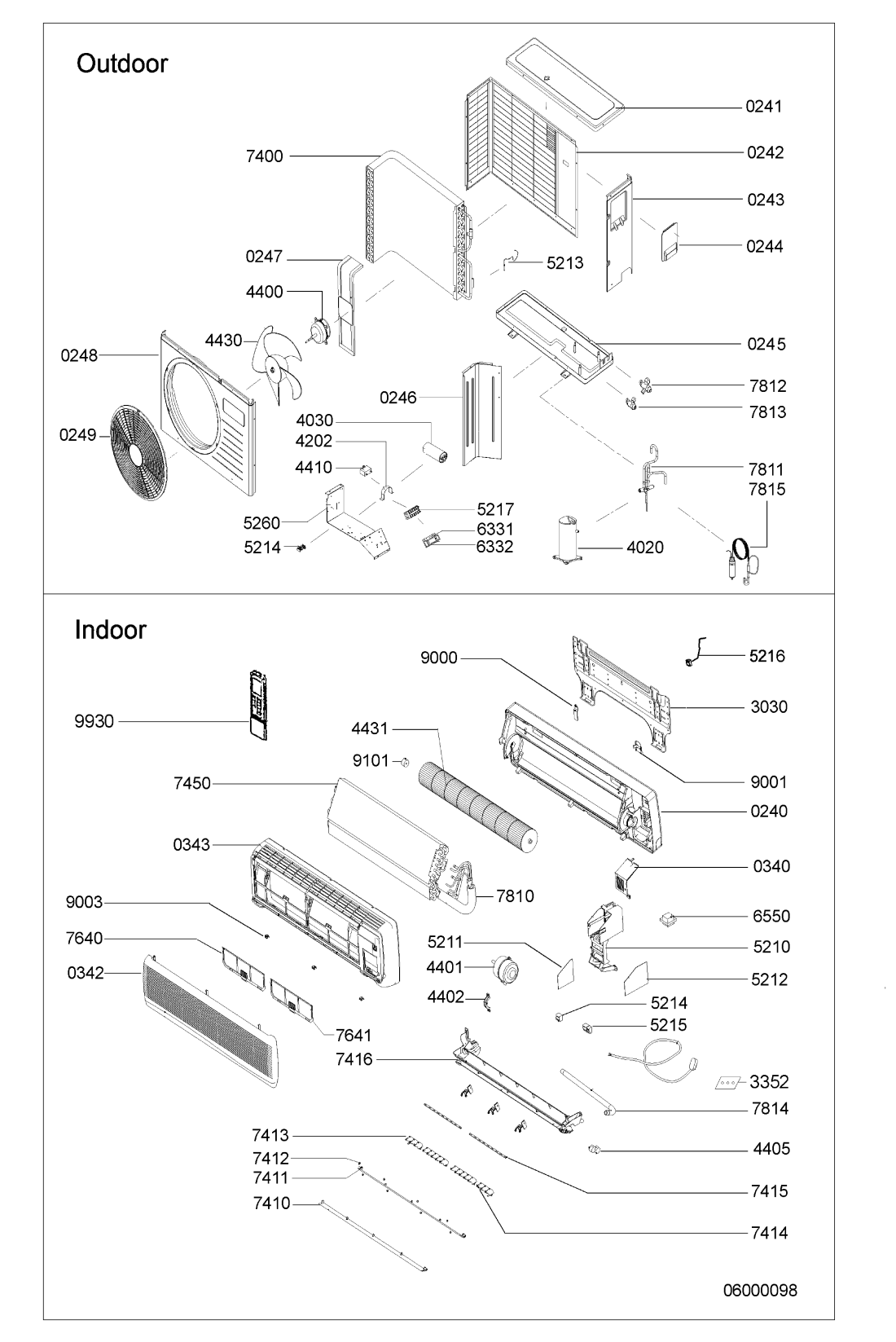

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 024 0 WHR62944 |
C00500895
481246418118 |
Chassis | Na dotaz | Zadat poptávku | |
| 024 1 WHR62944 |
C00383493
481244048304 |
Cover plate | Na dotaz | Zadat poptávku | |
| 024 2 WHR62944 |
C00583730
481244048347 |
Housing | Na dotaz | Zadat poptávku | |
| 024 3 WHR62944 |
C00496252
481244010918 |
Small plate | Na dotaz | Zadat poptávku | |
| 024 4 WHR62944 |
C00583725
481244048306 |
Cover | Na dotaz | Zadat poptávku | |
| 024 5 WHR62944 |
C00500896
481246418119 |
Chassis | Na dotaz | Zadat poptávku | |
| 024 6 WHR62944 |
C00583732
481244048363 |
Cabinet part. | Na dotaz | Zadat poptávku | |
| 024 7 WHR62944 |
C00811021
481240418381 |
CONTROL PANEL WHITE | Na dotaz | Zadat poptávku | |
| 024 8 WHR62944 |
C00583575
481222438023 |
Cabinet | Na dotaz | Zadat poptávku | |
| 024 9 WHR62944 |
C00584257
481252518012 |
Guide | Na dotaz | Zadat poptávku | |
| 034 0 WHR62944 |
C00635774
481244048298 |
Panel left. | Na dotaz | Zadat poptávku | |
| 034 2 WHR62944 |
C00583378
481245310329 |
Front housing. | Na dotaz | Zadat poptávku | |
| 034 3 WHR62944 |
C00583702
481244011201 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 303 0 WHR62944 |
C00583720
481244048297 |
KONZOLA VNUTORNEJ JEDNOTKY | Na dotaz | Zadat poptávku | |
| 335 2 WHR62944 |
C00583754
481245288023 |
DISPLAY N | Na dotaz | Zadat poptávku | |
| 402 0 WHR62944 |
C00583610
481236038957 |
Compressor LG - GJ 222 PA. | Na dotaz | Zadat poptávku | |
| 403 0 WHR62944 |
C00635991
481212108012 |
kondenzator klima | Na dotaz | Zadat poptávku | |
| 420 2 WHR62944 |
C00583081
481221838261 |
Ring,adjusting | Na dotaz | Zadat poptávku | |
| 440 0 WHR62944 |
C00633192
481236138065 |
ventilator klim. | Na dotaz | Zadat poptávku | |
| 440 1 WHR62944 |
C00583654
481236138088 |
Motor fan | Na dotaz | Zadat poptávku | |
| 440 2 WHR62944 |
C00584258
481252648125 |
Ring. | Na dotaz | Zadat poptávku | |
| 440 5 WHR62944 |
C00636319
481240488042 |
BRZDA N | Na dotaz | Zadat poptávku | |
| 441 0 WHR62944 |
C00636038
481236138113 |
Motor fan Capacitor | Na dotaz | Zadat poptávku | |
| 443 0 WHR62944 |
C00527451
481236118354 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 1 WHR62944 |
C00621253
481236118353 |
VENTILATOR VONK.JEDNOTKY N | Na dotaz | Zadat poptávku | |
| 521 0 WHR62944 |
C00583721
481244048299 |
elektronika klima. | Na dotaz | Zadat poptávku | |
| 521 1 WHR62944 |
C00499749
481221479393 |
Control board PCB | Na dotaz | Zadat poptávku | |
| 521 2 WHR62944 |
C00583553
481221848029 |
jednotka napajeci | Na dotaz | Zadat poptávku | |
| 521 3 WHR62944 |
C00481255
481228208612 |
senzor | Na dotaz | Zadat poptávku | |
| 521 4 WHR62944 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 5 WHR62944 |
C00583502
481228078006 |
OVLADACIA JEDNOTKA | Na dotaz | Zadat poptávku | |
| 521 6 WHR62944 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 521 7 WHR62944 |
C00620288
481221848104 |
Terminal Board 5P4 | Na dotaz | Zadat poptávku | |
| 526 0 WHR62944 |
C00495072
481221479394 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 633 1 WHR62944 |
C00583672
481240468047 |
Clamp fixation. | Na dotaz | Zadat poptávku | |
| 633 2 WHR62944 |
C00636040
481240118614 |
Clamp | Na dotaz | Zadat poptávku | |
| 655 0 WHR62944 |
C00635789
481204868001 |
TRANSFORMATOR | Na dotaz | Zadat poptávku | |
| 740 0 WHR62944 |
C00584248
481251148352 |
Condenser. | Na dotaz | Zadat poptávku | |
| 741 0 WHR62944 |
C00500800
481240488044 |
Batten | Na dotaz | Zadat poptávku | |
| 741 1 WHR62944 |
C00500801
481240488045 |
Batten | Na dotaz | Zadat poptávku | |
| 741 2 WHR62944 |
C00620391
481240448817 |
drzak vrtule ventil. | Na dotaz | Zadat poptávku | |
| 741 3 WHR62944 |
C00584219
481246678431 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 4 WHR62944 |
C00584220
481246678432 |
Deflector. | Na dotaz | Zadat poptávku | |
| 741 5 WHR62944 |
C00583679
481240488043 |
Batten left | Na dotaz | Zadat poptávku | |
| 741 6 WHR62944 |
C00811063
481244508015 |
ACCESS COVER BANJO ASSY | Na dotaz | Zadat poptávku | |
| 745 0 WHR62944 |
C00495087
481251138289 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR62944 |
C00620449
481248028084 |
filtr vzduchovy | Na dotaz | Zadat poptávku | |
| 764 1 WHR62944 |
C00584225
481248028098 |
Air clean filt. right hand. | Na dotaz | Zadat poptávku | |
| 781 0 WHR62944 |
C00500772
481236068575 |
Pipe assembly | Na dotaz | Zadat poptávku | |
| 781 1 WHR62944 |
C00583623
481236058449 |
ventil 4 cestny | Na dotaz | Zadat poptávku | |
| 781 2 WHR62944 |
C00583624
481236058451 |
ventil 3-cestny | Na dotaz | Zadat poptávku | |
| 781 3 WHR62944 |
C00620375
481236058452 |
Valve | Na dotaz | Zadat poptávku | |
| 781 4 WHR62944 |
C00583156
481236068466 |
HADICA | Na dotaz | Zadat poptávku | |
| 781 5 WHR62944 |
C00583638
481236068714 |
Capillary tube. | Na dotaz | Zadat poptávku | |
| 900 0 WHR62944 |
C00583664
481240418425 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 1 WHR62944 |
C00583658
481240418377 |
Clamp. | Na dotaz | Zadat poptávku | |
| 900 3 WHR62944 |
C00500943
481256018072 |
Cover | Na dotaz | Zadat poptávku | |
| 910 1 WHR62944 |
C00621258
481252008033 |
LOZISKO GULICKOVE | Na dotaz | Zadat poptávku | |
| 993 0 WHR62944 |
C00379024
481269028044 |
Remote control | Na dotaz | Zadat poptávku | |
| 999 WHR62944 |
C00678955 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
