WHIRLPOOL AMB 960 SPLIT AIR COND WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMB 960 SPLIT AIR COND WP |
| Kód 12NC/I.C. kód: | 852896010000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

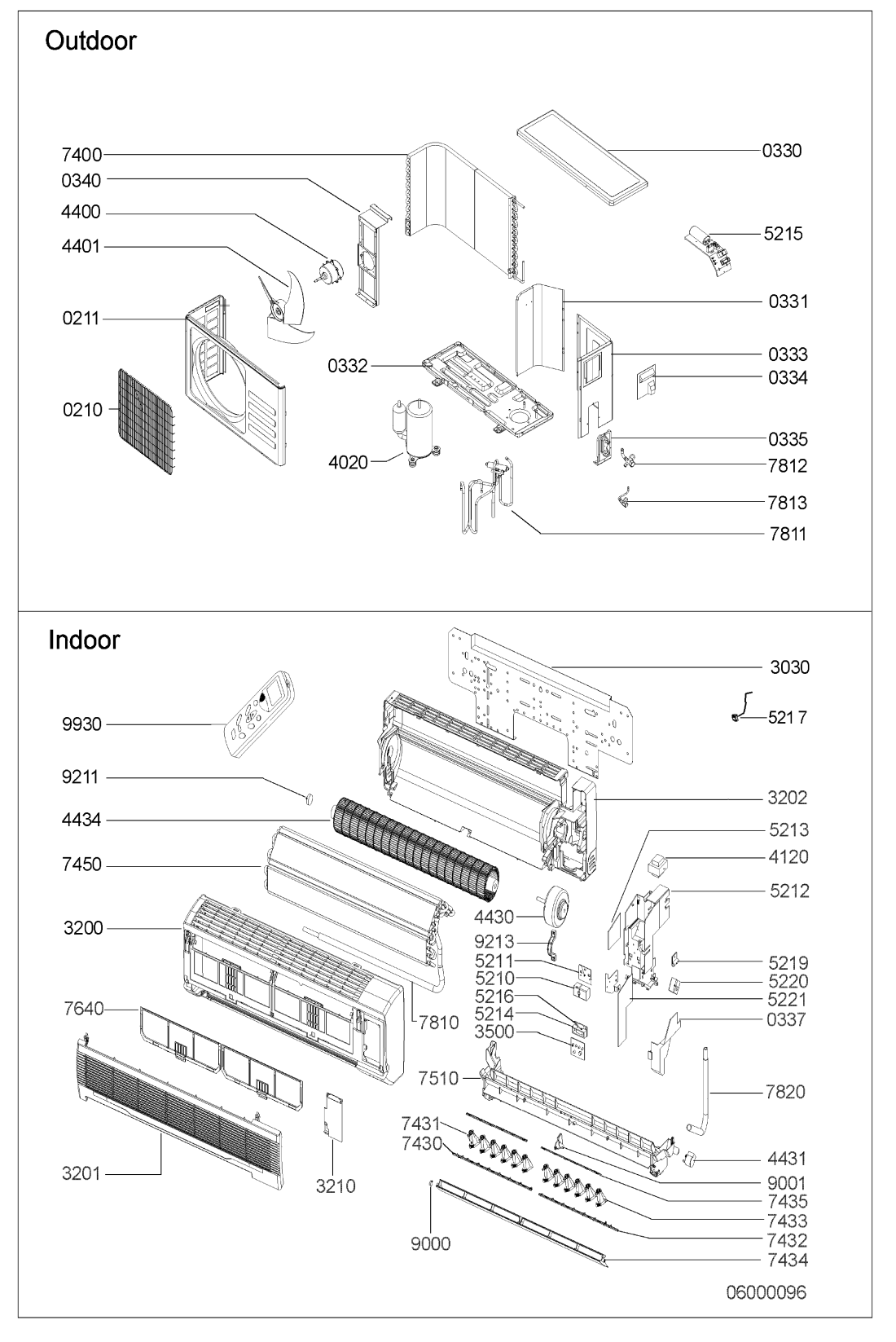

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0210 WHR67745 |
C00583310
481244048294 |
Cover | Na dotaz | Zadat poptávku | |
| 0211 WHR67745 |
C00583271
481244010602 |
Cabinet | Na dotaz | Zadat poptávku | |
| 0330 WHR67745 |
C00583270
481244010601 |
PANEL,TOP | Na dotaz | Zadat poptávku | |
| 0331 WHR67745 |
C00583312
481244048296 |
Cover | Na dotaz | Zadat poptávku | |
| 0332 WHR67745 |
C00583398
481246418091 |
Chassis | Na dotaz | Zadat poptávku | |
| 0333 WHR67745 |
C00583311
481244048295 |
Cover | Na dotaz | Zadat poptávku | |
| 0334 WHR67745 |
C00583505
481240418376 |
Bracket | Na dotaz | Zadat poptávku | |
| 0335 WHR67745 |
C00583210
481240418375 |
Bracket | Na dotaz | Zadat poptávku | |
| 0337 WHR67745 |
C00583354
481244158002 |
Cover plate | Na dotaz | Zadat poptávku | |
| 0340 WHR67745 |
C00811022
481240418374 |
HINGE COVER WHITE | Na dotaz | Zadat poptávku | |
| 3030 WHR67745 |
C00620394
481240478587 |
Bracket | Na dotaz | Zadat poptávku | |
| 3200 WHR67745 |
C00583744
481244148007 |
Cabinet. | Na dotaz | Zadat poptávku | |
| 3201 WHR67745 |
C00583729
481244048332 |
Cover,front | Na dotaz | Zadat poptávku | |
| 3202 WHR67745 |
C00583229
481240438697 |
Chassis | Na dotaz | Zadat poptávku | |
| 3210 WHR67745 |
C00583318
481244048331 |
Cover,protect. | Na dotaz | Zadat poptávku | |
| 3500 WHR67745 |
C00583234
481240448863 |
Display | Na dotaz | Zadat poptávku | |
| 4020 WHR67745 |
C00583143
481236038866 |
KOMPRESOR PG 135 X1C | Na dotaz | Zadat poptávku | |
| 4120 WHR67745 |
C00583501
481214868028 |
MIKROSPINAC N | Na dotaz | Zadat poptávku | |
| 4400 WHR67745 |
C00583201
481236138062 |
MOTORCEK VENTILATORA N | Na dotaz | Zadat poptávku | |
| 4401 WHR67745 |
C00621252
481236118352 |
MOTORCEK VENTILATORA *** N | Na dotaz | Zadat poptávku | |
| 4430 WHR67745 |
C00620380
481236138061 |
motor vent.klima vni | 2 733 Kč
€ 112.30 |
||
| 4431 WHR67745 |
C00636319
481240488042 |
BRZDA N | Na dotaz | Zadat poptávku | |
| 4434 WHR67745 |
C00620378
481236118386 |
Ventilator | Na dotaz | Zadat poptávku | |
| 5210 WHR67745 |
C00583502
481228078006 |
OVLADACIA JEDNOTKA | Na dotaz | Zadat poptávku | |
| 5211 WHR67745 |
C00583230
481240438698 |
Plate | Na dotaz | Zadat poptávku | |
| 5212 WHR67745 |
C00583080
481221838154 |
MODUL ELEKTRO *** N | Na dotaz | Zadat poptávku | |
| 5212 WHR67745 |
C00583319
481244048333 |
Cabinet , elect. | Na dotaz | Zadat poptávku | |
| 5213 WHR67745 |
C00583568
481221848098 |
Control board | Na dotaz | Zadat poptávku | |
| 5214 WHR67745 |
C00636040
481240118614 |
Clamp | Na dotaz | Zadat poptávku | |
| 5216 WHR67745 |
C00583506
481240418393 |
Clamp | Na dotaz | Zadat poptávku | |
| 5217 WHR67745 |
C00495873
481221058027 |
TERMOREGULATOR N | Na dotaz | Zadat poptávku | |
| 5219 WHR67745 |
C00583671
481240448958 |
Clamp Cable | Na dotaz | Zadat poptávku | |
| 5220 WHR67745 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 5221 WHR67745 |
C00583569
481221848099 |
Power supplier PCB | Na dotaz | Zadat poptávku | |
| 7400 WHR67745 |
C00583440
481251148349 |
Condenser. | Na dotaz | Zadat poptávku | |
| 7430 WHR67745 |
C00583258
481240488061 |
Batten. | Na dotaz | Zadat poptávku | |
| 7431 WHR67745 |
C00583405
481246678408 |
Deflector A. | Na dotaz | Zadat poptávku | |
| 7432 WHR67745 |
C00583259
481240488062 |
Batten. | Na dotaz | Zadat poptávku | |
| 7433 WHR67745 |
C00583214
481240418402 |
Deflector B | Na dotaz | Zadat poptávku | |
| 7434 WHR67745 |
C00583257
481240488059 |
Batten | Na dotaz | Zadat poptávku | |
| 7435 WHR67745 |
C00583256
481240488058 |
Batten | Na dotaz | Zadat poptávku | |
| 7450 WHR67745 |
C00584237
481251138285 |
Evaporator set. | Na dotaz | Zadat poptávku | |
| 7510 WHR67745 |
C00583268
481241848586 |
Tray,leak | Na dotaz | Zadat poptávku | |
| 7640 WHR67745 |
C00583409
481248028076 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 7810 WHR67745 |
C00620376
481236068699 |
Pipe set | Na dotaz | Zadat poptávku | |
| 7811 WHR67745 |
C00620374
481236058374 |
Valve 4 way assy | Na dotaz | Zadat poptávku | |
| 7812 WHR67745 |
C00583472
481253038052 |
ventil | Na dotaz | Zadat poptávku | |
| 7813 WHR67745 |
C00620373
481236058373 |
ventil klima 2 cest. | Na dotaz | Zadat poptávku | |
| 7820 WHR67745 |
C00583156
481236068466 |
HADICA | Na dotaz | Zadat poptávku | |
| 9000 WHR67745 |
C00620391
481240448817 |
drzak vrtule ventil. | Na dotaz | Zadat poptávku | |
| 9001 WHR67745 |
C00583213
481240418401 |
Support. | Na dotaz | Zadat poptávku | |
| 9211 WHR67745 |
C00583215
481240418403 |
Bearing | Na dotaz | Zadat poptávku | |
| 9213 WHR67745 |
C00583451
481252648123 |
Ring | Na dotaz | Zadat poptávku | |
| 9930 WHR67745 |
C00584279
481269028039 |
Remote control | Na dotaz | Zadat poptávku | |
| 999 WHR67745 |
C00686640 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
