WHIRLPOOL AMB 974
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMB 974 |
| Kód 12NC: | 852897410000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

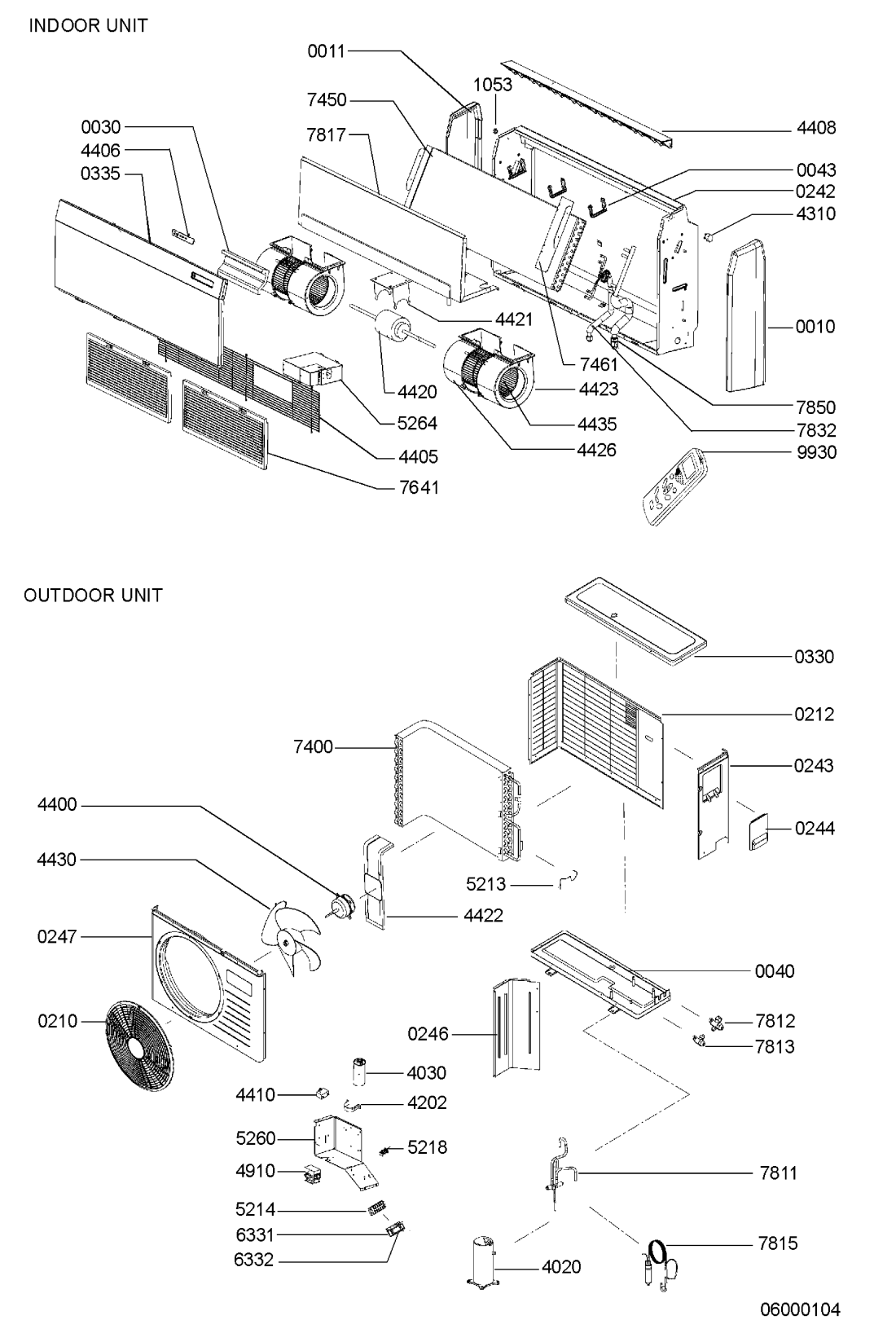

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR105980 |
C00403342
481244048369 |
Cabinet part right side | Na dotaz | Zadat poptávku | |
| 001 1 WHR105980 |
C00403343
481244048371 |
Cabinet part left side | Na dotaz | Zadat poptávku | |
| 003 0 WHR105980 |
C00402105
481240478747 |
Fastener Front,panel | Na dotaz | Zadat poptávku | |
| 004 0 WHR105980 |
C00500896
481246418119 |
Chassis | Na dotaz | Zadat poptávku | |
| 004 3 WHR105980 |
C00401830
481240418492 |
Bracket Lamella | Na dotaz | Zadat poptávku | |
| 021 0 WHR105980 |
C00584257
481252518012 |
Guide | Na dotaz | Zadat poptávku | |
| 021 2 WHR105980 |
C00583724
481244048305 |
Housing. | Na dotaz | Zadat poptávku | |
| 024 2 WHR105980 |
C00403344
481244048372 |
Panel rear | Na dotaz | Zadat poptávku | |
| 024 3 WHR105980 |
C00496251
481244010604 |
Small plate,sid | Na dotaz | Zadat poptávku | |
| 024 4 WHR105980 |
C00584226
481249858202 |
Handle | Na dotaz | Zadat poptávku | |
| 024 6 WHR105980 |
C00496254
481244048342 |
Cabinet | Na dotaz | Zadat poptávku | |
| 024 7 WHR105980 |
C00403345
481244048373 |
Cover front | Na dotaz | Zadat poptávku | |
| 033 0 WHR105980 |
C00383493
481244048304 |
Cover plate | Na dotaz | Zadat poptávku | |
| 033 5 WHR105980 |
C00403346
481244048374 |
Front panel | Na dotaz | Zadat poptávku | |
| 105 3 WHR105980 |
C00405548
481252018286 |
Bearing block | Na dotaz | Zadat poptávku | |
| 402 0 WHR105980 |
C00583605
481236038868 |
KOMPRESOR | Na dotaz | Zadat poptávku | |
| 403 0 WHR105980 |
C00635991
481212108012 |
kondenzator klima | 3 542 Kč
€ 155.70 |
||
| 420 2 WHR105980 |
C00495088
481252648202 |
Ring,adjusting | Na dotaz | Zadat poptávku | |
| 431 0 WHR105980 |
C00399682
481202858352 |
Motor f. Lamella | Na dotaz | Zadat poptávku | |
| 440 0 WHR105980 |
C00633192
481236138065 |
ventilator klim. | Na dotaz | Zadat poptávku | |
| 440 5 WHR105980 |
C00404354
481245819305 |
Protector Grille | Na dotaz | Zadat poptávku | |
| 440 6 WHR105980 |
C00404854
481246238246 |
Air regulator | Na dotaz | Zadat poptávku | |
| 440 8 WHR105980 |
C00403347
481244048375 |
Lamella | Na dotaz | Zadat poptávku | |
| 441 0 WHR105980 |
C00636038
481236138113 |
Motor fan Capacitor | Na dotaz | Zadat poptávku | |
| 442 0 WHR105980 |
C00399683
481202858353 |
Motor Fan | Na dotaz | Zadat poptávku | |
| 442 1 WHR105980 |
C00404941
481246418176 |
Support Motor | Na dotaz | Zadat poptávku | |
| 442 2 WHR105980 |
C00811021
481240418381 |
CONTROL PANEL WHITE | Na dotaz | Zadat poptávku | |
| 442 3 WHR105980 |
C00403348
481244048376 |
Fastener right side | Na dotaz | Zadat poptávku | |
| 442 6 WHR105980 |
C00403349
481244048377 |
Fastener left side | Na dotaz | Zadat poptávku | |
| 443 0 WHR105980 |
C00527451
481236118354 |
Ventilator | Na dotaz | Zadat poptávku | |
| 443 5 WHR105980 |
C00405538
481251528111 |
Fan Indoor | Na dotaz | Zadat poptávku | |
| 491 0 WHR105980 |
C00505492
481221458214 |
kondenzator | 4 254 Kč
€ 187.00 |
||
| 521 3 WHR105980 |
C00481255
481228208612 |
senzor | 1 858 Kč
€ 81.70 |
||
| 521 4 WHR105980 |
C00636018
481221848078 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 521 8 WHR105980 |
C00583373
481245279732 |
Clamp | Na dotaz | Zadat poptávku | |
| 526 0 WHR105980 |
C00495072
481221479394 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 526 4 WHR105980 |
C00400722
481221878008 |
Electronic box Indoor | Na dotaz | Zadat poptávku | |
| 633 1 WHR105980 |
C00583506
481240418393 |
Clamp | Na dotaz | Zadat poptávku | |
| 633 2 WHR105980 |
C00636040
481240118614 |
Clamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR105980 |
C00405484
481251148405 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR105980 |
C00405450
481251138304 |
Evaporator | Na dotaz | Zadat poptávku | |
| 746 1 WHR105980 |
C00401947
481240448999 |
Plate mounting Evaporator | Na dotaz | Zadat poptávku | |
| 764 1 WHR105980 |
C00405293
481248128182 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 1 WHR105980 |
C00130965
481236058379 |
FIXING BRACKET GR300-1 | Na dotaz | Zadat poptávku | |
| 781 2 WHR105980 |
C00620293
481236058318 |
Valve ,3 way | Na dotaz | Zadat poptávku | |
| 781 3 WHR105980 |
C00620294
481236058319 |
Valve ,2 way | Na dotaz | Zadat poptávku | |
| 781 5 WHR105980 |
C00401523
481236068748 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 781 7 WHR105980 |
C00404942
481246418177 |
Drain strip | Na dotaz | Zadat poptávku | |
| 783 2 WHR105980 |
C00401524
481236068749 |
Hose inlet Evaporator | Na dotaz | Zadat poptávku | |
| 785 0 WHR105980 |
C00401525
481236068751 |
Hose draining Evaporator | Na dotaz | Zadat poptávku | |
| 993 0 WHR105980 |
C00633194
481269028033 |
DIALKOVY OVLADAC | Na dotaz | Zadat poptávku | |
| 999 WHR105980 |
C00782801 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
