| Komerční kód: | AMD 033 KLIMA UREDJAJ |
| Kód 12NC/I.C. kód: | 853003301000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

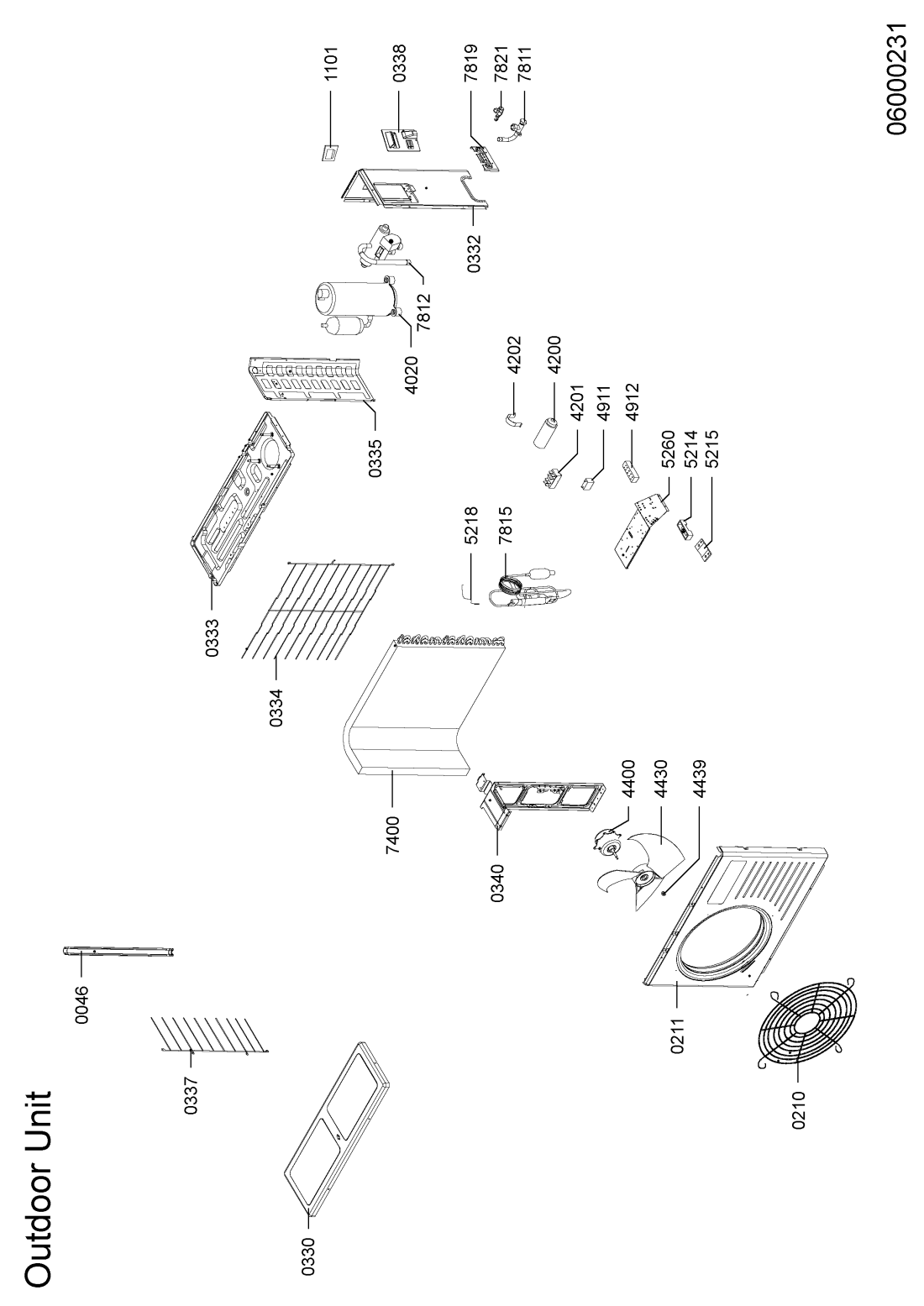

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 4 WHR14247 |
C00395005
480150100237 |
Cap | Na dotaz | Zadat poptávku | |
| 004 5 WHR14247 |
C00395004
480150100236 |
Cap | Na dotaz | Zadat poptávku | |
| 004 6 WHR14247 |
C00394966
480150100186 |
Support | Na dotaz | Zadat poptávku | |
| 021 0 WHR14247 |
C00394967
480150100187 |
Grille front | Na dotaz | Zadat poptávku | |
| 021 1 WHR14247 |
C00394968
480150100188 |
Cover front | Na dotaz | Zadat poptávku | |
| 033 0 WHR14247 |
C00394969
480150100189 |
Cover top | Na dotaz | Zadat poptávku | |
| 033 2 WHR14247 |
C00394970
480150100191 |
Panel right | Na dotaz | Zadat poptávku | |
| 033 3 WHR14247 |
C00394971
480150100192 |
Base | Na dotaz | Zadat poptávku | |
| 033 4 WHR14247 |
C00394972
480150100193 |
Grille rear | Na dotaz | Zadat poptávku | |
| 033 5 WHR14247 |
C00394973
480150100194 |
Panel Insulation | Na dotaz | Zadat poptávku | |
| 033 7 WHR14247 |
C00394974
480150100195 |
Grille left | Na dotaz | Zadat poptávku | |
| 033 8 WHR14247 |
C00394975
480150100196 |
Cover | Na dotaz | Zadat poptávku | |
| 034 0 WHR14247 |
C00394976
480150100197 |
Support Motor | Na dotaz | Zadat poptávku | |
| 110 1 WHR14247 |
C00386185
481249818794 |
Cover Handle | Na dotaz | Zadat poptávku | |
| 303 0 WHR14247 |
C00394977
480150100198 |
Plate mounting | Na dotaz | Zadat poptávku | |
| 320 0 WHR14247 |
C00395057
480150100305 |
Cabinet | Na dotaz | Zadat poptávku | |
| 320 1 WHR14247 |
C00395058
480150100306 |
Panel front | Na dotaz | Zadat poptávku | |
| 320 2 WHR14247 |
C00394980
480150100202 |
Chassis | Na dotaz | Zadat poptávku | |
| 321 0 WHR14247 |
C00394981
480150100203 |
Plate protect. | Na dotaz | Zadat poptávku | |
| 350 1 WHR14247 |
C00376984
480150100123 |
Panel Display board | Na dotaz | Zadat poptávku | |
| 350 2 WHR14247 |
C00395059
480150100307 |
Batten Display board | Na dotaz | Zadat poptávku | |
| 402 0 WHR14247 |
C00394982
480150100204 |
Compressor | Na dotaz | Zadat poptávku | |
| 412 0 WHR14247 |
C00394983
480150100205 |
Transformer | Na dotaz | Zadat poptávku | |
| 420 0 WHR14247 |
C00386439
480150100206 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 1 WHR14247 |
C00394960
480150100178 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 420 2 WHR14247 |
C00402194
481240478949 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| 440 0 WHR14247 |
C00394984
480150100207 |
Motor Ventilator | Na dotaz | Zadat poptávku | |
| 440 1 WHR14247 |
C00376996
480150100208 |
Motor Ventilator | 2 525 Kč
€ 104.20 |
||
| 443 0 WHR14247 |
C00394985
480150100209 |
Fan wheel Outdoor | Na dotaz | Zadat poptávku | |
| 443 1 WHR14247 |
C00401730
481236138152 |
Motor | Na dotaz | Zadat poptávku | |
| 443 4 WHR14247 |
C00376997
480150100211 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| 443 9 WHR14247 |
C00394986
480150100212 |
Nut Fan wheel | Na dotaz | Zadat poptávku | |
| 491 1 WHR14247 |
C00394926
480150100128 |
Capacitor | Na dotaz | Zadat poptávku | |
| 491 2 WHR14247 |
C00401110
481229088137 |
connector 3PS | Na dotaz | Zadat poptávku | |
| 521 1 WHR14247 |
C00394989
480150100217 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 2 WHR14247 |
C00395000
480150100231 |
Electronic box | Na dotaz | Zadat poptávku | |
| 521 4 WHR14247 |
C00394990
480150100218 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 5 WHR14247 |
C00401045
481229028031 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 6 WHR14247 |
C00394991
480150100219 |
Clamp | Na dotaz | Zadat poptávku | |
| 521 7 WHR14247 |
C00399959
481221058094 |
senzor tepolty | Na dotaz | Zadat poptávku | |
| 521 8 WHR14247 |
C00395006
480150100238 |
Sensor Outdoor | Na dotaz | Zadat poptávku | |
| 521 9 WHR14247 |
C00394992
480150100221 |
Clamp | Na dotaz | Zadat poptávku | |
| 522 0 WHR14247 |
C00394993
480150100222 |
Support Clamp | Na dotaz | Zadat poptávku | |
| 522 1 WHR14247 |
C00377000
480150100223 |
Control board | Na dotaz | Zadat poptávku | |
| 526 0 WHR14247 |
C00395001
480150100232 |
Electric plate | Na dotaz | Zadat poptávku | |
| 526 5 WHR14247 |
C00395002
480150100233 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 701 1 WHR14247 |
C00395007
480150100239 |
Cap | Na dotaz | Zadat poptávku | |
| 701 2 WHR14247 |
C00395008
480150100241 |
Cap | Na dotaz | Zadat poptávku | |
| 740 0 WHR14247 |
C00394987
480150100213 |
Condenser | Na dotaz | Zadat poptávku | |
| 741 0 WHR14247 |
C00395060
480150100308 |
Batten | Na dotaz | Zadat poptávku | |
| 741 2 WHR14247 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| 741 3 WHR14247 |
C00395011
480150100244 |
Deflector | Na dotaz | Zadat poptávku | |
| 741 4 WHR14247 |
C00395012
480150100245 |
Deflector | Na dotaz | Zadat poptávku | |
| 741 5 WHR14247 |
C00395013
480150100246 |
Batten | Na dotaz | Zadat poptávku | |
| 741 6 WHR14247 |
C00395014
480150100247 |
Batten | Na dotaz | Zadat poptávku | |
| 745 0 WHR14247 |
C00376998
480150100214 |
Evaporator | Na dotaz | Zadat poptávku | |
| 751 0 WHR14247 |
C00395010
480150100243 |
Drain strip | Na dotaz | Zadat poptávku | |
| 764 0 WHR14247 |
C00394988
480150100215 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 781 0 WHR14247 |
C00394994
480150100224 |
Pipe | Na dotaz | Zadat poptávku | |
| 781 1 WHR14247 |
C00394995
480150100225 |
Valve | Na dotaz | Zadat poptávku | |
| 781 2 WHR14247 |
C00394996
480150100226 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 781 5 WHR14247 |
C00394997
480150100227 |
Capillary tube | Na dotaz | Zadat poptávku | |
| 781 9 WHR14247 |
C00394999
480150100229 |
Support Valve | Na dotaz | Zadat poptávku | |
| 782 0 WHR14247 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 782 1 WHR14247 |
C00394998
480150100228 |
Valve | Na dotaz | Zadat poptávku | |
| 921 1 WHR14247 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| 962 0 WHR14247 |
C00395055
480150100302 |
Cover Display board | Na dotaz | Zadat poptávku | |
| 965 1 WHR14247 |
C00395054
480150100301 |
Display PCB | Na dotaz | Zadat poptávku | |
| 993 0 WHR14247 |
C00377008
480150100309 |
Dálkové ovládání | Na dotaz | Zadat poptávku | |
