| Komerční kód: | AMD 034/1 |
| Kód 12NC: | 853003401010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

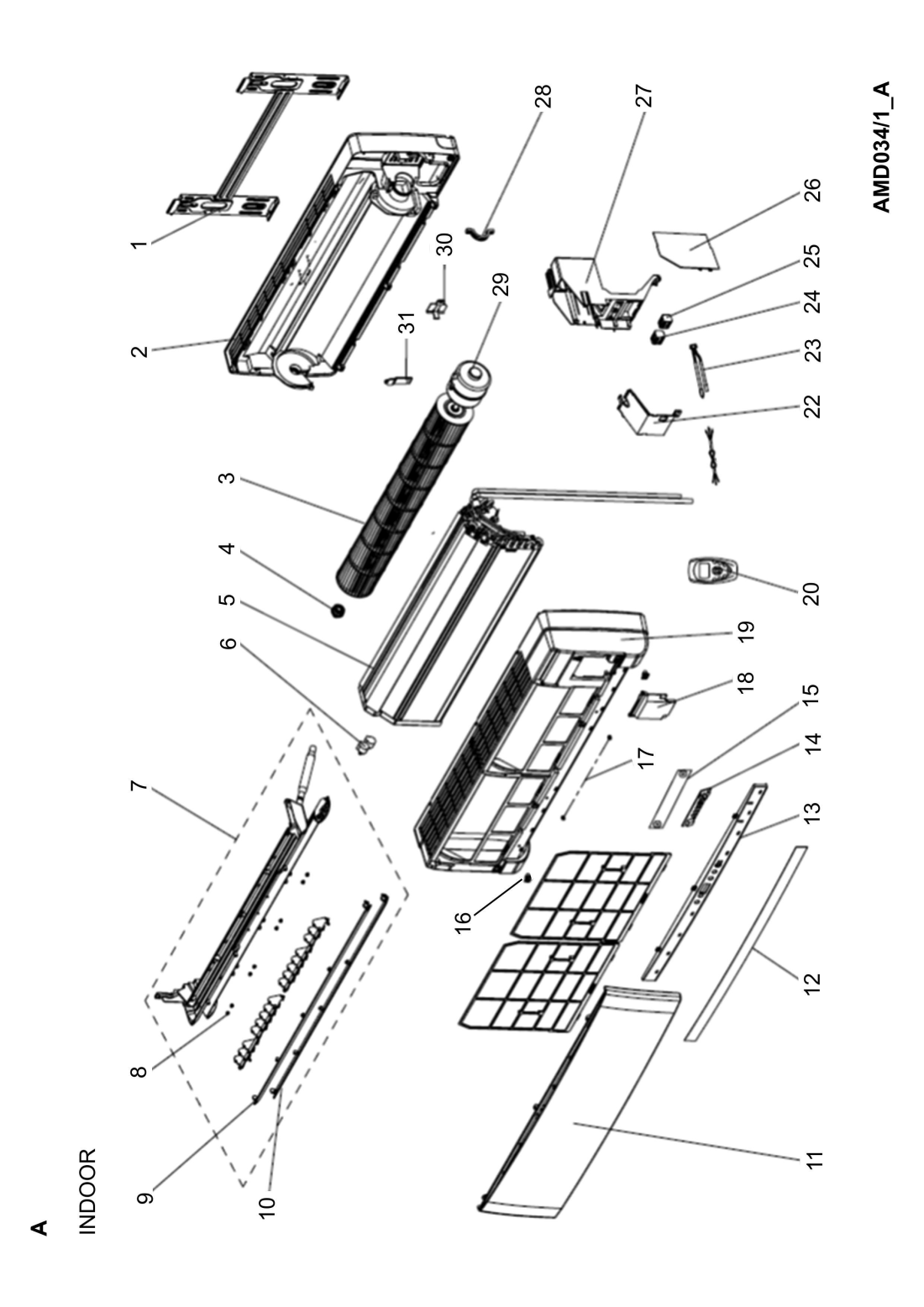

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22054 |
C00561897 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22054 |
C00561898 | FC WHP | Na dotaz | Zadat poptávku | |
| A1 WHR22054 |
C00386051
482000006139 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A10 WHR22054 |
C00409781
482000006181 |
Cover | Na dotaz | Zadat poptávku | |
| A11 WHR22054 |
C00409782
482000006182 |
Front panel | Na dotaz | Zadat poptávku | |
| A12 WHR22054 |
C00409783
482000006183 |
Cover | Na dotaz | Zadat poptávku | |
| A13 WHR22054 |
C00409784
482000006184 |
Panel switch | Na dotaz | Zadat poptávku | |
| A14 WHR22054 |
C00378134
482000000290 |
Display board | Na dotaz | Zadat poptávku | |
| A15 WHR22054 |
C00395055
480150100302 |
Cover Display board | Na dotaz | Zadat poptávku | |
| A16 WHR22054 |
C00395003
480150100235 |
Cap | Na dotaz | Zadat poptávku | |
| A17 WHR22054 |
C00378147
482000000505 |
Cap | Na dotaz | Zadat poptávku | |
| A18 WHR22054 |
C00409757
482000006142 |
Cover cable | Na dotaz | Zadat poptávku | |
| A19 WHR22054 |
C00409785
482000006185 |
Cover Outlet | Na dotaz | Zadat poptávku | |
| A2 WHR22054 |
C00395026
480150100261 |
Chassis | Na dotaz | Zadat poptávku | |
| A20 WHR22054 |
C00409778
482000006175 |
Remote control | Na dotaz | Zadat poptávku | |
| A22 WHR22054 |
C00395037
480150100281 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| A23 WHR22054 |
C00399959
481221058094 |
senzor tepolty | 245 Kč
€ 10.80 |
||
| A24 WHR22054 |
C00401110
481229088137 |
connector 3PS | Na dotaz | Zadat poptávku | |
| A25 WHR22054 |
C00394960
480150100178 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A26_1 WHR22054 |
C00409758
482000006143 |
Control board | Na dotaz | Zadat poptávku | |
| A26_2 WHR22054 |
C00409759
482000006144 |
User board | Na dotaz | Zadat poptávku | |
| A27 WHR22054 |
C00395033
480150100275 |
Electronic box | Na dotaz | Zadat poptávku | |
| A28 WHR22054 |
C00409760
482000006145 |
Ring Motor | Na dotaz | Zadat poptávku | |
| A29 WHR22054 |
C00395201
480150100478 |
Motor Indoor | Na dotaz | Zadat poptávku | |
| A3 WHR22054 |
C00377003
480150100271 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| A30 WHR22054 |
C00409761
482000006146 |
Damper | Na dotaz | Zadat poptávku | |
| A31 WHR22054 |
C00409762
482000006147 |
Damper | Na dotaz | Zadat poptávku | |
| A32 WHR22054 |
C00409598
482000005815 |
Filter | Na dotaz | Zadat poptávku | |
| A35 WHR22054 |
C00409601
482000005818 |
Filter Ion | Na dotaz | Zadat poptávku | |
| A36 WHR22054 |
C00500906
481248028066 |
filtr uhlikovy AMB | 412 Kč
€ 18.10 |
||
| A37 WHR22054 |
C00408686
482000004271 |
Support Hepa filter | Na dotaz | Zadat poptávku | |
| A4 WHR22054 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A5 WHR22054 |
C00409755
482000006140 |
Evaporator | Na dotaz | Zadat poptávku | |
| A6 WHR22054 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 21.80 |
||
| A7_1 WHR22054 |
C00409779
482000006179 |
Air guide Outlet | Na dotaz | Zadat poptávku | |
| A7_2 WHR22054 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| A8 WHR22054 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A9 WHR22054 |
C00409780
482000006180 |
Cover | Na dotaz | Zadat poptávku | |
| B1 WHR22054 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B10 WHR22054 |
C00386437
482000006158 |
Separator | Na dotaz | Zadat poptávku | |
| B11 WHR22054 |
C00409769
482000006159 |
Compressor | Na dotaz | Zadat poptávku | |
| B12 WHR22054 |
C00409770
482000006160 |
Cable | Na dotaz | Zadat poptávku | |
| B13 WHR22054 |
C00386202
482000006161 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| B14 WHR22054 |
C00409771
482000006162 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B15 WHR22054 |
C00386447
482000006163 |
Side panel | Na dotaz | Zadat poptávku | |
| B16 WHR22054 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B17 WHR22054 |
C00409772
482000006164 |
Valve 2 way | Na dotaz | Zadat poptávku | |
| B18 WHR22054 |
C00386231
482000006165 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| B19 WHR22054 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
| B2 WHR22054 |
C00409764
482000006150 |
Base | Na dotaz | Zadat poptávku | |
| B20 WHR22054 |
C00409773
482000006166 |
Valve 4 Way cpl. | Na dotaz | Zadat poptávku | |
| B21 WHR22054 |
C00386439
480150100206 |
Capacitor | Na dotaz | Zadat poptávku | |
| B22 WHR22054 |
C00386438
482000006167 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B23 WHR22054 |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B24 WHR22054 |
C00386440
482000006168 |
Capacitor Fan | Na dotaz | Zadat poptávku | |
| B25 WHR22054 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B3 WHR22054 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B4 WHR22054 |
C00409766
482000006152 |
Motor fan | Na dotaz | Zadat poptávku | |
| B5 WHR22054 |
C00409767
482000006153 |
Bracket | Na dotaz | Zadat poptávku | |
| B6 WHR22054 |
C00409768
482000006154 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B7 WHR22054 |
C00386448
482000006155 |
Panel rear | Na dotaz | Zadat poptávku | |
| B8 WHR22054 |
C00386113
482000006156 |
Cover top | Na dotaz | Zadat poptávku | |
| B9 WHR22054 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
