| Komerční kód: | AMD 055 NORDICS. |
| Kód 12NC/I.C. kód: | 853005561000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

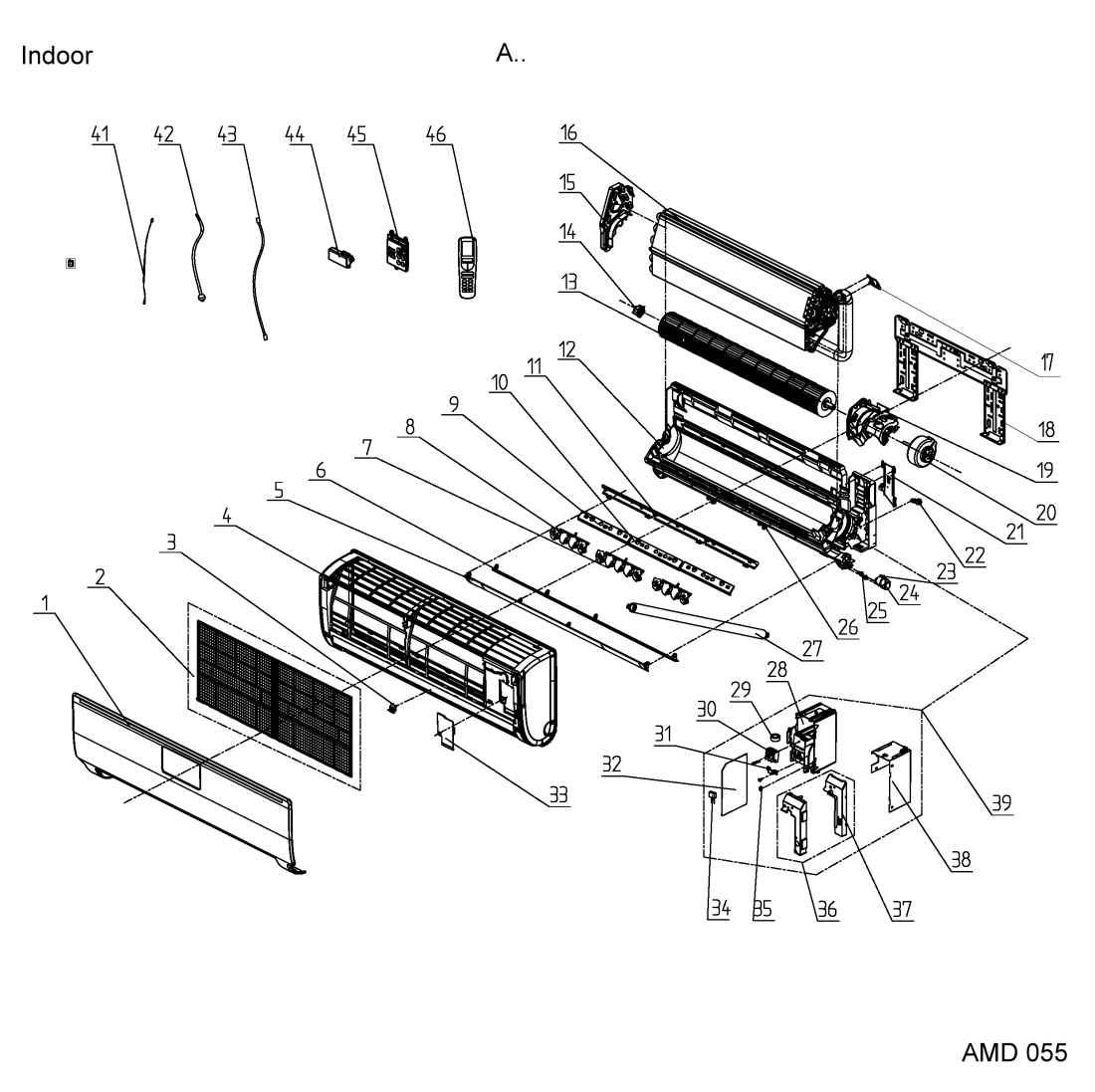

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22069 |
C00561919 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22069 |
C00561920 | FC WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22069 |
C00415467
482000017800 |
Front panel | Na dotaz | Zadat poptávku | |
| A02 WHR22069 |
C00409402
482000005498 |
Air clean filt. HEPA | Na dotaz | Zadat poptávku | |
| A03 WHR22069 |
C00409403
482000005499 |
Cover Screw | Na dotaz | Zadat poptávku | |
| A04 WHR22069 |
C00409404
482000005500 |
Cover front Cover | Na dotaz | Zadat poptávku | |
| A05 WHR22069 |
C00409405
482000005501 |
Guide | Na dotaz | Zadat poptávku | |
| A06 WHR22069 |
C00409406
482000005502 |
Guide | Na dotaz | Zadat poptávku | |
| A07 WHR22069 |
C00409407
482000005503 |
Air guide | Na dotaz | Zadat poptávku | |
| A08 WHR22069 |
C00409408
482000005504 |
Air guide | Na dotaz | Zadat poptávku | |
| A09 WHR22069 |
C00409409
482000005505 |
Rail Guide | Na dotaz | Zadat poptávku | |
| A10 WHR22069 |
C00409410
482000005506 |
Rail Guide | Na dotaz | Zadat poptávku | |
| A11 WHR22069 |
C00409411
482000005507 |
Rail | Na dotaz | Zadat poptávku | |
| A12 WHR22069 |
C00409412
482000005508 |
Rear panel cpl. | Na dotaz | Zadat poptávku | |
| A13 WHR22069 |
C00409413
482000005509 |
Fan | Na dotaz | Zadat poptávku | |
| A14 WHR22069 |
C00409414
482000005510 |
Bushing | Na dotaz | Zadat poptávku | |
| A15 WHR22069 |
C00409415
482000005511 |
Evaporatorflap | Na dotaz | Zadat poptávku | |
| A16 WHR22069 |
C00415468
482000017801 |
Evaporator | Na dotaz | Zadat poptávku | |
| A17 WHR22069 |
C00409417
482000005513 |
Cover shield | Na dotaz | Zadat poptávku | |
| A18 WHR22069 |
C00409418
482000005514 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A19 WHR22069 |
C00409419
482000005515 |
Motor | Na dotaz | Zadat poptávku | |
| A20 WHR22069 |
C00409420
482000005516 |
Motor fan | Na dotaz | Zadat poptávku | |
| A21 WHR22069 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A22 WHR22069 |
C00395586
480150100929 |
Plug | Na dotaz | Zadat poptávku | |
| A23 WHR22069 |
C00409442
482000005544 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A24 WHR22069 |
C00409421
482000005517 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A25 WHR22069 |
C00409422
482000005518 |
Crank | Na dotaz | Zadat poptávku | |
| A26 WHR22069 |
C00409423
482000005519 |
Guide | Na dotaz | Zadat poptávku | |
| A27 WHR22069 |
C00409424
482000005520 |
Hose draining | Na dotaz | Zadat poptávku | |
| A28 WHR22069 |
C00409425
482000005521 |
Unit electrical | Na dotaz | Zadat poptávku | |
| A29 WHR22069 |
C00400982
481228158004 |
Magnet | Na dotaz | Zadat poptávku | |
| A30 WHR22069 |
C00399775
481212398011 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A31 WHR22069 |
C00401275
481231618038 |
Clamp cable | Na dotaz | Zadat poptávku | |
| A32 WHR22069 |
C00409426
482000005522 |
Kontrolní jednotka - klimatizace | Na dotaz | Zadat poptávku | |
| A33 WHR22069 |
C00409292
482000005383 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A34 WHR22069 |
C00409316
482000005410 |
Capacitor kpl. | Na dotaz | Zadat poptávku | |
| A35 WHR22069 |
C00401103
481229088129 |
Connector | Na dotaz | Zadat poptávku | |
| A36 WHR22069 |
C00409427
482000005523 |
Shield upper | Na dotaz | Zadat poptávku | |
| A37 WHR22069 |
C00409428
482000005524 |
Cover | Na dotaz | Zadat poptávku | |
| A38 WHR22069 |
C00409429
482000005525 |
Shield | Na dotaz | Zadat poptávku | |
| A39 WHR22069 |
C00409443
482000005545 |
Box CPL. | Na dotaz | Zadat poptávku | |
| A41 WHR22069 |
C00409540
482000005679 |
Sensor temper. Ambient | Na dotaz | Zadat poptávku | |
| A42 WHR22069 |
C00410887
482000008130 |
Cable mains | Na dotaz | Zadat poptávku | |
| A43 WHR22069 |
C00412359
482000011298 |
Cable mains | Na dotaz | Zadat poptávku | |
| A44 WHR22069 |
C00412856
482000012185 |
Generator cold plasma | Na dotaz | Zadat poptávku | |
| A45 WHR22069 |
C00409433
482000005529 |
Display board | Na dotaz | Zadat poptávku | |
| A46 WHR22069 |
C00415469
482000017802 |
Remote control | Na dotaz | Zadat poptávku | |
| B01 WHR22069 |
C00396056
480150101533 |
Grid air front | Na dotaz | Zadat poptávku | |
| B02 WHR22069 |
C00415470
482000017803 |
Front panel | Na dotaz | Zadat poptávku | |
| B03 WHR22069 |
C00395385
480150100698 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B04 WHR22069 |
C00405996
481254828057 |
Drain piece | Na dotaz | Zadat poptávku | |
| B05 WHR22069 |
C00409386
482000005482 |
Transformer | Na dotaz | Zadat poptávku | |
| B06 WHR22069 |
C00399715
481211088005 |
Heating element Chassis | Na dotaz | Zadat poptávku | |
| B07 WHR22069 |
C00415471
482000017804 |
Chassis sub-assy | Na dotaz | Zadat poptávku | |
| B08 WHR22069 |
C00415472
482000017805 |
Compressor | Na dotaz | Zadat poptávku | |
| B09 WHR22069 |
C00415473
482000017806 |
Support motor | Na dotaz | Zadat poptávku | |
| B10 WHR22069 |
C00415474
482000017807 |
Support | Na dotaz | Zadat poptávku | |
| B11 WHR22069 |
C00396052
480150101528 |
Side panel right | Na dotaz | Zadat poptávku | |
| B12 WHR22069 |
C00401808
481240118847 |
Support valve | Na dotaz | Zadat poptávku | |
| B13 WHR22069 |
C00409392
482000005488 |
Cut out Valve | Na dotaz | Zadat poptávku | |
| B14 WHR22069 |
C00401472
481236058563 |
Valve 1/2 | Na dotaz | Zadat poptávku | |
| B15 WHR22069 |
C00405373
481249858224 |
Handle | Na dotaz | Zadat poptávku | |
| B16 WHR22069 |
C00415475
482000017808 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B17 WHR22069 |
C00415476
482000017809 |
Capillary tube sub-assy | Na dotaz | Zadat poptávku | |
| B18 WHR22069 |
C00415477
482000017810 |
Grill rear | Na dotaz | Zadat poptávku | |
| B19 WHR22069 |
C00401856
481240418537 |
Fixing mat.set sensor | Na dotaz | Zadat poptávku | |
| B20 WHR22069 |
C00415478
482000017811 |
Condenser assy | Na dotaz | Zadat poptávku | |
| B21 WHR22069 |
C00403453
481244048498 |
Cover top | Na dotaz | Zadat poptávku | |
| B22 WHR22069 |
C00409481
482000005588 |
Motor | Na dotaz | Zadat poptávku | |
| B25 WHR22069 |
C00415479
482000017812 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B26 WHR22069 |
C00415056
482000016357 |
Terminal Board out door unit | Na dotaz | Zadat poptávku | |
| B27 WHR22069 |
C00395411
480150100727 |
Electronic box | Na dotaz | Zadat poptávku | |
| B28 WHR22069 |
C00415480
482000017813 |
Electronic box | Na dotaz | Zadat poptávku | |
