| Komerční kód: | AMD 066/1 |
| Kód 12NC/I.C. kód: | 853006601100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

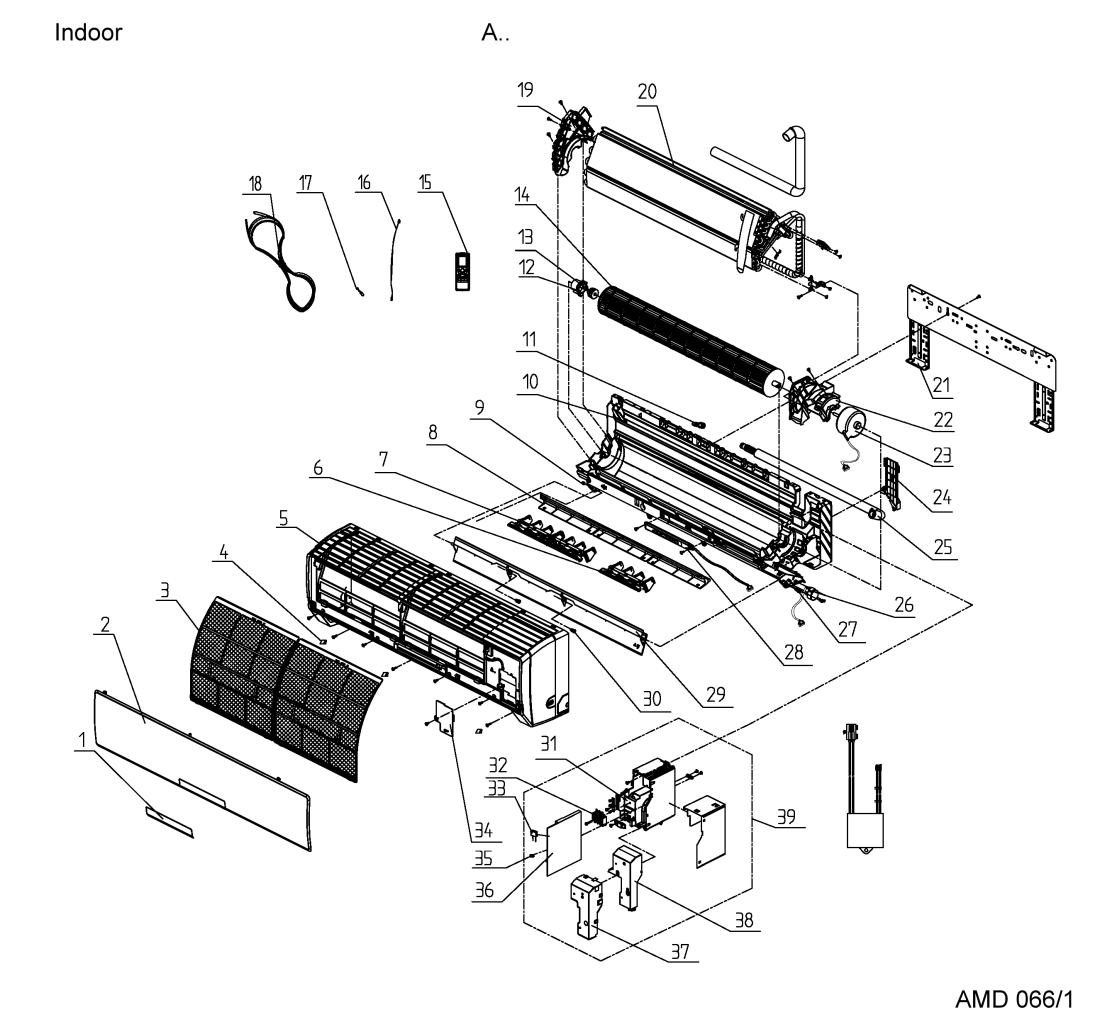

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22084 |
C00541886 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22084 |
C00541887 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22084 |
C00410742
482000007869 |
Receiver Window | Na dotaz | Zadat poptávku | |
| A02 WHR22084 |
C00415543
482000017913 |
Front panel | Na dotaz | Zadat poptávku | |
| A03 WHR22084 |
C00409290
482000005381 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| A04 WHR22084 |
C00409291
482000005382 |
Cover Screw | Na dotaz | Zadat poptávku | |
| A05 WHR22084 |
C00410736
482000007863 |
Front cover | Na dotaz | Zadat poptávku | |
| A06 WHR22084 |
C00409297
482000005388 |
Lamella FGuide | Na dotaz | Zadat poptávku | |
| A07 WHR22084 |
C00409296
482000005387 |
Guide Lamelle | Na dotaz | Zadat poptávku | |
| A08 WHR22084 |
C00409298
482000005389 |
Rail | Na dotaz | Zadat poptávku | |
| A09 WHR22084 |
C00409294
482000005385 |
Bushing | Na dotaz | Zadat poptávku | |
| A10 WHR22084 |
C00409379
482000005475 |
Rear panel | Na dotaz | Zadat poptávku | |
| A11 WHR22084 |
C00395586
480150100929 |
Plug | Na dotaz | Zadat poptávku | |
| A12 WHR22084 |
C00409302
482000005393 |
Bearing ring | Na dotaz | Zadat poptávku | |
| A13 WHR22084 |
C00412355
482000011294 |
Gasket | Na dotaz | Zadat poptávku | |
| A14 WHR22084 |
C00409380
482000005476 |
Fan | Na dotaz | Zadat poptávku | |
| A15 WHR22084 |
C00415544
482000017914 |
Remote control | Na dotaz | Zadat poptávku | |
| A16 WHR22084 |
C00413002
482000012532 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| A17 WHR22084 |
C00409540
482000005679 |
Sensor temper. Ambient | Na dotaz | Zadat poptávku | |
| A18 WHR22084 |
C00415545
482000017915 |
Connection cable | Na dotaz | Zadat poptávku | |
| A19 WHR22084 |
C00409306
482000005398 |
Evaporatorflap Traeger | Na dotaz | Zadat poptávku | |
| A20 WHR22084 |
C00410737
482000007864 |
Evaporator cpl. | Na dotaz | Zadat poptávku | |
| A21 WHR22084 |
C00409304
482000005396 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A22 WHR22084 |
C00409312
482000005406 |
Motor | Na dotaz | Zadat poptávku | |
| A23 WHR22084 |
C00409313
482000005407 |
Motor fan | Na dotaz | Zadat poptávku | |
| A24 WHR22084 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A25 WHR22084 |
C00409303
482000005395 |
Hose draining | Na dotaz | Zadat poptávku | |
| A26 WHR22084 |
C00409311
482000005405 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A27 WHR22084 |
C00409310
482000005404 |
Crank | Na dotaz | Zadat poptávku | |
| A28 WHR22084 |
C00378218
482000005403 |
Displej | 692 Kč
€ 28.50 |
||
| A29 WHR22084 |
C00409295
482000005386 |
Air guide | Na dotaz | Zadat poptávku | |
| A30 WHR22084 |
C00395591
480150100935 |
Bush | Na dotaz | Zadat poptávku | |
| A31 WHR22084 |
C00410738
482000007865 |
Unit electrical | Na dotaz | Zadat poptávku | |
| A32 WHR22084 |
C00399772
481212398007 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A33 WHR22084 |
C00409316
482000005410 |
Capacitor kpl. | Na dotaz | Zadat poptávku | |
| A34 WHR22084 |
C00409292
482000005383 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A35 WHR22084 |
C00410739
482000007866 |
Link,jumper | Na dotaz | Zadat poptávku | |
| A36 WHR22084 |
C00415546
482000017916 |
Control board | Na dotaz | Zadat poptávku | |
| A37 WHR22084 |
C00409646
482000005932 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| A38 WHR22084 |
C00410741
482000007868 |
Cover shield | Na dotaz | Zadat poptávku | |
| A39 WHR22084 |
C00415547
482000017917 |
Electronic box | Na dotaz | Zadat poptávku | |
| B01 WHR22084 |
C00410745
482000007872 |
Front Grill | Na dotaz | Zadat poptávku | |
| B02 WHR22084 |
C00410746
482000007873 |
Front panel | Na dotaz | Zadat poptávku | |
| B03 WHR22084 |
C00415548
482000017918 |
Chassis assy | Na dotaz | Zadat poptávku | |
| B06 WHR22084 |
C00395583
480150100926 |
Separator | Na dotaz | Zadat poptávku | |
| B07 WHR22084 |
C00413005
482000012535 |
Compressor | Na dotaz | Zadat poptávku | |
| B08 WHR22084 |
C00415549
482000017919 |
Heating element compressor | Na dotaz | Zadat poptávku | |
| B10 WHR22084 |
C00395579
480150100922 |
Coil Valve | Na dotaz | Zadat poptávku | |
| B11 WHR22084 |
C00415550
482000017920 |
Valve 4-way assy | Na dotaz | Zadat poptávku | |
| B12 WHR22084 |
C00410751
482000007878 |
Plate right side | Na dotaz | Zadat poptávku | |
| B13 WHR22084 |
C00415551
482000017921 |
Valve support assy | Na dotaz | Zadat poptávku | |
| B14 WHR22084 |
C00415552
482000017922 |
Valve electronic assy | Na dotaz | Zadat poptávku | |
| B15 WHR22084 |
C00415553
482000017923 |
Support valve assy | Na dotaz | Zadat poptávku | |
| B16 WHR22084 |
C00395611
480150100957 |
Valve | Na dotaz | Zadat poptávku | |
| B17 WHR22084 |
C00410753
482000007880 |
Valve cut-off | Na dotaz | Zadat poptávku | |
| B18 WHR22084 |
C00410754
482000007881 |
Valve COVER | Na dotaz | Zadat poptávku | |
| B19 WHR22084 |
C00410760
482000007887 |
Valve fitting | Na dotaz | Zadat poptávku | |
| B20 WHR22084 |
C00410761
482000007888 |
Valve fitting | Na dotaz | Zadat poptávku | |
| B21 WHR22084 |
C00410756
482000007883 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B22 WHR22084 |
C00410757
482000007884 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B23 WHR22084 |
C00410763
482000007890 |
Staple | Na dotaz | Zadat poptávku | |
| B24 WHR22084 |
C00409553
482000005693 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B25 WHR22084 |
C00410765
482000007892 |
Grille rear | Na dotaz | Zadat poptávku | |
| B26 WHR22084 |
C00415554
482000017924 |
Condenser assy | Na dotaz | Zadat poptávku | |
| B27 WHR22084 |
C00415555
482000017925 |
Support | Na dotaz | Zadat poptávku | |
| B28 WHR22084 |
C00410767
482000007894 |
Cover top | Na dotaz | Zadat poptávku | |
| B29 WHR22084 |
C00413014
482000012544 |
Support condenser | Na dotaz | Zadat poptávku | |
| B30 WHR22084 |
C00413015
482000012545 |
Support motor assy | Na dotaz | Zadat poptávku | |
| B31 WHR22084 |
C00413016
482000012546 |
Motor fan | Na dotaz | Zadat poptávku | |
| B32 WHR22084 |
C00410770
482000007897 |
Plate left | Na dotaz | Zadat poptávku | |
| B33 WHR22084 |
C00410775
482000007902 |
Acial flow fan | Na dotaz | Zadat poptávku | |
| B34 WHR22084 |
C00415556
482000017926 |
Handle | Na dotaz | Zadat poptávku | |
| B35 WHR22084 |
C00415557
482000017927 |
Connection cable | Na dotaz | Zadat poptávku | |
| B36 WHR22084 |
C00415558
482000017928 |
Electronic box | Na dotaz | Zadat poptávku | |
| B37 WHR22084 |
C00409542
482000005682 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B38 WHR22084 |
C00413018
482000012548 |
Radiator | Na dotaz | Zadat poptávku | |
| B39 WHR22084 |
C00415559
482000017929 |
Control board | Na dotaz | Zadat poptávku | |
