WHIRLPOOL AMD 333/1 AS-18CT4FFVUV
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 333/1 AS-18CT4FFVUV |
| Kód 12NC: | 853033301010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

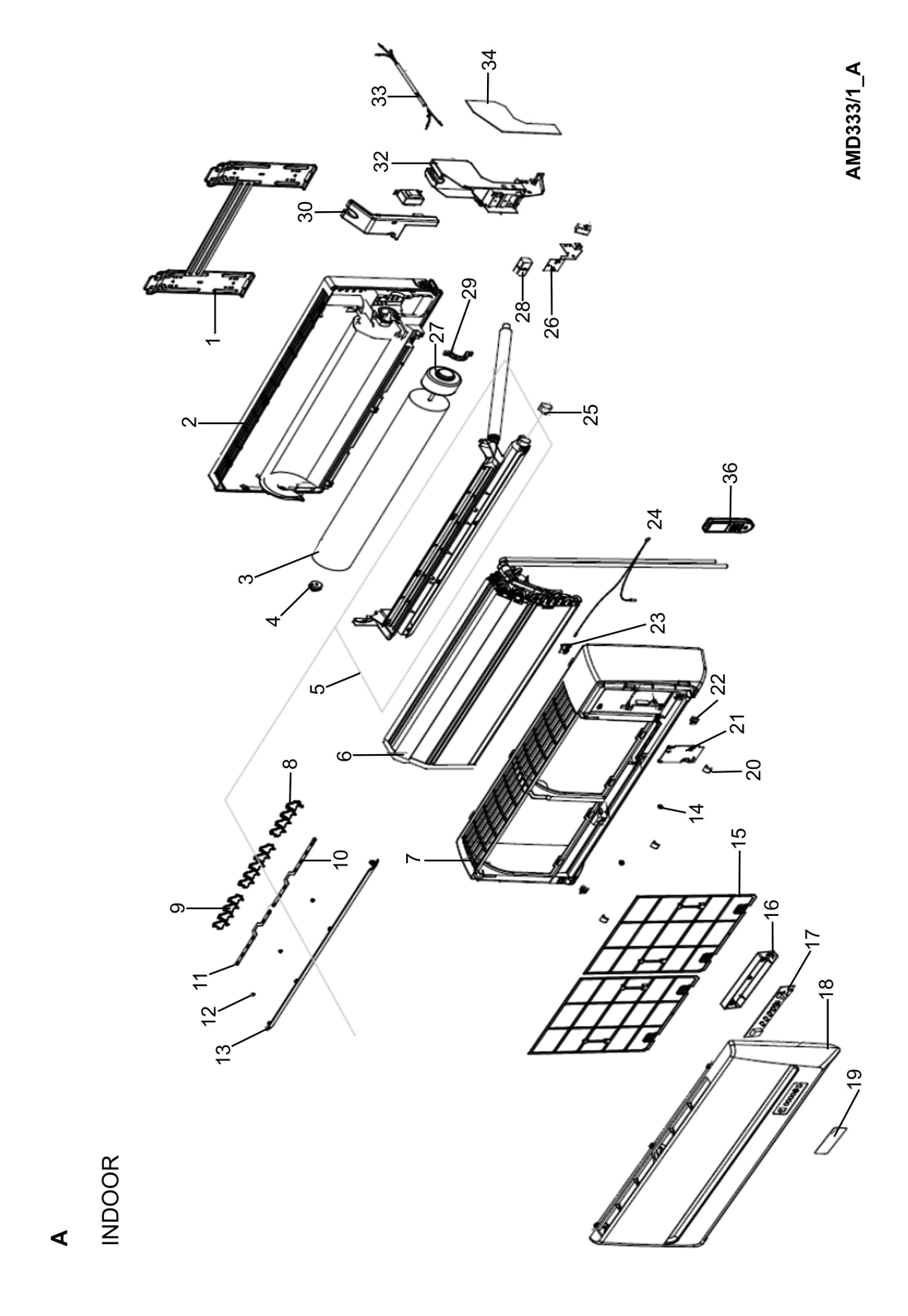

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22166 |
C00562067 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22166 |
C00562068 | FC WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22166 |
C00409738
482000006113 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A02 WHR22166 |
C00406868
482000000329 |
Cabinet REAR | Na dotaz | Zadat poptávku | |
| A03 WHR22166 |
C00376997
480150100211 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| A04 WHR22166 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A05 WHR22166 |
C00409739
482000006114 |
Drain strip cpl. | Na dotaz | Zadat poptávku | |
| A06 WHR22166 |
C00409740
482000006115 |
Evaporator | Na dotaz | Zadat poptávku | |
| A07 WHR22166 |
C00394978
480150100199 |
Cabinet | Na dotaz | Zadat poptávku | |
| A08 WHR22166 |
C00395012
480150100245 |
Deflector | Na dotaz | Zadat poptávku | |
| A09 WHR22166 |
C00395011
480150100244 |
Deflector | Na dotaz | Zadat poptávku | |
| A10 WHR22166 |
C00395014
480150100247 |
Batten | Na dotaz | Zadat poptávku | |
| A11 WHR22166 |
C00395013
480150100246 |
Batten | Na dotaz | Zadat poptávku | |
| A12 WHR22166 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A13 WHR22166 |
C00395015
480150100248 |
Batten | Na dotaz | Zadat poptávku | |
| A14 WHR22166 |
C00395004
480150100236 |
Cap | Na dotaz | Zadat poptávku | |
| A15 WHR22166 |
C00406873
482000000334 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| A16 WHR22166 |
C00378150
482000000511 |
Electronic box | 1 339 Kč
€ 58.90 |
||
| A17 WHR22166 |
C00378149
482000000510 |
displej | 2 302 Kč
€ 101.20 |
||
| A18 WHR22166 |
C00394979
480150100201 |
Panel front | Na dotaz | Zadat poptávku | |
| A19 WHR22166 |
C00376984
480150100123 |
Panel Display board | Na dotaz | Zadat poptávku | |
| A20 WHR22166 |
C00395005
480150100237 |
Cap | Na dotaz | Zadat poptávku | |
| A21 WHR22166 |
C00394981
480150100203 |
Plate protect. | Na dotaz | Zadat poptávku | |
| A22 WHR22166 |
C00395003
480150100235 |
Cap | Na dotaz | Zadat poptávku | |
| A23 WHR22166 |
C00409741
482000006116 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| A24 WHR22166 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| A25 WHR22166 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 21.80 |
||
| A26 WHR22166 |
C00394993
480150100222 |
Support Clamp | Na dotaz | Zadat poptávku | |
| A27 WHR22166 |
C00409801
482000006226 |
Motor fan | Na dotaz | Zadat poptávku | |
| A28 WHR22166 |
C00386421
480150100141 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A29 WHR22166 |
C00402194
481240478949 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| A30 WHR22166 |
C00395181
480150100454 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| A32 WHR22166 |
C00395178
480150100451 |
Electronic box | Na dotaz | Zadat poptávku | |
| A33 WHR22166 |
C00409742
482000006117 |
Cable mains | Na dotaz | Zadat poptávku | |
| A34 WHR22166 |
C00409802
482000006227 |
Control board | Na dotaz | Zadat poptávku | |
| A36 WHR22166 |
C00378232
482000006119 |
Remote control | Na dotaz | Zadat poptávku | |
| A37 WHR22166 |
C00408687
482000004272 |
Filter | Na dotaz | Zadat poptávku | |
| A38 WHR22166 |
C00409601
482000005818 |
Filter Ion | Na dotaz | Zadat poptávku | |
| A39 WHR22166 |
C00408686
482000004271 |
Support Hepa filter | Na dotaz | Zadat poptávku | |
| B01 WHR22166 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B02 WHR22166 |
C00386435
482000006228 |
Base | Na dotaz | Zadat poptávku | |
| B03 WHR22166 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B04 WHR22166 |
C00386433
482000006229 |
Motor fan | Na dotaz | Zadat poptávku | |
| B05 WHR22166 |
C00409767
482000006153 |
Bracket | Na dotaz | Zadat poptávku | |
| B06 WHR22166 |
C00409803
482000006230 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B07 WHR22166 |
C00386448
482000006155 |
Panel rear | Na dotaz | Zadat poptávku | |
| B08 WHR22166 |
C00386113
482000006156 |
Cover top | Na dotaz | Zadat poptávku | |
| B09 WHR22166 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B10 WHR22166 |
C00386437
482000006158 |
Separator | Na dotaz | Zadat poptávku | |
| B11 WHR22166 |
C00409804
482000006231 |
Compressor PH310M2AS-4KTS1 - R22 | Na dotaz | Zadat poptávku | |
| B12 WHR22166 |
C00386443
482000000346 |
Cable harness | Na dotaz | Zadat poptávku | |
| B13 WHR22166 |
C00386446
480150100462 |
Valve | Na dotaz | Zadat poptávku | |
| B14 WHR22166 |
C00409805
482000006232 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B15 WHR22166 |
C00386447
482000006163 |
Side panel | Na dotaz | Zadat poptávku | |
| B16 WHR22166 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B17 WHR22166 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
| B18_1 WHR22166 |
C00409806
482000006233 |
Pipe | Na dotaz | Zadat poptávku | |
| B18_2 WHR22166 |
C00409807
482000006234 |
Suction pipe | Na dotaz | Zadat poptávku | |
| B19 WHR22166 |
C00386440
482000006168 |
Capacitor Fan | Na dotaz | Zadat poptávku | |
| B21 WHR22166 |
C00386438
482000006167 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B22 WHR22166 |
C00409808
482000006235 |
Capacitor | Na dotaz | Zadat poptávku | |
| B23 WHR22166 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
