| Komerční kód: | AMD 335 |
| Kód 12NC/I.C. kód: | 853033579000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

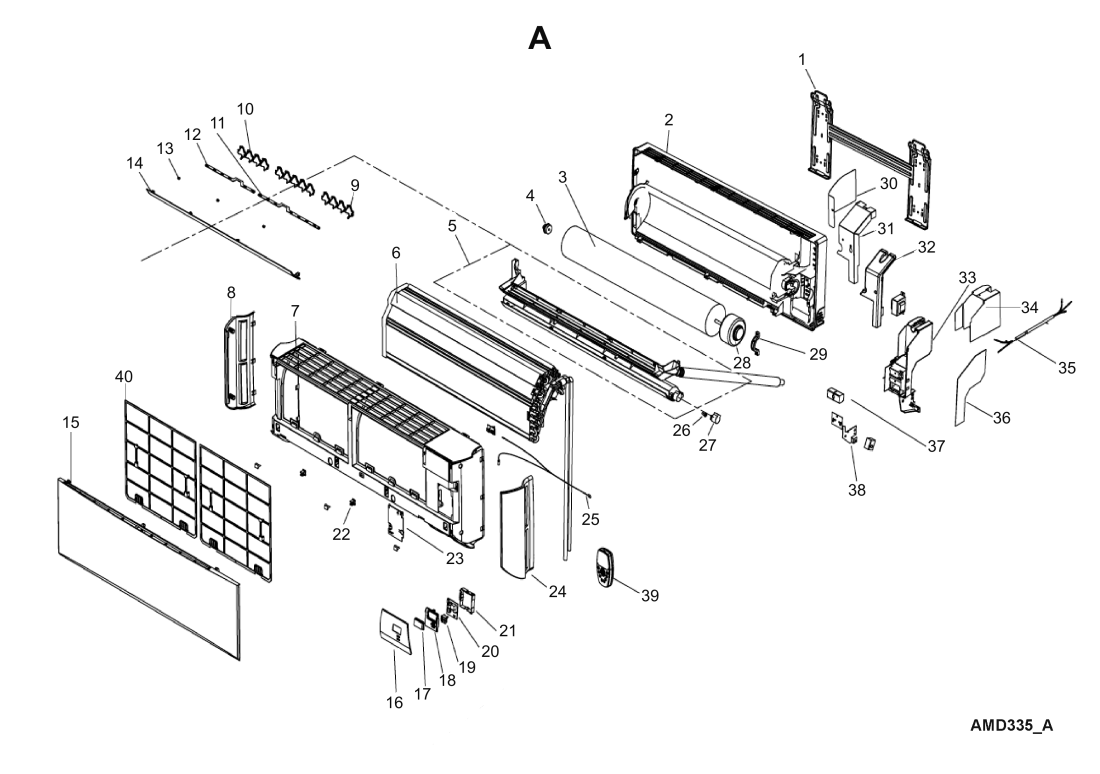

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 WHR22171 |
C00409738
482000006113 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A02 WHR22171 |
C00406868
482000000329 |
Cabinet REAR | Na dotaz | Zadat poptávku | |
| A03 WHR22171 |
C00376997
480150100211 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| A04 WHR22171 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A05 WHR22171 |
C00412006
482000010388 |
Water conveyor cpl. | Na dotaz | Zadat poptávku | |
| A06 WHR22171 |
C00409740
482000006115 |
Evaporator | Na dotaz | Zadat poptávku | |
| A07 WHR22171 |
C00412767
482000011954 |
Cabinet | Na dotaz | Zadat poptávku | |
| A07_1 WHR22171 |
C00412766
482000011953 |
Cabinet assy | Na dotaz | Zadat poptávku | |
| A08 WHR22171 |
C00412009
482000010391 |
Cover left | Na dotaz | Zadat poptávku | |
| A09 WHR22171 |
C00395012
480150100245 |
Deflector | Na dotaz | Zadat poptávku | |
| A10 WHR22171 |
C00395011
480150100244 |
Deflector | Na dotaz | Zadat poptávku | |
| A11 WHR22171 |
C00395014
480150100247 |
Batten | Na dotaz | Zadat poptávku | |
| A12 WHR22171 |
C00395013
480150100246 |
Batten | Na dotaz | Zadat poptávku | |
| A13 WHR22171 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A14 WHR22171 |
C00412010
482000010392 |
Air guide | Na dotaz | Zadat poptávku | |
| A15 WHR22171 |
C00412080
482000010485 |
Front panel | Na dotaz | Zadat poptávku | |
| A16 WHR22171 |
C00412012
482000010394 |
Display panel | Na dotaz | Zadat poptávku | |
| A17 WHR22171 |
C00411994
482000010363 |
Display Window | Na dotaz | Zadat poptávku | |
| A18 WHR22171 |
C00411961
482000010318 |
Control box | Na dotaz | Zadat poptávku | |
| A19 WHR22171 |
C00412013
482000010395 |
Cover lamp | Na dotaz | Zadat poptávku | |
| A20 WHR22171 |
C00378273
482000010317 |
Display board | Na dotaz | Zadat poptávku | |
| A20_1 WHR22171 |
C00411960
482000010316 |
Display board cpl. | Na dotaz | Zadat poptávku | |
| A21 WHR22171 |
C00411993
482000010362 |
Cover Display | Na dotaz | Zadat poptávku | |
| A22 WHR22171 |
C00386265
482000010396 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A23 WHR22171 |
C00394981
480150100203 |
Plate protect. | Na dotaz | Zadat poptávku | |
| A24 WHR22171 |
C00412014
482000010397 |
Cover right | Na dotaz | Zadat poptávku | |
| A25 WHR22171 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| A26 WHR22171 |
C00381043
482000010309 |
Axle | Na dotaz | Zadat poptávku | |
| A27 WHR22171 |
C00376989
480150100135 |
Motorek | 273 Kč
€ 11.20 |
||
| A28 WHR22171 |
C00409801
482000006226 |
Motor fan | Na dotaz | Zadat poptávku | |
| A29 WHR22171 |
C00402194
481240478949 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| A30 WHR22171 |
C00412016
482000010399 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A31 WHR22171 |
C00395181
480150100454 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| A32 WHR22171 |
C00412017
482000010400 |
Elect.parts box cover | Na dotaz | Zadat poptávku | |
| A33 WHR22171 |
C00395178
480150100451 |
Electronic box | Na dotaz | Zadat poptávku | |
| A34 WHR22171 |
C00412018
482000010401 |
Elect.parts box metal | Na dotaz | Zadat poptávku | |
| A35 WHR22171 |
C00412768
482000011955 |
Cable mains | Na dotaz | Zadat poptávku | |
| A36 WHR22171 |
C00412769
482000011956 |
Control board components | Na dotaz | Zadat poptávku | |
| A37 WHR22171 |
C00386421
480150100141 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A38 WHR22171 |
C00394993
480150100222 |
Support Clamp | Na dotaz | Zadat poptávku | |
| A39 WHR22171 |
C00378274
482000010320 |
Ovladač dálkový | Na dotaz | Zadat poptávku | |
| A40 WHR22171 |
C00412770
482000011957 |
Filter | Na dotaz | Zadat poptávku | |
| A41 WHR22171 |
C00408687
482000004272 |
Filter | Na dotaz | Zadat poptávku | |
| A42 WHR22171 |
C00408686
482000004271 |
Support Hepa filter | Na dotaz | Zadat poptávku | |
| A43 WHR22171 |
C00378173
482000002784 |
Holder Remote control | Na dotaz | Zadat poptávku | |
| B01 WHR22171 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B02 WHR22171 |
C00386435
482000006228 |
Base | Na dotaz | Zadat poptávku | |
| B03 WHR22171 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B04 WHR22171 |
C00386433
482000006229 |
Motor fan | Na dotaz | Zadat poptávku | |
| B05 WHR22171 |
C00409767
482000006153 |
Bracket | Na dotaz | Zadat poptávku | |
| B06 WHR22171 |
C00409803
482000006230 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B07 WHR22171 |
C00386448
482000006155 |
Panel rear | Na dotaz | Zadat poptávku | |
| B08 WHR22171 |
C00386113
482000006156 |
Cover top | Na dotaz | Zadat poptávku | |
| B09 WHR22171 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B10 WHR22171 |
C00386437
482000006158 |
Separator | Na dotaz | Zadat poptávku | |
| B11 WHR22171 |
C00409804
482000006231 |
Compressor PH310M2AS-4KTS1 - R22 | Na dotaz | Zadat poptávku | |
| B12 WHR22171 |
C00386443
482000000346 |
Cable harness | Na dotaz | Zadat poptávku | |
| B13 WHR22171 |
C00386446
480150100462 |
Valve | Na dotaz | Zadat poptávku | |
| B14 WHR22171 |
C00409805
482000006232 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B15 WHR22171 |
C00386447
482000006163 |
Side panel | Na dotaz | Zadat poptávku | |
| B16 WHR22171 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B17 WHR22171 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
| B18_1 WHR22171 |
C00409807
482000006234 |
Suction pipe | Na dotaz | Zadat poptávku | |
| B18_2 WHR22171 |
C00409806
482000006233 |
Pipe | Na dotaz | Zadat poptávku | |
| B20 WHR22171 |
C00386440
482000006168 |
Capacitor Fan | Na dotaz | Zadat poptávku | |
| B21 WHR22171 |
C00386438
482000006167 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B22 WHR22171 |
C00409808
482000006235 |
Capacitor | Na dotaz | Zadat poptávku | |
| B23 WHR22171 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
