| Komerční kód: | AMD 336 |
| Kód 12NC/I.C. kód: | 853033679000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

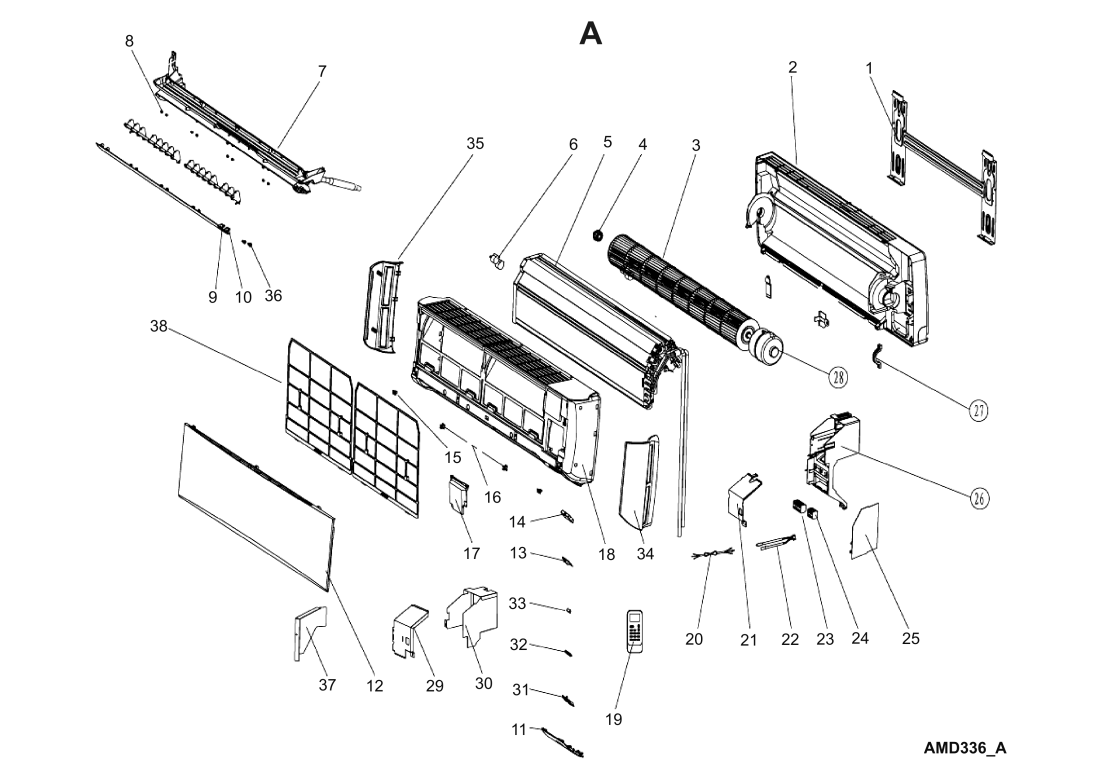

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 WHR22173 |
C00386051
482000006139 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A02 WHR22173 |
C00395026
480150100261 |
Chassis | Na dotaz | Zadat poptávku | |
| A03 WHR22173 |
C00377003
480150100271 |
Fan wheel Indoor | Na dotaz | Zadat poptávku | |
| A04 WHR22173 |
C00386059
480150100234 |
Ložisko | Na dotaz | Zadat poptávku | |
| A05 WHR22173 |
C00409809
482000006236 |
Evaporator | Na dotaz | Zadat poptávku | |
| A06 WHR22173 |
C00376989
480150100135 |
Motorek | 273 Kč
€ 11.20 |
||
| A07_1 WHR22173 |
C00412036
482000010428 |
Water conveyor cpl. | Na dotaz | Zadat poptávku | |
| A07_2 WHR22173 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A08 WHR22173 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A09 WHR22173 |
C00412037
482000010429 |
Air guide up | Na dotaz | Zadat poptávku | |
| A10 WHR22173 |
C00412038
482000010430 |
Air guide down | Na dotaz | Zadat poptávku | |
| A11 WHR22173 |
C00412039
482000010431 |
Display panel | Na dotaz | Zadat poptávku | |
| A12 WHR22173 |
C00412774
482000011961 |
Front panel | Na dotaz | Zadat poptávku | |
| A13 WHR22173 |
C00378273
482000010317 |
Display board | Na dotaz | Zadat poptávku | |
| A13_1 WHR22173 |
C00411960
482000010316 |
Display board cpl. | Na dotaz | Zadat poptávku | |
| A14 WHR22173 |
C00411993
482000010362 |
Cover Display | Na dotaz | Zadat poptávku | |
| A15 WHR22173 |
C00395003
480150100235 |
Cap | Na dotaz | Zadat poptávku | |
| A16 WHR22173 |
C00386265
482000010396 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A17 WHR22173 |
C00409757
482000006142 |
Cover cable | Na dotaz | Zadat poptávku | |
| A18 WHR22173 |
C00412775
482000011962 |
Cabinet | Na dotaz | Zadat poptávku | |
| A18_1 WHR22173 |
C00412773
482000011960 |
Cabinet assy | Na dotaz | Zadat poptávku | |
| A19 WHR22173 |
C00378274
482000010320 |
Ovladač dálkový | Na dotaz | Zadat poptávku | |
| A20 WHR22173 |
C00412776
482000011963 |
Cable mains | Na dotaz | Zadat poptávku | |
| A21 WHR22173 |
C00395212
480150100492 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| A22 WHR22173 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| A23 WHR22173 |
C00386421
480150100141 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A24 WHR22173 |
C00386169
480150100146 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A25_1 WHR22173 |
C00412777
482000011964 |
Control board components | Na dotaz | Zadat poptávku | |
| A25_2 WHR22173 |
C00409811
482000006239 |
User board | Na dotaz | Zadat poptávku | |
| A26 WHR22173 |
C00395210
480150100489 |
Electronic box | Na dotaz | Zadat poptávku | |
| A27 WHR22173 |
C00409760
482000006145 |
Ring Motor | Na dotaz | Zadat poptávku | |
| A28 WHR22173 |
C00395201
480150100478 |
Motor Indoor | Na dotaz | Zadat poptávku | |
| A29 WHR22173 |
C00412044
482000010436 |
Cover metal | Na dotaz | Zadat poptávku | |
| A30 WHR22173 |
C00412045
482000010437 |
Elect.parts box metal | Na dotaz | Zadat poptávku | |
| A31 WHR22173 |
C00411961
482000010318 |
Control box | Na dotaz | Zadat poptávku | |
| A32 WHR22173 |
C00411994
482000010363 |
Display Window | Na dotaz | Zadat poptávku | |
| A33 WHR22173 |
C00412013
482000010395 |
Cover lamp | Na dotaz | Zadat poptávku | |
| A34 WHR22173 |
C00412046
482000010438 |
Cover right | Na dotaz | Zadat poptávku | |
| A35 WHR22173 |
C00412047
482000010439 |
Cover left | Na dotaz | Zadat poptávku | |
| A36 WHR22173 |
C00381043
482000010309 |
Axle | Na dotaz | Zadat poptávku | |
| A37 WHR22173 |
C00412048
482000010440 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A38 WHR22173 |
C00412778
482000011965 |
Filter | Na dotaz | Zadat poptávku | |
| A39 WHR22173 |
C00408687
482000004272 |
Filter | Na dotaz | Zadat poptávku | |
| A40 WHR22173 |
C00408686
482000004271 |
Support Hepa filter | Na dotaz | Zadat poptávku | |
| A41 WHR22173 |
C00378173
482000002784 |
Holder Remote control | Na dotaz | Zadat poptávku | |
| B01 WHR22173 |
C00386086
482000006149 |
Front panel | Na dotaz | Zadat poptávku | |
| B02 WHR22173 |
C00409813
482000006241 |
Base | Na dotaz | Zadat poptávku | |
| B03 WHR22173 |
C00409765
482000006151 |
Fan Out door | Na dotaz | Zadat poptávku | |
| B04 WHR22173 |
C00409766
482000006152 |
Motor fan | Na dotaz | Zadat poptávku | |
| B05 WHR22173 |
C00409767
482000006153 |
Bracket | Na dotaz | Zadat poptávku | |
| B06 WHR22173 |
C00409814
482000006242 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B07 WHR22173 |
C00406880
482000000341 |
Grid air REAR | Na dotaz | Zadat poptávku | |
| B08 WHR22173 |
C00386113
482000006156 |
Cover top | Na dotaz | Zadat poptávku | |
| B09 WHR22173 |
C00386098
482000006157 |
Plate mounting | Na dotaz | Zadat poptávku | |
| B10 WHR22173 |
C00409815
482000006243 |
Separator | Na dotaz | Zadat poptávku | |
| B11 WHR22173 |
C00409816
482000006244 |
Compressor SH417MV-C8LU - R22 | Na dotaz | Zadat poptávku | |
| B12 WHR22173 |
C00409770
482000006160 |
Cable | Na dotaz | Zadat poptávku | |
| B13 WHR22173 |
C00409817
482000006245 |
Valve 3 Way | Na dotaz | Zadat poptávku | |
| B14 WHR22173 |
C00409818
482000006246 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B15 WHR22173 |
C00409819
482000006247 |
Panel side | Na dotaz | Zadat poptávku | |
| B16 WHR22173 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B17 WHR22173 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
| B18_1 WHR22173 |
C00409821
482000006249 |
Suction pipe | Na dotaz | Zadat poptávku | |
| B18_2 WHR22173 |
C00409820
482000006248 |
Pipe | Na dotaz | Zadat poptávku | |
| B20 WHR22173 |
C00386440
482000006168 |
Capacitor Fan | Na dotaz | Zadat poptávku | |
| B21 WHR22173 |
C00386438
482000006167 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| B22 WHR22173 |
C00409822
482000006250 |
Capacitor | Na dotaz | Zadat poptávku | |
| B23 WHR22173 |
C00386133
482000006169 |
Plate mounting | Na dotaz | Zadat poptávku | |
