WHIRLPOOL AMD 350 GWH09A-K3DND8B
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 350 GWH09A-K3DND8B |
| Kód 12NC/I.C. kód: | 853035001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
| Další podobné modely: | 853035001001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

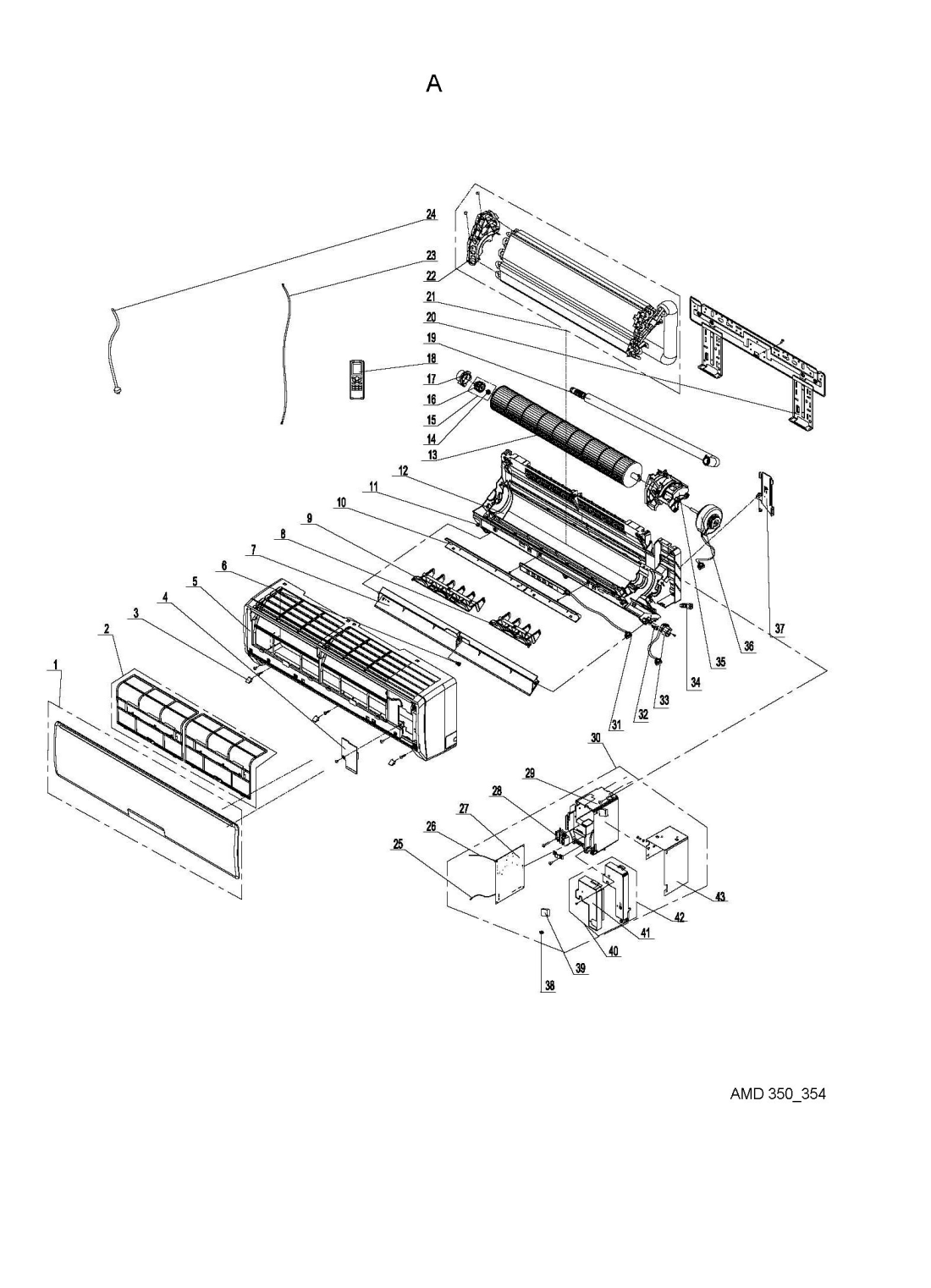

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22193 |
C00562110 | Resistor NTC WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22193 |
C00562111 | FC WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22193 |
C00410681
482000007687 |
Nameplate n.shown | Na dotaz | Zadat poptávku | |
| A01 WHR22193 |
C00409289
482000005380 |
Front panel | Na dotaz | Zadat poptávku | |
| A02 WHR22193 |
C00409290
482000005381 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| A03 WHR22193 |
C00409291
482000005382 |
Cover Screw | Na dotaz | Zadat poptávku | |
| A04 WHR22193 |
C00409292
482000005383 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| A05 WHR22193 |
C00409293
482000005384 |
Cover front Cover | Na dotaz | Zadat poptávku | |
| A06 WHR22193 |
C00409294
482000005385 |
Bushing | Na dotaz | Zadat poptávku | |
| A07 WHR22193 |
C00409295
482000005386 |
Air guide | Na dotaz | Zadat poptávku | |
| A08 WHR22193 |
C00409296
482000005387 |
Guide Lamelle | Na dotaz | Zadat poptávku | |
| A09 WHR22193 |
C00409297
482000005388 |
Lamella FGuide | Na dotaz | Zadat poptávku | |
| A10 WHR22193 |
C00409298
482000005389 |
Rail | Na dotaz | Zadat poptávku | |
| A12 WHR22193 |
C00409299
482000005390 |
Panel rear | Na dotaz | Zadat poptávku | |
| A13 WHR22193 |
C00409300
482000005391 |
Fan | Na dotaz | Zadat poptávku | |
| A14 WHR22193 |
C00405547
481252008038 |
Uložení vrtule vnitřní jednotky | 187 Kč
€ 7.70 |
||
| A15 WHR22193 |
C00395590
480150100934 |
Bearing | Na dotaz | Zadat poptávku | |
| A16 WHR22193 |
C00409301
482000005392 |
Bearing | Na dotaz | Zadat poptávku | |
| A17 WHR22193 |
C00409302
482000005393 |
Bearing ring | Na dotaz | Zadat poptávku | |
| A18 WHR22193 |
C00378216
482000005394 |
Remote control | Na dotaz | Zadat poptávku | |
| A19 WHR22193 |
C00409303
482000005395 |
Hose draining | Na dotaz | Zadat poptávku | |
| A20 WHR22193 |
C00409304
482000005396 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A21 WHR22193 |
C00409305
482000005397 |
Panel rear | Na dotaz | Zadat poptávku | |
| A22 WHR22193 |
C00409306
482000005398 |
Evaporatorflap Traeger | Na dotaz | Zadat poptávku | |
| A24 WHR22193 |
C00409307
482000005399 |
Cable mains | Na dotaz | Zadat poptávku | |
| A25 WHR22193 |
C00399947
481221058071 |
senzor | Na dotaz | Zadat poptávku | |
| A26 WHR22193 |
C00379209
481223708025 |
Senzor | 390 Kč
€ 16.00 |
||
| A27 WHR22193 |
C00378217
482000005400 |
Elektronika vnitřní jednotky klimatizace | 3 304 Kč
€ 135.50 |
||
| A28 WHR22193 |
C00399772
481212398007 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A29 WHR22193 |
C00409308
482000005401 |
Unit electrical | Na dotaz | Zadat poptávku | |
| A30 WHR22193 |
C00409309
482000005402 |
Unit electrical kpl. | Na dotaz | Zadat poptávku | |
| A31 WHR22193 |
C00378218
482000005403 |
Displej | 692 Kč
€ 28.40 |
||
| A32 WHR22193 |
C00409310
482000005404 |
Crank | Na dotaz | Zadat poptávku | |
| A33 WHR22193 |
C00409311
482000005405 |
Steppin motor | Na dotaz | Zadat poptávku | |
| A34 WHR22193 |
C00395586
480150100929 |
Plug | Na dotaz | Zadat poptávku | |
| A35 WHR22193 |
C00409312
482000005406 |
Motor | Na dotaz | Zadat poptávku | |
| A36 WHR22193 |
C00409313
482000005407 |
Motor fan | Na dotaz | Zadat poptávku | |
| A37 WHR22193 |
C00409314
482000005408 |
Pipe Clamp | Na dotaz | Zadat poptávku | |
| A38 WHR22193 |
C00409315
482000005409 |
Link,jumper Klemme | Na dotaz | Zadat poptávku | |
| A39 WHR22193 |
C00409316
482000005410 |
Capacitor kpl. | Na dotaz | Zadat poptávku | |
| A40 WHR22193 |
C00409317
482000005411 |
Shield kpl. | Na dotaz | Zadat poptávku | |
| A41 WHR22193 |
C00409318
482000005412 |
Cover | Na dotaz | Zadat poptávku | |
| A42 WHR22193 |
C00409319
482000005413 |
Cover shield | Na dotaz | Zadat poptávku | |
| A43 WHR22193 |
C00409320
482000005414 |
Cover shield | Na dotaz | Zadat poptávku | |
| A98 WHR22193 |
C00409043
482000004979 |
Filtr klimatizace s aktivním uhlím | 787 Kč
€ 32.30 |
||
| A99 WHR22193 |
C00409628
482000005852 |
Filtr antibakteriální-biologický | Na dotaz | Zadat poptávku | |
| B01 WHR22193 |
C00396056
480150101533 |
Grid air front | Na dotaz | Zadat poptávku | |
| B02 WHR22193 |
C00409321
482000005415 |
Front panel | Na dotaz | Zadat poptávku | |
| B03 WHR22193 |
C00409322
482000005416 |
Handle | Na dotaz | Zadat poptávku | |
| B04 WHR22193 |
C00395385
480150100698 |
Fan wheel | Na dotaz | Zadat poptávku | |
| B05 WHR22193 |
C00409323
482000005417 |
Motor fan | Na dotaz | Zadat poptávku | |
| B06 WHR22193 |
C00409324
482000005418 |
Support | Na dotaz | Zadat poptávku | |
| B07 WHR22193 |
C00409325
482000005419 |
Cover top | Na dotaz | Zadat poptávku | |
| B08 WHR22193 |
C00409326
482000005420 |
Condenser cpl.. | Na dotaz | Zadat poptávku | |
| B09 WHR22193 |
C00409327
482000005421 |
Grill rear | Na dotaz | Zadat poptávku | |
| B10 WHR22193 |
C00409328
482000005422 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B11 WHR22193 |
C00409329
482000005423 |
Capillary tube kpl. | Na dotaz | Zadat poptávku | |
| B12 WHR22193 |
C00409330
482000005424 |
Magnet Coil | Na dotaz | Zadat poptávku | |
| B13 WHR22193 |
C00409331
482000005425 |
Valve 4 Way | Na dotaz | Zadat poptávku | |
| B14 WHR22193 |
C00409332
482000005426 |
Flap | Na dotaz | Zadat poptávku | |
| B15 WHR22193 |
C00409333
482000005427 |
Overload prot. | Na dotaz | Zadat poptávku | |
| B16 WHR22193 |
C00378219
482000005428 |
Compressor | Na dotaz | Zadat poptávku | |
| B17 WHR22193 |
C00409334
482000005429 |
Compressor Gasket | Na dotaz | Zadat poptávku | |
| B18 WHR22193 |
C00409335
482000005430 |
Panel right | Na dotaz | Zadat poptávku | |
| B19 WHR22193 |
C00409336
482000005431 |
Valve Holder | Na dotaz | Zadat poptávku | |
| B20 WHR22193 |
C00409337
482000005432 |
Valve | Na dotaz | Zadat poptávku | |
| B21 WHR22193 |
C00409338
482000005433 |
Handle | Na dotaz | Zadat poptávku | |
| B22 WHR22193 |
C00399771
481212398006 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B23 WHR22193 |
C00409339
482000005434 |
Capacitor CBB61 | Na dotaz | Zadat poptávku | |
| B24 WHR22193 |
C00409340
482000005435 |
Board printed | Na dotaz | Zadat poptávku | |
| B25 WHR22193 |
C00378220
482000005436 |
Elect.parts box cpl. | Na dotaz | Zadat poptávku | |
| B26 WHR22193 |
C00409341
482000005437 |
Drainpipe Connector | Na dotaz | Zadat poptávku | |
| B27 WHR22193 |
C00409342
482000005438 |
Plate bottom | Na dotaz | Zadat poptávku | |
