| Komerční kód: | AMD 380 AIR CONDITIONERS WP |
| Kód 12NC/I.C. kód: | 853038001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

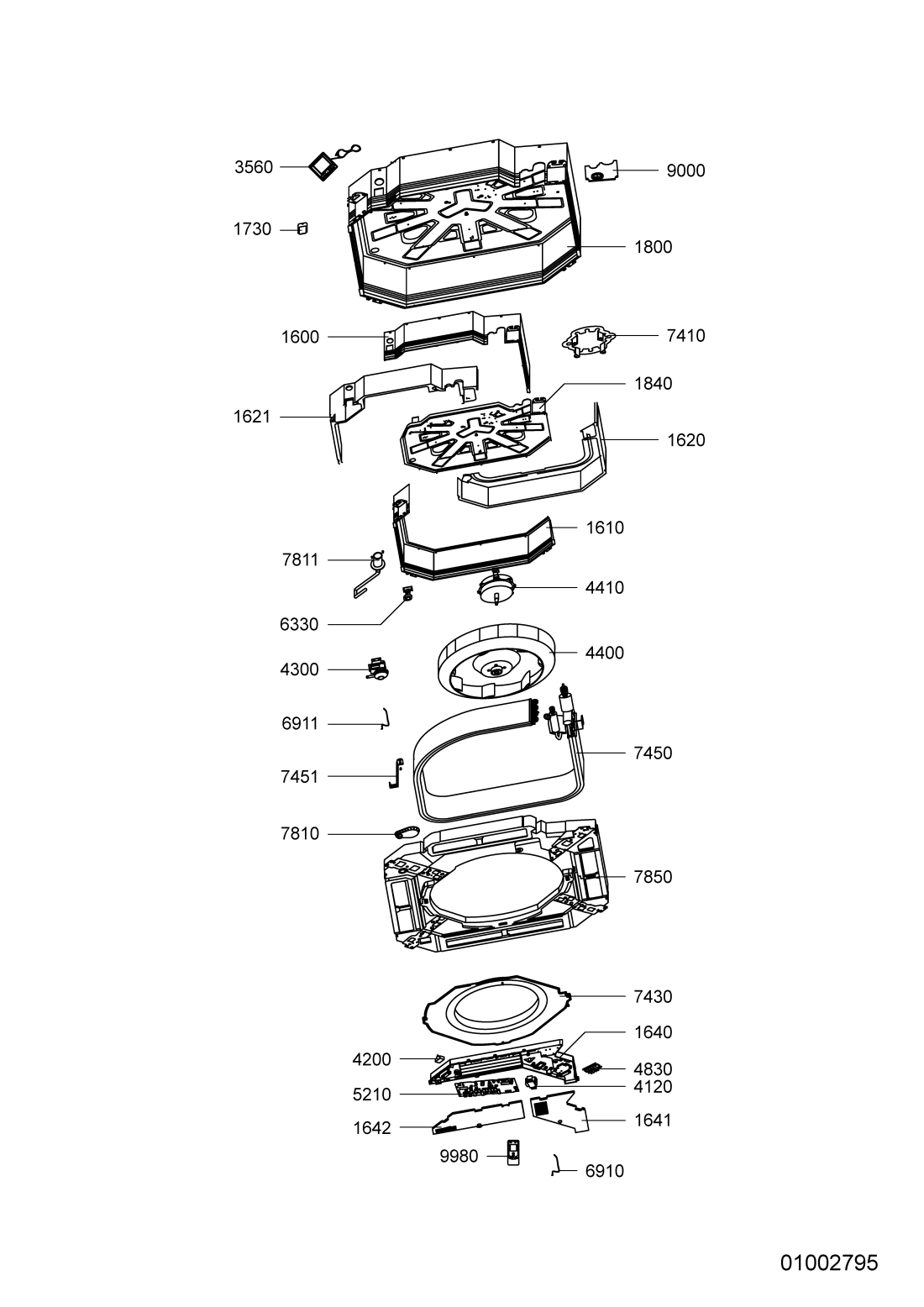

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1600 WHR22215 |
C00395631
480150100979 |
Side panel front | Na dotaz | Zadat poptávku | |
| 1601 WHR22215 |
C00408309
482000003329 |
Panel front | Na dotaz | Zadat poptávku | |
| 1602 WHR22215 |
C00408310
482000003330 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1603 WHR22215 |
C00408311
482000003331 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1605 WHR22215 |
C00395601
480150100946 |
Panel front | Na dotaz | Zadat poptávku | |
| 1610 WHR22215 |
C00395632
480150100981 |
Side panel rear | Na dotaz | Zadat poptávku | |
| 1620 WHR22215 |
C00395633
480150100982 |
Side panel right | Na dotaz | Zadat poptávku | |
| 1621 WHR22215 |
C00395634
480150100983 |
Side panel left | Na dotaz | Zadat poptávku | |
| 1625 WHR22215 |
C00395553
480150100893 |
Cover right | Na dotaz | Zadat poptávku | |
| 1630 WHR22215 |
C00408312
482000003332 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 1631 WHR22215 |
C00408313
482000003333 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1632 WHR22215 |
C00408314
482000003334 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1633 WHR22215 |
C00408315
482000003335 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1634 WHR22215 |
C00408316
482000003336 |
Corner piece | Na dotaz | Zadat poptávku | |
| 1635 WHR22215 |
C00395635
480150100984 |
Cover top | Na dotaz | Zadat poptávku | |
| 1640 WHR22215 |
C00395636
480150100985 |
Electronic box | Na dotaz | Zadat poptávku | |
| 1641 WHR22215 |
C00395637
480150100986 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 1642 WHR22215 |
C00395638
480150100987 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 1645 WHR22215 |
C00395656
480150101007 |
Cover Electronic box | Na dotaz | Zadat poptávku | |
| 1730 WHR22215 |
C00395639
480150100988 |
Cover Pump | Na dotaz | Zadat poptávku | |
| 1740 WHR22215 |
C00399869
481213598957 |
Valve | Na dotaz | Zadat poptávku | |
| 1741 WHR22215 |
C00401483
481236058587 |
Valve | Na dotaz | Zadat poptávku | |
| 1800 WHR22215 |
C00395640
480150100989 |
Chassis | Na dotaz | Zadat poptávku | |
| 1810 WHR22215 |
C00408317
482000003337 |
Air guide | Na dotaz | Zadat poptávku | |
| 1820 WHR22215 |
C00408318
482000003338 |
Support motor | Na dotaz | Zadat poptávku | |
| 1825 WHR22215 |
C00399871
481213598959 |
Support Valve | Na dotaz | Zadat poptávku | |
| 1840 WHR22215 |
C00395641
480150100991 |
Base | Na dotaz | Zadat poptávku | |
| 1845 WHR22215 |
C00395642
480150100992 |
Base | Na dotaz | Zadat poptávku | |
| 1865 WHR22215 |
C00405362
481249818793 |
Handle | Na dotaz | Zadat poptávku | |
| 1866 WHR22215 |
C00395589
480150100933 |
Handle | Na dotaz | Zadat poptávku | |
| 1890 WHR22215 |
C00408319
482000003339 |
Air grid | Na dotaz | Zadat poptávku | |
| 1895 WHR22215 |
C00395615
480150100962 |
Grid air front | Na dotaz | Zadat poptávku | |
| 1896 WHR22215 |
C00395567
480150100908 |
Grid air rear | Na dotaz | Zadat poptávku | |
| 3560 WHR22215 |
C00395643
480150100993 |
Display board | Na dotaz | Zadat poptávku | |
| 4020 WHR22215 |
C00395644
480150100994 |
Compressor | Na dotaz | Zadat poptávku | |
| 4120 WHR22215 |
C00399893
481214288039 |
Transformer 48X26G | Na dotaz | Zadat poptávku | |
| 4200 WHR22215 |
C00395645
480150100995 |
Capacitor CBB61 | Na dotaz | Zadat poptávku | |
| 4205 WHR22215 |
C00395646
480150100996 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4215 WHR22215 |
C00395569
480150100911 |
Coil | Na dotaz | Zadat poptávku | |
| 4220 WHR22215 |
C00408320
482000003340 |
Synchr.motor | Na dotaz | Zadat poptávku | |
| 4300 WHR22215 |
C00395647
480150100997 |
Pump | Na dotaz | Zadat poptávku | |
| 4400 WHR22215 |
C00395648
480150100998 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4405 WHR22215 |
C00405532
481251518028 |
Vrtule ventilátoru | Na dotaz | Zadat poptávku | |
| 4410 WHR22215 |
C00395649
480150100999 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4415 WHR22215 |
C00395650
480150101001 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4625 WHR22215 |
C00395651
480150101002 |
Radiator | Na dotaz | Zadat poptávku | |
| 4635 WHR22215 |
C00395652
480150101003 |
Separator | Na dotaz | Zadat poptávku | |
| 4830 WHR22215 |
C00395653
480150101004 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 5210 WHR22215 |
C00395654
480150101005 |
Control board | Na dotaz | Zadat poptávku | |
| 5215 WHR22215 |
C00395655
480150101006 |
Control board | Na dotaz | Zadat poptávku | |
| 5710 WHR22215 |
C00395657
480150101008 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| 5711 WHR22215 |
C00395579
480150100922 |
Coil Valve | Na dotaz | Zadat poptávku | |
| 5712 WHR22215 |
C00395658
480150101009 |
Valve | Na dotaz | Zadat poptávku | |
| 5713 WHR22215 |
C00395659
480150101011 |
Fitting Valve | Na dotaz | Zadat poptávku | |
| 6330 WHR22215 |
C00395660
480150101012 |
Switch Water Level | Na dotaz | Zadat poptávku | |
| 6910 WHR22215 |
C00395661
480150101013 |
Sensor | Na dotaz | Zadat poptávku | |
| 6911 WHR22215 |
C00395410
480150100726 |
Sensor 20K | Na dotaz | Zadat poptávku | |
| 6915 WHR22215 |
C00395662
480150101014 |
Sensor | Na dotaz | Zadat poptávku | |
| 7400 WHR22215 |
C00395663
480150101015 |
Condenser | Na dotaz | Zadat poptávku | |
| 7410 WHR22215 |
C00395664
480150101016 |
Support Motor fan | Na dotaz | Zadat poptávku | |
| 7415 WHR22215 |
C00395665
480150101017 |
Support Motor fan | Na dotaz | Zadat poptávku | |
| 7430 WHR22215 |
C00395666
480150101018 |
Air guide | Na dotaz | Zadat poptávku | |
| 7431 WHR22215 |
C00408321
482000003341 |
Air guide | Na dotaz | Zadat poptávku | |
| 7432 WHR22215 |
C00408322
482000003342 |
Holder | Na dotaz | Zadat poptávku | |
| 7433 WHR22215 |
C00408323
482000003343 |
Lever | Na dotaz | Zadat poptávku | |
| 7434 WHR22215 |
C00408324
482000003344 |
Support | Na dotaz | Zadat poptávku | |
| 7435 WHR22215 |
C00408325
482000003345 |
Joint | Na dotaz | Zadat poptávku | |
| 7436 WHR22215 |
C00408326
482000003346 |
Holder | Na dotaz | Zadat poptávku | |
| 7437 WHR22215 |
C00408327
482000003347 |
Crank | Na dotaz | Zadat poptávku | |
| 7450 WHR22215 |
C00395667
480150101019 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7451 WHR22215 |
C00395668
480150101021 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 7630 WHR22215 |
C00408328
482000003348 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 7810 WHR22215 |
C00395669
480150101022 |
Drainhose | Na dotaz | Zadat poptávku | |
| 7811 WHR22215 |
C00395670
480150101023 |
Drainpipe | Na dotaz | Zadat poptávku | |
| 7850 WHR22215 |
C00395671
480150101024 |
Tray drip | Na dotaz | Zadat poptávku | |
| 9000 WHR22215 |
C00395672
480150101025 |
Plate Tube Exit | Na dotaz | Zadat poptávku | |
| 9001 WHR22215 |
C00408329
482000003349 |
Clamp left | Na dotaz | Zadat poptávku | |
| 9002 WHR22215 |
C00408330
482000003350 |
Clamp right | Na dotaz | Zadat poptávku | |
| 9040 WHR22215 |
C00408331
482000003351 |
Pin | Na dotaz | Zadat poptávku | |
| 9100 WHR22215 |
C00408332
482000003352 |
Ring | Na dotaz | Zadat poptávku | |
| 9300 WHR22215 |
C00408333
482000003353 |
Spring | Na dotaz | Zadat poptávku | |
| 9980 WHR22215 |
C00395673
480150101026 |
Remote control | Na dotaz | Zadat poptávku | |
| 9981 WHR22215 |
C00408334
482000003354 |
Receiver | Na dotaz | Zadat poptávku | |
| 9982 WHR22215 |
C00408335
482000003355 |
Window | Na dotaz | Zadat poptávku | |
| 9983 WHR22215 |
C00408336
482000003356 |
Cover | Na dotaz | Zadat poptávku | |
| 9990 WHR22215 |
C00408337
482000003357 |
Hook | Na dotaz | Zadat poptávku | |
