| Komerční kód: | AP85G5 C (X) EX |
| Kód 12NC: | 869990841950 |
| I.C. kód: | AQ841950000 |
| Značka: | ARISTON |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

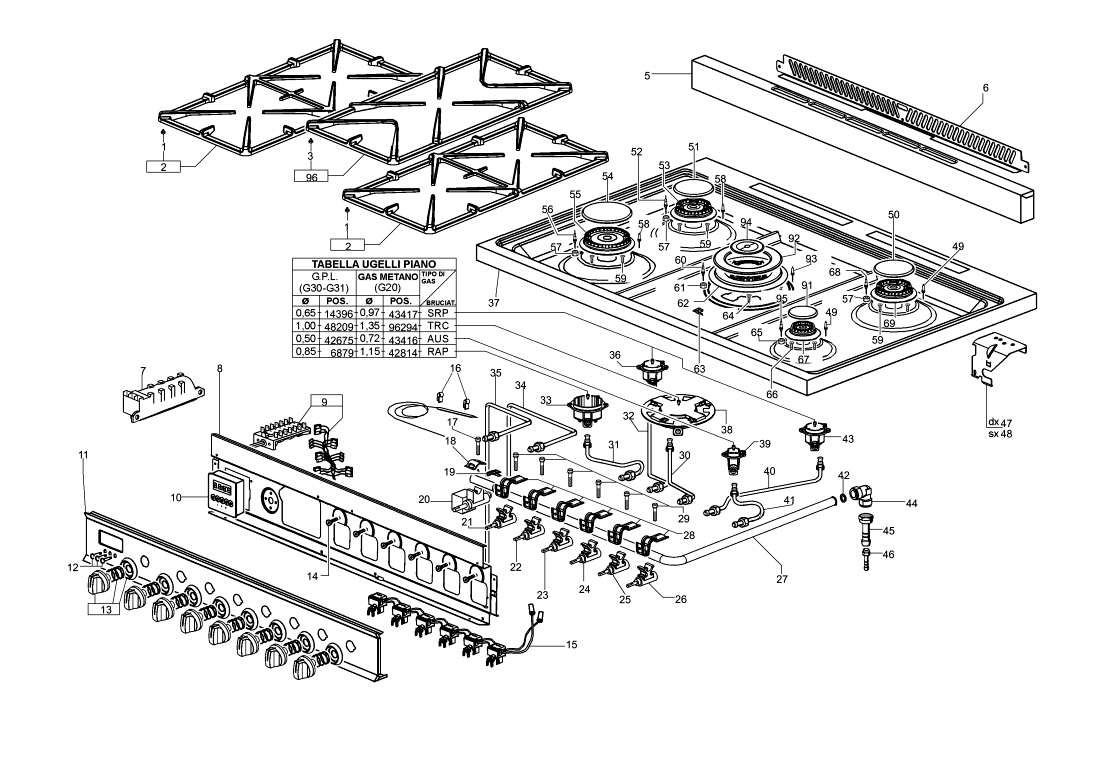

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 SMEG_05 |
C00305302 | PAD | Na dotaz | Zadat poptávku | |
| 002 SMEG_05 |
C00305320 | GRID 2 BURNERS | Na dotaz | Zadat poptávku | |
| 003 SMEG_05 |
C00301537
481246378014 |
Support | Na dotaz | Zadat poptávku | |
| 004 SMEG_05 |
C00305306 | REDUCING GRID | Na dotaz | Zadat poptávku | |
| 005 SMEG_05 |
C00305318 | REAR TOP SKIRT BOARD | Na dotaz | Zadat poptávku | |
| 006 SMEG_05 |
C00305321 | BACK SCREEN | Na dotaz | Zadat poptávku | |
| 007 SMEG_05 |
C00302420 | 8 FIRES IGNITOR | Na dotaz | Zadat poptávku | |
| 008 SMEG_05 |
C00305317 | FRONT PANEL CROSSPIECE | Na dotaz | Zadat poptávku | |
| 009 SMEG_05 |
C00305301 | PŘEPÍNAČ TROUBA ELEKTRICKÁ | Na dotaz | Zadat poptávku | |
| 010 SMEG_05 |
C00301354 | TIMER | Na dotaz | Zadat poptávku | |
| 011 SMEG_05 |
C00305291 | PŘEDNÍ PANEL | Na dotaz | Zadat poptávku | |
| 012 SMEG_05 |
C00301389
488000301389 |
KNOB (PROGRAMMER)-BLACK | Na dotaz | Zadat poptávku | |
| 013 SMEG_05 |
C00301347
488000301347 |
OVLADAČ CHROM | Na dotaz | Zadat poptávku | |
| 014 SMEG_05 |
C00301596 | TAP CROSSPIECE FIXING SCREW | Na dotaz | Zadat poptávku | |
| 015 SMEG_05 |
C00302421 | MIKROSPÍNAČ SLOŽENÝ | Na dotaz | Zadat poptávku | |
| 016 SMEG_05 |
C00651196
481213038749 |
RETAINING CLIP | Na dotaz | Zadat poptávku | |
| 017 SMEG_05 |
C00301388
481250518413 |
SCREW GAS VALVE MOUNT S850 | Na dotaz | Zadat poptávku | |
| 018 SMEG_05 |
C00301600 | THERMOST SUPPORT | Na dotaz | Zadat poptávku | |
| 019 SMEG_05 |
C00301379 | GAS THERMOSTAT FASTON | Na dotaz | Zadat poptávku | |
| 020 SMEG_05 |
C00301601 | TERMOSTAT ELEKTRICKÝ TROUBA | Na dotaz | Zadat poptávku | |
| 021 SMEG_05 |
C00302419 | TAP,D.0,70 | Na dotaz | Zadat poptávku | |
| 022 SMEG_05 |
C00301590
488000301590 |
TAP D.0,45 | Na dotaz | Zadat poptávku | |
| 024 SMEG_05 |
C00301582 | TAP D.0,63 | Na dotaz | Zadat poptávku | |
| 025 SMEG_05 |
C00301583
488000301583 |
TAP D.0,33 | Na dotaz | Zadat poptávku | |
| 026 SMEG_05 |
C00301584 | TAP D.0,30 | Na dotaz | Zadat poptávku | |
| 027 SMEG_05 |
C00305299 | TRUBKA ROZVODU | Na dotaz | Zadat poptávku | |
| 028 SMEG_05 |
C00301630 | TŘMEN UPEVNĚNÍ | Na dotaz | Zadat poptávku | |
| 028 SMEG_05 |
C00305322 | TŘMEN UPEVNĚNÍ | Na dotaz | Zadat poptávku | |
| 029 SMEG_05 |
C00301631
488000301631 |
SELF-TAPPING SCREW | Na dotaz | Zadat poptávku | |
| 030 SMEG_05 |
C00305311 | CENTRAL BURNER PIPE | Na dotaz | Zadat poptávku | |
| 031 SMEG_05 |
C00305328 | FRONT LEFT BURNER PIPE | Na dotaz | Zadat poptávku | |
| 032 SMEG_05 |
C00305329 | BACK LEFT BURNER PIPE | Na dotaz | Zadat poptávku | |
| 033 SMEG_05 |
C00302365 | RAPID BURNER D.0,85 G30 | Na dotaz | Zadat poptávku | |
| 034 SMEG_05 |
C00302360 | GRILL BURNER PIPE | Na dotaz | Zadat poptávku | |
| 035 SMEG_05 |
C00301366 | OVEN BURNER PIPE | Na dotaz | Zadat poptávku | |
| 036,043 SMEG_05 |
C00302364 | SEMI-RAPID BURNER D.0,65 G30 | Na dotaz | Zadat poptávku | |
| 037 SMEG_05 |
C00305316
488000305316 |
PRACOVNÍ PLOCHA | Na dotaz | Zadat poptávku | |
| 038 SMEG_05 |
C00302424 | KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 039 SMEG_05 |
C00302363 | SMALL BURNER D.0,50 G30 | Na dotaz | Zadat poptávku | |
| 040 SMEG_05 |
C00305325 | BACK RIGHT BURNER PIPE | Na dotaz | Zadat poptávku | |
| 041 SMEG_05 |
C00305326 | FRONT RIGHT BURNER PIPE | Na dotaz | Zadat poptávku | |
| 042 SMEG_05 |
C00301563
481253258032 |
Gasket ,gas | Na dotaz | Zadat poptávku | |
| 044 SMEG_05 |
C00302392 | HOSE FITTING | Na dotaz | Zadat poptávku | |
| 045 SMEG_05 |
C00301358 | HOSE FITTING NATURAL GAS S24/A | Na dotaz | Zadat poptávku | |
| 046 SMEG_05 |
C00301362 | RIDUZIONE TUBO MONTAGGIO ITALIA S24/A | Na dotaz | Zadat poptávku | |
| 047 SMEG_05 |
C00301602
488000301602 |
HOB BACK RIGHT BRACKET | Na dotaz | Zadat poptávku | |
| 048 SMEG_05 |
C00301603
488000301603 |
HOB BACK LEFT BRACKET | Na dotaz | Zadat poptávku | |
| 049 SMEG_05 |
C00301588 | IGNITION SPARK PLUG MM.870 | Na dotaz | Zadat poptávku | |
| 050,051 SMEG_05 |
C00301513
481236068707 |
Burner cap | Na dotaz | Zadat poptávku | |
| 052 SMEG_05 |
C00301550
482000063275 |
THERMOCOUPLE JACK CONNECTION MM.650 | Na dotaz | Zadat poptávku | |
| 053,068 SMEG_05 |
C00301507
481236068704 |
Burner | Na dotaz | Zadat poptávku | |
| 054 SMEG_05 |
C00301515
481236058444 |
KRYT HOŘÁK RYCHLÝ | Na dotaz | Zadat poptávku | |
| 055 SMEG_05 |
C00301508
481236068712 |
ODCHYLOVAČ PLAMENE VELKÝ MOSAZ | Na dotaz | Zadat poptávku | |
| 056 SMEG_05 |
C00301551
482000056103 |
THERMOCOUPLE JACK CONNECTION MM.450 | Na dotaz | Zadat poptávku | |
| 057 SMEG_05 |
C00301406
481250518417 |
Nut for thermocouple | Na dotaz | Zadat poptávku | |
| 058 SMEG_05 |
C00301589
481225268075 |
Svíčka zapalovací | 302 Kč
€ 12.40 |
||
| 060 SMEG_05 |
C00301567
481213838052 |
TERMOČLÁNEK TRC MM.750 | Na dotaz | Zadat poptávku | |
| 061 SMEG_05 |
C00301559
481250518442 |
Nut | Na dotaz | Zadat poptávku | |
| 062 SMEG_05 |
C00301578 | TRIPLE CROWN BURNER | Na dotaz | Zadat poptávku | |
| 063 SMEG_05 |
C00301396
481249258055 |
Spring thermocouple | Na dotaz | Zadat poptávku | |
| 067 SMEG_05 |
C00301506
481236068703 |
Burner | Na dotaz | Zadat poptávku | |
| 091 SMEG_05 |
C00301514
481236068708 |
Burner cap | Na dotaz | Zadat poptávku | |
| 092 SMEG_05 |
C00301568 | IGNITION SPARK PLUG MM.900 | Na dotaz | Zadat poptávku | |
| 093 SMEG_05 |
C00301579 | KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 094 SMEG_05 |
C00301580 | KRYT HOŘÁK TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 095 SMEG_05 |
C00301552
482000056104 |
THERMOCOUPLE JACK CONNECTION MM.300 | Na dotaz | Zadat poptávku | |
| 097 SMEG_05 |
C00305319 | MŘÍŽKA 1 HOŘÁK | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301517 | NOZZLE RAPID, DIAMETER 115 | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301386
481231038941 |
TRYSKA LPG | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301520
481231038938 |
TRYSKA D=097 | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301524
481231039193 |
Nozzle ,D.1,00 | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301606 | NOZZLE RAPID, D.1,35 | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301516
481231038936 |
TRYSKA D=0,50 GPL | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00301519
481231038937 |
Nozzle AUX 0,72 NG | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00900246
482000067341 |
INJECTOR L.P.G Rap. (85) | Na dotaz | Zadat poptávku | |
| 099 SMEG_05 |
C00302367 | TRYSKA DIAMETER 0.91 | Na dotaz | Zadat poptávku | |
| 001 SMEG_06 |
C00301339 | COOLING FAN DUCT | Na dotaz | Zadat poptávku | |
| 002 SMEG_06 |
C00301554 | MOUNT FAN DUCT | Na dotaz | Zadat poptávku | |
| 003 SMEG_06 |
C00301338 | VENTILÁTOR S MOTOREM TANGENCIÁLNÍ PÁRY | Na dotaz | Zadat poptávku | |
| 004 SMEG_06 |
C00301349 | SAFETY THERMOSTAT 100°C | Na dotaz | Zadat poptávku | |
| 005 SMEG_06 |
C00301558 | ISUL.MATTRESS SPRING | Na dotaz | Zadat poptávku | |
| 006 SMEG_06 |
C00301523 | MOTOR ROTISSERIE | Na dotaz | Zadat poptávku | |
| 007,034 SMEG_06 |
C00305313
488000305313 |
BOČNÍ STĚNA | Na dotaz | Zadat poptávku | |
| 008,023 SMEG_06 |
C00301626 | SCREW | Na dotaz | Zadat poptávku | |
| 009 SMEG_06 |
C00301574 | ZÁVĚS DVEŘÍ TROUBA | Na dotaz | Zadat poptávku | |
| 010 SMEG_06 |
C00301346 | PODLOŽKA DRŽADLO TROUBY | Na dotaz | Zadat poptávku | |
| 011 SMEG_06 |
C00305290 | DOOR EXTERNAL GLASS ASSY | Na dotaz | Zadat poptávku | |
| 012 SMEG_06 |
C00301401
481253268146 |
WASCHER | Na dotaz | Zadat poptávku | |
| 013 SMEG_06 |
C00301345 | KLIKA | Na dotaz | Zadat poptávku | |
| 014,016 SMEG_06 |
C00301594 | SPACER | Na dotaz | Zadat poptávku | |
| 015 SMEG_06 |
C00301344 | VNITŘNÍ DVEŘE TROUBY | Na dotaz | Zadat poptávku | |
| 017 SMEG_06 |
C00301566 | EXTERNAL GLASS GASKET | Na dotaz | Zadat poptávku | |
| 018 SMEG_06 |
C00301615 | OVEN BOTTOM COVER | Na dotaz | Zadat poptávku | |
| 019 SMEG_06 |
C00201655 | GROMMET | Na dotaz | Zadat poptávku | |
| 020 SMEG_06 |
C00305312 | DVÍŘKA OHŘÍVACÍ SKŘÍNKY | Na dotaz | Zadat poptávku | |
| 021 SMEG_06 |
C00301556 | PIN FOR HINGE | Na dotaz | Zadat poptávku | |
| 022 SMEG_06 |
C00301384 | OVEN FRONT PANEL | Na dotaz | Zadat poptávku | |
| 024 SMEG_06 |
C00301538
488000301538 |
BRACKET SMALL OVEN HINGE | Na dotaz | Zadat poptávku | |
| 025 SMEG_06 |
C00301560 | MICRO SWITCH FRAME | Na dotaz | Zadat poptávku | |
| 026 SMEG_06 |
C00301522 | GASKET OVEN 4 SIDE | Na dotaz | Zadat poptávku | |
| 027 SMEG_06 |
C00301564
488000301564 |
NOŽIČKA | Na dotaz | Zadat poptávku | |
| 028 SMEG_06 |
C00301571 | OVEN PLATE | Na dotaz | Zadat poptávku | |
| 029 SMEG_06 |
C00301608 | GRID | Na dotaz | Zadat poptávku | |
| 030 SMEG_06 |
C00301542 | MOUNT ROTISSERIE | Na dotaz | Zadat poptávku | |
| 031 SMEG_06 |
C00302414 | MŘÍŽKA TROUBY ZVÝŠENÁ | Na dotaz | Zadat poptávku | |
| 032 SMEG_06 |
C00039775 | SPIT HANDLE | Na dotaz | Zadat poptávku | |
| 033 SMEG_06 |
C00301532 | SKEWER | Na dotaz | Zadat poptávku | |
| 033 SMEG_06 |
C00305305 | SKEWER | Na dotaz | Zadat poptávku | |
| 035,045 SMEG_06 |
C00301628 | OVEN SIDE RIGHT | Na dotaz | Zadat poptávku | |
| 036 SMEG_06 |
C00301623 | HOB SUPPORTING PLATE | Na dotaz | Zadat poptávku | |
| 037 SMEG_06 |
C00301557
488000301557 |
OVEN LOWER SECTION | Na dotaz | Zadat poptávku | |
| 038,047 SMEG_06 |
C00652420 | RETAINING STUD (SNAP IN FIXING | Na dotaz | Zadat poptávku | |
| 039,052 SMEG_06 |
C00301607 | WIRE OVEN GUIDE FRAME | Na dotaz | Zadat poptávku | |
| 039,052 SMEG_06 |
C00302569 | WIRE OVEN GUIDE FRAME LEFT | Na dotaz | Zadat poptávku | |
| 039,052 SMEG_06 |
C00302570 | WIRE OVEN GUIDE FRAME RIGHT | Na dotaz | Zadat poptávku | |
| 040 SMEG_06 |
C00301334 | OVEN BURNER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 041,060 SMEG_06 |
C00301620
488000301620 |
OVEN SPARK PLUGS 800MM | Na dotaz | Zadat poptávku | |
| 042 SMEG_06 |
C00301621 | OVEN THERMOCOUPLE 1150MM | Na dotaz | Zadat poptávku | |
| 043,058 SMEG_06 |
C00301539 | SPRING THERMOCOUPLE MOUNT | Na dotaz | Zadat poptávku | |
| 044,051 SMEG_06 |
C00301569 | SPARK PLUG SUPPORT | Na dotaz | Zadat poptávku | |
| 046,050 SMEG_06 |
C00301581 | NOZZLE SUPPORT | Na dotaz | Zadat poptávku | |
| 048 SMEG_06 |
C00301337 | SPIT MOTOR THERMAL INSULATOR | Na dotaz | Zadat poptávku | |
| 048 SMEG_06 |
C00305289 | SPIT MOTOR THERMAL INSULATOR | Na dotaz | Zadat poptávku | |
| 049 SMEG_06 |
C00305335 | SPIT MOTOR THERMAL INSULATOR | Na dotaz | Zadat poptávku | |
| 053 SMEG_06 |
C00301604 | SOKL PLYNOVÉ TROUBY | Na dotaz | Zadat poptávku | |
| 054 SMEG_06 |
C00039822
482000052791 |
RING GEAR | Na dotaz | Zadat poptávku | |
| 055 SMEG_06 |
C00301510 | SPRING LINER | Na dotaz | Zadat poptávku | |
| 056 SMEG_06 |
C00301540 | IZOLACE TROUBY | Na dotaz | Zadat poptávku | |
| 057 SMEG_06 |
C00301591 | HORNI KRYT | Na dotaz | Zadat poptávku | |
| 059 SMEG_06 |
C00302415 | THERMOCOUPLE 700MM | Na dotaz | Zadat poptávku | |
| 061 SMEG_06 |
C00302359 | OVEN BURNER ASSEMBLY | Na dotaz | Zadat poptávku | |
| 062,067 SMEG_06 |
C00301518 | ASSEMBLY FLUE | Na dotaz | Zadat poptávku | |
| 063 SMEG_06 |
C00301512 | MOUNT CONNECTORS | Na dotaz | Zadat poptávku | |
| 064 SMEG_06 |
C00301330 | LAMP HOLDER | Na dotaz | Zadat poptávku | |
| 065 SMEG_06 |
C00301387
481213488069 |
LAMP 25W 230V 300°C | Na dotaz | Zadat poptávku | |
| 066 SMEG_06 |
C00305303 | BACK CASING | Na dotaz | Zadat poptávku | |
| 068 SMEG_06 |
C00305300 | OVEN WIRING | Na dotaz | Zadat poptávku | |
| 069 SMEG_06 |
C00302366
481228228295 |
ELEMENT CERAMIC RS470 | Na dotaz | Zadat poptávku | |
| 070 SMEG_06 |
C00305296 | PŘEPÁŽKA TROUBY | Na dotaz | Zadat poptávku | |
| 071 SMEG_06 |
C00301545 | IZOLACE ZADNÍ STĚNY TROUBY | Na dotaz | Zadat poptávku | |
| 072 SMEG_06 |
C00039724 | JUNCTION BLOCK | Na dotaz | Zadat poptávku | |
| 073 SMEG_06 |
C00305304
488000305304 |
WIRE CONDUIT | Na dotaz | Zadat poptávku | |
| 074 SMEG_06 |
C00305307 | FEEDER CABLE | Na dotaz | Zadat poptávku | |
| 099 SMEG_06 |
C00302417 | OVEN SIDE PANEL | Na dotaz | Zadat poptávku | |
| 099 SMEG_06 |
C00302416 | TRYSKA DIAMETER D.1,55 | Na dotaz | Zadat poptávku | |
| 099 SMEG_06 |
C00302418 | TRYSKA DIAMETER D.1,40 | Na dotaz | Zadat poptávku | |
| 099 SMEG_06 |
C00302425 | TRYSKA DIAMETER D.1,02 | Na dotaz | Zadat poptávku | |
| 099 SMEG_06 |
C00305332 | TURNSPIT MOTOR SPACER | Na dotaz | Zadat poptávku | |
