| Komerční kód: | AR 900 S |
| Kód 12NC: | 858125245010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Odsavače a digestoře |
Potřebujete servis? Jsme tady pro Vás

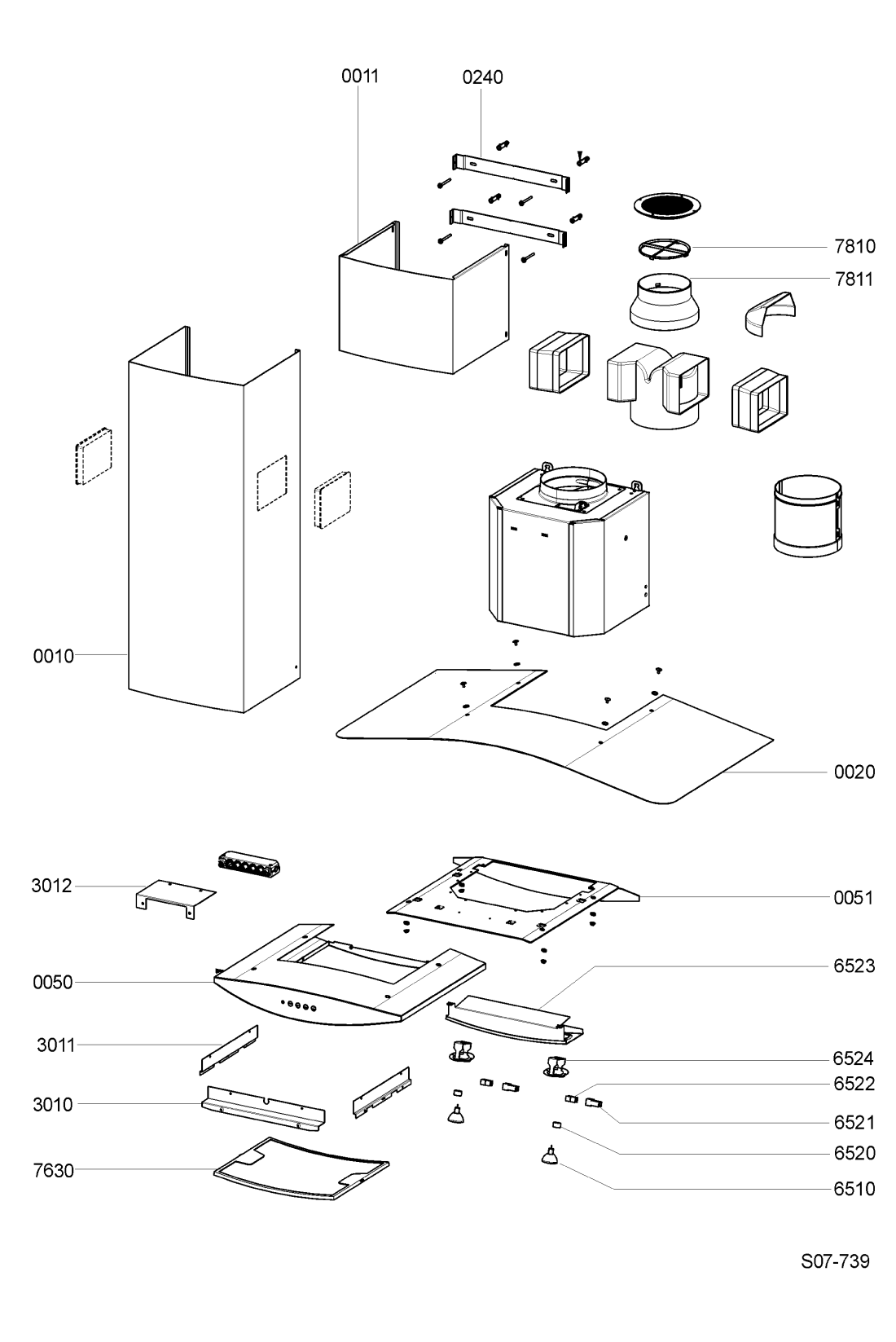

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR104372 |
C00778853
481253048919 |
Chimney lower | Na dotaz | Zadat poptávku | |
| 001 1 WHR104372 |
C00778854
481253048921 |
Chimney upper | Na dotaz | Zadat poptávku | |
| 002 0 WHR104372 |
C00778855
481245068295 |
Glass arco plus | Na dotaz | Zadat poptávku | |
| 005 0 WHR104372 |
C00778856
481245350156 |
Casing arco plus | Na dotaz | Zadat poptávku | |
| 005 1 WHR104372 |
C00778857
481245068296 |
Glass hood support | Na dotaz | Zadat poptávku | |
| 024 0 WHR104372 |
C00484139
481253048922 |
Chimney upper fixing bracket | Na dotaz | Zadat poptávku | |
| 071 0 WHR104372 |
C00089163
481244269265 |
Air guide right | Na dotaz | Zadat poptávku | |
| 071 1 WHR104372 |
C00089164
481244269266 |
PŘÍRUBA PŘÍVODU VZDUCHU LEVÁ (V2) | Na dotaz | Zadat poptávku | |
| 301 0 WHR104372 |
C00778858
481245249159 |
Control panel protection | Na dotaz | Zadat poptávku | |
| 301 1 WHR104372 |
C00778859
481245249161 |
Panel bracket | Na dotaz | Zadat poptávku | |
| 301 2 WHR104372 |
C00778860
481245249162 |
Panel fixing bracket | Na dotaz | Zadat poptávku | |
| 332 0 WHR104372 |
C00778861
481241129039 |
Push button panel | Na dotaz | Zadat poptávku | |
| 332 1 WHR104372 |
C00493474
481241129041 |
Push button | Na dotaz | Zadat poptávku | |
| 332 2 WHR104372 |
C00493475
481241129042 |
Push button | Na dotaz | Zadat poptávku | |
| 332 3 WHR104372 |
C00493476
481241129043 |
Push button | Na dotaz | Zadat poptávku | |
| 332 4 WHR104372 |
C00493477
481241129044 |
Push button | Na dotaz | Zadat poptávku | |
| 341 0 WHR104372 |
C00778862
481241129045 |
Push button disc | Na dotaz | Zadat poptávku | |
| 351 0 WHR104372 |
C00488703
481238118296 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 400 1 WHR104372 |
C00387851
481236158362 |
Motor 8-BS/28K-A-P 220-240 | Na dotaz | Zadat poptávku | |
| 400 2 WHR104372 |
C00387848
481228678003 |
Rotor D140 M8 (left) | Na dotaz | Zadat poptávku | |
| 400 3 WHR104372 |
C00387849
481228678004 |
Rotor D140 M8 (right) | Na dotaz | Zadat poptávku | |
| 400 4 WHR104372 |
C00482815
481236158363 |
Support motor | Na dotaz | Zadat poptávku | |
| 400 5 WHR104372 |
C00094578
481236118486 |
Clamp fixation ,MOTOR | Na dotaz | Zadat poptávku | |
| 420 0 WHR104372 |
C00482184
481212018012 |
Capacitor 4mF 400V | Na dotaz | Zadat poptávku | |
| 420 1 WHR104372 |
C00085092
481212018013 |
Capacitor holder | Na dotaz | Zadat poptávku | |
| 483 0 WHR104372 |
C00500777
481236118376 |
Cover motor | Na dotaz | Zadat poptávku | |
| 490 0 WHR104372 |
C00094577
481229068308 |
JUNCTION CLAMP HI-LO | Na dotaz | Zadat poptávku | |
| 490 1 WHR104372 |
C00632942
481229068313 |
Cable guide | Na dotaz | Zadat poptávku | |
| 490 2 WHR104372 |
C00492871
481201978813 |
Cable mains | Na dotaz | Zadat poptávku | |
| 492 0 WHR104372 |
C00493041
481229068309 |
Connector | Na dotaz | Zadat poptávku | |
| 492 1 WHR104372 |
C00085095
481229068311 |
Connector | Na dotaz | Zadat poptávku | |
| 521 0 WHR104372 |
C00500755
481227018042 |
Control unit cover | Na dotaz | Zadat poptávku | |
| 521 1 WHR104372 |
C00059632
481227018043 |
CONTROL BOX | Na dotaz | Zadat poptávku | |
| 651 0 WHR104372 |
C00627155
481213418019 |
Žárovka halogen 2ks 20W | Na dotaz | Zadat poptávku | |
| 652 0 WHR104372 |
C00627423
481240438594 |
Lampholder | Na dotaz | Zadat poptávku | |
| 652 1 WHR104372 |
C00043037
481219808004 |
KRABICE DRŽÁKY SAMCI 2V | Na dotaz | Zadat poptávku | |
| 652 2 WHR104372 |
C00043036
481219808003 |
KRABICE DRŽÁKY SAMICE 2V | Na dotaz | Zadat poptávku | |
| 652 3 WHR104372 |
C00778863
481240438748 |
Lamp support | Na dotaz | Zadat poptávku | |
| 652 4 WHR104372 |
C00491497
481240438612 |
Lampholder | Na dotaz | Zadat poptávku | |
| 741 0 WHR104372 |
C00085096
481244269263 |
DIFUZÉR SPODNÍ 'FABER' | Na dotaz | Zadat poptávku | |
| 741 1 WHR104372 |
C00500853
481244269264 |
Housing upper | Na dotaz | Zadat poptávku | |
| 741 4 WHR104372 |
C00085102
481244269522 |
TŘMEN UPEVNĚNÍ DIFUZÉRU 'FABER' | Na dotaz | Zadat poptávku | |
| 763 0 WHR104372 |
C00778864
481248058346 |
Filter metal | Na dotaz | Zadat poptávku | |
| 763 2 WHR104372 |
C00758667
481248058347 |
Cover charcoal filter | Na dotaz | Zadat poptávku | |
| 781 0 WHR104372 |
C00778865
481246818351 |
Flange valve | Na dotaz | Zadat poptávku | |
| 781 1 WHR104372 |
C00387855
481253278005 |
Connect.piece | Na dotaz | Zadat poptávku | |
| 781 2 WHR104372 |
C00758668
481246818352 |
Flange ,not schown | Na dotaz | Zadat poptávku | |
| 910 0 WHR104372 |
C00014076
481950518247 |
Nut | Na dotaz | Zadat poptávku | |
| 910 1 WHR104372 |
C00496486
481236118487 |
Screw motor fixing | Na dotaz | Zadat poptávku | |
| 910 2 WHR104372 |
C00493263
481236118488 |
Rubber motor | Na dotaz | Zadat poptávku | |
| 910 3 WHR104372 |
C00778851
481950218269 |
Screw | Na dotaz | Zadat poptávku | |
| 930 0 WHR104372 |
C00630036
481231038964 |
Kit fixing accessory. | Na dotaz | Zadat poptávku | |
