WHIRLPOOL ARC 4020/IX WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARC 4020/IX WH |
| Kód 12NC: | 850140210010 |
| I.C. kód: | 850140210011 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 850140210010 |
Potřebujete servis? Jsme tady pro Vás

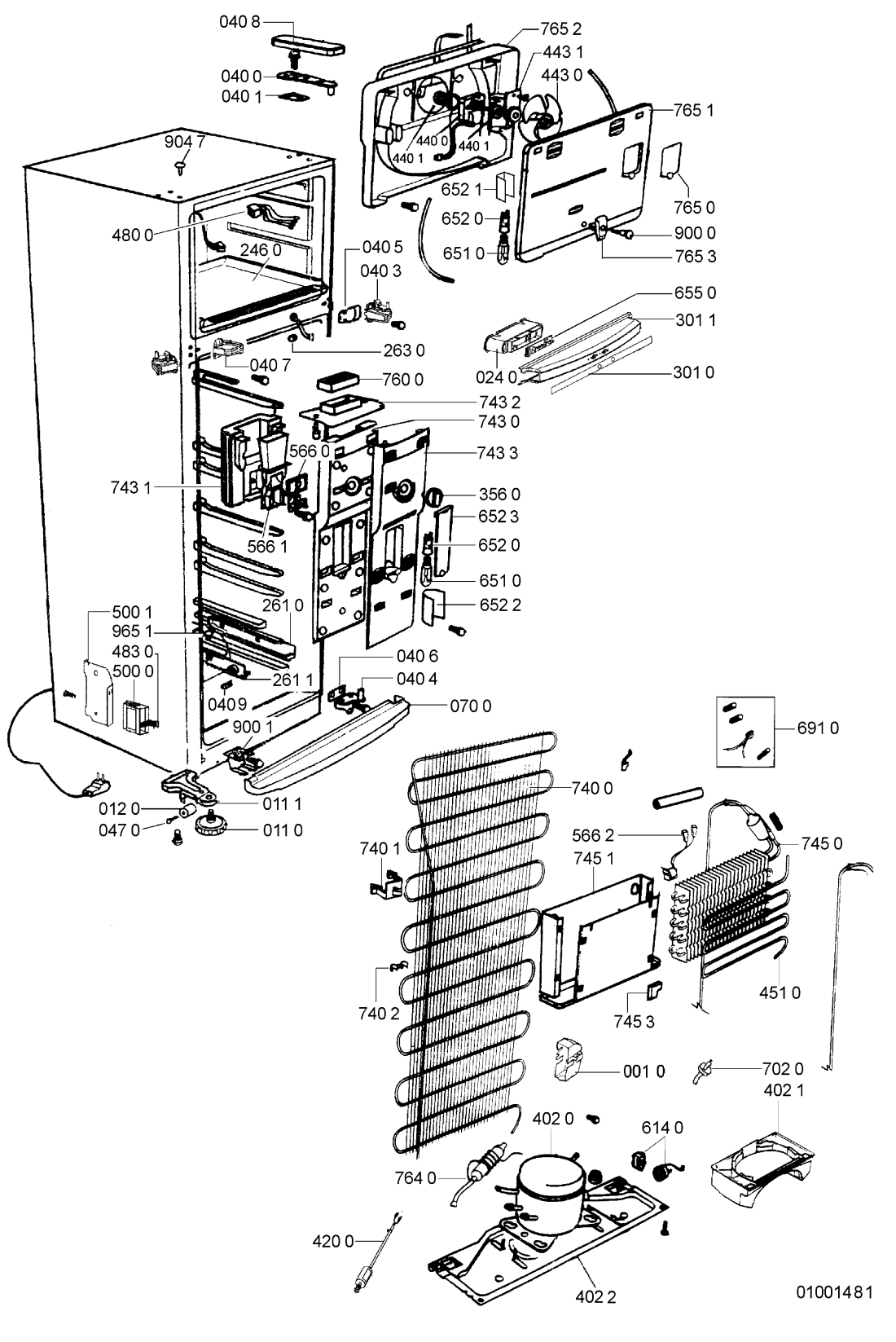

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0010 WHR52022 |
C00498415
481246279703 |
Cover Relay. | Na dotaz | Zadat poptávku | |
| 0110 WHR52022 |
C00340792
481246218245 |
Foot adjustable | Na dotaz | Zadat poptávku | |
| 0111 WHR52022 |
C00336238
481246218185 |
Small plate | Na dotaz | Zadat poptávku | |
| 0120 WHR52022 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
| 0240 WHR52022 |
C00344521
481246418082 |
Base | Na dotaz | Zadat poptávku | |
| 0400 WHR52022 |
C00339759
481241719138 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0401 WHR52022 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 0403 WHR52022 |
C00497796
481241778088 |
ZAVES STREDNY | Na dotaz | Zadat poptávku | |
| 0404 WHR52022 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0405 WHR52022 |
C00336361
481241778103 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 0406 WHR52022 |
C00336362
481252648092 |
Shim Hinge | Na dotaz | Zadat poptávku | |
| 0407 WHR52022 |
C00339847
481241719111 |
závěs | 512 Kč
€ 22.50 |
||
| 0408 WHR52022 |
C00342345
481246228389 |
Cover upper hinge | Na dotaz | Zadat poptávku | |
| 0409 WHR52022 |
C00336264
481246218184 |
Slide | Na dotaz | Zadat poptávku | |
| 0470 WHR52022 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
| 0700 WHR52022 |
C00490099
481246228539 |
Plinth , black | Na dotaz | Zadat poptávku | |
| 1010 WHR52022 |
C00484861
481241619393 |
Door freezer inox | Na dotaz | Zadat poptávku | |
| 1020 WHR52022 |
C00377721
481244229199 |
Flap Shelf | Na dotaz | Zadat poptávku | |
| 1021 WHR52022 |
C00377723
481244229255 |
Flap Drawer | Na dotaz | Zadat poptávku | |
| 1040 WHR52022 |
C00574415
481241619394 |
DVERE CHLADNICKY | Na dotaz | Zadat poptávku | |
| 1050 WHR52022 |
C00344059
481246228397 |
Bushingupper | Na dotaz | Zadat poptávku | |
| 1051 WHR52022 |
C00344082
481253288024 |
Bushing | Na dotaz | Zadat poptávku | |
| 1052 WHR52022 |
C00344083
481246228399 |
Bushing | Na dotaz | Zadat poptávku | |
| 1053 WHR52022 |
C00344084
481246228401 |
Bushing | Na dotaz | Zadat poptávku | |
| 1054 WHR52022 |
C00341383
481240018064 |
Montážní sada na přehození dveří | Na dotaz | Zadat poptávku | |
| 1110 WHR52022 |
C00377835
481249818284 |
podlozka rukojete | 978 Kč
€ 43.00 |
||
| 1111 WHR52022 |
C00338835
481249818279 |
rukojet prava cast | 922 Kč
€ 40.50 |
||
| 1112 WHR52022 |
C00338838
481249818281 |
rukojet leva cast | 1 956 Kč
€ 86.00 |
||
| 1113 WHR52022 |
C00621457
481246818228 |
kryt rukojete | 418 Kč
€ 18.40 |
||
| 1114 WHR52022 |
C00341606
481245918238 |
Nameplate | Na dotaz | Zadat poptávku | |
| 1531 WHR52022 |
C00377797
481246228537 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1532 WHR52022 |
C00336508
481246228532 |
drzak lahvi-posuvny | 107 Kč
€ 4.70 |
||
| 1533 WHR52022 |
C00490102
481246228568 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1540 WHR52022 |
C00377798
481246228538 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1541 WHR52022 |
C00339159
481241828518 |
zásobník | 998 Kč
€ 43.90 |
||
| 1542 WHR52022 |
C00339167
481241828519 |
Ice maker | Na dotaz | Zadat poptávku | |
| 1550 WHR52022 |
C00495599
481246228403 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 1560 WHR52022 |
C00335335
481241828773 |
Tray icecube | Na dotaz | Zadat poptávku | |
| 1561 WHR52022 |
C00339535
481246088279 |
Holder, eggs | Na dotaz | Zadat poptávku | |
| 1562 WHR52022 |
C00336505
481246228528 |
Separator Crisper | Na dotaz | Zadat poptávku | |
| 1563 WHR52022 |
C00327910
481241889016 |
Holder can | Na dotaz | Zadat poptávku | |
| 1564 WHR52022 |
C00377697
481241879824 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1911 WHR52022 |
C00377653
481241618894 |
tesneni magneticke | 1 296 Kč
€ 57.00 |
||
| 1912 WHR52022 |
C00374095
481241618893 |
Těsnění mrazáku chladničky Whirlpool - magnetické | 581 Kč
€ 25.50 |
||
| 2420 WHR52022 |
C00374062
481241870007 |
Crisper | Na dotaz | Zadat poptávku | |
| 2421 WHR52022 |
C00377718
481244229149 |
Front crisper | Na dotaz | Zadat poptávku | |
| 2422 WHR52022 |
C00336788
481240448673 |
Roller vegetables drawer | Na dotaz | Zadat poptávku | |
| 2423 WHR52022 |
C00335825
481240438714 |
Support Ice maker | Na dotaz | Zadat poptávku | |
| 2440 WHR52022 |
C00574492
481244229203 |
Cover,crisper. | Na dotaz | Zadat poptávku | |
| 2441 WHR52022 |
C00377719
481244229171 |
Drawer | Na dotaz | Zadat poptávku | |
| 2460 WHR52022 |
C00489055
481241828799 |
Tray freezer | Na dotaz | Zadat poptávku | |
| 2461 WHR52022 |
C00484988
481241848575 |
Shelf freezer | Na dotaz | Zadat poptávku | |
| 2550 WHR52022 |
C00377722
481244229202 |
Shelf glass | Na dotaz | Zadat poptávku | |
| 2610 WHR52022 |
C00336930
481246818014 |
Rail right | Na dotaz | Zadat poptávku | |
| 2611 WHR52022 |
C00336932
481246218183 |
Rail left | Na dotaz | Zadat poptávku | |
| 2630 WHR52022 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
| 3010 WHR52022 |
C00500865
481245310097 |
Reflector | Na dotaz | Zadat poptávku | |
| 3011 WHR52022 |
C00574559
481246428045 |
Console black colour. | Na dotaz | Zadat poptávku | |
| 3560 WHR52022 |
C00341922
481241458267 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 4020 WHR52022 |
C00378560
481236038891 |
Compressor EGY 80 HLP 220-240V/50Hz | Na dotaz | Zadat poptávku | |
| 4021 WHR52022 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
| 4022 WHR52022 |
C00574570
481246698946 |
Fastener compressor. | Na dotaz | Zadat poptávku | |
| 4200 WHR52022 |
C00342800
481212108241 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4400 WHR52022 |
C00311454
481202858345 |
Motor fan 220-240V/50-60Hz | Na dotaz | Zadat poptávku | |
| 4401 WHR52022 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
| 4430 WHR52022 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
| 4431 WHR52022 |
C00335783
481246048881 |
Support Ventilator | Na dotaz | Zadat poptávku | |
| 4510 WHR52022 |
C00320266
481225948141 |
ELEMENT DEFROST | Na dotaz | Zadat poptávku | |
| 4800 WHR52022 |
C00343501
481201978807 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 4830 WHR52022 |
C00343502
481201978819 |
Connect.cable | Na dotaz | Zadat poptávku | |
| 5000 WHR52022 |
C00311580
481221838159 |
modul chl. | Na dotaz | Zadat poptávku | |
| 5001 WHR52022 |
C00342539
481244028945 |
Cover Control board | Na dotaz | Zadat poptávku | |
| 5660 WHR52022 |
C00319312
481228238041 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5661 WHR52022 |
C00339546
481246048885 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 5662 WHR52022 |
C00314686
481228238042 |
termostat | 1 877 Kč
€ 82.50 |
||
| 6140 WHR52022 |
C00377468
481221838195 |
Relay + overload | Na dotaz | Zadat poptávku | |
| 6510 WHR52022 |
C00341807
481213428061 |
Lamp220V | Na dotaz | Zadat poptávku | |
| 6520 WHR52022 |
C00339579
481225528011 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6521 WHR52022 |
C00342197
481246228056 |
Deflector | Na dotaz | Zadat poptávku | |
| 6522 WHR52022 |
C00342198
481246228057 |
Deflector | Na dotaz | Zadat poptávku | |
| 6523 WHR52022 |
C00342514
481246098006 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 6550 WHR52022 |
C00313453
481227138456 |
panel ovladaci chl. | 3 086 Kč
€ 135.60 |
||
| 6910 WHR52022 |
C00336525
481228268021 |
Sensor kit | Na dotaz | Zadat poptávku | |
| 7020 WHR52022 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 13.50 |
||
| 7400 WHR52022 |
C00332238
481251148336 |
výměník | 2 213 Kč
€ 97.30 |
||
| 7401 WHR52022 |
C00330489
481246228394 |
Holder Condenser | Na dotaz | Zadat poptávku | |
| 7402 WHR52022 |
C00343291
481240418112 |
Clip Condenserr | Na dotaz | Zadat poptávku | |
| 7430 WHR52022 |
C00498501
481248028035 |
difuzor | 214 Kč
€ 9.40 |
||
| 7431 WHR52022 |
C00335877
481246048884 |
Support | Na dotaz | Zadat poptávku | |
| 7432 WHR52022 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
| 7433 WHR52022 |
C00342908
481240018066 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
| 7450 WHR52022 |
C00341099
481251138149 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7451 WHR52022 |
C00339197
481244228963 |
Housing Evaporator | Na dotaz | Zadat poptávku | |
| 7453 WHR52022 |
C00335834
481253598061 |
Support Evaporator | Na dotaz | Zadat poptávku | |
| 7600 WHR52022 |
C00344625
481249038001 |
Air clean filt. | Na dotaz | Zadat poptávku | |
| 7640 WHR52022 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 7650 WHR52022 |
C00342515
481246228676 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7651 WHR52022 |
C00574478
481244069079 |
Cover front. | Na dotaz | Zadat poptávku | |
| 7652 WHR52022 |
C00342370
481244069031 |
Cover rear | Na dotaz | Zadat poptávku | |
| 7653 WHR52022 |
C00343377
481246048882 |
Clamp Cover | Na dotaz | Zadat poptávku | |
| 9000 WHR52022 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
| 9001 WHR52022 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 9047 WHR52022 |
C00342558
481246228391 |
Cover BL | Na dotaz | Zadat poptávku | |
| 9651 WHR52022 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 999 WHR52022 |
C00654475 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
