Komerční kód: | ARC 4130 REFRIGERATORS WP |
Kód 12NC: | 850141301000 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící lednice s mrazákem |
Další podobné modely: | 850141301002, 850141310000, 850141301003, 850141310003, 850141310002, 850141336000, 850141336001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

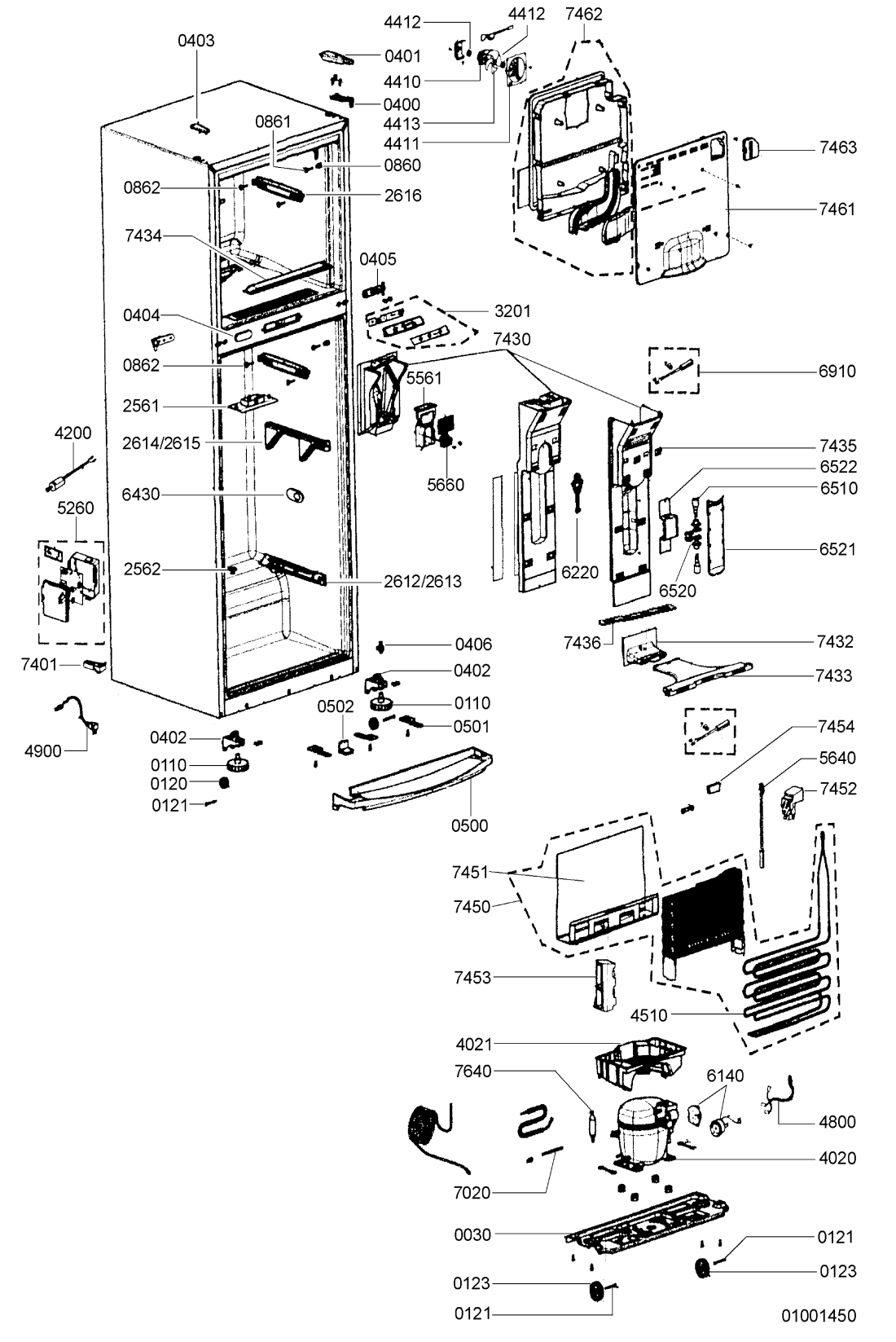

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
003 0 WHR51970 |
C00344517
481244229269 |
Base compressor | Na dotaz | Zadat poptávku | |
011 0 WHR51970 |
C00340800
481246238082 |
Foot | Na dotaz | Zadat poptávku | |
012 0 WHR51970 |
C00332374
481252878071 |
Roller | Na dotaz | Zadat poptávku | |
012 1 WHR51970 |
C00336455
481253548009 |
Shaft | Na dotaz | Zadat poptávku | |
012 3 WHR51970 |
C00332375
481252878072 |
Roller | Na dotaz | Zadat poptávku | |
040 0 WHR51970 |
C00329726
481241719286 |
Hinge upper | Na dotaz | Zadat poptávku | |
040 1 WHR51970 |
C00342473
481246228635 |
Cover hinge | Na dotaz | Zadat poptávku | |
040 2 WHR51970 |
C00329724
481241719284 |
pant | 525 Kč
€ 23.10 |
||
040 3 WHR51970 |
C00342338
481246228636 |
Cover WH | Na dotaz | Zadat poptávku | |
040 4 WHR51970 |
C00342339
481246228637 |
Cover WH | Na dotaz | Zadat poptávku | |
040 5 WHR51970 |
C00329720
481241719277 |
Závěs dveří střední - pravý | 981 Kč
€ 43.10 |
||
040 6 WHR51970 |
C00329721
481241719278 |
Pin hinge lower | Na dotaz | Zadat poptávku | |
040 7 WHR51970 |
C00341382
481244688149 |
Montážní sada na přehození dveří | 307 Kč
€ 13.50 |
||
047 0 WHR51970 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
047 1 WHR51970 |
C00342340
481246228342 |
Cover WH | Na dotaz | Zadat poptávku | |
047 2 WHR51970 |
C00344085
481253268079 |
Bushing | Na dotaz | Zadat poptávku | |
050 0 WHR51970 |
C00337655
481244089095 |
Plinth WH | Na dotaz | Zadat poptávku | |
050 1 WHR51970 |
C00327931
481243518111 |
Clamp | Na dotaz | Zadat poptávku | |
050 2 WHR51970 |
C00342341
481241458261 |
Cover WH | Na dotaz | Zadat poptávku | |
086 0 WHR51970 |
C00329054
481240448923 |
Support | Na dotaz | Zadat poptávku | |
086 1 WHR51970 |
C00332711
481253538083 |
Pin | Na dotaz | Zadat poptávku | |
086 2 WHR51970 |
C00327079
481222608021 |
Pin rail | Na dotaz | Zadat poptávku | |
101 0 WHR51970 |
C00380415
481241619537 |
Door freezer WH | Na dotaz | Zadat poptávku | |
103 0 WHR51970 |
C00317608
481226278016 |
Front cover Drawer | Na dotaz | Zadat poptávku | |
103 1 WHR51970 |
C00342941
481226278017 |
Cover | Na dotaz | Zadat poptávku | |
104 0 WHR51970 |
C00527788
481241619532 |
Door,refriger. white color | Na dotaz | Zadat poptávku | |
110 0 WHR51970 |
C00318317
481249858209 |
rukojet dveri | Na dotaz | Zadat poptávku | |
110 1 WHR51970 |
C00318281
481249818348 |
Rukojeť dveří | 2 691 Kč
€ 118.30 |
||
111 7 WHR51970 |
C00341606
481245918238 |
Nameplate | Na dotaz | Zadat poptávku | |
152 0 WHR51970 |
C00319346
481241848729 |
Door dairy freezer | Na dotaz | Zadat poptávku | |
152 1 WHR51970 |
C00313527
481241848731 |
Door dairy | Na dotaz | Zadat poptávku | |
152 2 WHR51970 |
C00327682
481241828726 |
Support can | Na dotaz | Zadat poptávku | |
152 3 WHR51970 |
C00327910
481241889016 |
Holder can | Na dotaz | Zadat poptávku | |
152 4 WHR51970 |
C00327683
481241828727 |
Separator | Na dotaz | Zadat poptávku | |
152 5 WHR51970 |
C00327684
481241828728 |
Separator bottles | Na dotaz | Zadat poptávku | |
152 6 WHR51970 |
C00317685
481241828729 |
Bottle shelfDoor | Na dotaz | Zadat poptávku | |
156 0 WHR51970 |
C00339535
481246088279 |
Holder, eggs | Na dotaz | Zadat poptávku | |
191 0 WHR51970 |
C00374345
481246818327 |
Gasket.fre.door WH | Na dotaz | Zadat poptávku | |
191 1 WHR51970 |
C00379052
481246818328 |
Gasket ref.door WH | Na dotaz | Zadat poptávku | |
239 0 WHR51970 |
C00314429
481269028035 |
vyrobnik ledu | Na dotaz | Zadat poptávku | |
239 1 WHR51970 |
C00327685
481241828731 |
Tank | Na dotaz | Zadat poptávku | |
239 2 WHR51970 |
C00329014
481240438733 |
Support ice maker | Na dotaz | Zadat poptávku | |
239 3 WHR51970 |
C00327686
481241828733 |
Miska na led | Na dotaz | Zadat poptávku | |
241 0 WHR51970 |
C00336400
481241828734 |
Shelf | Na dotaz | Zadat poptávku | |
241 1 WHR51970 |
C00336401
481241828735 |
Shelf | Na dotaz | Zadat poptávku | |
242 0 WHR51970 |
C00315578
481241828737 |
zasuvka na zeleninu | 3 190 Kč
€ 140.20 |
||
242 1 WHR51970 |
C00340638
481244229272 |
čelo zásuvky | Na dotaz | Zadat poptávku | |
242 2 WHR51970 |
C00327687
481241828738 |
Spacer | Na dotaz | Zadat poptávku | |
255 0 WHR51970 |
C00331203
481245088266 |
Glass shelf | Na dotaz | Zadat poptávku | |
255 1 WHR51970 |
C00318610
481241828739 |
police extra | 1 836 Kč
€ 80.70 |
||
256 1 WHR51970 |
C00319191
481246048883 |
Support Air clean filt. | Na dotaz | Zadat poptávku | |
256 2 WHR51970 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
256 3 WHR51970 |
C00336265
481241168014 |
Slide | Na dotaz | Zadat poptávku | |
261 2 WHR51970 |
C00319463
481246238209 |
zábradlí | 1 618 Kč
€ 71.10 |
||
261 3 WHR51970 |
C00319457
481246238206 |
kolejnice zasuvky l. | 322 Kč
€ 14.20 |
||
261 4 WHR51970 |
C00330650
481246238211 |
zábradlí | 537 Kč
€ 23.60 |
||
261 5 WHR51970 |
C00330651
481246238212 |
zábradlí | 527 Kč
€ 23.20 |
||
261 6 WHR51970 |
C00330652
481246238213 |
Rail | Na dotaz | Zadat poptávku | |
261 7 WHR51970 |
C00336934
481246238214 |
Kolejnice kolejnice pravá | 528 Kč
€ 23.20 |
||
261 8 WHR51970 |
C00336935
481246238215 |
Rail glass shelf left | Na dotaz | Zadat poptávku | |
263 0 WHR51970 |
C00319465
481246238216 |
kolejnice zasuvky l. | 498 Kč
€ 21.90 |
||
263 1 WHR51970 |
C00319467
481246238217 |
Rail right | Na dotaz | Zadat poptávku | |
320 1 WHR51970 |
C00317738
481221479275 |
User boardwhite color | Na dotaz | Zadat poptávku | |
402 0 WHR51970 |
C00497504
481236038919 |
NAHRADA 481236038668 | Na dotaz | Zadat poptávku | |
402 1 WHR51970 |
C00318946
481241818319 |
Tray | Na dotaz | Zadat poptávku | |
420 0 WHR51970 |
C00342800
481212108241 |
Capacitor | Na dotaz | Zadat poptávku | |
441 0 WHR51970 |
C00311454
481202858345 |
Motor fan 220-240V/50-60Hz | Na dotaz | Zadat poptávku | |
441 1 WHR51970 |
C00314645
481240418458 |
Support motor freezer | Na dotaz | Zadat poptávku | |
441 2 WHR51970 |
C00315086
481246638021 |
Damper fan | Na dotaz | Zadat poptávku | |
441 3 WHR51970 |
C00315305
481236118282 |
Fan | Na dotaz | Zadat poptávku | |
451 0 WHR51970 |
C00319426
481251158017 |
Element defrost | Na dotaz | Zadat poptávku | |
480 0 WHR51970 |
C00326620
481201978835 |
Cable harness compressor | Na dotaz | Zadat poptávku | |
490 0 WHR51970 |
C00492877
481201978836 |
Cable mains | Na dotaz | Zadat poptávku | |
526 0 WHR51970 |
C00314004
481223678529 |
modul chl. | 2 040 Kč
€ 89.70 |
||
556 1 WHR51970 |
C00497297
481222438011 |
Housing Damper | Na dotaz | Zadat poptávku | |
564 0 WHR51970 |
C00497303
481225228045 |
Thermal fuse | Na dotaz | Zadat poptávku | |
566 0 WHR51970 |
C00497367
481228238122 |
Thermostat | Na dotaz | Zadat poptávku | |
614 0 WHR51970 |
C00320869
481221838238 |
Relay + overload protector | Na dotaz | Zadat poptávku | |
622 0 WHR51970 |
C00336246
481246818334 |
Slide switch | Na dotaz | Zadat poptávku | |
643 0 WHR51970 |
C00317926
481221538011 |
Thermometer WP-SPACE-4/RE/RF/CB | Na dotaz | Zadat poptávku | |
651 0 WHR51970 |
C00326855
481213488061 |
Lamp 220V-15W | Na dotaz | Zadat poptávku | |
652 0 WHR51970 |
C00327124
481225518277 |
Holder lamp | Na dotaz | Zadat poptávku | |
652 1 WHR51970 |
C00330519
481246228624 |
Protector lamp | Na dotaz | Zadat poptávku | |
652 2 WHR51970 |
C00329166
481240468044 |
Support lamp | Na dotaz | Zadat poptávku | |
691 0 WHR51970 |
C00312619
481213428075 |
senzor teploty | 1 456 Kč
€ 64.00 |
||
702 0 WHR51970 |
C00318198
481952643046 |
SPOJKA | 306 Kč
€ 13.50 |
||
740 1 WHR51970 |
C00330520
481246228625 |
Spacer cabinet | Na dotaz | Zadat poptávku | |
743 0 WHR51970 |
C00320115
481248028095 |
Air diffuserSet | Na dotaz | Zadat poptávku | |
743 2 WHR51970 |
C00343064
481244079138 |
Coupling air diffuser | Na dotaz | Zadat poptávku | |
743 3 WHR51970 |
C00498040
481244229273 |
DIFUZER | Na dotaz | Zadat poptávku | |
743 4 WHR51970 |
C00344588
481244229275 |
Air guide | Na dotaz | Zadat poptávku | |
743 5 WHR51970 |
C00344610
481244229276 |
Air diffuser | Na dotaz | Zadat poptávku | |
743 6 WHR51970 |
C00330521
481246228626 |
Cover air diffuser | Na dotaz | Zadat poptávku | |
745 0 WHR51970 |
C00332198
481251138272 |
Evaporatorset | Na dotaz | Zadat poptávku | |
745 1 WHR51970 |
C00339960
481244029471 |
Heat shield | Na dotaz | Zadat poptávku | |
745 2 WHR51970 |
C00328132
481244029472 |
Spacebar right | Na dotaz | Zadat poptávku | |
745 3 WHR51970 |
C00328133
481244029473 |
Spacebar left | Na dotaz | Zadat poptávku | |
745 4 WHR51970 |
C00329015
481240438735 |
držák senzoru | 321 Kč
€ 14.10 |
||
746 1 WHR51970 |
C00342490
481246228638 |
Cover front air diffuser | Na dotaz | Zadat poptávku | |
746 2 WHR51970 |
C00498392
481246228639 |
Cover. | Na dotaz | Zadat poptávku | |
746 3 WHR51970 |
C00328974
481240418457 |
Support sensor | Na dotaz | Zadat poptávku | |
764 0 WHR51970 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
904 0 WHR51970 |
C00343333
481240448919 |
Clampright hand | Na dotaz | Zadat poptávku | |
904 1 WHR51970 |
C00343334
481240438736 |
Clampleft hand | Na dotaz | Zadat poptávku | |
904 2 WHR51970 |
C00332346
481252648192 |
příchytka | 224 Kč
€ 9.80 |
||
904 3 WHR51970 |
C00327080
481222608023 |
Pin | Na dotaz | Zadat poptávku | |
999 WHR51970 |
C00654380 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
