| Komerční kód: | ARC 4324 |
| Kód 12NC: | 850143215100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | Q0903530000, 850143211100 |
Potřebujete servis? Jsme tady pro Vás

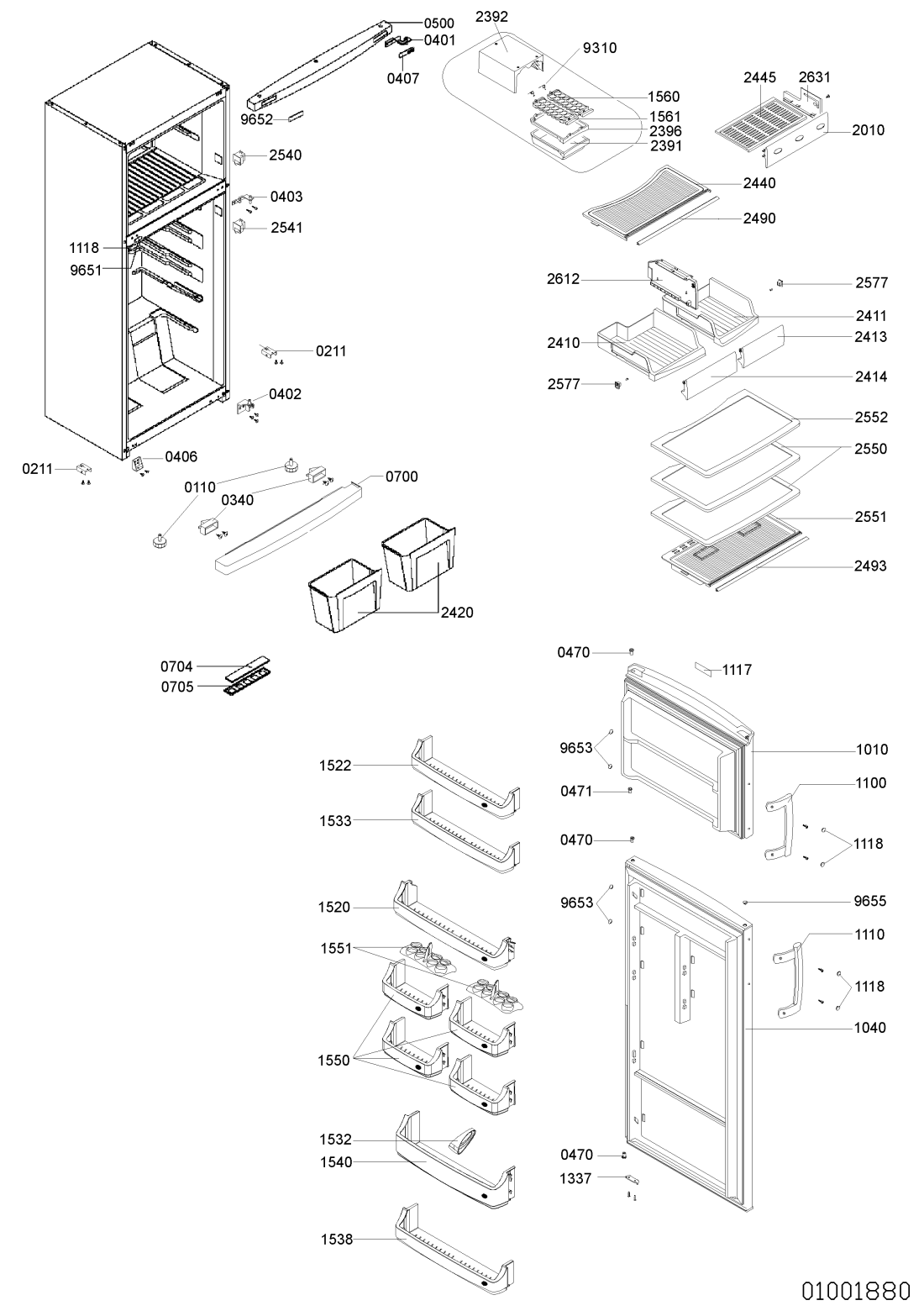

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0110 WHR00065 |
C00330466
481246218308 |
Foot | Na dotaz | Zadat poptávku | |
| 0121 WHR00065 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 0122 WHR00065 |
C00332729
481253578083 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 0211 WHR00065 |
C00331304
481245228758 |
Cover wheel | Na dotaz | Zadat poptávku | |
| 0340 WHR00065 |
C00329017
481240438739 |
Holder plinth | Na dotaz | Zadat poptávku | |
| 0401 WHR00065 |
C00329729
481241719301 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 0402 WHR00065 |
C00329762
481241719459 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 0403 WHR00065 |
C00329763
481241719468 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 0406 WHR00065 |
C00330465
481246218306 |
Support foot | Na dotaz | Zadat poptávku | |
| 0407 WHR00065 |
C00330529
481246228669 |
Cap right side | Na dotaz | Zadat poptávku | |
| 0470 WHR00065 |
C00312732
481244688154 |
Bushing | Na dotaz | Zadat poptávku | |
| 0471 WHR00065 |
C00331108
481244688159 |
Bushing | Na dotaz | Zadat poptávku | |
| 0500 WHR00065 |
C00330528
481246228668 |
Panel | Na dotaz | Zadat poptávku | |
| 0700 WHR00065 |
C00328417
481244089185 |
Plinth | Na dotaz | Zadat poptávku | |
| 0704 WHR00065 |
C00345718
481248058408 |
Filter | Na dotaz | Zadat poptávku | |
| 0705 WHR00065 |
C00345720
481248128191 |
Filter body | Na dotaz | Zadat poptávku | |
| 1010 WHR00065 |
C00329616
481241610746 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR00065 |
C00329614
481241610731 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1100 WHR00065 |
C00345725
481249818733 |
Door handle | Na dotaz | Zadat poptávku | |
| 1110 WHR00065 |
C00345726
481249818734 |
Door handle | Na dotaz | Zadat poptávku | |
| 1117 WHR00065 |
C00311716 | Nameplate WHIRLPOOL | Na dotaz | Zadat poptávku | |
| 1118 WHR00065 |
C00330568
481246228861 |
Cap | Na dotaz | Zadat poptávku | |
| 1337 WHR00065 |
C00329805
481241778139 |
Stop door | Na dotaz | Zadat poptávku | |
| 1520 WHR00065 |
C00329891
481241820131 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1522 WHR00065 |
C00329880
481241820115 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1532 WHR00065 |
C00327730
481241829843 |
Separator | Na dotaz | Zadat poptávku | |
| 1533 WHR00065 |
C00329881
481241820116 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1538 WHR00065 |
C00329882
481241820117 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1540 WHR00065 |
C00329883
481241820118 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1550 WHR00065 |
C00329884
481241820119 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1551 WHR00065 |
C00327731
481241829844 |
Egg trim | Na dotaz | Zadat poptávku | |
| 1560 WHR00065 |
C00327732
481241829845 |
Icecube tray right | Na dotaz | Zadat poptávku | |
| 1561 WHR00065 |
C00327733
481241829846 |
Icecube tray left | Na dotaz | Zadat poptávku | |
| 2010 WHR00065 |
C00328375
481244079337 |
Cover | Na dotaz | Zadat poptávku | |
| 2391 WHR00065 |
C00327734
481241829848 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 2392 WHR00065 |
C00327735
481241829849 |
Panel icemaker | Na dotaz | Zadat poptávku | |
| 2396 WHR00065 |
C00328988
481240418578 |
Bracket ice maker | Na dotaz | Zadat poptávku | |
| 2410 WHR00065 |
C00327736
481241829851 |
Drawer left | Na dotaz | Zadat poptávku | |
| 2411 WHR00065 |
C00329885
481241820121 |
Drawer right | Na dotaz | Zadat poptávku | |
| 2413 WHR00065 |
C00329886
481241820122 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 2414 WHR00065 |
C00327737
481241829853 |
Flap drawer | Na dotaz | Zadat poptávku | |
| 2420 WHR00065 |
C00329887
481241820123 |
Crisper | Na dotaz | Zadat poptávku | |
| 2440 WHR00065 |
C00329888
481241820124 |
Shelf | Na dotaz | Zadat poptávku | |
| 2445 WHR00065 |
C00329889
481241820125 |
Shelf | Na dotaz | Zadat poptávku | |
| 2490 WHR00065 |
C00330877
481246488061 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 2492 WHR00065 |
C00330294
481246049559 |
Trim Condenser | Na dotaz | Zadat poptávku | |
| 2493 WHR00065 |
C00330878
481246488062 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 2510 WHR00065 |
C00328842
481238028035 |
Reflector | Na dotaz | Zadat poptávku | |
| 2520 WHR00065 |
C00331532
481246688956 |
Insulator | Na dotaz | Zadat poptávku | |
| 2522 WHR00065 |
C00330794
481246368032 |
Damper | Na dotaz | Zadat poptávku | |
| 2526 WHR00065 |
C00330970
481246668935 |
Damper Thermostat | Na dotaz | Zadat poptávku | |
| 2540 WHR00065 |
C00329466 | Switch door | Na dotaz | Zadat poptávku | |
| 2541 WHR00065 |
C00329499
481241279488 |
Switch door | Na dotaz | Zadat poptávku | |
| 2550 WHR00065 |
C00331243
481245088531 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2551 WHR00065 |
C00329890
481241820126 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 2552 WHR00065 |
C00331244
481245088532 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 2577 WHR00065 |
C00345704
481246818384 |
Fixation drawer | Na dotaz | Zadat poptávku | |
| 2612 WHR00065 |
C00330668
481246238313 |
Rail drawer | Na dotaz | Zadat poptávku | |
| 2631 WHR00065 |
C00330669
481246238315 |
Rail freezing | Na dotaz | Zadat poptávku | |
| 3350 WHR00065 |
C00329531
481241458322 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 3351 WHR00065 |
C00329532
481241458323 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 3355 WHR00065 |
C00318914
481228210311 |
Timer Defrost | Na dotaz | Zadat poptávku | |
| 4020 WHR00065 |
C00328575
481236038991 |
Compressor HKK12AA | Na dotaz | Zadat poptávku | |
| 4021 WHR00065 |
C00327854
481241848968 |
Tray Compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR00065 |
C00326789
481212158174 |
Capacitor 5uF | Na dotaz | Zadat poptávku | |
| 4410 WHR00065 |
C00328835
481236158514 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4412 WHR00065 |
C00329027
481240438802 |
Support motor | Na dotaz | Zadat poptávku | |
| 4413 WHR00065 |
C00327582
481228678015 |
Impeller | Na dotaz | Zadat poptávku | |
| 4415 WHR00065 |
C00329157
481240449902 |
Absorber | Na dotaz | Zadat poptávku | |
| 4416 WHR00065 |
C00345722
481249298049 |
Spring ventilator | Na dotaz | Zadat poptávku | |
| 4427 WHR00065 |
C00330795
481246368033 |
Damper | Na dotaz | Zadat poptávku | |
| 4561 WHR00065 |
C00326740
481211528014 |
Resistor | Na dotaz | Zadat poptávku | |
| 4912 WHR00065 |
C00330819
481246418232 |
Cover timer | Na dotaz | Zadat poptávku | |
| 5541 WHR00065 |
C00345723
481249468049 |
Spring knob thermostat | Na dotaz | Zadat poptávku | |
| 5610 WHR00065 |
C00327575
481228268048 |
Protect motor | Na dotaz | Zadat poptávku | |
| 5620 WHR00065 |
C00327543
481228228345 |
Thermofuse | Na dotaz | Zadat poptávku | |
| 5665 WHR00065 |
C00327556
481228238245 |
Thermostat | Na dotaz | Zadat poptávku | |
| 5666 WHR00065 |
C00330820
481246418233 |
Casing | Na dotaz | Zadat poptávku | |
| 6510 WHR00065 |
C00313716
481213418043 |
Lamp | Na dotaz | Zadat poptávku | |
| 6521 WHR00065 |
C00327125
481225518278 |
Holder lamp E14 | Na dotaz | Zadat poptávku | |
| 6560 WHR00065 |
C00330574
481246228886 |
Cover f. lamp | Na dotaz | Zadat poptávku | |
| 7400 WHR00065 |
C00332276
481251148488 |
Condenser | Na dotaz | Zadat poptávku | |
| 7403 WHR00065 |
C00329055
481240448941 |
Spacer | Na dotaz | Zadat poptávku | |
| 7434 WHR00065 |
C00328378
481244079341 |
Air guide | Na dotaz | Zadat poptávku | |
| 7450 WHR00065 |
C00332216
481251138386 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7451 WHR00065 |
C00327167
481225928971 |
Heating element Evaporator | Na dotaz | Zadat poptávku | |
| 7452 WHR00065 |
C00333962
482000010588 |
Heating element Defrost - Drain -55W | Na dotaz | Zadat poptávku | |
| 7461 WHR00065 |
C00328377
481244079339 |
Cover | Na dotaz | Zadat poptávku | |
| 7462 WHR00065 |
C00328376
481244079338 |
Air regulator | Na dotaz | Zadat poptávku | |
| 7640 WHR00065 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 9.30 |
||
| 9001 WHR00065 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 9002 WHR00065 |
C00330848
481246448247 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 9033 WHR00065 |
C00328517
481232128492 |
Cable harness | Na dotaz | Zadat poptávku | |
| 9310 WHR00065 |
C00345724
481249468051 |
Spring | Na dotaz | Zadat poptávku | |
| 9651 WHR00065 |
C00330683
481246248446 |
Cap for hole hinge middle | Na dotaz | Zadat poptávku | |
| 9652 WHR00065 |
C00330530
481246228671 |
Cap left side | Na dotaz | Zadat poptávku | |
| 9653 WHR00065 |
C00330532
481246228675 |
Cap | Na dotaz | Zadat poptávku | |
| 9655 WHR00065 |
C00327082
481222608028 |
Krytka/záslepka | 122 Kč
€ 5.40 |
||
| 999 WHR00065 |
C00346133 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00065 |
C00346134 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
