WHIRLPOOL ARG 417 G/S/ REFRIGERATORS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 417 G/S/ REFRIGERATORS WP |
| Kód 12NC: | 853441738020 |
| I.C. kód: | 853441738021 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 853441738020 |
Potřebujete servis? Jsme tady pro Vás

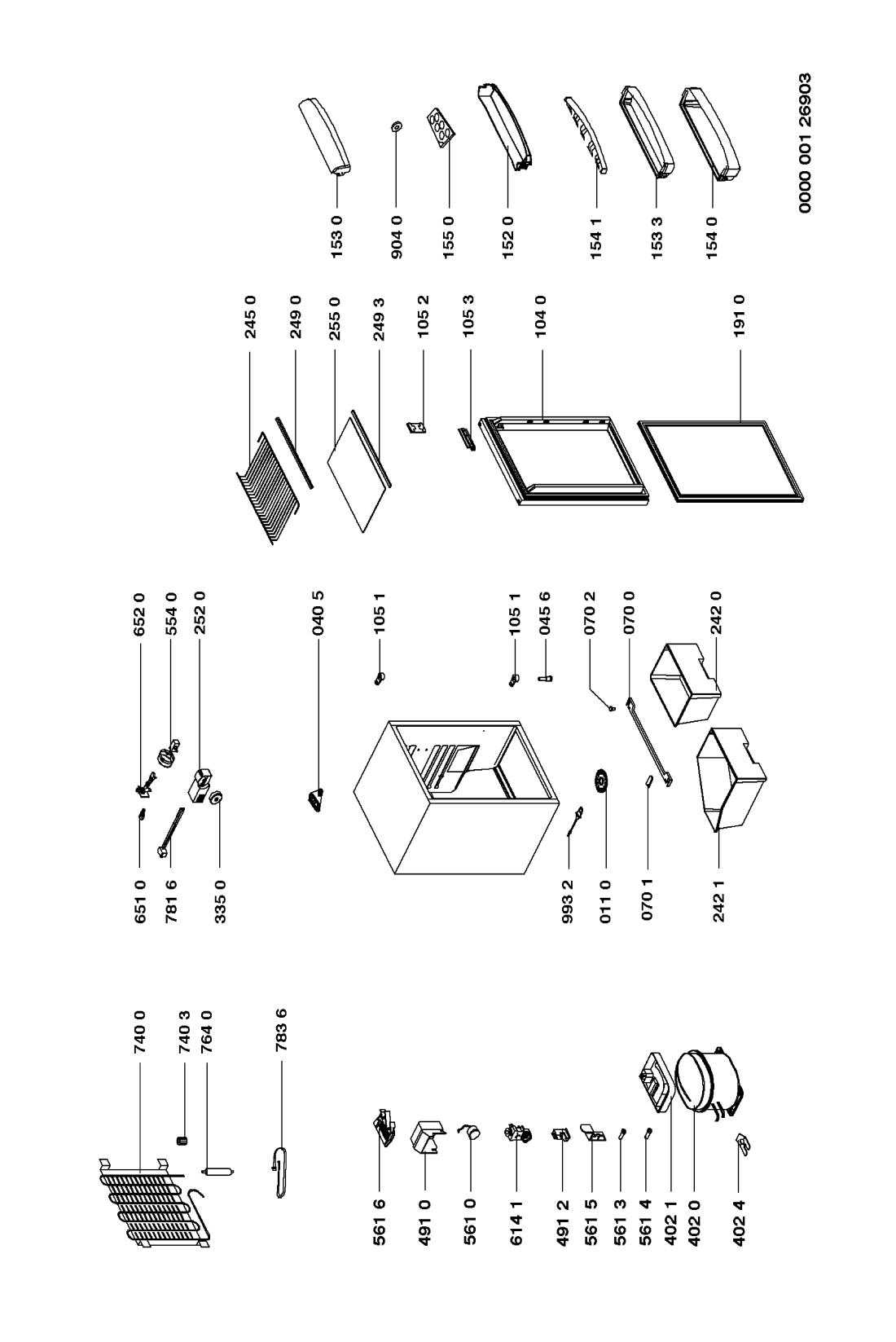

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR89915 |
C00333197
481950018123 |
Foot | Na dotaz | Zadat poptávku | |
| 040 5 WHR89915 |
C00584301
481940118712 |
Hoop | Na dotaz | Zadat poptávku | |
| 045 6 WHR89915 |
C00333199
481950018151 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 070 0 WHR89915 |
C00341492
481944088294 |
Pedestal | Na dotaz | Zadat poptávku | |
| 070 1 WHR89915 |
C00499324
481946049066 |
VLOZKA PANELU N | Na dotaz | Zadat poptávku | |
| 070 2 WHR89915 |
C00344330
481953518016 |
Bolt | Na dotaz | Zadat poptávku | |
| 104 0 WHR89915 |
C00341303
481944268955 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 105 1 WHR89915 |
C00312022
481953268815 |
Pouzdro závěsu | 486 Kč
€ 21.40 |
||
| 105 2 WHR89915 |
C00314819
481946238873 |
Plate | Na dotaz | Zadat poptávku | |
| 105 3 WHR89915 |
C00314817
481946238794 |
Rail | Na dotaz | Zadat poptávku | |
| 152 0 WHR89915 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR89915 |
C00317537
481944278363 |
Lid ,dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR89915 |
C00340623
481941879578 |
GALERIE | Na dotaz | Zadat poptávku | |
| 154 0 WHR89915 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR89915 |
C00318101
481946078513 |
drzak lahvi modry | 1 148 Kč
€ 50.50 |
||
| 155 0 WHR89915 |
C00584327
481946089574 |
drzak vajec | 214 Kč
€ 9.40 |
||
| 191 0 WHR89915 |
C00333151
481946818128 |
tesneni magneticke | 2 309 Kč
€ 101.50 |
||
| 242 0 WHR89915 |
C00319972
481941879503 |
zasuvka na zeleninu | 1 842 Kč
€ 81.00 |
||
| 242 1 WHR89915 |
C00317332
481941879502 |
Crisper | Na dotaz | Zadat poptávku | |
| 245 0 WHR89915 |
C00499278
481945858457 |
rost vysuvny | Na dotaz | Zadat poptávku | |
| 249 0 WHR89915 |
C00335288
481946089469 |
Trim | Na dotaz | Zadat poptávku | |
| 249 3 WHR89915 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 252 0 WHR89915 |
C00342765
481941878931 |
Casing | Na dotaz | Zadat poptávku | |
| 255 0 WHR89915 |
C00333122
481946678214 |
GLAS COVER | Na dotaz | Zadat poptávku | |
| 335 0 WHR89915 |
C00499048
481941128803 |
knoflik termostatu | 218 Kč
€ 9.60 |
||
| 402 0 WHR89915 |
C00555845
481936038545 |
KOMPRESOR BP1110Y ARG417 N | Na dotaz | Zadat poptávku | |
| 402 1 WHR89915 |
C00333005
481941878641 |
miska na kondenzat | 161 Kč
€ 7.10 |
||
| 402 4 WHR89915 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 491 0 WHR89915 |
C00486743
481946258296 |
VEKO KRABICKY N | Na dotaz | Zadat poptávku | |
| 491 2 WHR89915 |
C00499404
481946279738 |
VEKO PRIVODOVEJ SVORKOVNICE N | Na dotaz | Zadat poptávku | |
| 554 0 WHR89915 |
C00335508
481927129031 |
Thermostat A A13-0435-26 | Na dotaz | Zadat poptávku | |
| 561 0 WHR89915 |
C00574280
481928228582 |
Protect,motor | Na dotaz | Zadat poptávku | |
| 561 3 WHR89915 |
C00336701
481950218311 |
Screw | Na dotaz | Zadat poptávku | |
| 561 4 WHR89915 |
C00636125
481928228505 |
SKRUTKA N | Na dotaz | Zadat poptávku | |
| 561 5 WHR89915 |
C00499442
481946688907 |
PRICHYTKA | 78 Kč
€ 3.40 |
||
| 561 6 WHR89915 |
C00337747
481929068279 |
Plate,connector | Na dotaz | Zadat poptávku | |
| 614 1 WHR89915 |
C00621544
481928238031 |
RELE PTC-1260001 | 208 Kč
€ 9.10 |
||
| 651 0 WHR89915 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR89915 |
C00498813
481925518206 |
Holder,lamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR89915 |
C00333247
481951148512 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR89915 |
C00328255
481244048012 |
Holder condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR89915 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 6 WHR89915 |
C00484484
481952928181 |
Water conveyor | Na dotaz | Zadat poptávku | |
| 783 6 WHR89915 |
C00333293
481953029022 |
COPPER / ALUMINUM JOINT PIPE | Na dotaz | Zadat poptávku | |
| 904 0 WHR89915 |
C00333158
481946818282 |
Podložka distanční | 331 Kč
€ 14.50 |
||
| 993 2 WHR89915 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| 993 9 WHR89915 |
C00584294
481931039715 |
Door revers.Kit (not s | Na dotaz | Zadat poptávku | |
| 999 WHR89915 |
C00732158 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
