WHIRLPOOL ARG 759
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 759 |
| Kód 12NC/I.C. kód: | 853475973000 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

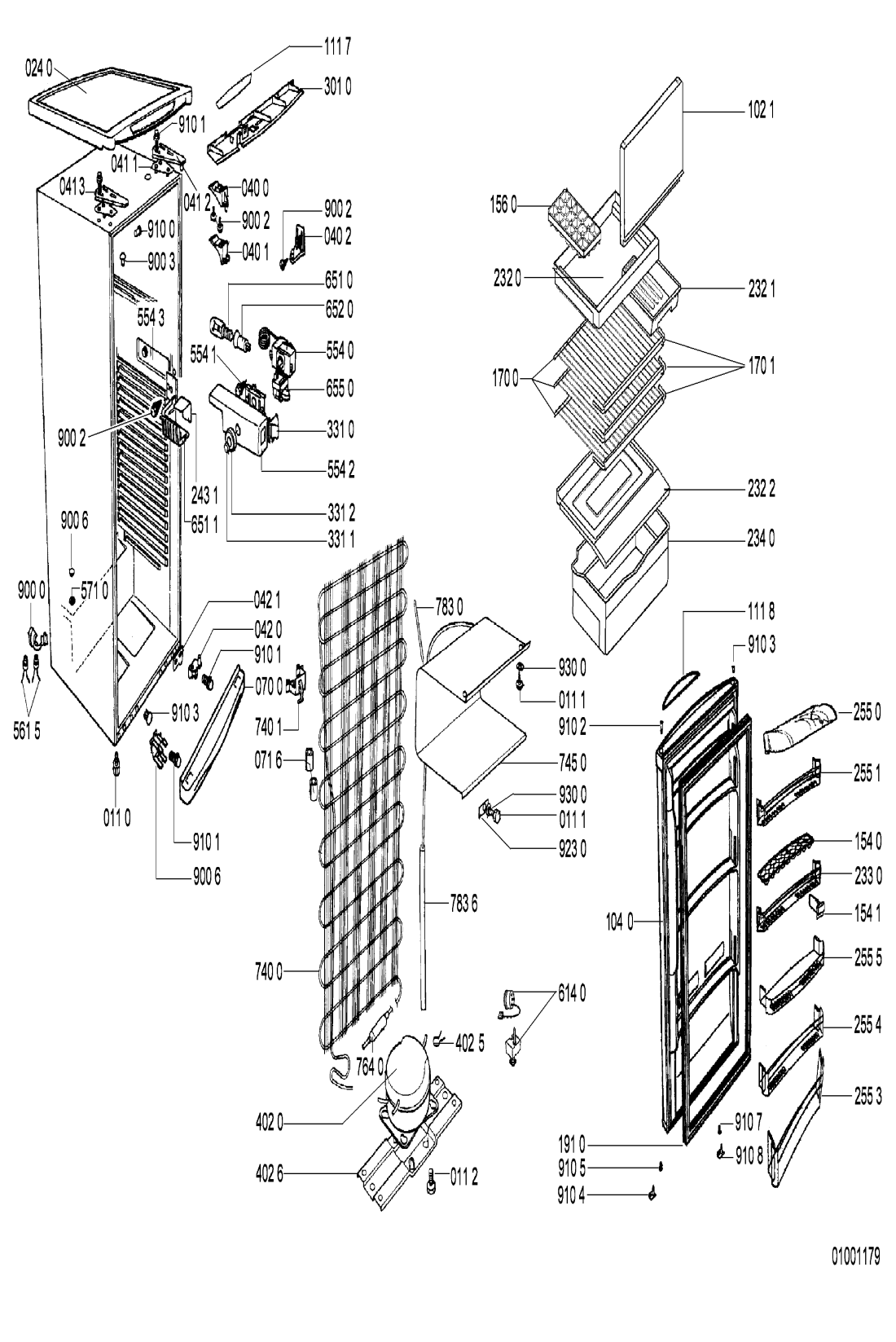

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR110440 |
C00492130
481253598092 |
Adjusting screw foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR110440 |
C00492140
481256018024 |
Screw | Na dotaz | Zadat poptávku | |
| 011 2 WHR110440 |
C00336570
481256018025 |
Screw M5x10mm | Na dotaz | Zadat poptávku | |
| 024 0 WHR110440 |
C00574837
481244010536 |
Table top. | Na dotaz | Zadat poptávku | |
| 040 0 WHR110440 |
C00527813
481241719042 |
Hinge,upper freezer | Na dotaz | Zadat poptávku | |
| 040 1 WHR110440 |
C00747690
481241378655 |
Hinge side | Na dotaz | Zadat poptávku | |
| 040 2 WHR110440 |
C00527814
481241719043 |
Hinge,lower freezer | Na dotaz | Zadat poptávku | |
| 041 1 WHR110440 |
C00336360
481241778021 |
Shim hinge | Na dotaz | Zadat poptávku | |
| 041 2 WHR110440 |
C00491656
481241719041 |
Door fixation | Na dotaz | Zadat poptávku | |
| 041 3 WHR110440 |
C00574795
481241719037 |
Hinge,upper. | Na dotaz | Zadat poptávku | |
| 042 0 WHR110440 |
C00339800
481241718854 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 042 1 WHR110440 |
C00336366
481241778022 |
Shim | Na dotaz | Zadat poptávku | |
| 070 0 WHR110440 |
C00574852
481244088988 |
Pedestal. | Na dotaz | Zadat poptávku | |
| 071 6 WHR110440 |
C00576156
481240448798 |
Rubber antivibration | Na dotaz | Zadat poptávku | |
| 102 1 WHR110440 |
C00747691
481244229131 |
Evaporatorflap | Na dotaz | Zadat poptávku | |
| 104 0 WHR110440 |
C00747692
481244229132 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR110440 |
C00747693
481245918213 |
Nameplate | Na dotaz | Zadat poptávku | |
| 111 8 WHR110440 |
C00493581
481245918212 |
Nameplate | Na dotaz | Zadat poptávku | |
| 154 0 WHR110440 |
C00583924
481246088236 |
Holder eggs. | Na dotaz | Zadat poptávku | |
| 154 1 WHR110440 |
C00491895
481246078892 |
SPACER | Na dotaz | Zadat poptávku | |
| 156 0 WHR110440 |
C00339160
481241848502 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 170 0 WHR110440 |
C00584878
481245938049 |
Trim. | Na dotaz | Zadat poptávku | |
| 170 1 WHR110440 |
C00584672
481245938051 |
Profile. | Na dotaz | Zadat poptávku | |
| 191 0 WHR110440 |
C00574960
481246688609 |
Magnetic seal. | Na dotaz | Zadat poptávku | |
| 232 0 WHR110440 |
C00747694
481241818374 |
Tray drip | Na dotaz | Zadat poptávku | |
| 232 1 WHR110440 |
C00747695
481241828273 |
Drawer | Na dotaz | Zadat poptávku | |
| 232 2 WHR110440 |
C00747696
481241828274 |
Shelf | Na dotaz | Zadat poptávku | |
| 233 0 WHR110440 |
C00489017
481241828276 |
Door dairy | Na dotaz | Zadat poptávku | |
| 234 0 WHR110440 |
C00747697
481241828275 |
Crisper | Na dotaz | Zadat poptávku | |
| 243 1 WHR110440 |
C00747698
481240478479 |
Reflector | Na dotaz | Zadat poptávku | |
| 255 0 WHR110440 |
C00747699
481241828277 |
Lid | Na dotaz | Zadat poptávku | |
| 255 1 WHR110440 |
C00747700
481246488023 |
Door dairy | Na dotaz | Zadat poptávku | |
| 255 3 WHR110440 |
C00747701
481240468034 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 255 4 WHR110440 |
C00747702
481240448799 |
Door dairy | Na dotaz | Zadat poptávku | |
| 255 5 WHR110440 |
C00583852
481241848494 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 301 0 WHR110440 |
C00747703
481246468998 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR110440 |
C00747704
481241359101 |
Knob | Na dotaz | Zadat poptávku | |
| 331 1 WHR110440 |
C00527753
481241368012 |
Knob defrost | Na dotaz | Zadat poptávku | |
| 331 2 WHR110440 |
C00487542
481241368013 |
Knob termostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR110440 |
C00747705
481236038755 |
Compressor FFI 6HAK 220-50/60 | Na dotaz | Zadat poptávku | |
| 402 5 WHR110440 |
C00747706
481240478481 |
Clip | Na dotaz | Zadat poptávku | |
| 402 6 WHR110440 |
C00574946
481246428021 |
Traverse. | Na dotaz | Zadat poptávku | |
| 554 0 WHR110440 |
C00747707
481228208619 |
Thermostat | Na dotaz | Zadat poptávku | |
| 554 1 WHR110440 |
C00491500
481240438644 |
Fixation termostat | Na dotaz | Zadat poptávku | |
| 554 2 WHR110440 |
C00747708
481241828272 |
Cabinet termostat | Na dotaz | Zadat poptávku | |
| 554 3 WHR110440 |
C00747709
481240438645 |
Holder termostat | Na dotaz | Zadat poptávku | |
| 561 5 WHR110440 |
C00747710
481221778128 |
Connection | Na dotaz | Zadat poptávku | |
| 571 0 WHR110440 |
C00747711
481253008006 |
Drainhose | Na dotaz | Zadat poptávku | |
| 614 0 WHR110440 |
C00493838
481269028017 |
Relay PTC | Na dotaz | Zadat poptávku | |
| 651 0 WHR110440 |
C00574299
481213488025 |
Lamp. | Na dotaz | Zadat poptávku | |
| 651 1 WHR110440 |
C00484763
481240418297 |
Protector lamp | Na dotaz | Zadat poptávku | |
| 652 0 WHR110440 |
C00557158
481225528005 |
HOLDER,LAMP.. | Na dotaz | Zadat poptávku | |
| 655 0 WHR110440 |
C00490940
481221778127 |
Switch light | Na dotaz | Zadat poptávku | |
| 740 0 WHR110440 |
C00747712
481251148275 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 1 WHR110440 |
C00621451
481246698943 |
BRACKET. | Na dotaz | Zadat poptávku | |
| 745 0 WHR110440 |
C00747713
481251138182 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR110440 |
C00740064
481248028038 |
Dryer | Na dotaz | Zadat poptávku | |
| 783 0 WHR110440 |
C00747714
481253029145 |
Tube | Na dotaz | Zadat poptávku | |
| 783 6 WHR110440 |
C00584782
481246688608 |
Gasket. | Na dotaz | Zadat poptávku | |
| 900 0 WHR110440 |
C00574700
481232058073 |
Staple. | Na dotaz | Zadat poptávku | |
| 900 2 WHR110440 |
C00574968
481250218506 |
Screw. | Na dotaz | Zadat poptávku | |
| 900 3 WHR110440 |
C00747687
481253288018 |
Bushing | Na dotaz | Zadat poptávku | |
| 900 5 WHR110440 |
C00343300
481253578042 |
Clip | Na dotaz | Zadat poptávku | |
| 900 6 WHR110440 |
C00330243
481246048886 |
Cover | Na dotaz | Zadat poptávku | |
| 910 0 WHR110440 |
C00747715
481241378654 |
Stopper | Na dotaz | Zadat poptávku | |
| 910 1 WHR110440 |
C00336665
481256018026 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR110440 |
C00344080
481253288011 |
Bushing | Na dotaz | Zadat poptávku | |
| 910 3 WHR110440 |
C00747716
481246228327 |
Stopper | Na dotaz | Zadat poptávku | |
| 910 4 WHR110440 |
C00498375
481246228179 |
Bushing right,white. | Na dotaz | Zadat poptávku | |
| 910 5 WHR110440 |
C00336668
481256018023 |
Screw | Na dotaz | Zadat poptávku | |
| 910 7 WHR110440 |
C00336667
481256018022 |
Screw | Na dotaz | Zadat poptávku | |
| 910 8 WHR110440 |
C00574859
481244688129 |
drzak dveri levy | Na dotaz | Zadat poptávku | |
| 923 0 WHR110440 |
C00500796
481240478396 |
Fastener clip | Na dotaz | Zadat poptávku | |
| 930 0 WHR110440 |
C00747717
481240478482 |
O-Ring | Na dotaz | Zadat poptávku | |
| 999 WHR110440 |
C00791216 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
