WHIRLPOOL ARG 912
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARG 912 |
| Kód 12NC: | 853491296000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 853491215000, Q0912600000, 853491296001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

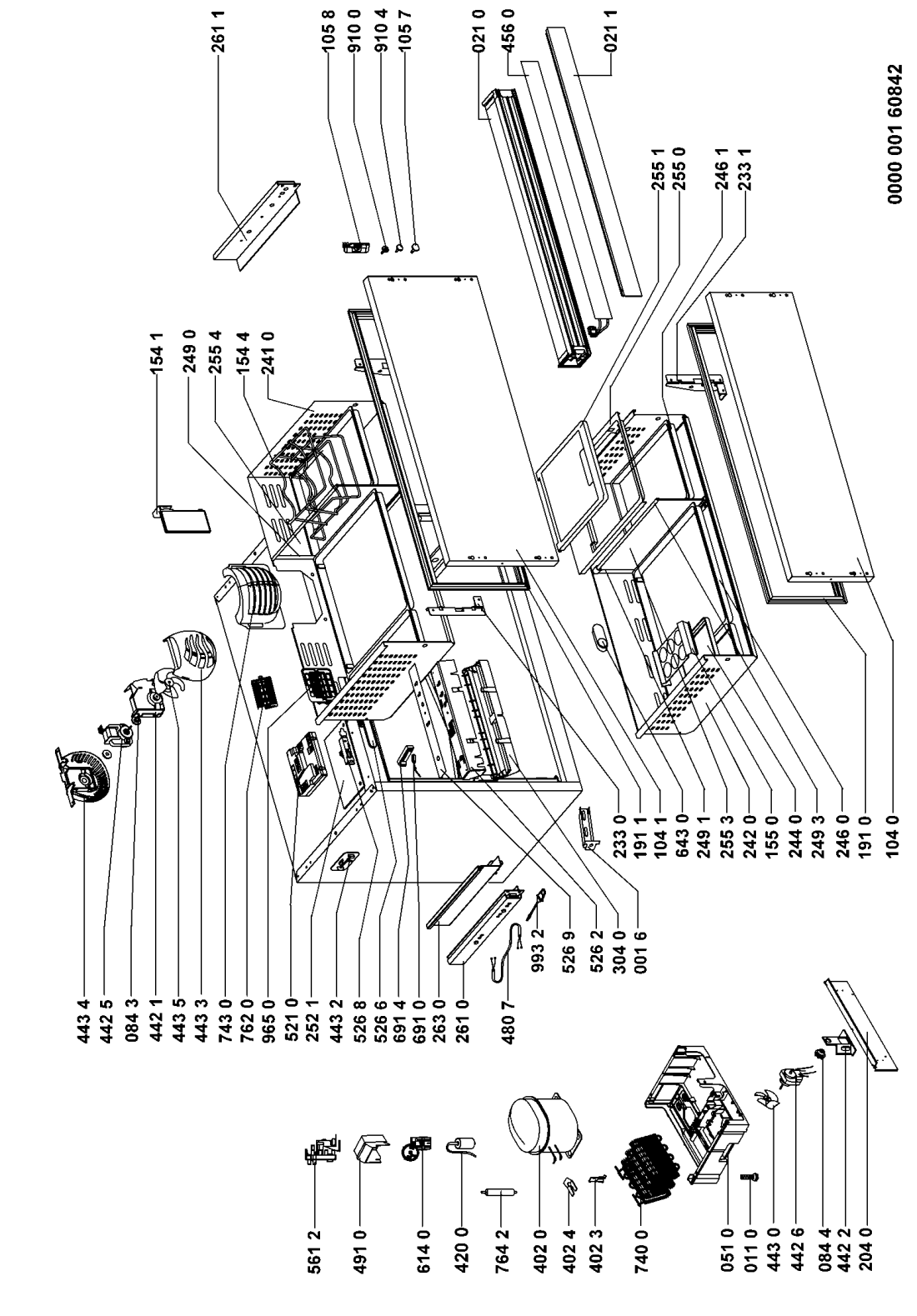

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 6 WHR11535 |
C00329005
481240418627 |
Holder furniture | Na dotaz | Zadat poptávku | |
| 011 0 WHR11535 |
C00330471
481246218317 |
Foot sub 481950018141 | Na dotaz | Zadat poptávku | |
| 021 0 WHR11535 |
C00328366
481244079314 |
Front panel | Na dotaz | Zadat poptávku | |
| 021 1 WHR11535 |
C00328365
481244079313 |
Cover mullion complete | Na dotaz | Zadat poptávku | |
| 051 0 WHR11535 |
C00330847
481246448245 |
Bottom | Na dotaz | Zadat poptávku | |
| 084 3 WHR11535 |
C00333281
481952918124 |
krouzek tlumici | 495 Kč
€ 21.80 |
||
| 084 4 WHR11535 |
C00333073
481946248211 |
gufero | 121 Kč
€ 5.30 |
||
| 104 0 WHR11535 |
C00458338
481241610579 |
Door | Na dotaz | Zadat poptávku | |
| 104 1 WHR11535 |
C00329596
481241610581 |
Door upper | Na dotaz | Zadat poptávku | |
| 105 7 WHR11535 |
C00329206
481240478707 |
drzak | 400 Kč
€ 17.60 |
||
| 105 8 WHR11535 |
C00329163
481240468035 |
Držák dekor.desky | 561 Kč
€ 24.70 |
||
| 154 1 WHR11535 |
C00327922
481241889095 |
Separator flip | Na dotaz | Zadat poptávku | |
| 154 4 WHR11535 |
C00330159
481245848408 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 155 0 WHR11535 |
C00315576
481241828427 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 191 0 WHR11535 |
C00319855
481246668926 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 191 1 WHR11535 |
C00319857
481246668927 |
Magnetic seal upper | Na dotaz | Zadat poptávku | |
| 204 0 WHR11535 |
C00331062
481244229344 |
Plinth | Na dotaz | Zadat poptávku | |
| 233 0 WHR11535 |
C00313467
481240418626 |
Support right basket | Na dotaz | Zadat poptávku | |
| 233 1 WHR11535 |
C00314651
481240418625 |
Support left basket | 772 Kč
€ 33.90 |
||
| 241 0 WHR11535 |
C00327809
481241838174 |
Drawer upper | Na dotaz | Zadat poptávku | |
| 242 0 WHR11535 |
C00327810
481241838175 |
Drawer lower | Na dotaz | Zadat poptávku | |
| 244 0 WHR11535 |
C00327770
481241829973 |
Shelf flat | Na dotaz | Zadat poptávku | |
| 246 0 WHR11535 |
C00327780
481241829986 |
Tray large | Na dotaz | Zadat poptávku | |
| 246 1 WHR11535 |
C00327779
481241829985 |
Tray small | Na dotaz | Zadat poptávku | |
| 249 0 WHR11535 |
C00330354
481246049866 |
Frame upper glass shelf | Na dotaz | Zadat poptávku | |
| 249 1 WHR11535 |
C00330353
481246049865 |
Frame lower glass shelf | Na dotaz | Zadat poptávku | |
| 249 3 WHR11535 |
C00330427
481246088326 |
Trim IN | Na dotaz | Zadat poptávku | |
| 252 1 WHR11535 |
C00330555
481246228818 |
Kryt elektroniky | 100 Kč
€ 4.40 |
||
| 255 0 WHR11535 |
C00319269
481246049867 |
Frame flap | Na dotaz | Zadat poptávku | |
| 255 1 WHR11535 |
C00318804
481241829975 |
kryt | Na dotaz | Zadat poptávku | |
| 255 3 WHR11535 |
C00331233
481245088488 |
Glass shelf lower | Na dotaz | Zadat poptávku | |
| 255 4 WHR11535 |
C00331234
481245088489 |
Glass shelf upper | Na dotaz | Zadat poptávku | |
| 261 0 WHR11535 |
C00314016
481246818396 |
Rail drawer left | Na dotaz | Zadat poptávku | |
| 261 1 WHR11535 |
C00313476
481246818397 |
Rail drawer right | Na dotaz | Zadat poptávku | |
| 263 0 WHR11535 |
C00316392
481244098356 |
Protector rail | Na dotaz | Zadat poptávku | |
| 304 0 WHR11535 |
C00319417
481246229354 |
Cover control panel | Na dotaz | Zadat poptávku | |
| 402 0 WHR11535 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 402 3 WHR11535 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 4 WHR11535 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 420 0 WHR11535 |
C00326746
481212028017 |
Capacitor 2.5 MF | Na dotaz | Zadat poptávku | |
| 442 1 WHR11535 |
C00332961
481940479433 |
Holder | Na dotaz | Zadat poptávku | |
| 442 2 WHR11535 |
C00332945
481940478859 |
drzak | 169 Kč
€ 7.40 |
||
| 442 5 WHR11535 |
C00314721
481936118466 |
motor ventilatoru | 3 046 Kč
€ 133.90 |
||
| 442 6 WHR11535 |
C00314229
481936178144 |
motorek ventilatoru | 2 093 Kč
€ 92.00 |
||
| 443 0 WHR11535 |
C00328802
481236118422 |
vrtule vent. | 450 Kč
€ 19.80 |
||
| 443 2 WHR11535 |
C00319421
481246229356 |
Cover | Na dotaz | Zadat poptávku | |
| 443 3 WHR11535 |
C00333090
481946258376 |
kryt ventilatoru | 669 Kč
€ 29.40 |
||
| 443 4 WHR11535 |
C00333108
481946288073 |
kryt | 4 697 Kč
€ 206.50 |
||
| 443 5 WHR11535 |
C00333263
481951528289 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 456 0 WHR11535 |
C00327171
481225948209 |
Heating element front 6W | Na dotaz | Zadat poptávku | |
| 480 7 WHR11535 |
C00314462
481232178387 |
Cable harness drawer | Na dotaz | Zadat poptávku | |
| 491 0 WHR11535 |
C00256948
481229088103 |
KRYT SVORKOVNICE COMPRESS. | Na dotaz | Zadat poptávku | |
| 521 0 WHR11535 |
C00326993
481221470495 |
Control unit sub 481221470724 | Na dotaz | Zadat poptávku | |
| 526 2 WHR11535 |
C00318000
481245228993 |
panel ovladaci | Na dotaz | Zadat poptávku | |
| 526 6 WHR11535 |
C00331422
481245298354 |
Cover | Na dotaz | Zadat poptávku | |
| 526 8 WHR11535 |
C00327040
481221778272 |
Interface SAM | Na dotaz | Zadat poptávku | |
| 526 9 WHR11535 |
C00317423
481245228992 |
Insert f. control panel | Na dotaz | Zadat poptávku | |
| 561 2 WHR11535 |
C00256950
481229068325 |
kryt rele | 601 Kč
€ 26.40 |
||
| 614 0 WHR11535 |
C00327481
481228038125 |
Monoblock | 602 Kč
€ 26.50 |
||
| 643 0 WHR11535 |
C00327023
481221538023 |
Thermometer | Na dotaz | Zadat poptávku | |
| 691 0 WHR11535 |
C00311307
481231018846 |
Senzor teploty - sada | 1 663 Kč
€ 73.10 |
||
| 691 4 WHR11535 |
C00330510
481246228546 |
Kryt senzoru | 114 Kč
€ 5.00 |
||
| 740 0 WHR11535 |
C00332264
481251148469 |
Condenser | Na dotaz | Zadat poptávku | |
| 743 0 WHR11535 |
C00315889
481246229355 |
Cover fan | Na dotaz | Zadat poptávku | |
| 762 0 WHR11535 |
C00312451
481248048172 |
Antibakteriální filtr Microban pro chladničky ANTF-MIC | 129 Kč
€ 5.70 |
||
| 764 2 WHR11535 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 910 0 WHR11535 |
C00332119
481250218745 |
Šroubek | 84 Kč
€ 3.70 |
||
| 910 4 WHR11535 |
C00316663
481250218744 |
Screw sub 481250218749 | Na dotaz | Zadat poptávku | |
| 965 0 WHR11535 |
C00329069
481240449601 |
Support anti-bacterial filter | Na dotaz | Zadat poptávku | |
| 993 2 WHR11535 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| 993 8 WHR11535 |
C00328478
481231088438 |
mounting kit | Na dotaz | Zadat poptávku | |
| 999 WHR11535 |
C00351021 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
