IGNIS ARL101/K/G/01 REFRIGERATORS IG
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARL101/K/G/01 REFRIGERATORS IG |
| Kód 12NC: | 853910138300 |
| I.C. kód: | 853910138305 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné lednice s mrazákem |
| Další podobné modely: | 853910138300, 853910138301, 853910138302 |
Potřebujete servis? Jsme tady pro Vás

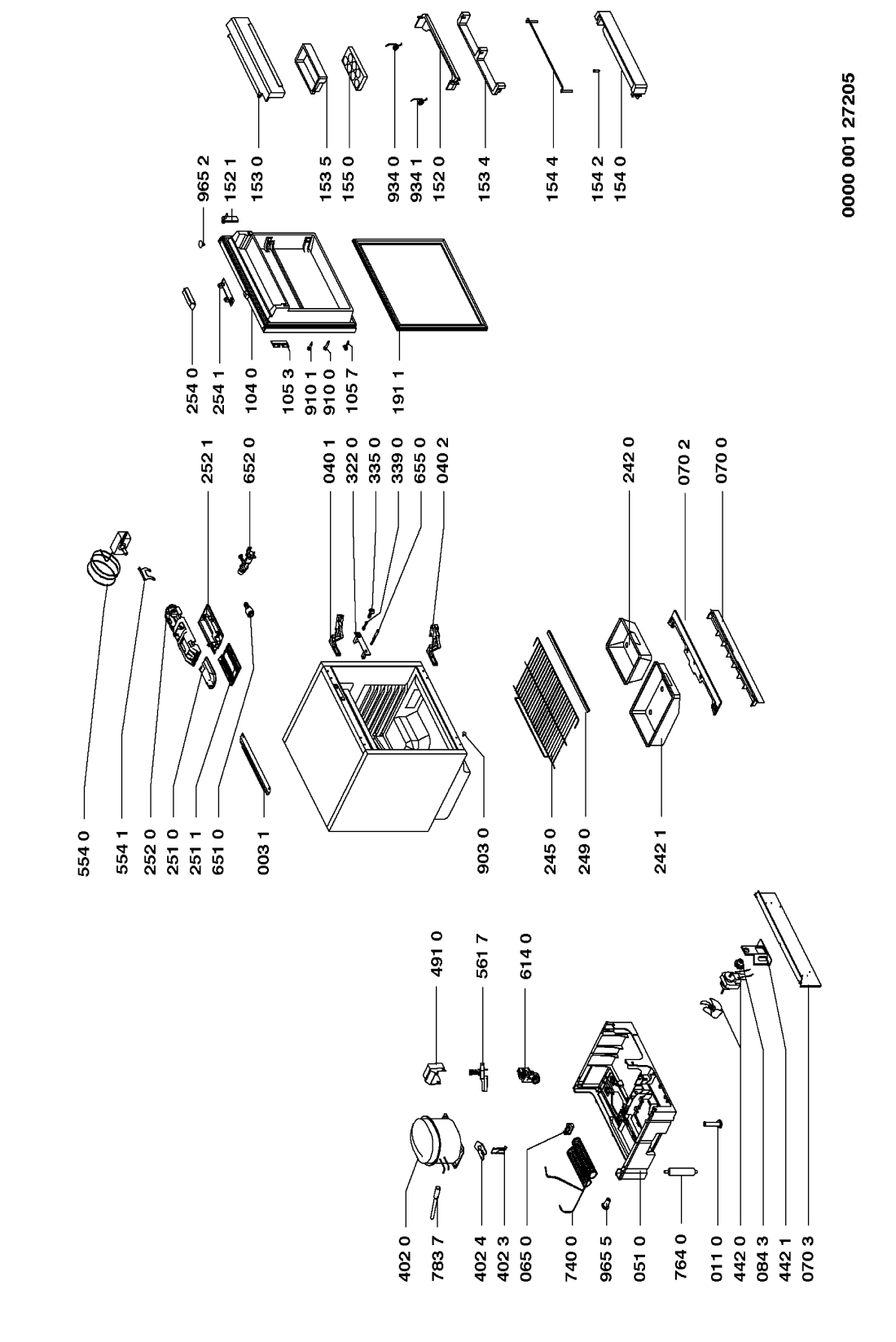

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR90166 |
C00328282
481244069218 |
lista | Na dotaz | Zadat poptávku | |
| 011 0 WHR90166 |
C00311579
481950018141 |
noha lednice | 75 Kč
€ 3.30 |
||
| 040 1 WHR90166 |
C00339858
481241718814 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR90166 |
C00339859
481241718813 |
Hinge | Na dotaz | Zadat poptávku | |
| 051 0 WHR90166 |
C00333116
481946418163 |
Base | Na dotaz | Zadat poptávku | |
| 065 0 WHR90166 |
C00333279
481952918041 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 070 0 WHR90166 |
C00319326
481244269321 |
sokl | 1 549 Kč
€ 68.10 |
||
| 070 2 WHR90166 |
C00317269
481244229215 |
kryt | Na dotaz | Zadat poptávku | |
| 070 3 WHR90166 |
C00333019
481944229927 |
Kryt | 397 Kč
€ 17.50 |
||
| 084 3 WHR90166 |
C00333073
481946248211 |
gufero | 121 Kč
€ 5.30 |
||
| 104 0 WHR90166 |
C00341372
481944268075 |
DOOR RF OUTER | Na dotaz | Zadat poptávku | |
| 105 3 WHR90166 |
C00333128
481946689044 |
Fastener | Na dotaz | Zadat poptávku | |
| 105 7 WHR90166 |
C00333274
481952838286 |
kolik s excentrem | 40 Kč
€ 1.80 |
||
| 152 0 WHR90166 |
C00339672
481940449368 |
Holder | Na dotaz | Zadat poptávku | |
| 152 1 WHR90166 |
C00499616
481953518031 |
prichytka uz nebude !!!!! | Na dotaz | Zadat poptávku | |
| 153 0 WHR90166 |
C00586659
481241828529 |
Flap f. dairy door. | Na dotaz | Zadat poptávku | |
| 153 4 WHR90166 |
C00327670
481241828527 |
Door dairy | Na dotaz | Zadat poptávku | |
| 153 5 WHR90166 |
C00497827
481241828528 |
POLICKA MALA ART783 N | Na dotaz | Zadat poptávku | |
| 154 0 WHR90166 |
C00315764
481241828526 |
police lahvi | 1 384 Kč
€ 60.80 |
||
| 154 2 WHR90166 |
C00333335
481953278061 |
Bushing | Na dotaz | Zadat poptávku | |
| 154 4 WHR90166 |
C00318294
481953598241 |
Rod bottlebox | Na dotaz | Zadat poptávku | |
| 155 0 WHR90166 |
C00333066
481946088403 |
drzak vajec | 338 Kč
€ 14.90 |
||
| 191 1 WHR90166 |
C00312856
481946818162 |
Těsnění magnetické | 2 294 Kč
€ 100.80 |
||
| 242 0 WHR90166 |
C00313969
481241848603 |
zasuvka na zeleninu mélčí | 1 341 Kč
€ 58.90 |
||
| 242 1 WHR90166 |
C00314255
481241848604 |
zasuvka na zeleninu | 1 228 Kč
€ 54.00 |
||
| 245 0 WHR90166 |
C00333056
481945868267 |
GRID | Na dotaz | Zadat poptávku | |
| 249 0 WHR90166 |
C00319239
481246049449 |
lista kryci rostu | 558 Kč
€ 24.50 |
||
| 251 0 WHR90166 |
C00332896
481938028002 |
Reflector | Na dotaz | Zadat poptávku | |
| 251 1 WHR90166 |
C00320080
481946279556 |
kryt dif | 725 Kč
€ 31.90 |
||
| 252 0 WHR90166 |
C00316781
481940478855 |
Casing | Na dotaz | Zadat poptávku | |
| 252 1 WHR90166 |
C00318922
481946279617 |
kryt | 39 Kč
€ 1.70 |
||
| 254 0 WHR90166 |
C00327270
481227328221 |
LIGHT LEVEL | Na dotaz | Zadat poptávku | |
| 254 1 WHR90166 |
C00329049
481240448878 |
drzak | 617 Kč
€ 27.10 |
||
| 322 0 WHR90166 |
C00329048
481240448874 |
Holder | Na dotaz | Zadat poptávku | |
| 335 0 WHR90166 |
C00318407
481241359127 |
spinac+termostat | 114 Kč
€ 5.00 |
||
| 339 0 WHR90166 |
C00333350
481953598347 |
Shaft thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR90166 |
C00343578
481236038597 |
Compressor BPM1072Z | Na dotaz | Zadat poptávku | |
| 402 3 WHR90166 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 4 WHR90166 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 442 0 WHR90166 |
C00314229
481936178144 |
motorek ventilatoru | 2 093 Kč
€ 92.00 |
||
| 442 1 WHR90166 |
C00332945
481940478859 |
drzak | 169 Kč
€ 7.40 |
||
| 491 0 WHR90166 |
C00342331
481946288145 |
Cover,conn.bloc | Na dotaz | Zadat poptávku | |
| 554 0 WHR90166 |
C00313099
481227128422 |
termostat | 1 834 Kč
€ 80.60 |
||
| 554 1 WHR90166 |
C00333185
481949268723 |
pruzina | 452 Kč
€ 19.90 |
||
| 561 7 WHR90166 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR90166 |
C00341711
481269028007 |
Monoblock | Na dotaz | Zadat poptávku | |
| 651 0 WHR90166 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR90166 |
C00313941
481925518199 |
spinac osvetl.+obj. | 944 Kč
€ 41.50 |
||
| 655 0 WHR90166 |
C00329408
481241168009 |
Switch | Na dotaz | Zadat poptávku | |
| 740 0 WHR90166 |
C00332223
481251148068 |
Condenser | Na dotaz | Zadat poptávku | |
| 764 0 WHR90166 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 783 7 WHR90166 |
C00326890
481217088001 |
Tube | Na dotaz | Zadat poptávku | |
| 903 0 WHR90166 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 13.30 |
||
| 910 0 WHR90166 |
C00344633
481953268521 |
sroubek | 39 Kč
€ 1.70 |
||
| 910 1 WHR90166 |
C00333205
481950218306 |
sroubek | 40 Kč
€ 1.80 |
||
| 934 0 WHR90166 |
C00317569
481949248127 |
Spring right | Na dotaz | Zadat poptávku | |
| 934 1 WHR90166 |
C00320164
481949248128 |
Spring leftleft sub 481231018626 | Na dotaz | Zadat poptávku | |
| 965 2 WHR90166 |
C00545039
481246228509 |
Stopper. | Na dotaz | Zadat poptávku | |
| 965 5 WHR90166 |
C00333278
481952918039 |
Spacer | Na dotaz | Zadat poptávku | |
| 993 9 WHR90166 |
C00498910
481931038798 |
balicek montazni | 495 Kč
€ 21.80 |
||
| 999 WHR90166 |
C00732667 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
