IGNIS ARL 392/A+
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ARL 392/A+ |
| Kód 12NC: | 853913638300 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné lednice |
| Další podobné modely: | 753913638301, 853913638301, 853913638000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

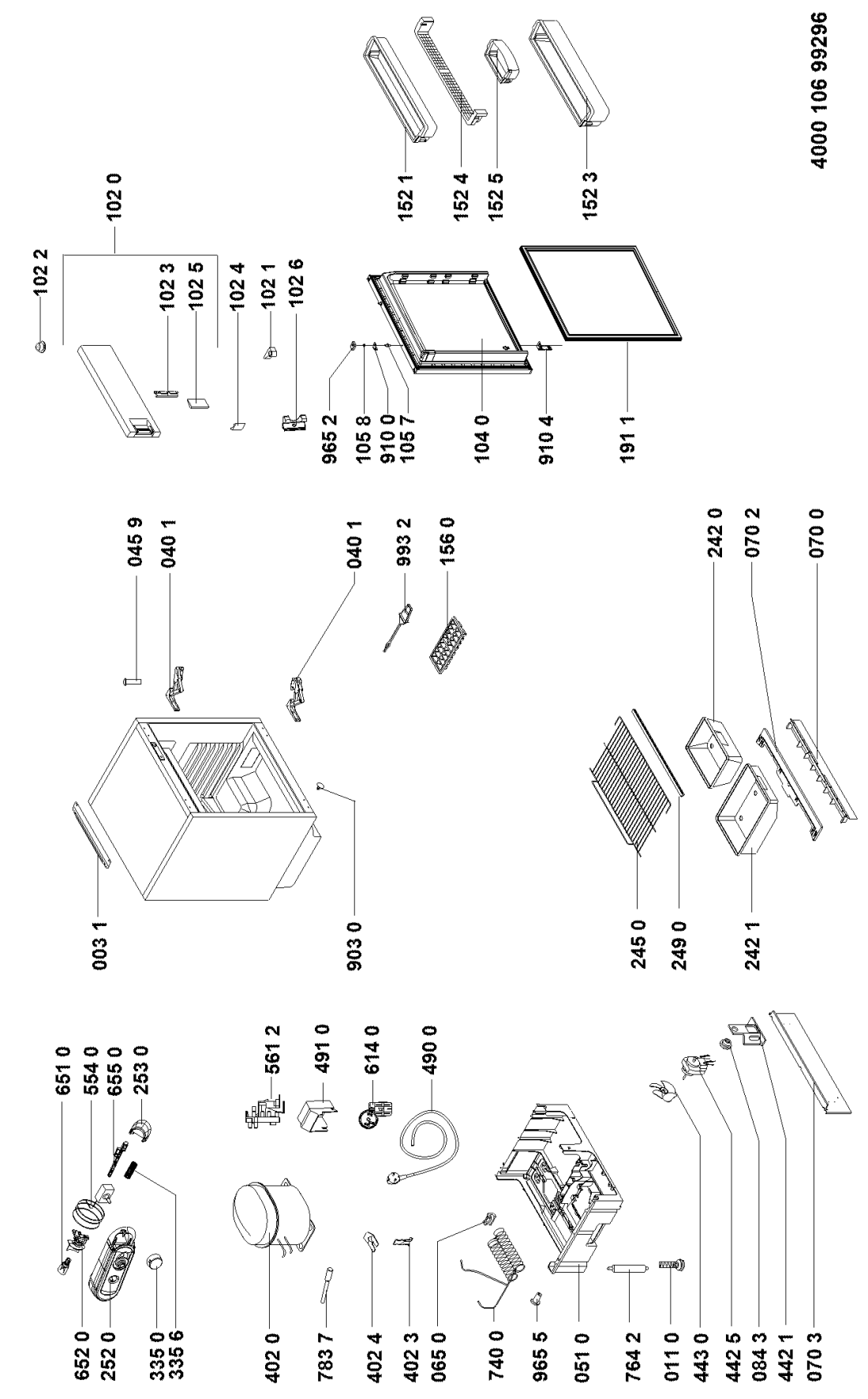

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 0031 WHR23283 |
C00325840
481010645940 |
Lišta lednice | 674 Kč
€ 29.60 |
||
| 0110 WHR23283 |
C00311579
481950018141 |
noha lednice | 75 Kč
€ 3.30 |
||
| 0401 WHR23283 |
C00310966
481231018672 |
Závěs dveří - sada 481231018672 | Na dotaz | Zadat poptávku | |
| 0459 WHR23283 |
C00315522
481241778065 |
Čep | Na dotaz | Zadat poptávku | |
| 0510 WHR23283 |
C00325226
481010559286 |
Základní rám lednice | 2 737 Kč
€ 120.30 |
||
| 0510 WHR23283 |
C00326199
481010682461 |
Bottom UC | Na dotaz | Zadat poptávku | |
| 0650 WHR23283 |
C00333279
481952918041 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 0700 WHR23283 |
C00319326
481244269321 |
sokl | 1 549 Kč
€ 68.10 |
||
| 0702 WHR23283 |
C00317269
481244229215 |
kryt | Na dotaz | Zadat poptávku | |
| 0703 WHR23283 |
C00333019
481944229927 |
Kryt | 397 Kč
€ 17.50 |
||
| 0843 WHR23283 |
C00333073
481946248211 |
gufero | 121 Kč
€ 5.30 |
||
| 1020 WHR23283 |
C00314323
481244069384 |
Dveře výparníku kompletní ARG 913 | 1 869 Kč
€ 82.20 |
||
| 1021 WHR23283 |
C00319551
481240478335 |
zaves dveri vyparnik | 1 005 Kč
€ 44.20 |
||
| 1022 WHR23283 |
C00318944
481946698901 |
Podložka distanční | 223 Kč
€ 9.80 |
||
| 1023 WHR23283 |
C00333174
481949268501 |
Pružina rukojeti dveří | Na dotaz | Zadat poptávku | |
| 1024 WHR23283 |
C00328907
481240118632 |
Hák uzávěru | 628 Kč
€ 27.60 |
||
| 1025 WHR23283 |
C00319365
481246228506 |
rukojet dveri vypar. | 886 Kč
€ 38.90 |
||
| 1026 WHR23283 |
C00345849
481249238396 |
Pružina dveří | 93 Kč
€ 4.10 |
||
| 1040 WHR23283 |
C00325856
481010647967 |
Dveře | 6 527 Kč
€ 286.90 |
||
| 1057 WHR23283 |
C00325866
481010648794 |
Screw M5/M6 | Na dotaz | Zadat poptávku | |
| 1058 WHR23283 |
C00325867
481010648795 |
Nut M6 | Na dotaz | Zadat poptávku | |
| 1521 WHR23283 |
C00319964
481941879155 |
Police | 1 091 Kč
€ 48.00 |
||
| 1523 WHR23283 |
C00319552
481241879901 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1524 WHR23283 |
C00329923
481241828474 |
Door dairy support boxes | Na dotaz | Zadat poptávku | |
| 1525 WHR23283 |
C00327674
481241828563 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1560 WHR23283 |
C00287849
481941878977 |
miska na led | 290 Kč
€ 12.70 |
||
| 1911 WHR23283 |
C00325839
481010645930 |
Těsnění magnenické | 2 293 Kč
€ 100.80 |
||
| 2420 WHR23283 |
C00313969
481241848603 |
zasuvka na zeleninu mélčí | 1 341 Kč
€ 58.90 |
||
| 2421 WHR23283 |
C00314255
481241848604 |
zasuvka na zeleninu | 1 228 Kč
€ 54.00 |
||
| 2450 WHR23283 |
C00333056
481945868267 |
GRID | Na dotaz | Zadat poptávku | |
| 2490 WHR23283 |
C00319239
481246049449 |
lista kryci rostu | 558 Kč
€ 24.50 |
||
| 2520 WHR23283 |
C00313098
480132103285 |
kryt | 878 Kč
€ 38.60 |
||
| 2530 WHR23283 |
C00311648
481246228545 |
kryt-plast | 684 Kč
€ 30.10 |
||
| 3350 WHR23283 |
C00311920
481241078172 |
knoflik termostatu | 565 Kč
€ 24.80 |
||
| 3356 WHR23283 |
C00312939
481249148014 |
pruzina | 382 Kč
€ 16.80 |
||
| 4020 WHR23283 |
C00311989
481236038764 |
kompresorEMT 26CLP 59W - mraznička | Na dotaz | Zadat poptávku | |
| 4023 WHR23283 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 4024 WHR23283 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 5.30 |
||
| 4421 WHR23283 |
C00332945
481940478859 |
drzak | 169 Kč
€ 7.40 |
||
| 4425 WHR23283 |
C00314229
481936178144 |
motorek ventilatoru | 2 093 Kč
€ 92.00 |
||
| 4430 WHR23283 |
C00328802
481236118422 |
vrtule vent. | 450 Kč
€ 19.80 |
||
| 4900 WHR23283 |
C00326419
481050285321 |
CABLE MAINS 2450MM, 10-16A, 250V, BLACK | Na dotaz | Zadat poptávku | |
| 4910 WHR23283 |
C00318976
481010553122 |
Kryt | 117 Kč
€ 5.10 |
||
| 5540 WHR23283 |
C00315674
481228228333 |
Thermostat A13-0681 | Na dotaz | Zadat poptávku | |
| 5612 WHR23283 |
C00256950
481229068325 |
kryt rele | 601 Kč
€ 26.40 |
||
| 6140 WHR23283 |
C00327481
481228038125 |
Monoblock | 602 Kč
€ 26.50 |
||
| 6510 WHR23283 |
C00266729
484000000981 |
ŽÁROVKA 220-240V/15W (E14) | Na dotaz | Zadat poptávku | |
| 6510 WHR23283 |
C00317536
481010456788 |
Žárovka LED 0,6W E14 | Na dotaz | Zadat poptávku | |
| 6520 WHR23283 |
C00311531
481246698982 |
Držák termostatu | 726 Kč
€ 31.90 |
||
| 6550 WHR23283 |
C00311795
481227618362 |
Páčka osvětlení | 995 Kč
€ 43.70 |
||
| 7400 WHR23283 |
C00332223
481251148068 |
Condenser | Na dotaz | Zadat poptávku | |
| 7642 WHR23283 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 7837 WHR23283 |
C00326892
481217088015 |
TUBE 60 MM | Na dotaz | Zadat poptávku | |
| 9030 WHR23283 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 13.30 |
||
| 9100 WHR23283 |
C00325827
481010645097 |
Bracket upper | Na dotaz | Zadat poptávku | |
| 9104 WHR23283 |
C00325828
481010645098 |
Bracket lower | Na dotaz | Zadat poptávku | |
| 9652 WHR23283 |
C00325829
481010645099 |
Cover | Na dotaz | Zadat poptávku | |
| 9655 WHR23283 |
C00333278
481952918039 |
Spacer | Na dotaz | Zadat poptávku | |
| 9932 WHR23283 |
C00316841
481969028169 |
Čistič odtoku | 221 Kč
€ 9.70 |
||
| 9938 WHR23283 |
C00325855
481010647810 |
sada montážní | 1 000 Kč
€ 44.00 |
||
| 999 WHR23283 |
C00346591 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
