| Komerční kód: | ARL 436/G |
| Kód 12NC/I.C. kód: | 853943610000 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

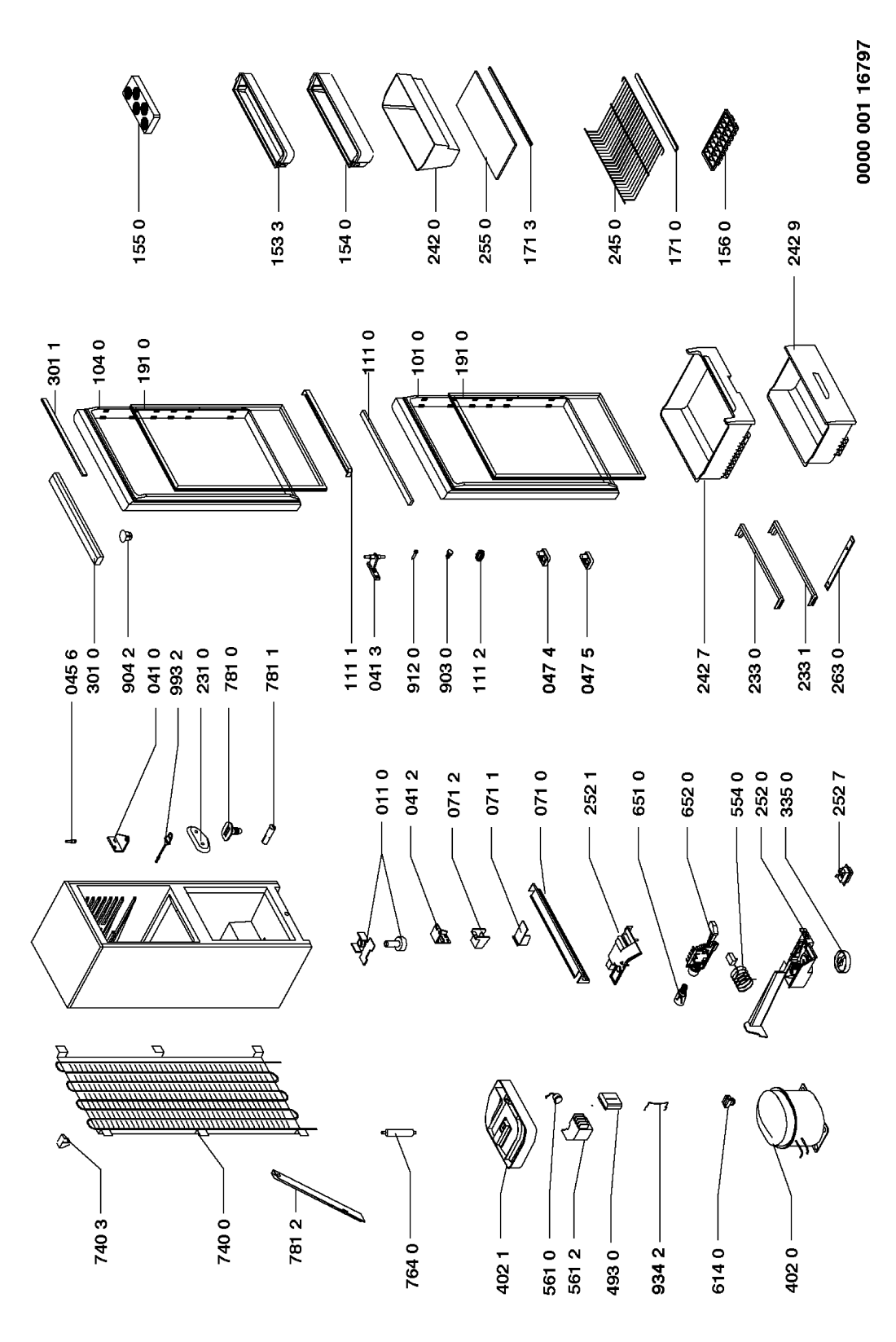

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR95900 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 041 0 WHR95900 |
C00339760
481941719543 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 041 2 WHR95900 |
C00339831
481941719544 |
Hinge bottom | Na dotaz | Zadat poptávku | |
| 041 3 WHR95900 |
C00339744
481941719531 |
Hinge,middle | Na dotaz | Zadat poptávku | |
| 045 6 WHR95900 |
C00341456
481953598624 |
Pin | Na dotaz | Zadat poptávku | |
| 047 4 WHR95900 |
C00344064
481953268389 |
drzak dveri levy | Na dotaz | Zadat poptávku | |
| 047 5 WHR95900 |
C00499605
481953268388 |
drzak dveri pravy | Na dotaz | Zadat poptávku | |
| 071 0 WHR95900 |
C00337724
481944268703 |
sokl | Na dotaz | Zadat poptávku | |
| 071 1 WHR95900 |
C00338893
481945919436 |
kryt soklu | Na dotaz | Zadat poptávku | |
| 071 2 WHR95900 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 101 0 WHR95900 |
C00499190
481944268723 |
Door,freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR95900 |
C00499189
481944268722 |
Door,refriger. | Na dotaz | Zadat poptávku | |
| 111 0 WHR95900 |
C00738598
481949869883 |
Grip | Na dotaz | Zadat poptávku | |
| 111 1 WHR95900 |
C00738599
481949869884 |
Grip | Na dotaz | Zadat poptávku | |
| 111 2 WHR95900 |
C00592951
481946279194 |
zatka rukojeti | Na dotaz | Zadat poptávku | |
| 153 3 WHR95900 |
C00586886
481941879812 |
police | Na dotaz | Zadat poptávku | |
| 154 0 WHR95900 |
C00586881
481941879781 |
police lahvi | Na dotaz | Zadat poptávku | |
| 155 0 WHR95900 |
C00339534
481946088408 |
drzak vajec | Na dotaz | Zadat poptávku | |
| 156 0 WHR95900 |
C00287849
481941878977 |
miska na led | 500 Kč
€ 20.10 |
||
| 171 0 WHR95900 |
C00335303
481946088514 |
Trim | Na dotaz | Zadat poptávku | |
| 171 3 WHR95900 |
C00316803
481946089247 |
Trim | Na dotaz | Zadat poptávku | |
| 191 0 WHR95900 |
C00338278
481946818074 |
Magnetic seal freezing | Na dotaz | Zadat poptávku | |
| 231 0 WHR95900 |
C00343342
481946258101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 0 WHR95900 |
C00339653
481940479375 |
Holder ,EvaporatorEvaporator | Na dotaz | Zadat poptávku | |
| 233 1 WHR95900 |
C00339620
481940479374 |
drzak vyparniku | Na dotaz | Zadat poptávku | |
| 242 0 WHR95900 |
C00586873
481941879021 |
zasuvka na zeleninu | Na dotaz | Zadat poptávku | |
| 242 7 WHR95900 |
C00341225
481941879192 |
Drawer large | Na dotaz | Zadat poptávku | |
| 242 9 WHR95900 |
C00586885
481941879811 |
Drawer | Na dotaz | Zadat poptávku | |
| 245 0 WHR95900 |
C00340275
481945868085 |
rost lednice | Na dotaz | Zadat poptávku | |
| 252 0 WHR95900 |
C00342762
481941878586 |
Casing thermostat | Na dotaz | Zadat poptávku | |
| 252 1 WHR95900 |
C00342351
481946279393 |
krabicka termostatu | Na dotaz | Zadat poptávku | |
| 252 7 WHR95900 |
C00335773
481927618285 |
spinac osvetleni | Na dotaz | Zadat poptávku | |
| 255 0 WHR95900 |
C00320102
481946678139 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 263 0 WHR95900 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
| 301 0 WHR95900 |
C00335914
481944268706 |
panel | Na dotaz | Zadat poptávku | |
| 301 1 WHR95900 |
C00744507
481944269086 |
Front | Na dotaz | Zadat poptávku | |
| 335 0 WHR95900 |
C00487957
481941128769 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR95900 |
C00343585
481936038618 |
Compressor B 1116 Z | Na dotaz | Zadat poptávku | |
| 402 1 WHR95900 |
C00335318
481941879035 |
miska na kondenzat UZ NEBUDE !!!! | Na dotaz | Zadat poptávku | |
| 493 0 WHR95900 |
C00499385
481946279046 |
KRYT SVORKOVNICE MR.BOXU N | Na dotaz | Zadat poptávku | |
| 554 0 WHR95900 |
C00312010
481927128788 |
Thermostat A13-0103-26 | Na dotaz | Zadat poptávku | |
| 561 0 WHR95900 |
C00337114
481928228631 |
Ochrana tepelná | Na dotaz | Zadat poptávku | |
| 561 2 WHR95900 |
C00498894
481929068198 |
svorkovnice | Na dotaz | Zadat poptávku | |
| 614 0 WHR95900 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 651 0 WHR95900 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR95900 |
C00339514
481946698567 |
Holder,thermom. f. ATE | Na dotaz | Zadat poptávku | |
| 740 0 WHR95900 |
C00499542
481951148597 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 3 WHR95900 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 0 WHR95900 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR95900 |
C00335471
481946278785 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 781 1 WHR95900 |
C00494680
481952648478 |
trubice odtokova | Na dotaz | Zadat poptávku | |
| 781 2 WHR95900 |
C00333287
481953028869 |
Hadice odvodu vody chladničky Whirlpool, Indesit | 74 Kč
€ 3.00 |
||
| 903 0 WHR95900 |
C00333168
481949248154 |
zaslepka | 41 Kč
€ 1.70 |
||
| 904 2 WHR95900 |
C00336022
481946278448 |
Stopper | Na dotaz | Zadat poptávku | |
| 912 0 WHR95900 |
C00336741
481950218383 |
Screw | Na dotaz | Zadat poptávku | |
| 934 2 WHR95900 |
C00336101
481949268431 |
pruzina | Na dotaz | Zadat poptávku | |
| 993 2 WHR95900 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 157 Kč
€ 6.30 |
||
| 993 9 WHR95900 |
C00744565
481931039593 |
Accessories kein et/delete | Na dotaz | Zadat poptávku | |
| 999 WHR95900 |
C00765482 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
