| Komerční kód: | ARZ 577/G REFRIGERATORS WP |
| Kód 12NC: | 858657710000 |
| I.C. kód: | 858657710001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
| Další podobné modely: | 858657710000, 858657710003 |
Potřebujete servis? Jsme tady pro Vás

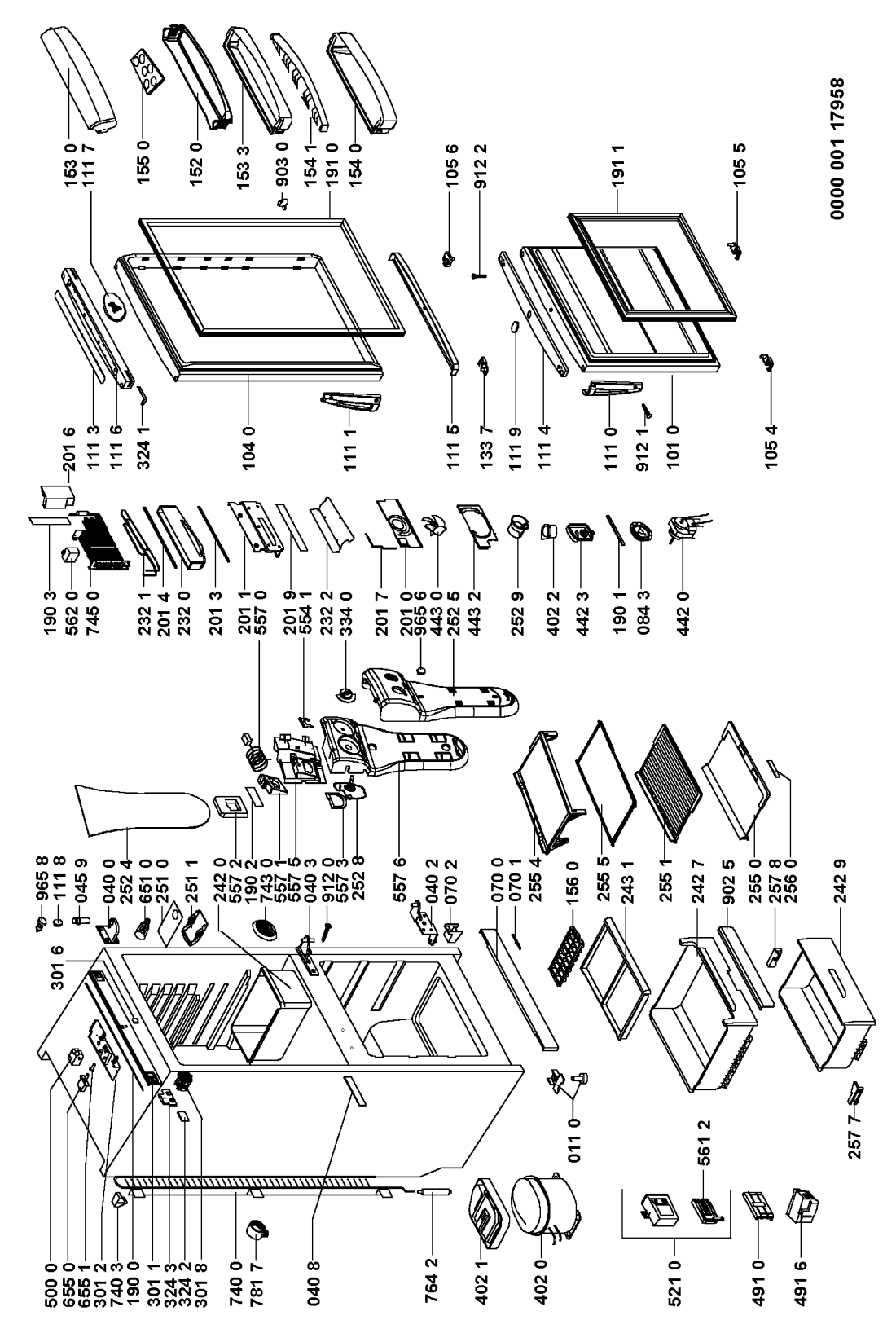

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR85581 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR85581 |
C00339875
481241719015 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 2 WHR85581 |
C00499104
481941719411 |
Z?VES SPODN# ART836 KOV N | Na dotaz | Zadat poptávku | |
| 040 3 WHR85581 |
C00340397
481941719409 |
ge,middle | Na dotaz | Zadat poptávku | |
| 040 8 WHR85581 |
C00343024
481246258034 |
Cover | Na dotaz | Zadat poptávku | |
| 045 9 WHR85581 |
C00337808
481953598666 |
Pivot | Na dotaz | Zadat poptávku | |
| 070 0 WHR85581 |
C00337725
481944268227 |
sokl | Na dotaz | Zadat poptávku | |
| 070 1 WHR85581 |
C00499332
481946078196 |
KRYT SOKLU ART N | Na dotaz | Zadat poptávku | |
| 070 2 WHR85581 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 084 3 WHR85581 |
C00333280
481952918093 |
tlumic ventilatoru | 354 Kč
€ 14.60 |
||
| 101 0 WHR85581 |
C00605900
481241618611 |
Door,freezer. | Na dotaz | Zadat poptávku | |
| 104 0 WHR85581 |
C00593527
481241618362 |
DVERE CHLADNICKY N | Na dotaz | Zadat poptávku | |
| 105 4 WHR85581 |
C00497591
481240448789 |
drzak dveri pravy | Na dotaz | Zadat poptávku | |
| 105 5 WHR85581 |
C00341798
481240448791 |
Latch | Na dotaz | Zadat poptávku | |
| 105 6 WHR85581 |
C00341364
481241778044 |
Door stay | Na dotaz | Zadat poptávku | |
| 111 0 WHR85581 |
C00339032
481949878494 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 1 WHR85581 |
C00339033
481949878495 |
Door handle | Na dotaz | Zadat poptávku | |
| 111 3 WHR85581 |
C00338900
481246048919 |
vlozka panelu plast | Na dotaz | Zadat poptávku | |
| 111 4 WHR85581 |
C00498495
481246818091 |
NAHRADENE 481244069223 | Na dotaz | Zadat poptávku | |
| 111 5 WHR85581 |
C00498319
481246048921 |
VLOZKA PLASTOVA | Na dotaz | Zadat poptávku | |
| 111 6 WHR85581 |
C00606191
481245228346 |
Panel,control. | Na dotaz | Zadat poptávku | |
| 111 7 WHR85581 |
C00499298
481945919349 |
logo Whirlpool | Na dotaz | Zadat poptávku | |
| 111 8 WHR85581 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 9 WHR85581 |
C00340101
481946248439 |
vlozka rukojete | Na dotaz | Zadat poptávku | |
| 133 7 WHR85581 |
C00497794
481241778045 |
PUZDRO ZAVESU N | Na dotaz | Zadat poptávku | |
| 152 0 WHR85581 |
C00318075
481941879724 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR85581 |
C00320034
481944278362 |
Flap | Na dotaz | Zadat poptávku | |
| 153 3 WHR85581 |
C00341348
481241828386 |
Door,dairy | Na dotaz | Zadat poptávku | |
| 154 0 WHR85581 |
C00319976
481941879606 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR85581 |
C00344322
481241828146 |
Bottle holder | Na dotaz | Zadat poptávku | |
| 155 0 WHR85581 |
C00339538
481241828149 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR85581 |
C00287849
481941878977 |
miska na led | 180 Kč
€ 7.40 |
||
| 190 0 WHR85581 |
C00340588
481953268737 |
Gasket | Na dotaz | Zadat poptávku | |
| 190 1 WHR85581 |
C00333144
481946698957 |
Gasket | Na dotaz | Zadat poptávku | |
| 190 2 WHR85581 |
C00498306
481245948144 |
Cover | Na dotaz | Zadat poptávku | |
| 190 3 WHR85581 |
C00499481
481946818112 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 0 WHR85581 |
C00314537
481246818072 |
Těsnění magnetické do dveří lednice chladničky Whirlpool | 1 681 Kč
€ 69.10 |
||
| 191 1 WHR85581 |
C00312786
481246818065 |
Těsnění magnetické do dveří mrazáku chladničky Whirlpool | 1 517 Kč
€ 62.40 |
||
| 201 0 WHR85581 |
C00499231
481945299346 |
Front | Na dotaz | Zadat poptávku | |
| 201 1 WHR85581 |
C00340682
481946078211 |
Front | Na dotaz | Zadat poptávku | |
| 201 3 WHR85581 |
C00499479
481946818054 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 4 WHR85581 |
C00499478
481946818053 |
Gasket | Na dotaz | Zadat poptávku | |
| 201 6 WHR85581 |
C00497998
481244079031 |
Cover | Na dotaz | Zadat poptávku | |
| 201 7 WHR85581 |
C00499489
481946818394 |
Gasket border | Na dotaz | Zadat poptávku | |
| 201 9 WHR85581 |
C00333063
481946078208 |
Foil alum.adhesive | Na dotaz | Zadat poptávku | |
| 232 0 WHR85581 |
C00342233
481941879151 |
Cup,thaw water | Na dotaz | Zadat poptávku | |
| 232 1 WHR85581 |
C00341151
481925928854 |
topeni | Na dotaz | Zadat poptávku | |
| 232 2 WHR85581 |
C00337204
481944278071 |
Water conveyor | Na dotaz | Zadat poptávku | |
| 242 0 WHR85581 |
C00342290
481941879416 |
Zásuvka na zeleninu | 1 454 Kč
€ 59.80 |
||
| 242 7 WHR85581 |
C00341264
481941879146 |
Šuplík Mrazničky | Na dotaz | Zadat poptávku | |
| 242 9 WHR85581 |
C00341265
481241828167 |
Drawer | Na dotaz | Zadat poptávku | |
| 243 1 WHR85581 |
C00336430
481241828166 |
Shelf | Na dotaz | Zadat poptávku | |
| 251 0 WHR85581 |
C00333062
481946078198 |
Reflector foil | Na dotaz | Zadat poptávku | |
| 251 1 WHR85581 |
C00342451
481946279771 |
kryt svetla | Na dotaz | Zadat poptávku | |
| 252 4 WHR85581 |
C00497999
481244079032 |
Cover | Na dotaz | Zadat poptávku | |
| 252 5 WHR85581 |
C00605969
481244079033 |
Cover ,air diffuser. | Na dotaz | Zadat poptávku | |
| 252 8 WHR85581 |
C00336247
481226338003 |
ovladac prepinace pl | Na dotaz | Zadat poptávku | |
| 252 9 WHR85581 |
C00333098
481946279776 |
Cover wires | Na dotaz | Zadat poptávku | |
| 255 0 WHR85581 |
C00342280
481246678389 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 255 1 WHR85581 |
C00340386
481241879683 |
rost skleneny | Na dotaz | Zadat poptávku | |
| 255 4 WHR85581 |
C00336437
481245088091 |
rost sklapeci | Na dotaz | Zadat poptávku | |
| 255 5 WHR85581 |
C00336438
481245088092 |
Shelf | Na dotaz | Zadat poptávku | |
| 256 0 WHR85581 |
C00499274
481945838048 |
regulator vzduchu | Na dotaz | Zadat poptávku | |
| 257 7 WHR85581 |
C00499471
481946698955 |
Fixation | Na dotaz | Zadat poptávku | |
| 257 8 WHR85581 |
C00499472
481946698956 |
Fixation | Na dotaz | Zadat poptávku | |
| 301 1 WHR85581 |
C00606190
481245228344 |
PANEL OVLADACI | Na dotaz | Zadat poptávku | |
| 301 2 WHR85581 |
C00606363
481246098044 |
Support | Na dotaz | Zadat poptávku | |
| 301 6 WHR85581 |
C00333101
481946279953 |
zaslepka | Na dotaz | Zadat poptávku | |
| 301 8 WHR85581 |
C00336005
481246048955 |
Stopper | Na dotaz | Zadat poptávku | |
| 324 1 WHR85581 |
C00338902
481246048922 |
zaslepka | Na dotaz | Zadat poptávku | |
| 324 2 WHR85581 |
C00499405
481946279767 |
krytka | Na dotaz | Zadat poptávku | |
| 324 3 WHR85581 |
C00336239
481946689233 |
krytka | Na dotaz | Zadat poptávku | |
| 334 0 WHR85581 |
C00605837
481241218029 |
GOMBIK | Na dotaz | Zadat poptávku | |
| 402 0 WHR85581 |
C00557960
481236038815 |
Compressor GQT80RSE | Na dotaz | Zadat poptávku | |
| 402 1 WHR85581 |
C00574847
481244079029 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 402 2 WHR85581 |
C00195454
481936048014 |
VENTIL | Na dotaz | Zadat poptávku | |
| 442 0 WHR85581 |
C00312313
481936118428 |
motor ventilatoru | Na dotaz | Zadat poptávku | |
| 442 3 WHR85581 |
C00333097
481946279775 |
Cover | Na dotaz | Zadat poptávku | |
| 443 0 WHR85581 |
C00313351
481951548034 |
vrtule ventilatoru | 241 Kč
€ 9.90 |
||
| 443 2 WHR85581 |
C00342952
481946279774 |
Cover | Na dotaz | Zadat poptávku | |
| 491 0 WHR85581 |
C00574635
481946278893 |
Cover connection block. | Na dotaz | Zadat poptávku | |
| 491 6 WHR85581 |
C00574636
481946279881 |
VEKO ART836 N | Na dotaz | Zadat poptávku | |
| 500 0 WHR85581 |
C00498875
481928218497 |
PROGRAMATOR N | Na dotaz | Zadat poptávku | |
| 521 0 WHR85581 |
C00482448
481221778148 |
Unit electrical | Na dotaz | Zadat poptávku | |
| 554 1 WHR85581 |
C00333185
481949268723 |
pruzina | 248 Kč
€ 10.20 |
||
| 557 0 WHR85581 |
C00374120
481228238106 |
termostat | Na dotaz | Zadat poptávku | |
| 557 1 WHR85581 |
C00498369
481246098045 |
Insert | Na dotaz | Zadat poptávku | |
| 557 2 WHR85581 |
C00340506
481246688654 |
Gasket | Na dotaz | Zadat poptávku | |
| 557 3 WHR85581 |
C00499480
481946818056 |
Gasket | Na dotaz | Zadat poptávku | |
| 557 5 WHR85581 |
C00335878
481240478577 |
Support | Na dotaz | Zadat poptávku | |
| 557 6 WHR85581 |
C00498502
481248028064 |
Air diffuser | Na dotaz | Zadat poptávku | |
| 561 2 WHR85581 |
C00494433
481929068175 |
Terminal strip | Na dotaz | Zadat poptávku | |
| 562 0 WHR85581 |
C00319756
481928228624 |
termostat | Na dotaz | Zadat poptávku | |
| 651 0 WHR85581 |
C00313818
481913488178 |
Lamp Tclick T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 655 0 WHR85581 |
C00605807
481238118282 |
Pilot lamp. | Na dotaz | Zadat poptávku | |
| 655 1 WHR85581 |
C00605974
481244098127 |
Cover. | Na dotaz | Zadat poptávku | |
| 740 0 WHR85581 |
C00499546
481951148664 |
KONDENZATOR RJ N | Na dotaz | Zadat poptávku | |
| 740 3 WHR85581 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 743 0 WHR85581 |
C00340262
481945858558 |
Grid air | Na dotaz | Zadat poptávku | |
| 745 0 WHR85581 |
C00341120
481951138642 |
Výparník | Na dotaz | Zadat poptávku | |
| 764 2 WHR85581 |
C00266743
481948028144 |
Filtr chladničky - patrona Náhrada C00495431 |
Na dotaz | Zadat poptávku | |
| 781 7 WHR85581 |
C00333270
481952648307 |
priruba hadice | Na dotaz | Zadat poptávku | |
| 902 5 WHR85581 |
C00498330
481246049337 |
VLOZKA PLAST N | Na dotaz | Zadat poptávku | |
| 903 0 WHR85581 |
C00333338
481953518117 |
Záslepka do dveří chladničky Whirlpool | 4 Kč
€ 0.20 |
||
| 912 0 WHR85581 |
C00336672
481950218525 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR85581 |
C00336664
481250238164 |
Screw | Na dotaz | Zadat poptávku | |
| 912 2 WHR85581 |
C00336669
481950218338 |
Screw | Na dotaz | Zadat poptávku | |
| 965 6 WHR85581 |
C00336023
481946278909 |
Stopper | Na dotaz | Zadat poptávku | |
| 965 8 WHR85581 |
C00498322
481246048943 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 993 9 WHR85581 |
C00341384
481231018782 |
balicek montazni | Na dotaz | Zadat poptávku | |
| 999 WHR85581 |
C00721612 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
