| Komerční kód: | ARZ 908/H/DBLUE |
| Kód 12NC/I.C. kód: | 858690801010 |
| Značka: | WHIRLPOOL |
| Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

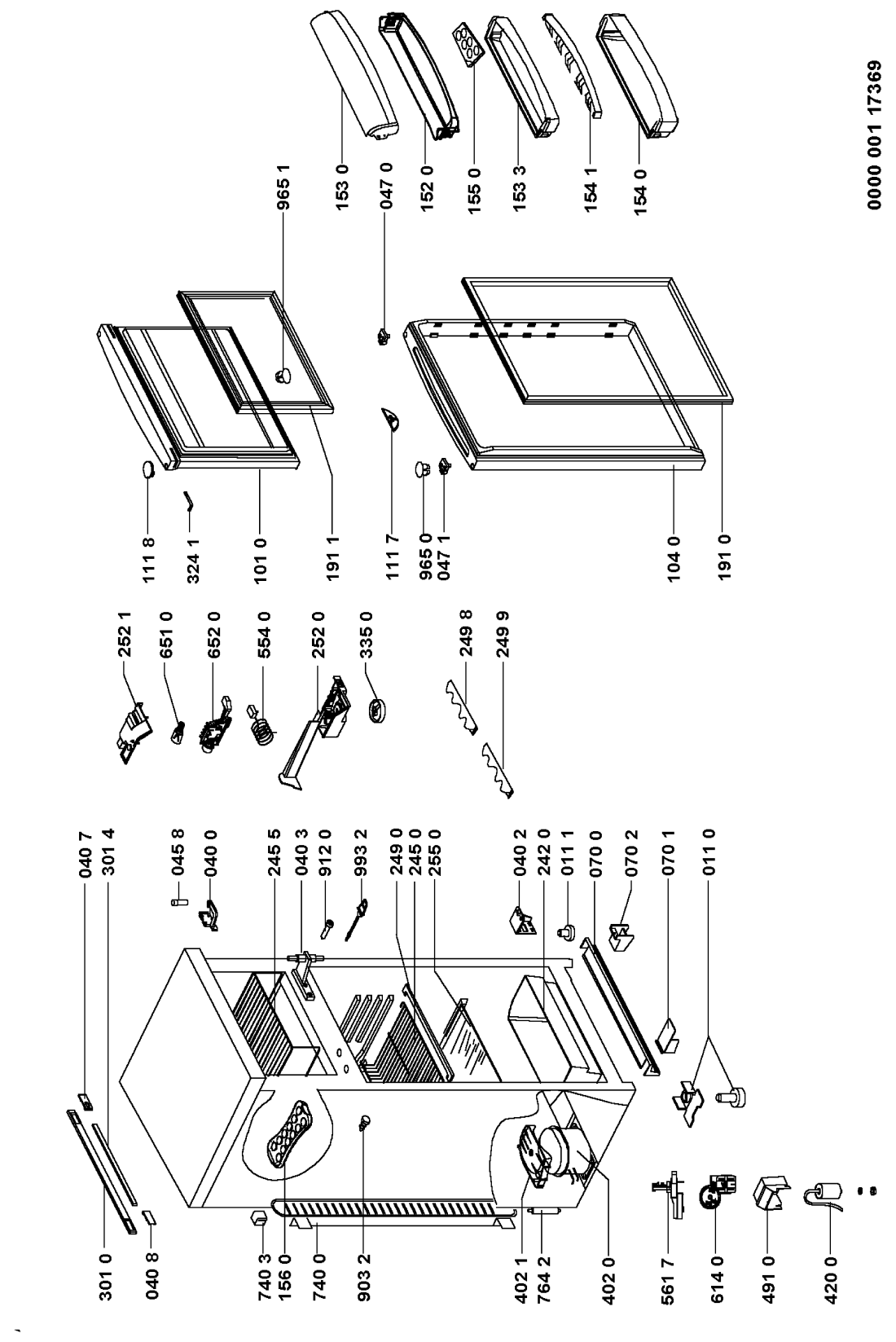

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR114250 |
C00333244
481950518335 |
Foot | Na dotaz | Zadat poptávku | |
| 011 1 WHR114250 |
C00333081
481946248513 |
noha | 63 Kč
€ 2.60 |
||
| 040 0 WHR114250 |
C00329701
481241718916 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 040 2 WHR114250 |
C00332997
481941719642 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 040 3 WHR114250 |
C00329698
481241718826 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 040 7 WHR114250 |
C00606759
481246228071 |
COVER. | Na dotaz | Zadat poptávku | |
| 040 8 WHR114250 |
C00606763
481246258006 |
Insert. | Na dotaz | Zadat poptávku | |
| 045 8 WHR114250 |
C00330687
481246258004 |
Pin hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR114250 |
C00606776
481252648067 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 047 1 WHR114250 |
C00606775
481252648066 |
BUSHING. | Na dotaz | Zadat poptávku | |
| 070 0 WHR114250 |
C00574617
481944269008 |
SOKEL ART901 N | Na dotaz | Zadat poptávku | |
| 070 1 WHR114250 |
C00333065
481946078698 |
Insert | Na dotaz | Zadat poptávku | |
| 070 2 WHR114250 |
C00332946
481940478921 |
drzak soklu | Na dotaz | Zadat poptávku | |
| 101 0 WHR114250 |
C00784357
481241618198 |
Door freezer | Na dotaz | Zadat poptávku | |
| 104 0 WHR114250 |
C00778505
481241618186 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 111 7 WHR114250 |
C00593426
481946078379 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 111 8 WHR114250 |
C00486053
481246279679 |
Handle cover | Na dotaz | Zadat poptávku | |
| 152 0 WHR114250 |
C00319980
481941879726 |
Door,dairy upper | Na dotaz | Zadat poptávku | |
| 153 0 WHR114250 |
C00317537
481944278363 |
Lid ,dairy | Na dotaz | Zadat poptávku | |
| 153 3 WHR114250 |
C00340623
481941879578 |
GALERIE | Na dotaz | Zadat poptávku | |
| 154 0 WHR114250 |
C00313323
481941879576 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 154 1 WHR114250 |
C00318101
481946078513 |
drzak lahvi modry | 797 Kč
€ 32.80 |
||
| 155 0 WHR114250 |
C00339624
481946089533 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 156 0 WHR114250 |
C00375193
481941879788 |
Výrobník ledu "Quick Ice" s urychlenou výrobou ledu | 137 Kč
€ 5.60 |
||
| 191 0 WHR114250 |
C00557565
481946818072 |
NAHRADENE 481246688697 | Na dotaz | Zadat poptávku | |
| 191 1 WHR114250 |
C00557566
481946818077 |
tesneni magneticke | Na dotaz | Zadat poptávku | |
| 242 0 WHR114250 |
C00586880
481941879598 |
ZASUVKA NA OVOCIE A ZELENINU N | Na dotaz | Zadat poptávku | |
| 245 0 WHR114250 |
C00340273
481945868225 |
rost chladnicky | 509 Kč
€ 20.90 |
||
| 245 5 WHR114250 |
C00340272
481945868064 |
rost mraznicky | Na dotaz | Zadat poptávku | |
| 249 0 WHR114250 |
C00592946
481946089535 |
lista kryci rostu | Na dotaz | Zadat poptávku | |
| 249 8 WHR114250 |
C00339647
481944278304 |
drzak lahvi | Na dotaz | Zadat poptávku | |
| 249 9 WHR114250 |
C00339648
481944278305 |
drzak lahvi | Na dotaz | Zadat poptávku | |
| 252 0 WHR114250 |
C00586872
481941878517 |
krabicka termostatu | Na dotaz | Zadat poptávku | |
| 252 1 WHR114250 |
C00555498
481246228113 |
COVER.. | Na dotaz | Zadat poptávku | |
| 255 0 WHR114250 |
C00486822
481946678406 |
kryci deska - plastová | Na dotaz | Zadat poptávku | |
| 301 0 WHR114250 |
C00778506
481245228091 |
Front panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR114250 |
C00778507
481245228089 |
Insert | Na dotaz | Zadat poptávku | |
| 324 1 WHR114250 |
C00778508
481246078945 |
Insert | Na dotaz | Zadat poptávku | |
| 335 0 WHR114250 |
C00487957
481941128769 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 402 0 WHR114250 |
C00555052
481236038612 |
Compressor NBT1114Y.. | Na dotaz | Zadat poptávku | |
| 402 1 WHR114250 |
C00319510
481241878958 |
miska na kondenzat | Na dotaz | Zadat poptávku | |
| 420 0 WHR114250 |
C00342794
481212118202 |
Capacitor 4#F - 450V - 6#m dielectric | Na dotaz | Zadat poptávku | |
| 491 0 WHR114250 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 0 WHR114250 |
C00317260
481927129047 |
termostat A13-0455R | Na dotaz | Zadat poptávku | |
| 561 7 WHR114250 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 614 0 WHR114250 |
C00379189
481228228229 |
Monoblock +AD23FQ10 | Na dotaz | Zadat poptávku | |
| 651 0 WHR114250 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR114250 |
C00339514
481946698567 |
Holder,thermom. f. ATE | Na dotaz | Zadat poptávku | |
| 740 0 WHR114250 |
C00498585
481251148232 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR114250 |
C00333148
481946699109 |
Spacer | Na dotaz | Zadat poptávku | |
| 764 2 WHR114250 |
C00266743
481948028144 |
Filtr chladničky - patrona Náhrada C00495431 |
Na dotaz | Zadat poptávku | |
| 903 2 WHR114250 |
C00606785
481940118905 |
Stopper. | Na dotaz | Zadat poptávku | |
| 912 0 WHR114250 |
C00332066
481250218439 |
Screw M4 X17 | Na dotaz | Zadat poptávku | |
| 965 0 WHR114250 |
C00590869
481946288126 |
KRYTKA ART836STARS N | Na dotaz | Zadat poptávku | |
| 965 1 WHR114250 |
C00593790
481946288168 |
KRYTKA ART876 N | Na dotaz | Zadat poptávku | |
| 993 2 WHR114250 |
C00316841
481969028169 |
Čistič odtokového kanálku chladničky Whirlpool ARG 790/A+, ARG 734/A+, ARG 184701. | 180 Kč
€ 7.40 |
||
| 999 WHR114250 |
C00796678 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
